Motor for window rolling shutters ERA LH 7517

326,93 EUR including 23.00% VAT
Product code: #14838
Manufacturer: Nice
  • mechanical limit switch
  • pipe diameter: 58mm
  • torque: 75Nm
  • speed: 17rot/min
  • manual NHK emergency move
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Motor for window rolling shutters ERA LH 7517

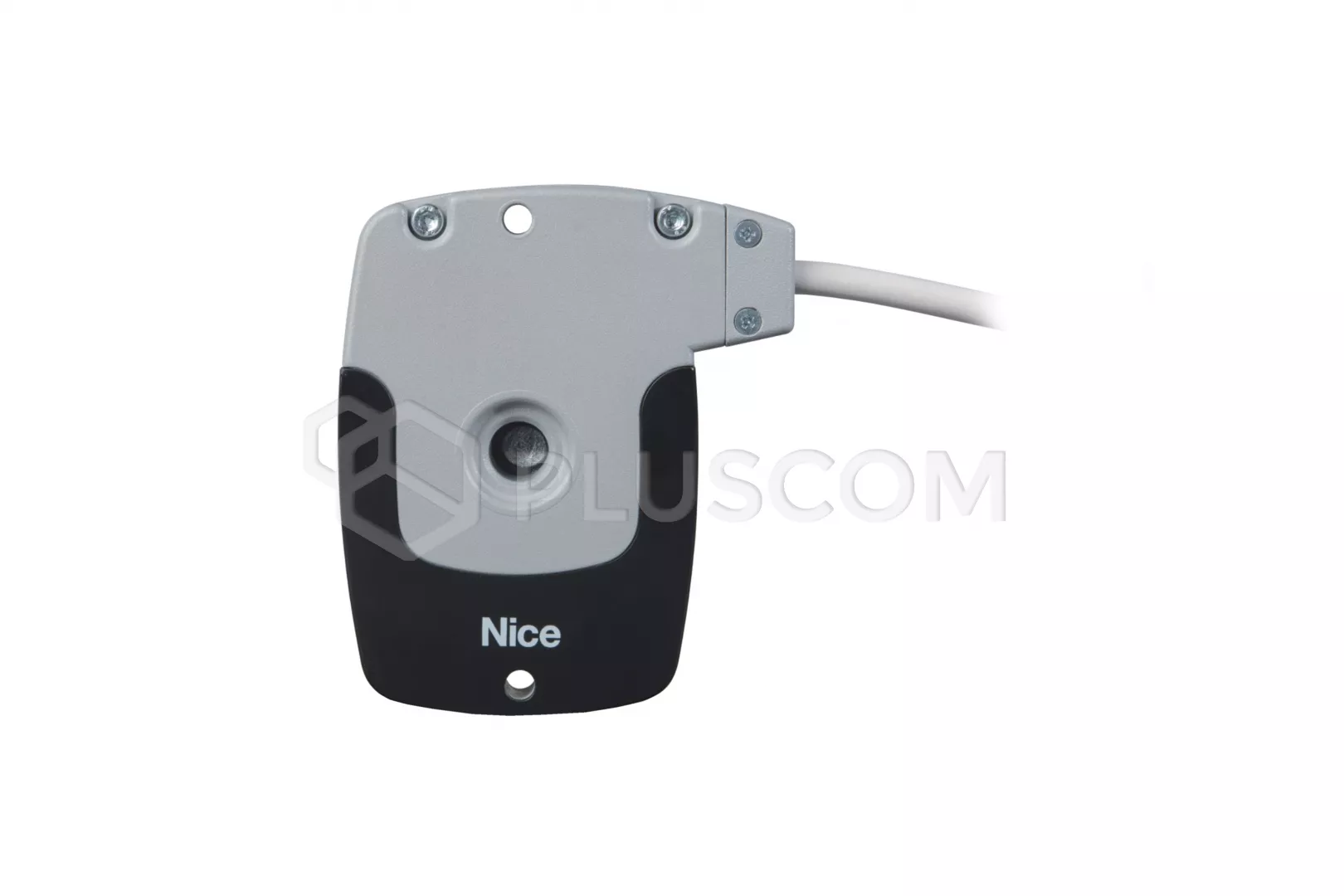

ERA LH 7517 is the ideal engine for roller shutters, awnings and roller doors. Equipped It has a mechanical position limit switch and manual NHK emergency motion. The engine head is made entirely of light alloy. High engine power up With 75Nm of torque, the ERA LH 7517 is versatile engine, solid and quiet, giving the user full comfort. Control the position of the extreme opening and closing is simple and intuitive.

The engine can be wired or wirelessly connected with climate sensors using external control panels.
Low power consumption in STAND-BY mode (less than 0.5 W)
Four-wire cable with a length of 3m.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 420W
  • power consumption: 2A

  • torque: 75Nm
  • speed: 17rot/min
  • number of turns: 28
  • work time: 4min

  • motor weight: 7.34kg

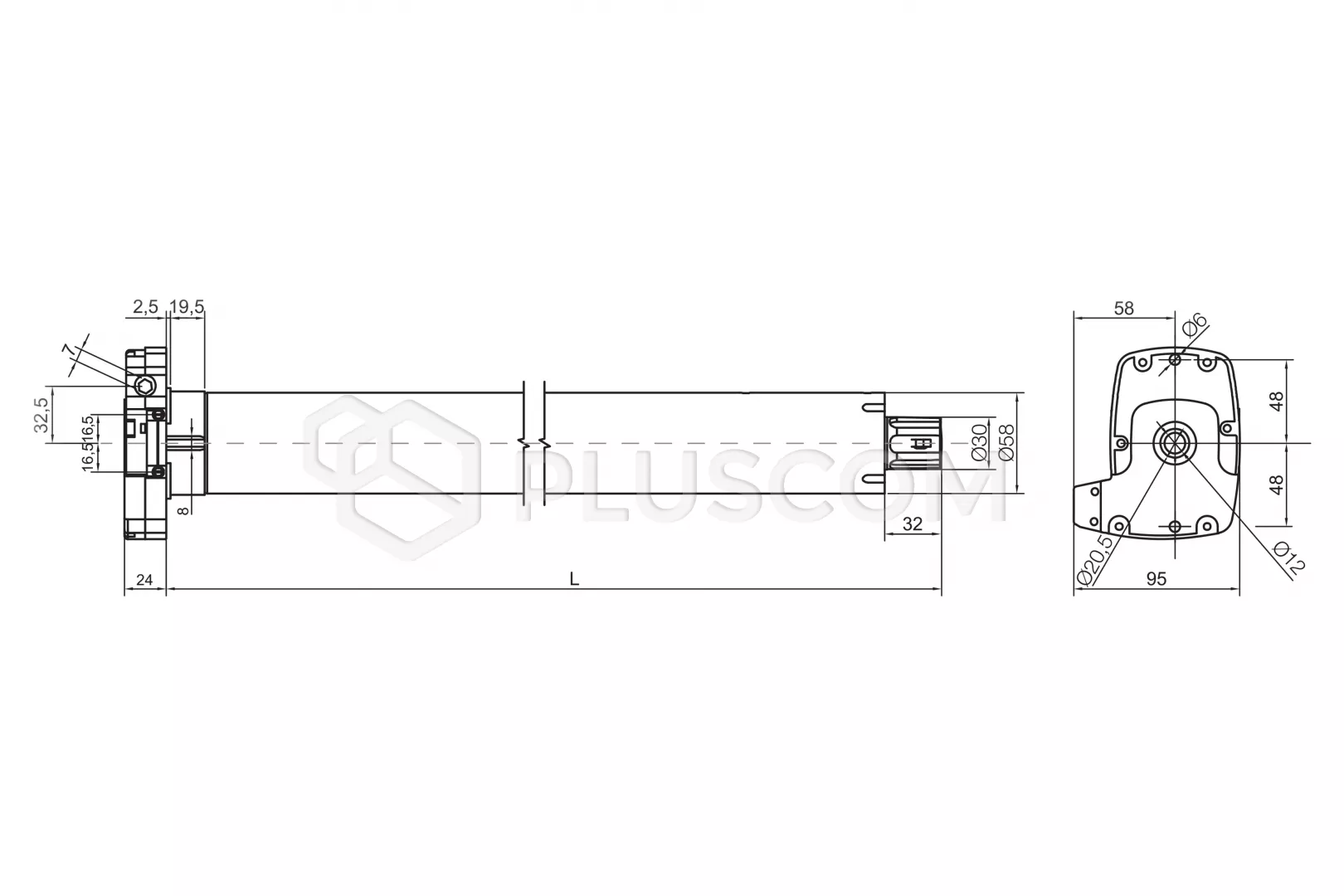

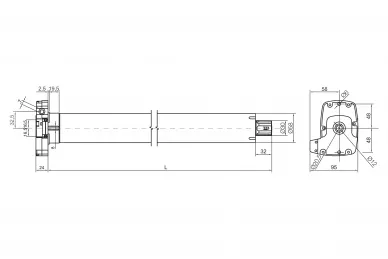

  • length: 832mm
  • IP44
