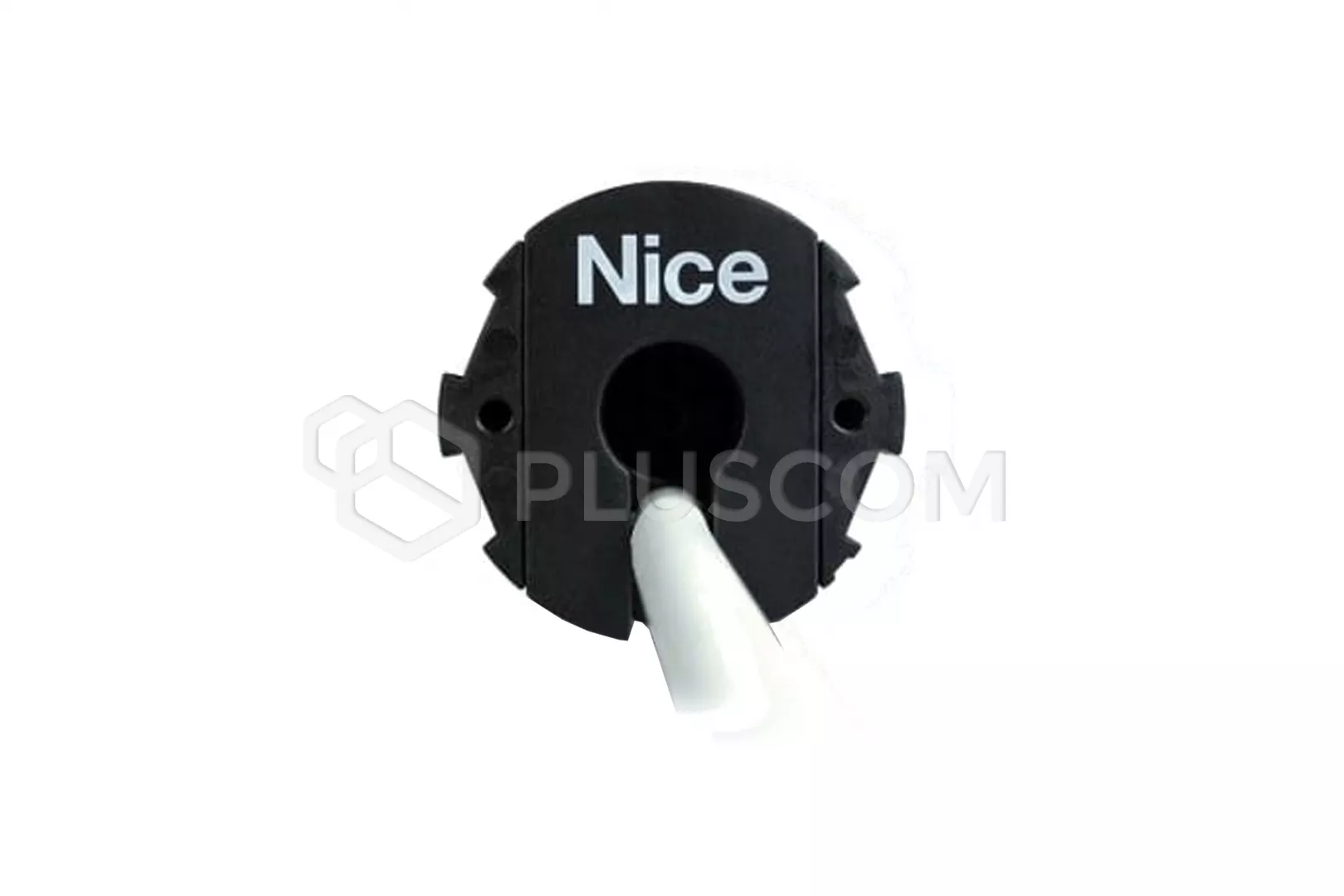

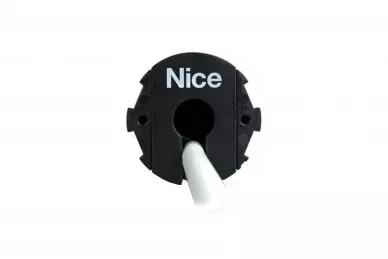

Motor for window rolling shutters ERA FIT MP 817

171,25 EUR including 23.00% VAT
Product code: #14866
Manufacturer: Nice
  • electronic limit switch
  • pipe diameter: 45mm
  • torque: 50Nm
  • speed: 12rot/min
  • built-in radio
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Motor for window rolling shutters ERA FIT MP 817



ERA FIT MP 817 is the ideal engine for external roller shutters. It's electronic limit switch position and built-in radio. The engine makes the system stand out PLUG-AND-PLAY thanks to which programming is unnecessary. Every 120 meters the motor updates its end positions automatically and constantly remembers end positions. It compensates for the elongation or shortening of the structure during using the blind, thereby extending its life.

FUNCTIONS:
  • SMART-MEMO – an exclusive recognition feature at installation blinds, any Nice transmitter as a "test transmitter", no need to load transmitter by the installer. After disconnecting the motor from the power supply, memory the receiver will be cleaned automatically
  • Release function - automatic release function for automation and gentle engine stop (without unnecessary stress on the structure), when the blind reaches the end position
  • ”GO TO POSITION” - simple glider's touch in Nice Era P Vario and Agio transmitters move the blind to the position corresponding to the point of touch of the finger on the slide (in the range 0-100% of the pitch blinds)
  • The "ventilation" position - the function is available after double-clicking the button "down" in the transmitter. This will partially lift the blind allowing ventilation of the room
  • Perfect roller blind motion with variable friction - protective function roller blind against freezing damage, by force control lifting and recognizing an obstacle. When the blind recognizes an obstacle, the motor reverses the movement and raises it halfway up
Thanks to the built-in electronics, no need to use additional control units, we can control many engines connected in parallel.
Short power consumption in STAND-BY mode (less than 0.5 W).
Three-wire cable 2.5 m long.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 120W
  • power consumption: 0.55A

  • torque: 8Nm
  • speed: 17 rot/min
  • max. number of turns: 92
  • work time: 4min
  • lifted weight: 15kg

  • motor weight: 2.15kg
  • length: 426mm
  • IP44
ERA FIT MP models require the use of lock hanger and stopwatches.
