Motor for window rolling shutters ERA FIT MP 1517

180,50 EUR including 23.00% VAT
Product code: #14883
Manufacturer: Nice
  • electronic limit switch
  • pipe diameter: 45mm
  • torque: 15Nm
  • speed: 17rot/min
  • obstacle detection, PLUG AND PLAY system, SMART_MEMO function
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

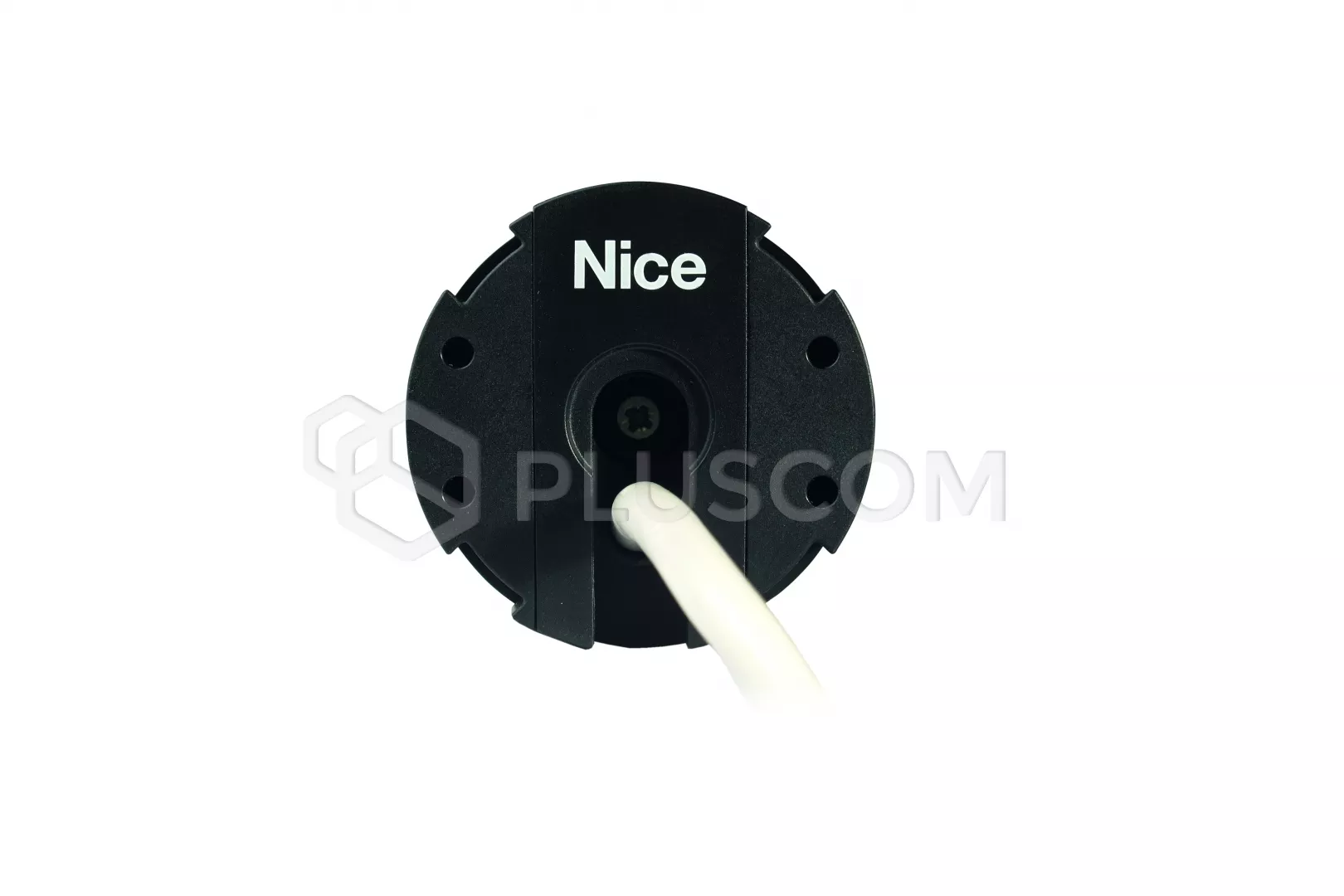

Motor for window rolling shutters ERA FIT MP 1517



The ERA FIT MP 1517 tubular motor is the ideal roller motor for roller shutters. Has electronic limit switch, motion detection and is equipped with complete and intuitive software. The PLUG AND PLAY system used makes the installation very simple because it is not we must program the extreme positions.

The intelligent encoder technology guarantees us millimeter precision, reliability and preservation of terminal settings over time, programmed force or other settings.

In automatic and semi-automatic mode, the engine retains maximum precision when locking the blind in end positions lifting and lowering thanks to dynamic and automatic updating position limiters.

SMART-MEMO – an exclusive recognition feature at installation blinds, any Nice transmitter as a "test transmitter", no need to load transmitter by the installer. After disconnecting the motor from the power supply, memory the receiver will be cleaned automatically

The control panel gives the possibility to connect motors and controls in parallel one point without the need for additional control devices.
Low power consumption in STAND-BY mode (less than 0.5 W).
Fhree-wire 2.5m cable.

TECHNICAL PARAMETERS:
  • power: 230V AC
  • power: 170W
  • power consumption: 0.75A

  • torque: 15Nm
  • speed: 17rot/min
  • number of turns: 92
  • work time: 4min
  • Lifted weight: 28kg

  • motor weight: 2.45kg

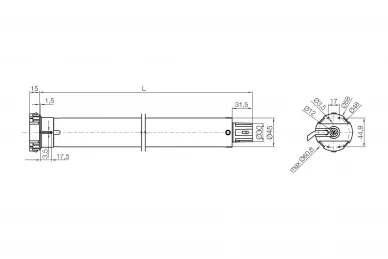

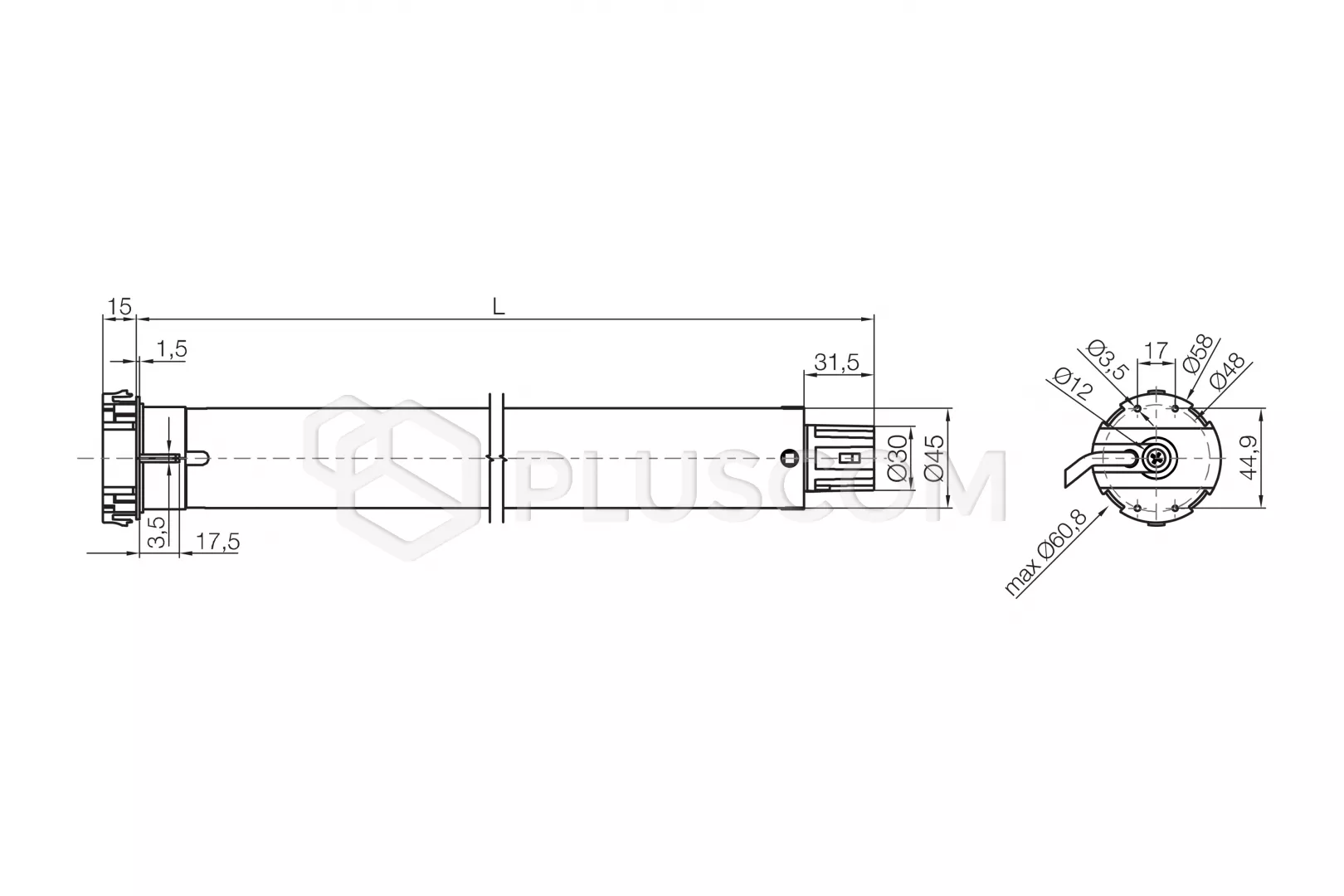

  • length: 451mm
  • IP44
