Motor for window rolling shutters ERA FIT MHT 1517

Motor for window rolling shutters ERA FIT MHT 1517

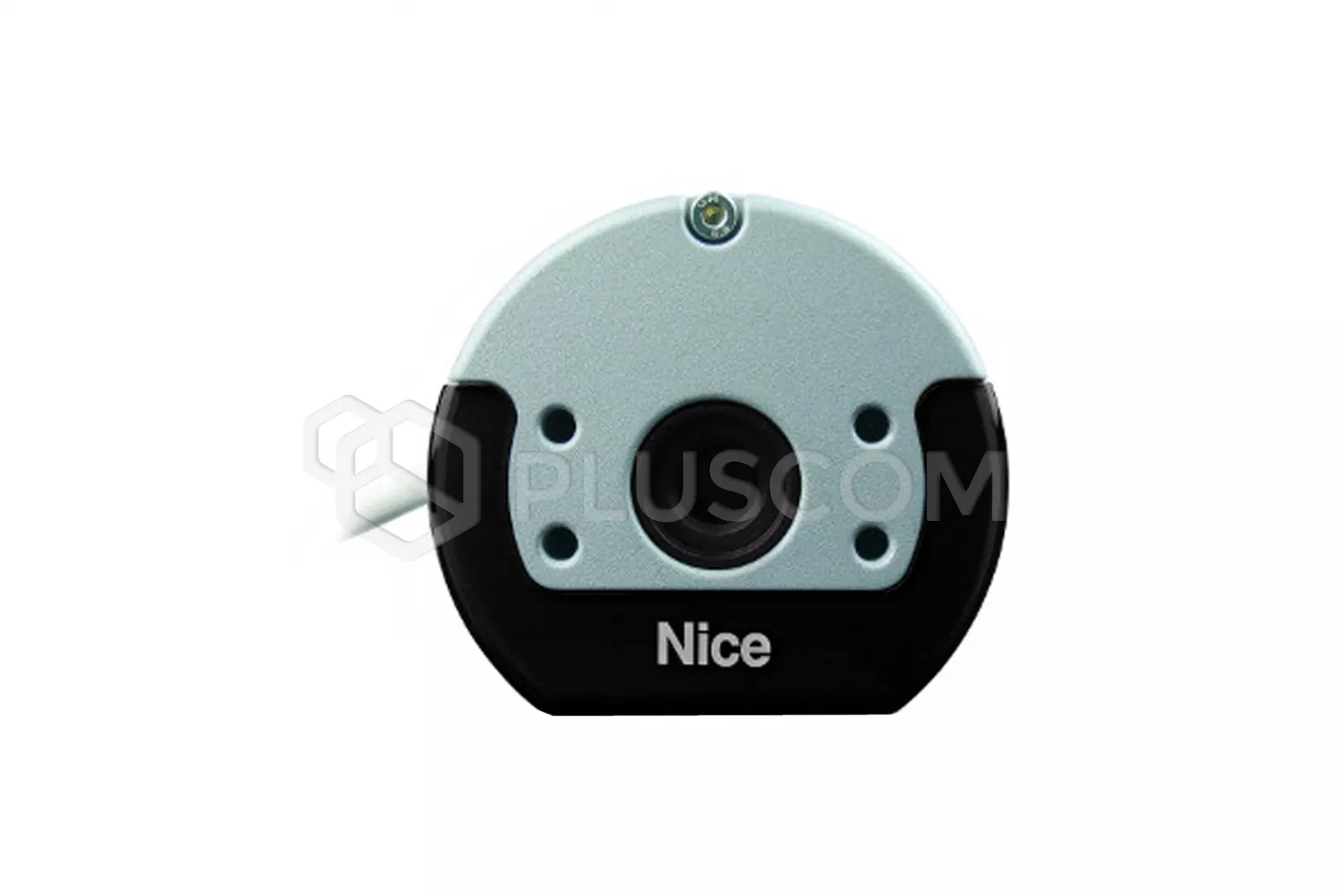

The ERA FIT MHT 1517 engine is the ideal solution for awnings. It is equipped with electronic limit switch, built-in FLOR radio with manual emergency traffic NHK. The motor head is made of a cast (aluminum alloy) a its dimensions have been reduced (head size 85mm), which allows it to be used engine in small window boxes.

The ERA FIT MHT 1517 is a dedicated holder (525.10050) by means of which engine assembly is very easy. The progamination of the end positions is simple and intuitive, using the remote control in semi-automatic and manual mode. IN the use of NHK emergency traffic in automatic mode.

ADVANTAGES AND FUNCTIONS:

• Safe and fast programming - thanks to this function in if incorrect parameters are entered, they can be quickly corrected without the need to restore factory settings and start the procedure programming from the beginning
• Possibility to block the memory from accidental deletion
• possibility of programming several intermediate positions of the awning
• Maximum precision of programmed settings thanks to continuous analyzing settings and material tension. Encoder technology guarantees that the material tension is always optimal and unchangeable
• FRT - folds the canvas to the programmed position after fully open awnings. This eliminates unsightly loosening of the material
• RDC - torque reduction system just before closing, thus preventing deformation and drawing the material

Programming the transmitter in 2 modes:

• Mode I (standard, 3 button UP DOWN)
• Mode II (STEP BY STEP, using just one button)

Memory for up to 30 pilots.
Low power consumption in STAND-BY mode (less than 0.5 W).
three-wire 2.5m cable.
The possibility of easy programming of radio climate sensors.

TECHNICAL PARAMETERS:

• power: 230V AC
• power: 170W
• power consumption: 0.75A
•

• torque: 15Nm
• speed: 17rot/min
• number of turns: 92
• work time: 4min
•

• motor weight: 3.35kg

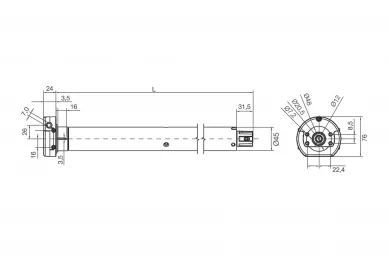

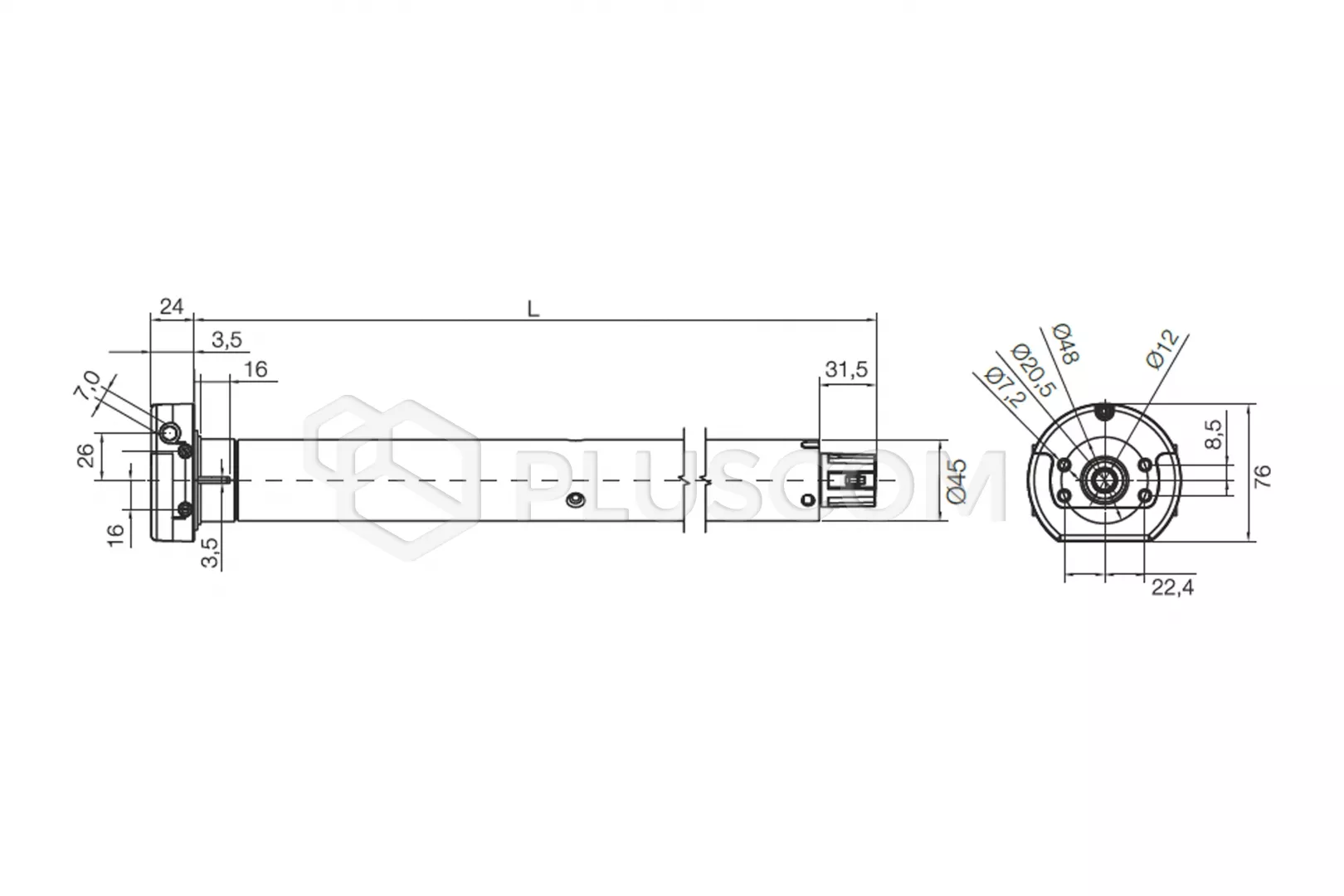

• length: 706mm
• IP44
