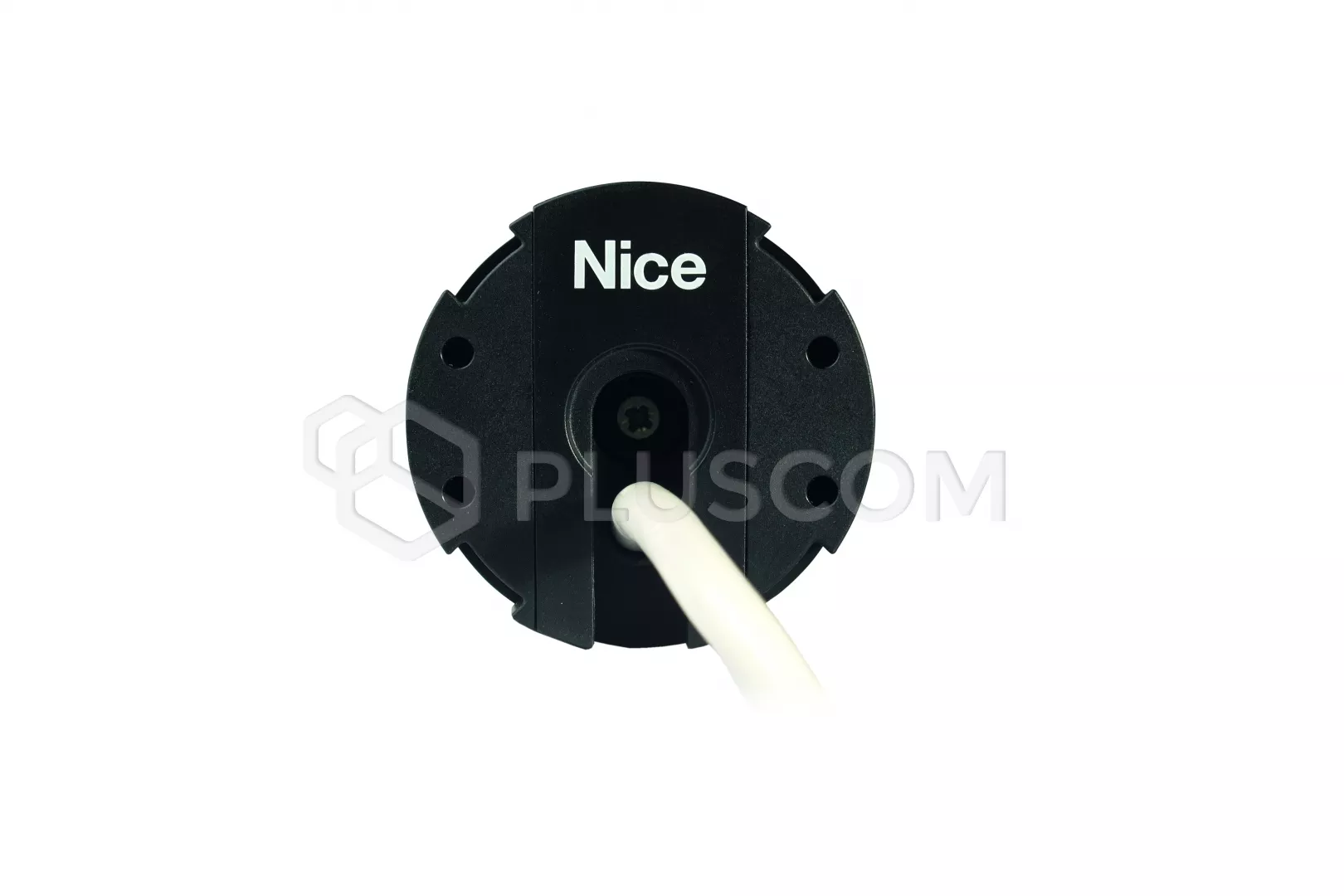

Motor for window rolling shutters ERA FIT M 1517

Motor for window rolling shutters ERA FIT M 1517

ERA FIT M 1517 is an ideal motor for outside blinds and awnings. It's electronic position limit switch and built-in radio and manual end position adjustment. Convenient remote adjustment of end positions with manual or semi-automatic transmitter (for blinds recommended there is only manual programming).

FUNCTIONS.:

• RDC - The torque reduction system provides a smooth grip to prevent overloading fabric after reaching the final position
• FRT - pulls the awning fabric completely out of the programmable amount to avoid unsightly hanging
• Fast and safe level programming - thanks to this function, the setting provides several options, and if it is selected incorrectly, programming will start again at the previous level without having to reprogram the previous settings
• Connection to climatic sensors - via radio with user-friendly programming

Thanks to the built-in electronics, no need to use additional control units, we can control many engines connected in parallel.
Low power consumption in STAND-BY mode (less than 0.5 W).
Trzyprzewodowy kabel o długości 2.5m.

TECHNICAL PARAMETERS:

• power: 230V AC
• power: 170W
• power consumption: 0.75A
•

• torque: 15Nm
• speed: 17 rot/min
• max. number of turns: 92
• work time: 4min
• lifted weight: 28kg
•

• motor weight: 2.45kg

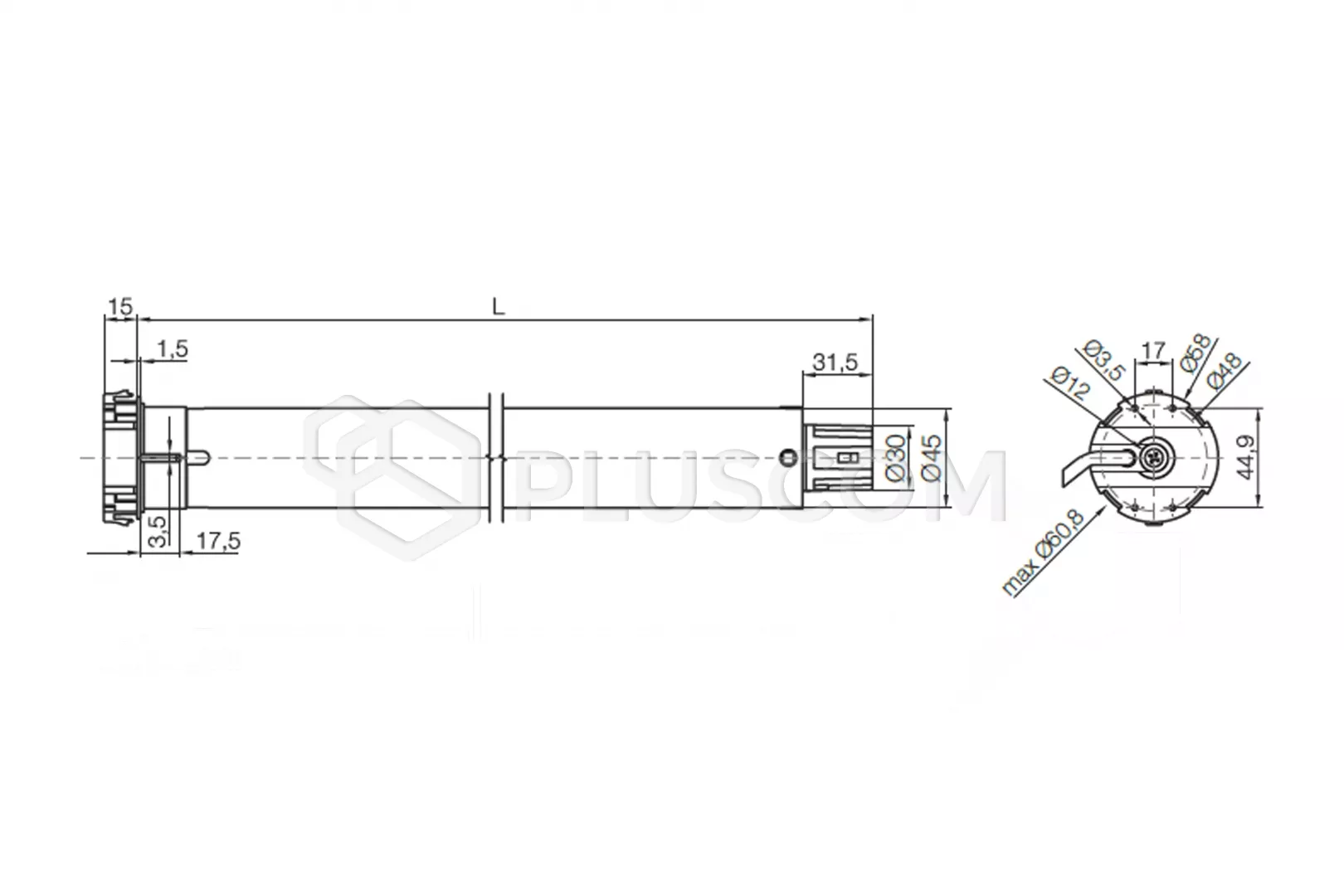

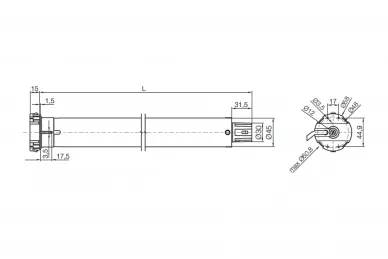

• length: 451mm
• IP44
