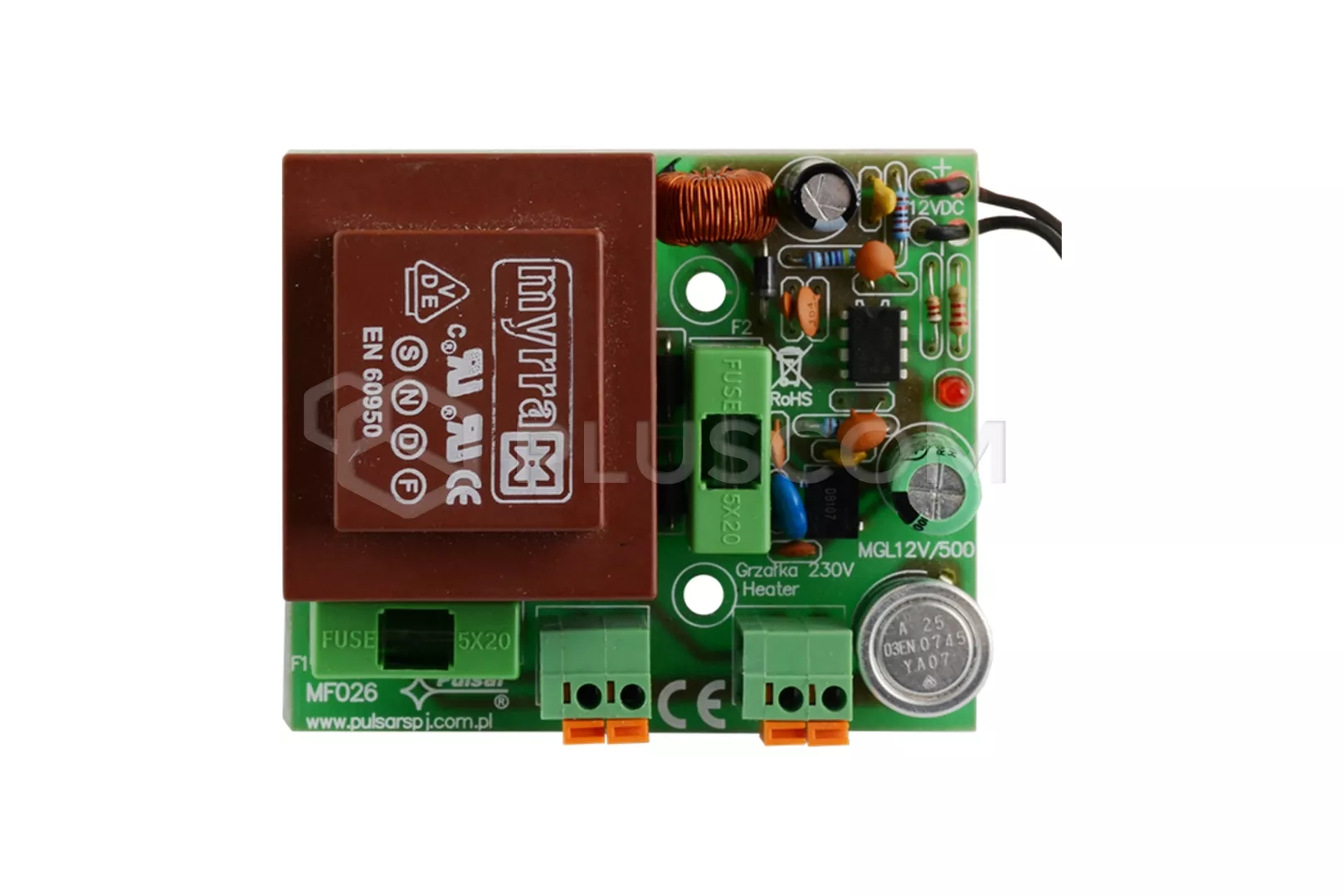

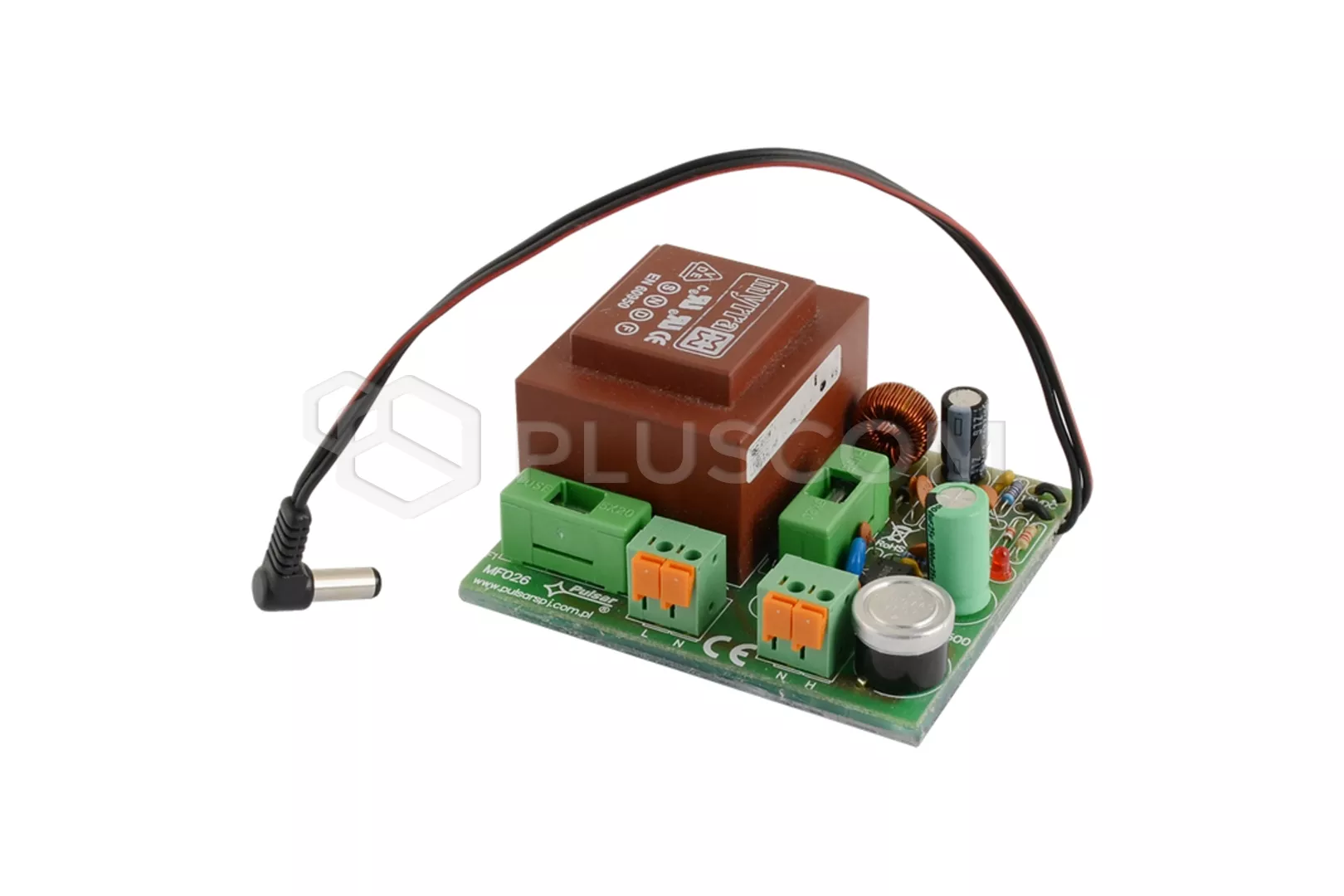

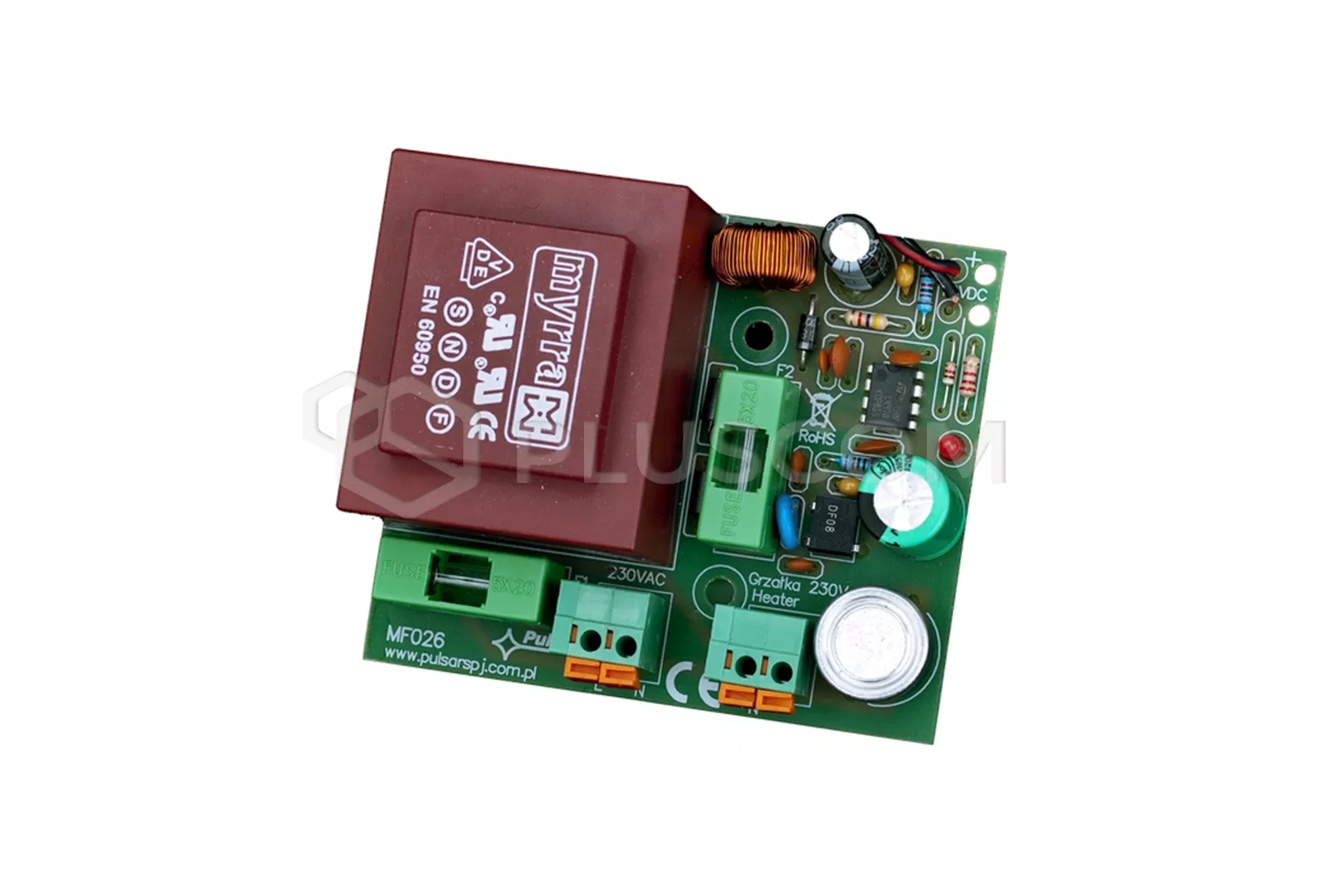

Modular power supply unit for CCTV Pulsar AWZ522

3,05 EUR including 23.00% VAT
In stock. Ships today!
Product code: #10648
Manufacturer: Pulsar
  • Output voltage: DC 12V
  • Output current: 0.5A
  • Linear regulator
  • Mounting in a CCTV camera enclosure
  • Thermostat-operated heater
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Modular power supply unit for CCTV Pulsar AWZ522

  • input voltage: 230V AC
  • output voltage: DC 12V
  • PSU module’s power 6 W max.
  • ripple voltage 20mV p-p max.
  • Heater’s circuit specifications:
    • mains supply: 230V/AC (-15%/+10%)
    • output current: 0,4A max.
    • on/off temperature of the HEATER output (thermostat): ton=15°C, toff=25°C (+/- 4°C)
  • protection:
    • short-circuit protection SCP
    • overload protection OLP
  • LED indication
  • dimensions: 70x83x42mm
  • weight: 0,4kg
Modular power supply unit for CCTV Pulsar AWZ522

Modular power supply unit for CCTV Pulsar AWZ522

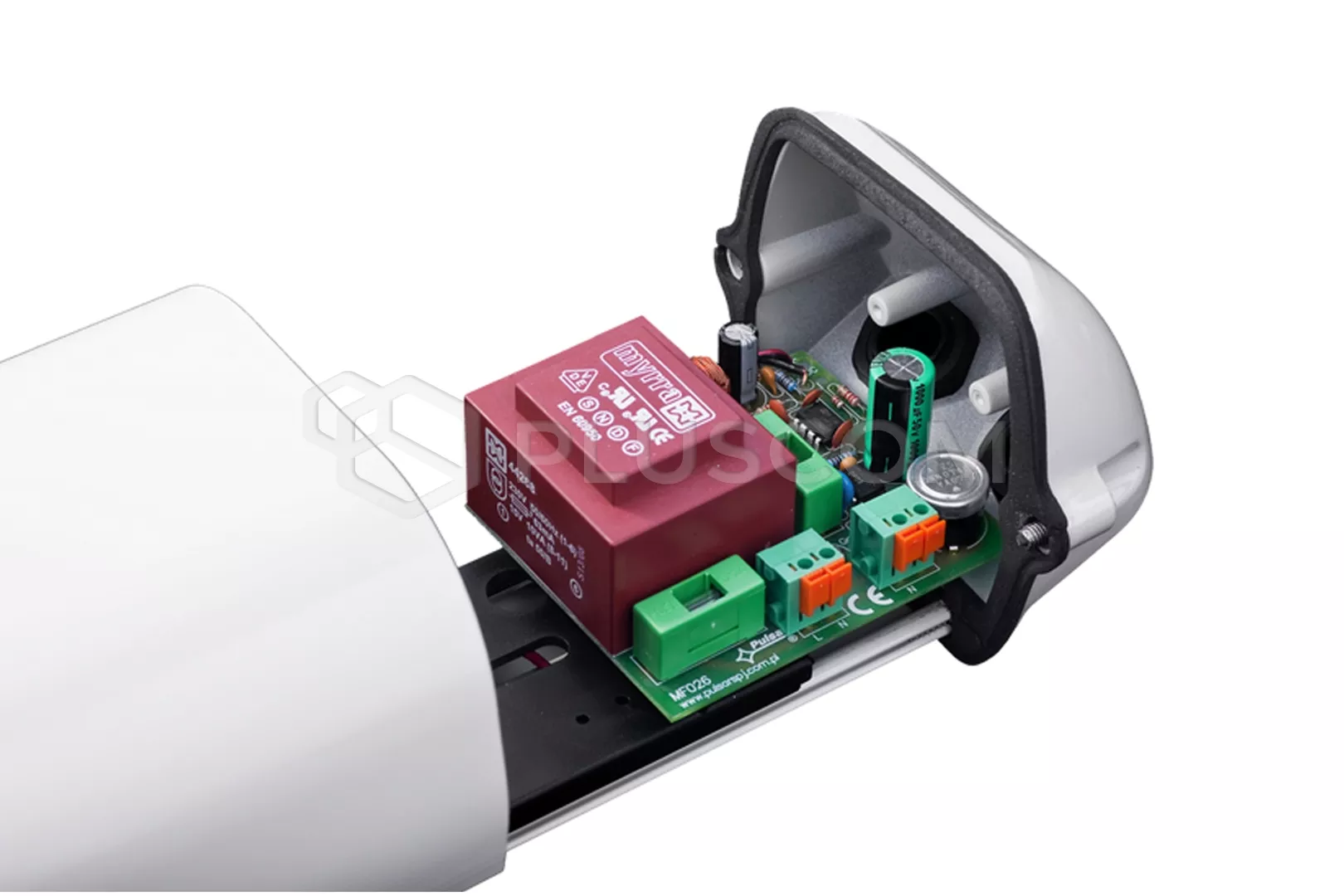

The AWZ522 PSU module is intended for supplying devices that require voltage of 12V DC. The
module is designed as a supplying component in CCTV systems. It is intended for camcorders
mounted in external enclosures, series: GL606, THxx, TSHxx and others that fit the A-A mounting
holes and the dimensions.
The module has two outputs to deliver voltages:
  • 12VDC/0,5A for supplying the CCTV camera
  • 230V/AC/0,4A max. for supplying the enclosure’s heater
(the heater’s circuit is automatically switched on by a bi-metallic thermostat: ton=15°C, toff=25°C (+/- 4°C).
