Mean Well RSP-500-15 Caged power supplies

151,63 EUR including 22.00% VAT
Product code: #11233
Manufacturer: Pulsar
  • Output voltage: DC 15V
  • Rated current: 33,4A
  • Cooling with a built-in fan
  • Active function PFC
  • Low profile housing
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Mean Well RSP-150-15 Caged power supplies Mean Well RSP-500-48 Caged power supplies Mean Well RSP-1000-48 Caged power supplies Pulsar RSP-200-24 RSP 24V/200W/8,4A enclosed power supply unit Pulsar RSP-1000-12 RSP 12V/1000W/60A enclosed power supply unit Pulsar RSP-320-4 RSP 4V/320W/60A enclosed power supply unit Mean Well RSP-200-13,5 Caged power supplies Pulsar RSP-2000-48 RSP 48V/2000W/42A enclosed power supply unit Mean Well RSP-1000-27 Caged power supplies Pulsar RSP-320-36 RSP 36V/320W/8,9A enclosed power supply unit

Switching mode power supply MEAN WELL RSP-500-15

  • output voltage: DC 15V (adjustable in the range: 13,5-18V)
  • current: 33,4A
  • power: 501W
  • input voltage: 85-264V AC
  • dimensions: 230x127x40,5mm
  • weight: 1,3kg

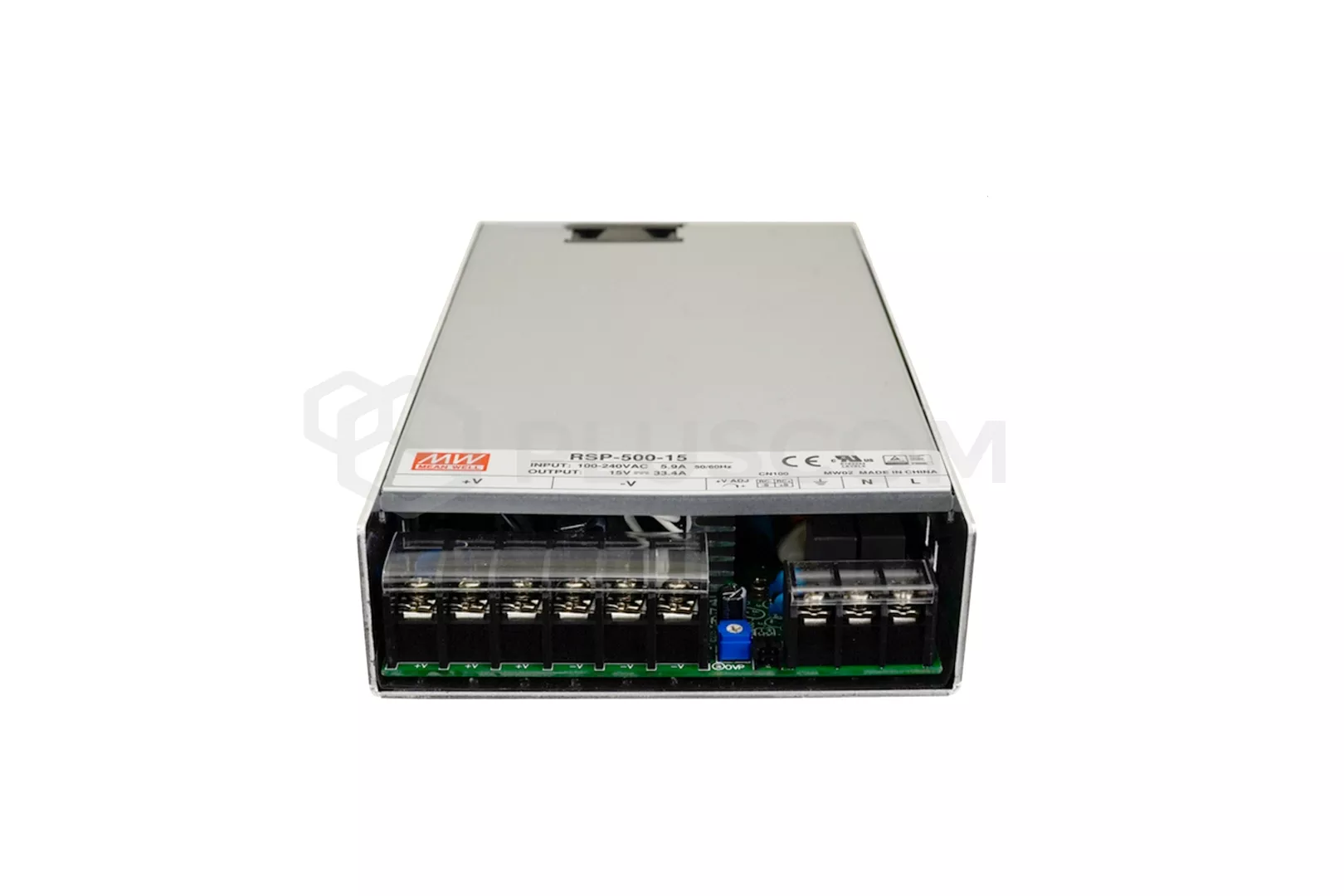

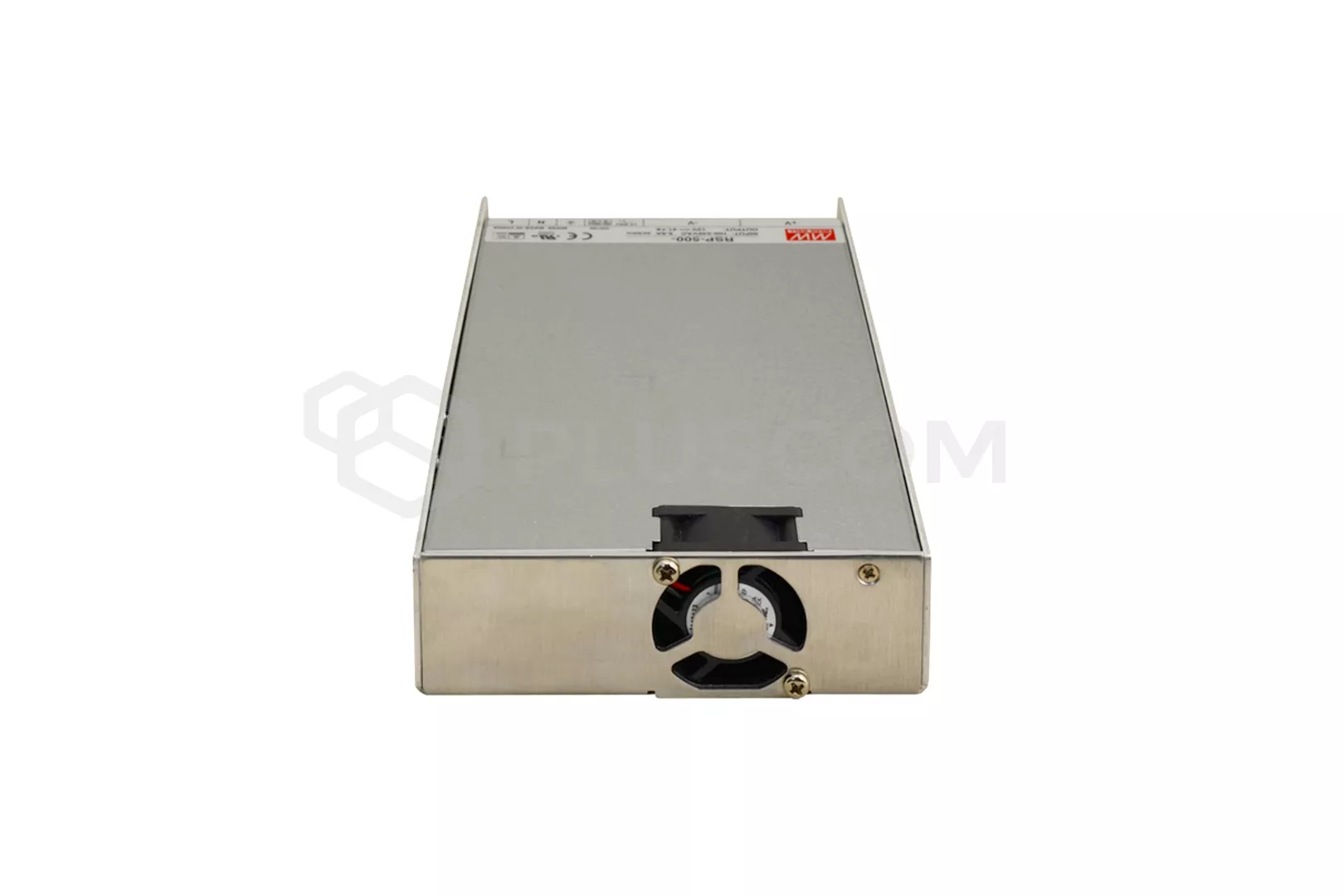

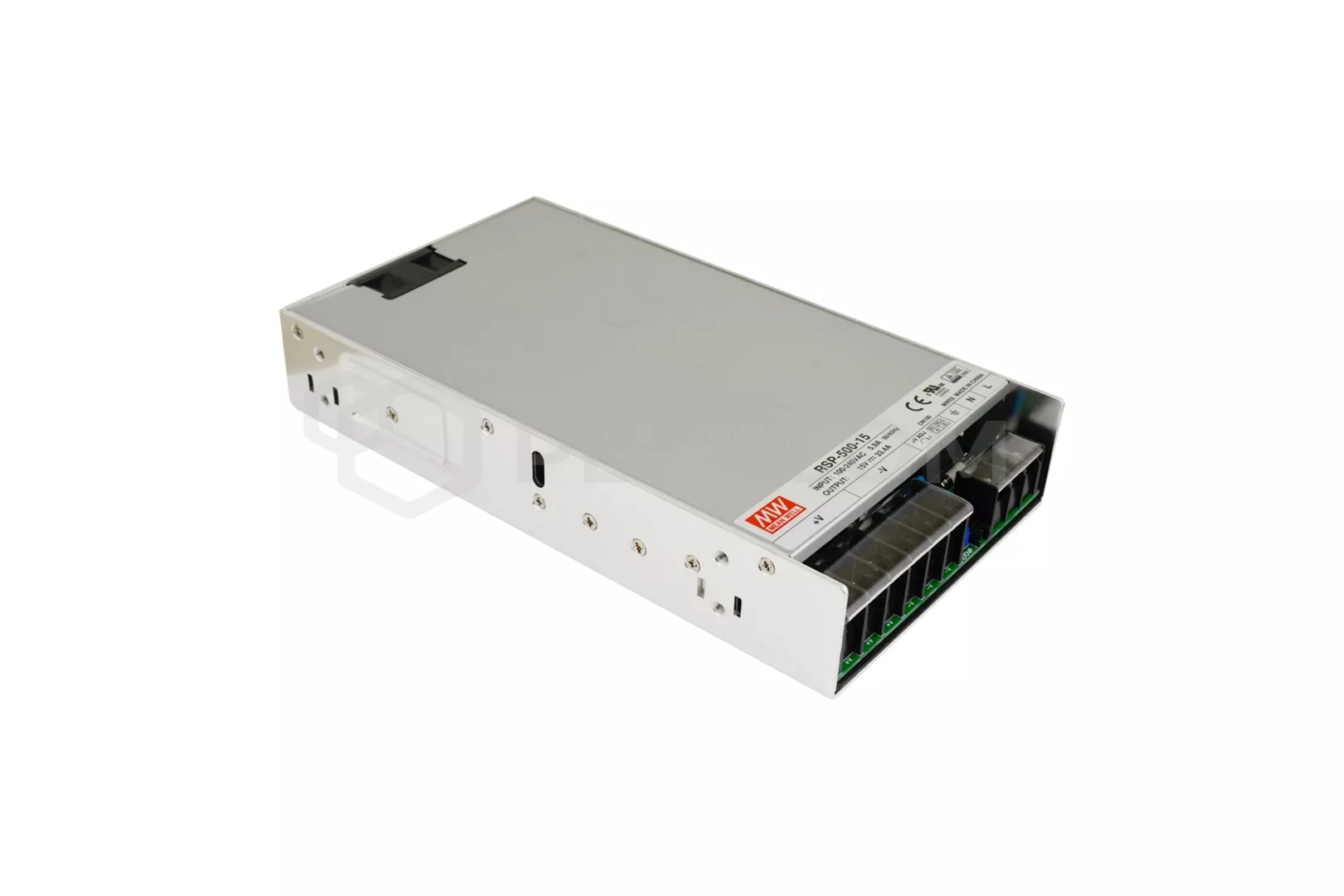

Mean Well RSP-500-15

Mean Well RSP-500-15

Mean Well RSP-500-15

Mean Well RSP-500-15


Modular switching power supply Mean Well RSP-500-15 is designed for use in harsh industrial environments. The construction of the power supply is resistant to shocks and can operate over a wide temperature range. Cooling  by forced air circulation, using a fan.
The low-profile housing has a height of 40,5mm.

Key features of the power supply
  • wide input voltage range
  • construction can withstand vibration and shock
  • cooling with a built-in fan
  • working temperature range: -30°C...70°C
  • Protection:
    • short circuit
    • overload
    • over voltage
    • thermal protection
Download
Data sheet 1.34 MB
Declaration CE 0.1 MB
