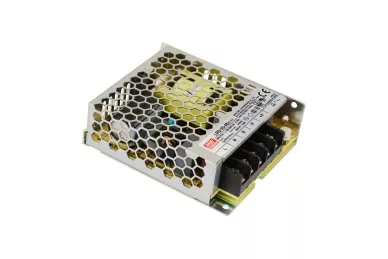

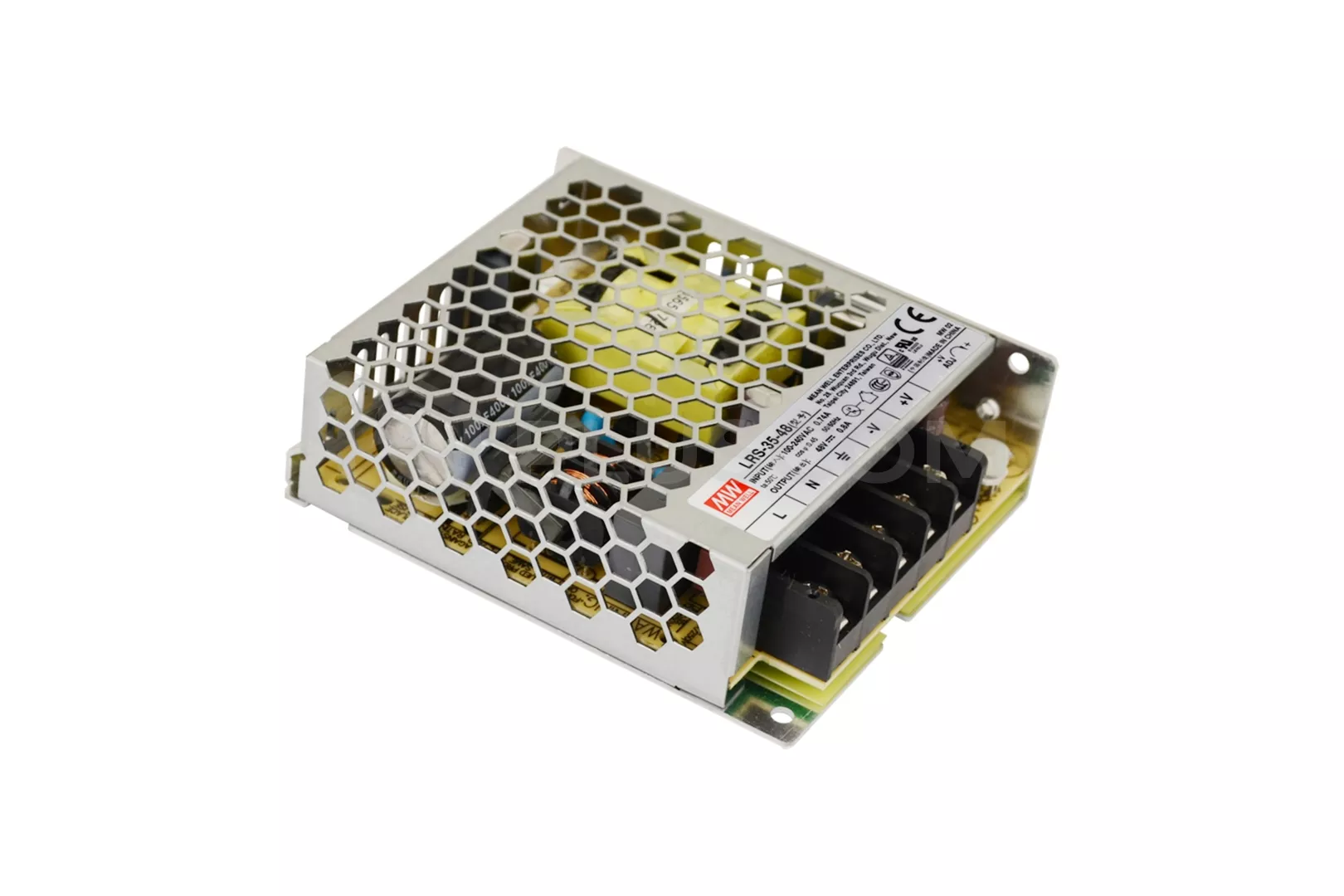

Mean Well LRS-35-48 Switching power supply

18,84 EUR including 22.00% VAT
Product code: #10864
Manufacturer: Pulsar
  • Output voltage: DC 48V
  • Rated current: 0,8A
  • Passive cooling
  • Low profile housing

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Mean Well LRS-50-12 Switching power supply Mean Well LRS-35-12 Switching power supply Mean Well LRS-75-24 Switching power supply Mean Well LRS-50-24 Switching power supply Mean Well LRS-100-3.3 Enclosed power supply unit Mean Well LRS-100-48 Switching power supply Mean Well LRS-100-12 Switching power supply Pulsar LRS-50-3,3 LRS 3,3V/50W/10A enclosed power supply unit Mean Well LRS-100-15 Enclosed power supply unit Pulsar LRS-50-15 LRS 15V/50W/3,4A enclosed power supply unit

Switching mode power supply MEAN WELL LRS-35-48

  • output voltage: DC 48V (adjustable in the range: 43.2 - 52,8V)
  • current: 0,8A
  • power: 38,4W
  • input voltage: 85-264V AC, DC 120-373V
  • dimensions: 99x82x30(h)mm
  • weight: 0,23kg
Modular switching power supply Mean Well LRS-35-48 is designed for use in harsh industrial environments. The construction of the power supply is resistant to shocks and can operate over a wide temperature range. Cooling is free air flow. The low-profile housing has a height of 30mm.

Mean Well LRS-35-48 Switching power supply

Mean Well LRS-35-48 Switching power supply



Key features of the power supply
  • wide input voltage range
  • construction can withstand vibration and shock
  • passive cooling
  • low power consumption unloaded PSU <0.2W
  • working temperature range: -30°C...70°C
  • protection:
    • overload
    • over voltage
    • over short circuit
  • LED indicator for power on

Download
Datasheet 0.1 MB
CE Declaration 0.17 MB
