Mean Well LRS-150F-36 Switching power supply

46,09 EUR including 23.00% VAT
Product code: #7275
  • Output voltage: DC 36V
  • Rated current: 4,3A
  • Low profile housing, passive cooling

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

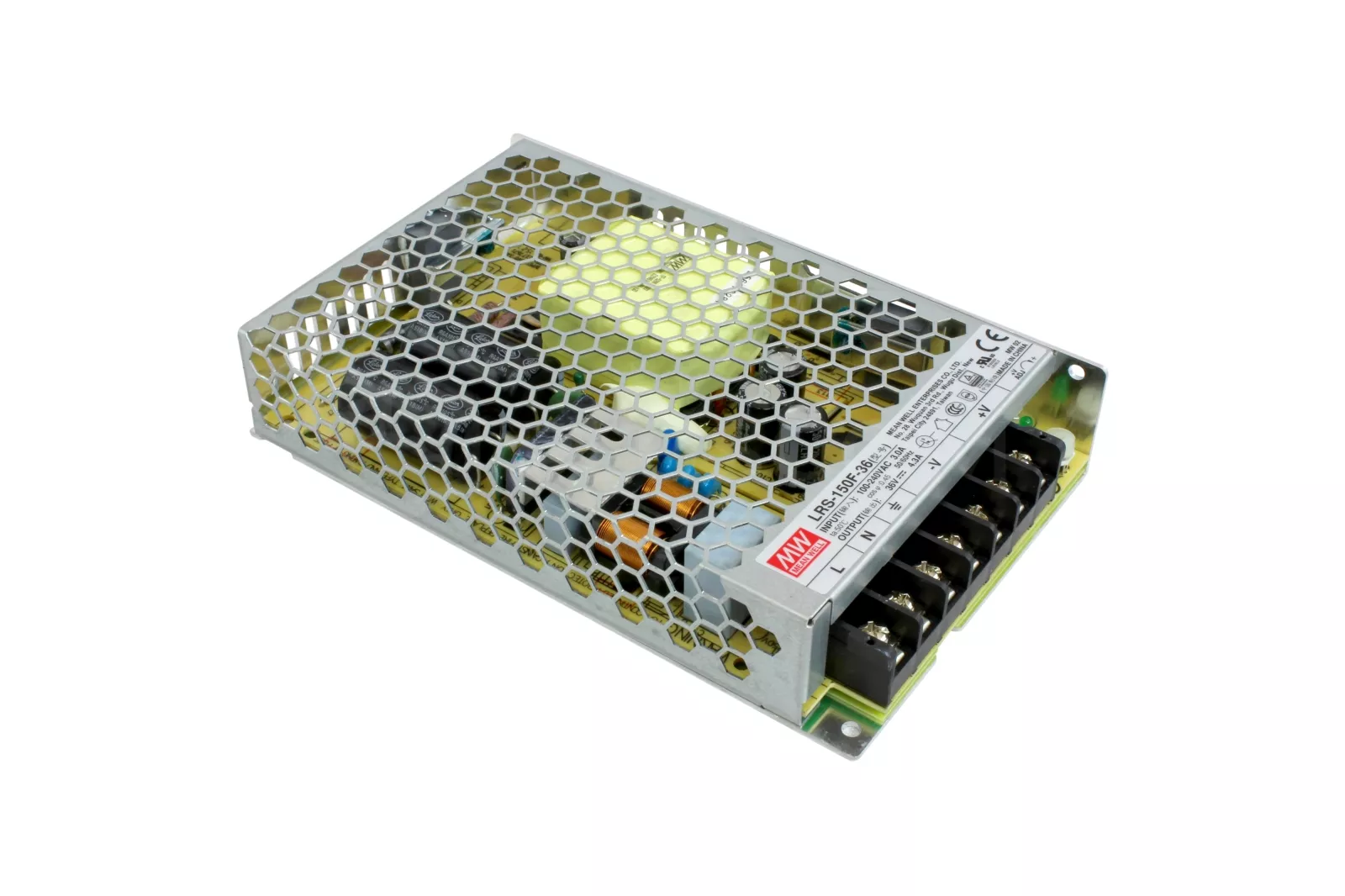

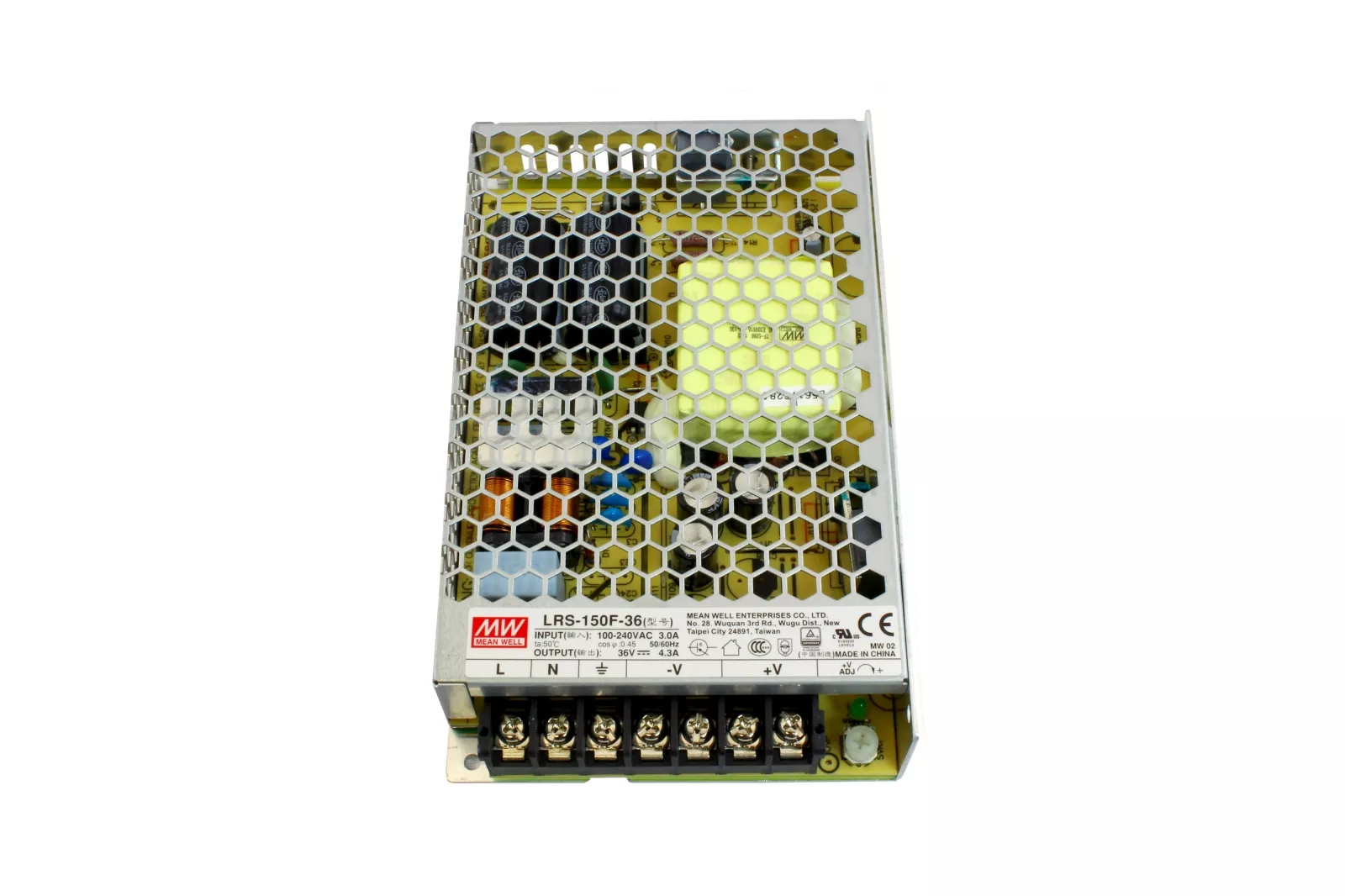

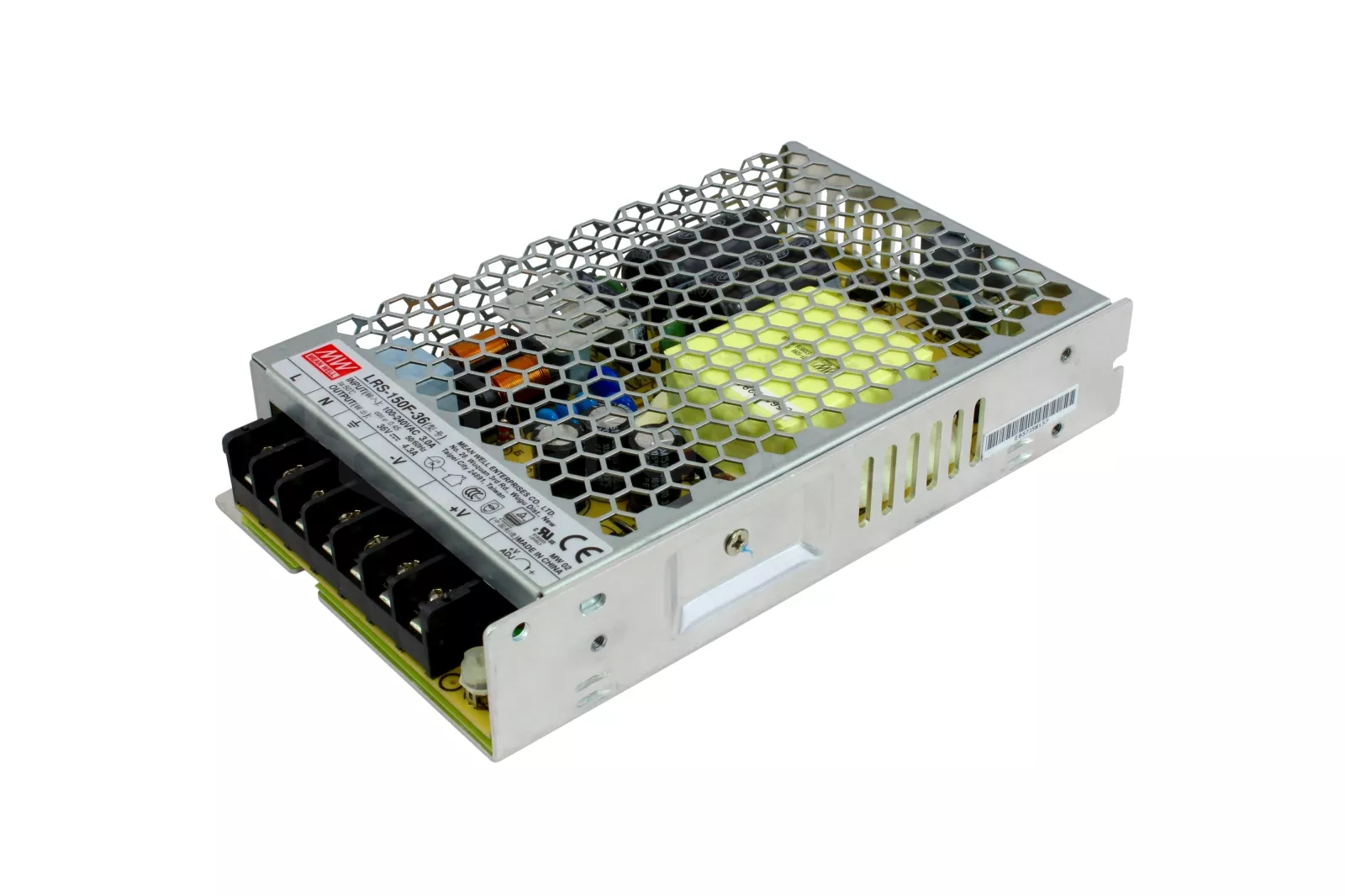

Switching mode power supply MEAN WELL LRS-150 F-36
  • output voltage: DC 36V (adjustable in the range: 32.4 - 39,6V)
  • current: 4,3A
  • power: 154,8W
  • input voltage: 85-264V AC, DC 120-370V
  • dimensions: 159x97x30mm
  • weight: 0,48kg
Mean Well LRS-150F-36 Switching power supply

Mean Well LRS-150F-36 Switching power supply


Modular switching power supply Mean Well LRS-150F-36 is designed for use in harsh industrial environments. The construction of the power supply is resistant to shocks and can operate over a wide temperature range. Cooling is free air flow. The low-profile housing has a height of 30mm.

Key features of the power supply
  • wide input voltage range
  • construction can withstand vibration and shock
  • passive cooling
  • low power consumption unloaded PSU <0.5W
  • working temperature range: -30°C...70°C
  • Protection:
    • short circuit
    • overload
    • over voltage
    • over temperature
  • LED indicator for power on


Download
Product Card 0.1 MB
