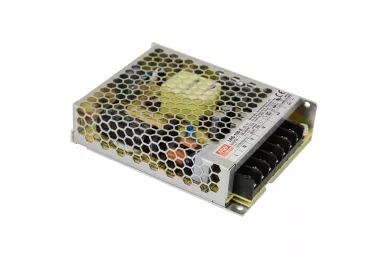

Mean Well LRS-100-5 Enclosed power supply unit

30,68 EUR including 20.00% VAT
Product code: #22660
Manufacturer: Pulsar
  • Output voltage: DC 5V
  • Rated current: 18A
  • Passive cooling
  • Low profile housing 1U
  • LED optical indication
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Mean Well LRS-50-12 Switching power supply Mean Well LRS-35-12 Switching power supply Mean Well LRS-75-24 Switching power supply Mean Well LRS-50-24 Switching power supply Mean Well LRS-100-48 Switching power supply Mean Well LRS-100-3.3 Enclosed power supply unit Pulsar LRS-75-36 LRS 36V/75W/2,1A enclosed power supply unit Mean Well LRS-150-15 Enclosed power supply unit Pulsar LRS-75-15 LRS 15V/75W/5A enclosed power supply unit Mean Well LRS-100-36 Enclosed power supply unit

Enclosed power supply unit MEAN WELL LRS-100-5


Modular switching power supply Mean Well LRS-100-5 is designed for use in harsh industrial environments. The construction of the power supply is resistant to shocks and can operate over a wide temperature range. Cooling is free air flow.
The low-profile housing has a height of 30mm.

Key features of the power supply
  • wide input voltage range
  • construction can withstand vibration and shock
  • passive cooling
  • low power consumption unloaded PSU <0.3W
  • working temperature range: -30°C...70°C
  • protection:
    • overload
    • over voltage
  • LED indicator for power on

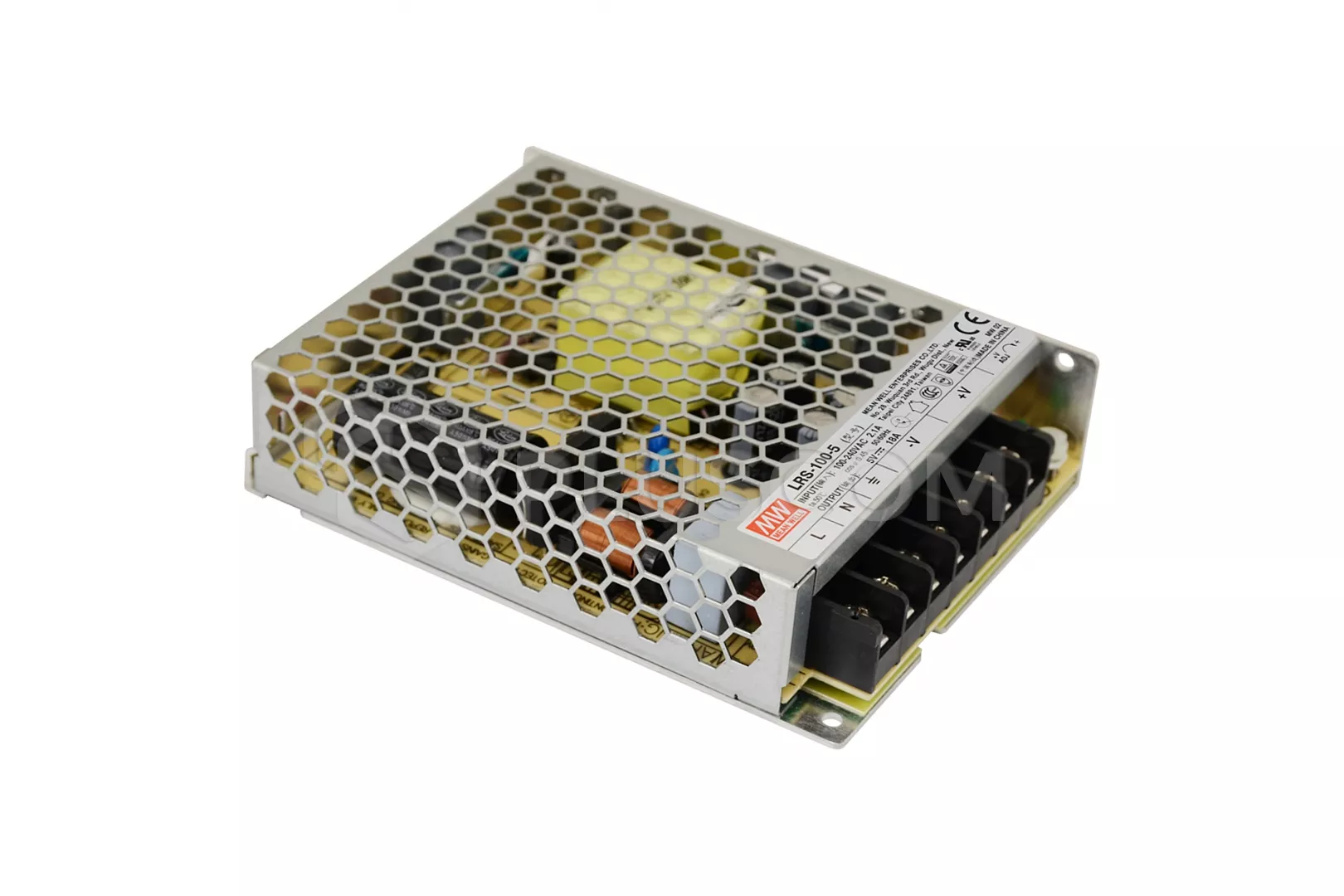

Mean Well LRS-100-5 Switching power supply

Mean Well LRS-100-5 Switching power supply


TECHNICAL DATA:
  • output voltage: DC 5V (adjustable in the range: 4.5-5.5V)
  • current: 18A
  • power: 90W
  • input voltage: 85-264VAC 120-373VD
  • dimensions: 129x97x30mm
  • weight: 0,34kg
Download
Datasheet 0.16 MB
CE Declaration 0.45 MB
