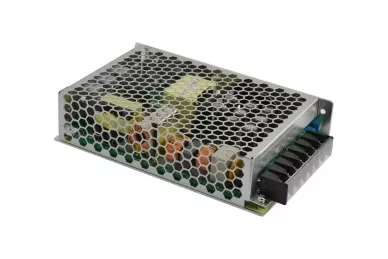

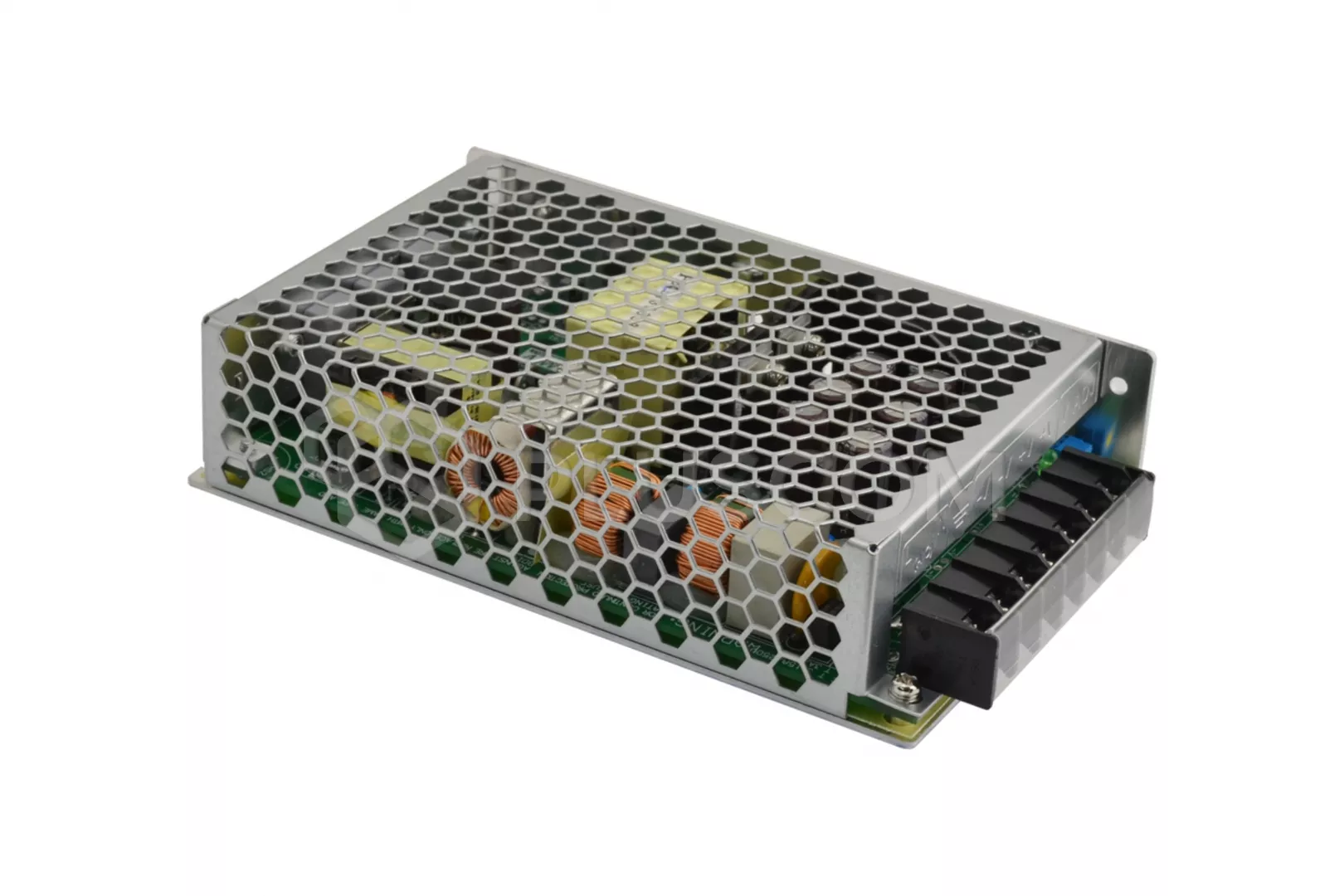

Mean Well HRP-100-12 Caged power supplies

71,04 EUR including 19.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #22631
Manufacturer: Pulsar
  • Output voltage: DC 12V
  • Rated current: 8.5A
  • Built-in Active PFC function
  • Cooling by free air convection

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar HRP-600-5 HRP 5V/600W/120A caged power supplies Mean Well HRP-75-24 Caged power supplies Mean Well HRP-600-48 Caged power supplies Mean Well HRP-600-24 Caged power supplies Mean Well HRP-300-24 Caged power supplies Mean Well HRP-300-12 Caged power supplies Mean Well HRP-150-48 Caged power supplies Mean Well HRP-600-12 Caged power supplies Mean Well HRP-100-24 Caged power supplies

Caged power supplies MEAN WELL HRP-100-12


Modular switching power supply Mean Well HRP-100-12 is designed for use in harsh industrial environments. The construction of the power supply is resistant to shocks and can operate over a wide temperature range. Cooling is free air flow.
The low-profile housing has a height of 38mm.

Key features of the power supply
  • wide input voltage range
  • construction can withstand vibration and shock
  • cooling by free air convection
  • working temperature range: -40°C...60°C
  • Protection:
    • over temperature
    • overload
    • over voltage
Mean Well HRP-100-12 Caged power supplies

Mean Well HRP-100-12 Caged power supplies


TECHNICAL PARAMETERS:
  • output voltage: DC 12V (adjustable in the range: 11.4-13.8V)
  • current: 8.5A
  • power: 102W
  • input voltage: 85-264V AC
  • dimensions: 159x97x38mm
  • weight: 0,56kg

Download
Datasheet 0.09 MB
CE Declaration 0.45 MB
