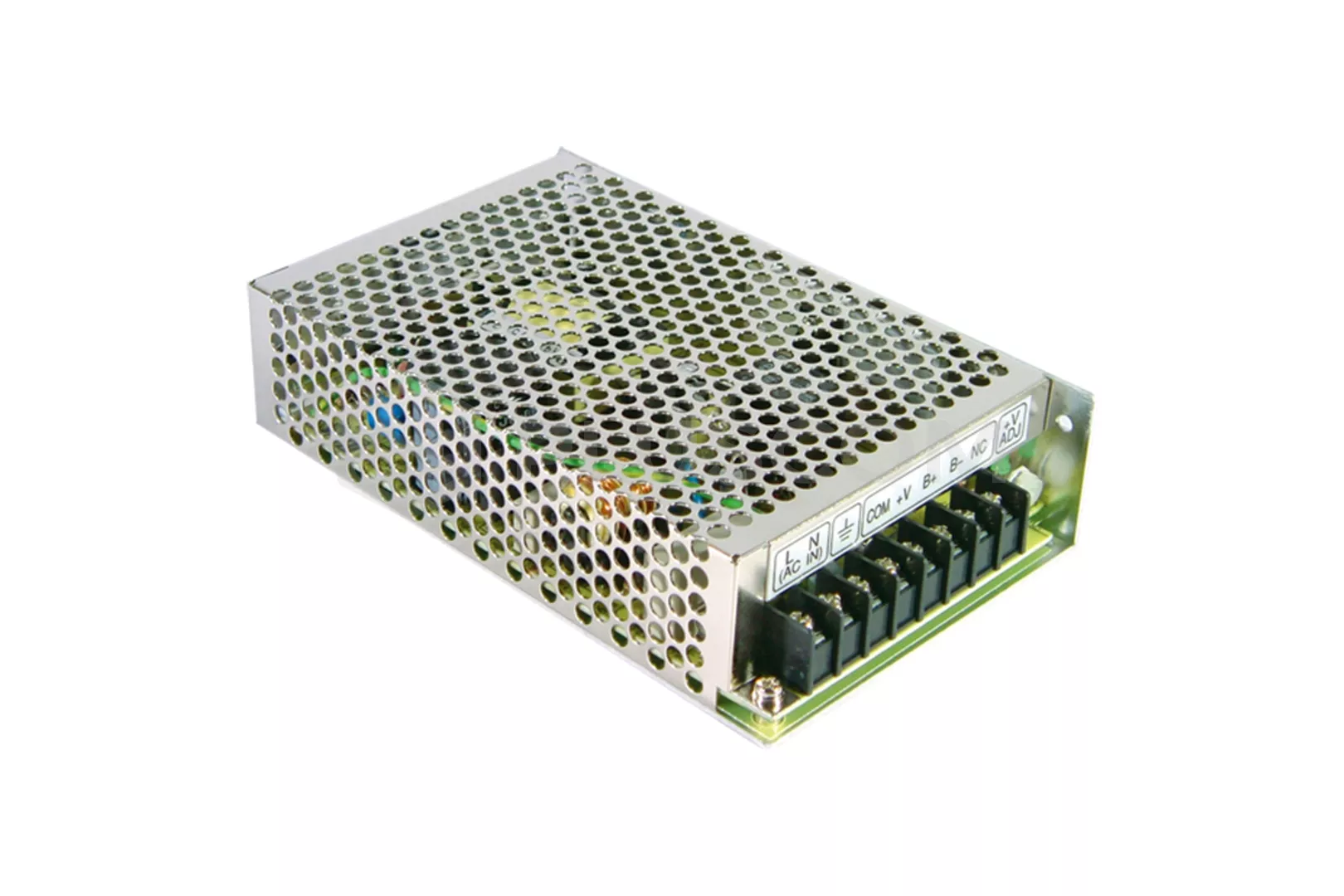

Mean Well AD-155B Backup power supply

108,97 EUR including 23.00% VAT
Product code: #10480
Manufacturer: Pulsar
  • Output voltage: DC 27,6V
  • Rated current 5A
  • Current Ibat = 0,5A
  • Universal AC input - full range
  • Passive cooling
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Mean Well AD-55B Backup power supply Mean Well AD-55A Backup power supply Mean Well AD-155C Backup power supply Mean Well AD-155A Backup power supply

POWER SUPPLY MEAN WELL AD-155B


  • voltage / current output V1: DC 27,6V/ 5A (adjustable in the range of 24-29V)
  • voltage / current output Bat: DC 27,1V / 0.5A
  • power: 151,5W
  • input voltage: 88-264V AC, DC 124-370V
  • dimensions: 199x110x50 (h) mm
  • weight: 0,88kg
Mean Well AD-155B Backup power supply

Mean Well AD-155B Backup power supply


Modular buffer power supply with stable performance, high efficiency and small size. Designed to operate in a wide range of AC supply. It can be used to power consumer electronics devices that require stabilized voltage of 27,6V. Ideal for emergency power supply systems protects the battery against excessive discharge. Built-in security are periodic power supply itself verifies their occurrence and resumes in case of their resignation.

FEATURES
  • wide AC input voltage range
  • construction resistant to vibrations and shocks
  • passive cooling
  • working temperature range: -10°C...60°C
  • protection:
    • short circuit
    • overload
    • overvoltage
  • high efficiency power supply: 84%

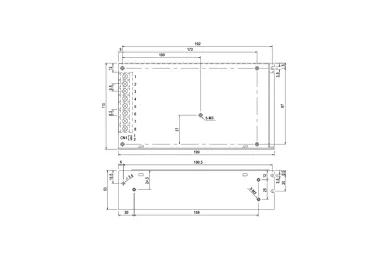

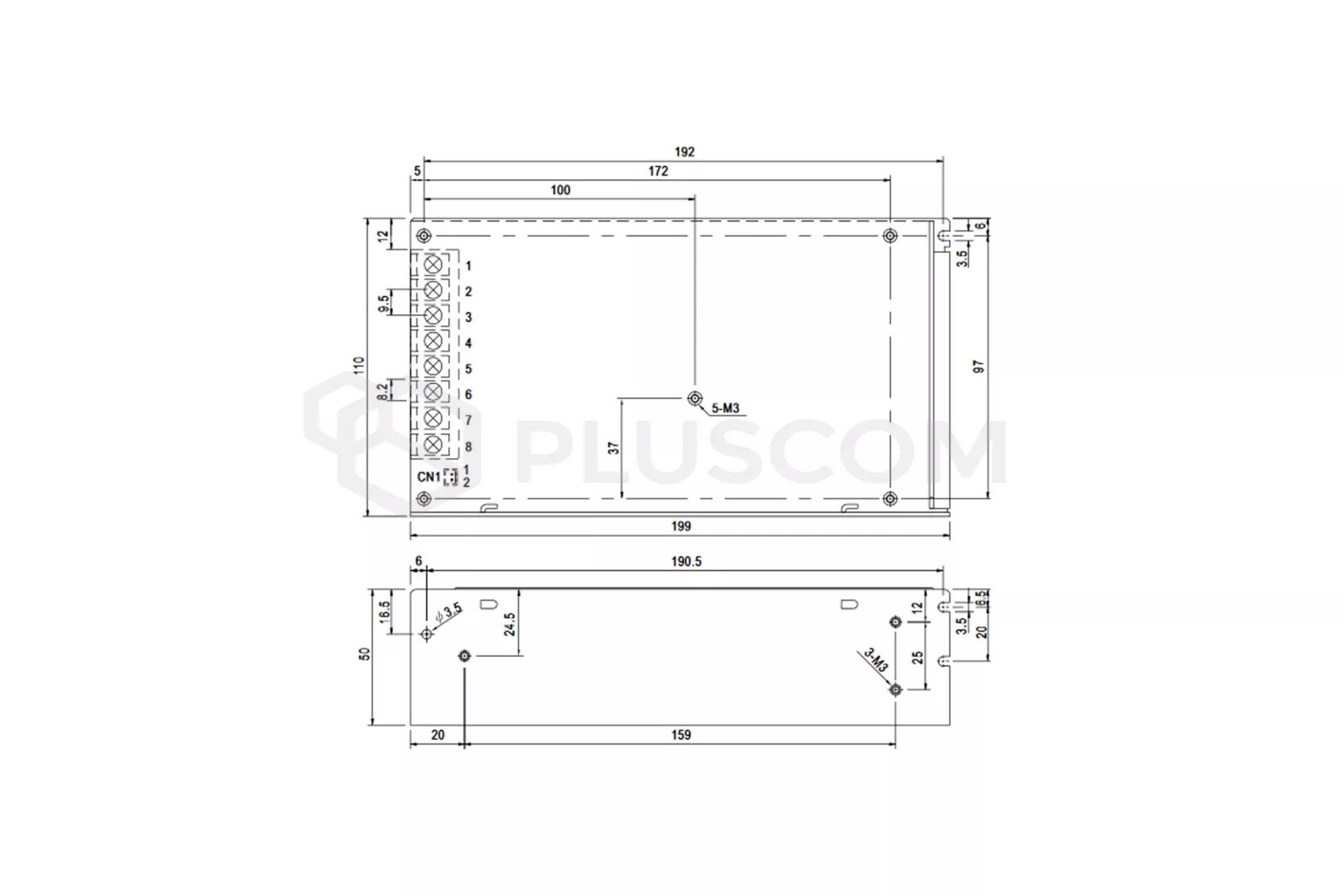

Dimensions:

Dimensions:

Download
Data Sheet 0.34 MB
Declaration CE 0.17 MB
