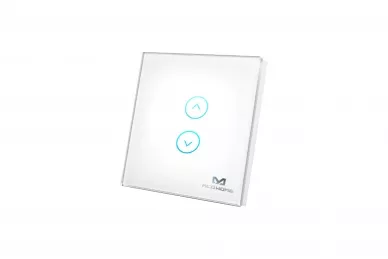

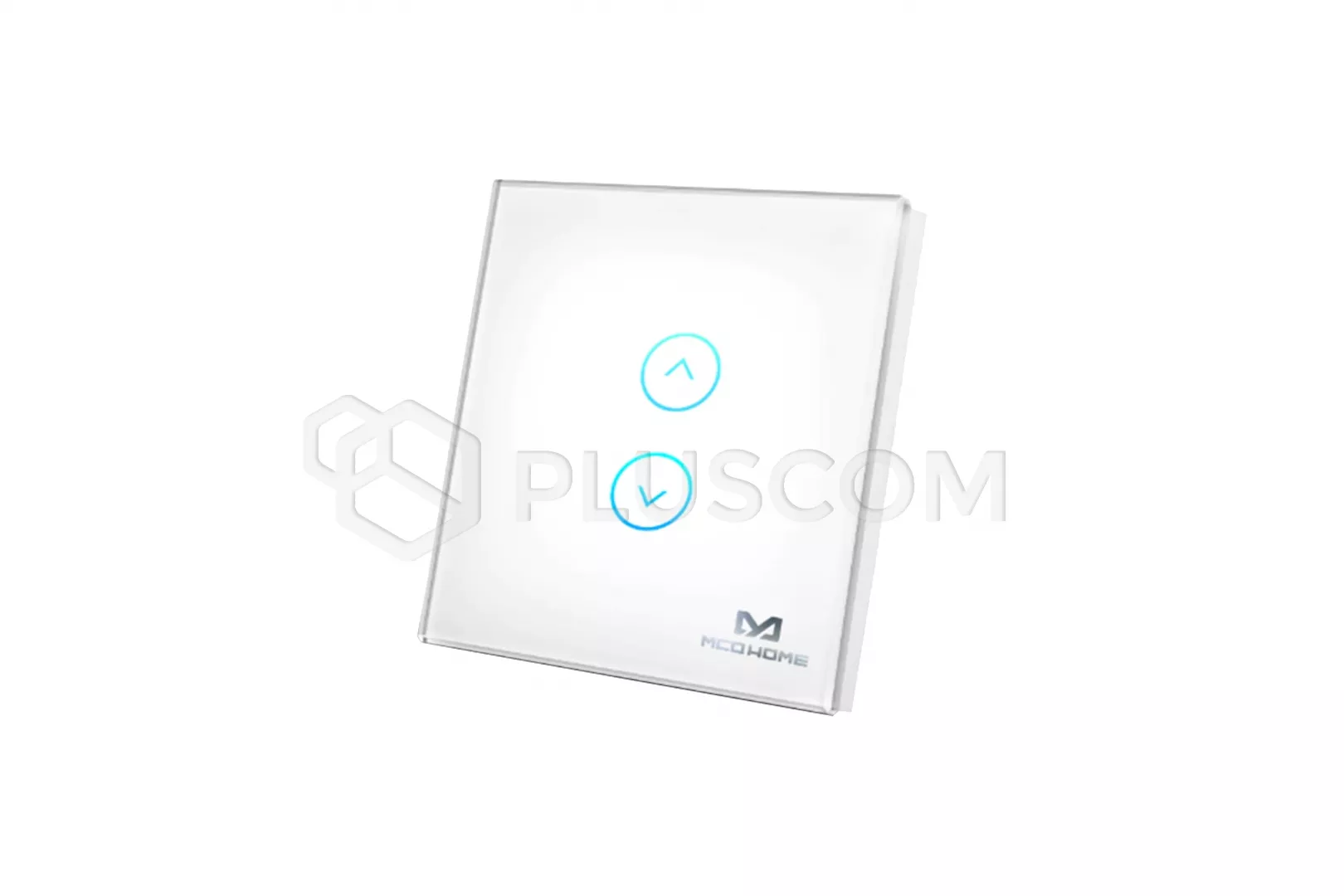

MCOHome MH-C421 Touch Panel for Roller Shutter, white

MCOHome MH-C421 Touch Panel for Roller Shutter, white

Shutter Panel Switch is a wall panel built-in with Z-Wave Plus module. With its stylish design and stable performance, the panel can be used to wire roller shutter which controlled by AC motor (with limit). It supports basic command class，multi channel command class and multi channel association command class, also works as a repeater in a Z-Wave network. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.

FEATURES :

• Control shutter remotely
• Installs in place of an existing wall switch
• Support automatic or manual calibration
• Works with single-phase asynchronous AC motors
• Local charge control
• Status LED
• Glass finish, modern design
• Touch button

TECHNICAL SPECIFICATIONS :

• Type of module: Z-Wave receiver
• White colour
• Power supply: 85~260VAC, 50/60Hz
• Maximum power output: 1,7A
• Frequency: 868.42 Mhz
• Range: up to 30 m
• Dimensions: 86 x 86 x 43 mm
• Display: blue LED
