Leelen video intercom set JB305N V31w with doorphone No18pc, Proximity
keyring, Card MiFare, Gate control module and power supply
The set will find its application in single-family homes. It's simple in
installation, durable and elegant in appearance.

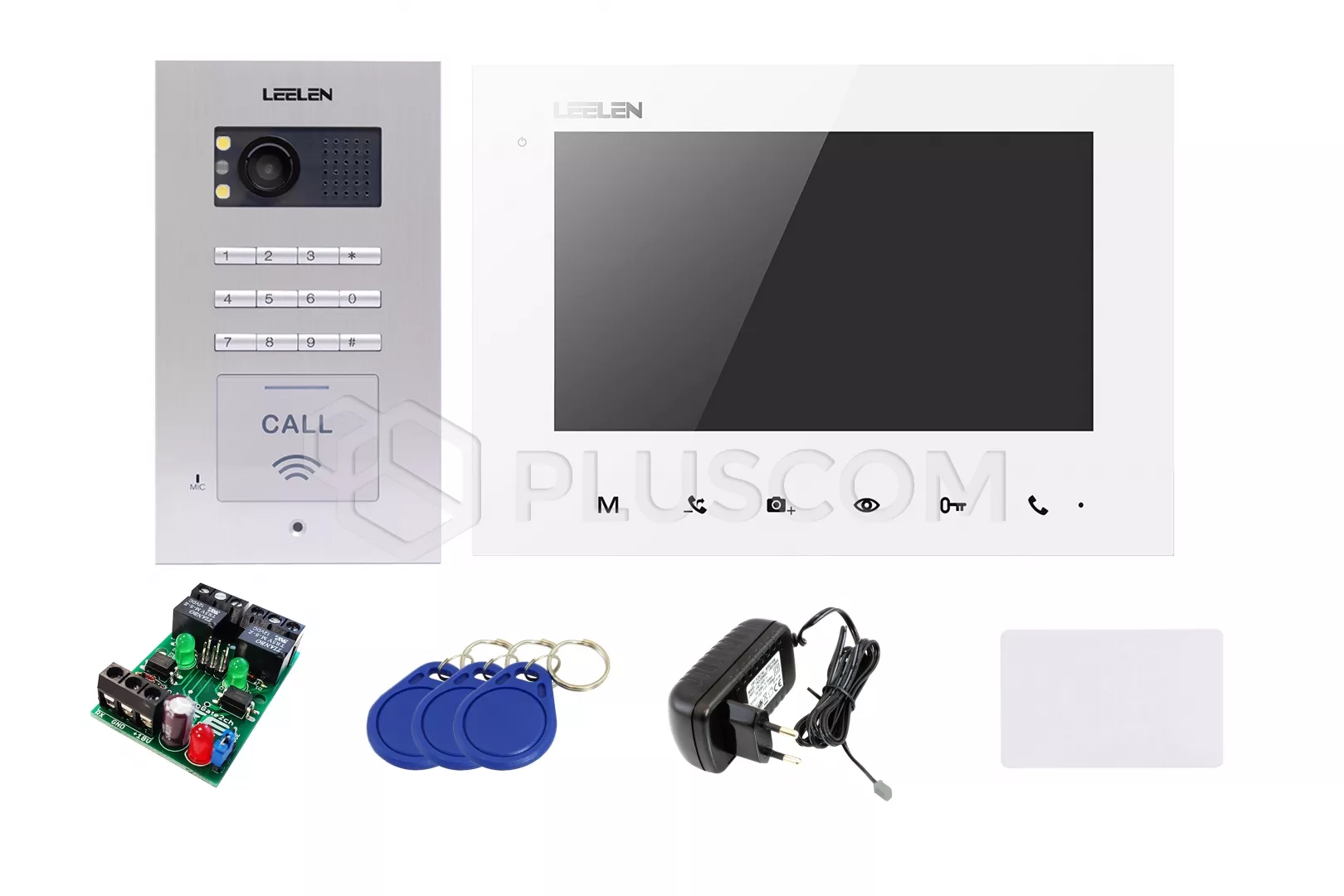

Leelen Video Doorphone Set JB305N V31w/No18pc (Photo memory)
The kit includes:
- Monitor V31w 7'' white
- Doorphone No18pc
- 3 x Proximity keyring MiFare 13,56MHz
- Card MiFare 13,56MHz (1K)
- Gate control module Gate2ch
- Power supply 18V DC
The JB-305N video intercom system is the successor of the JB-304 system
and works on four-wire bus. A modern procsor was used in JB-305N, which
significantly improves the quality of calls and video, while reducing noise and
increases stability.
The most important features of the set include:
- flush mounting
- expandable
- built-in photo memory
- built-in encryptor
- possibility of opening with a card and a proximity tag
- compatibility with most electric locks available in Polish market
- vandal and waterproof doorphone

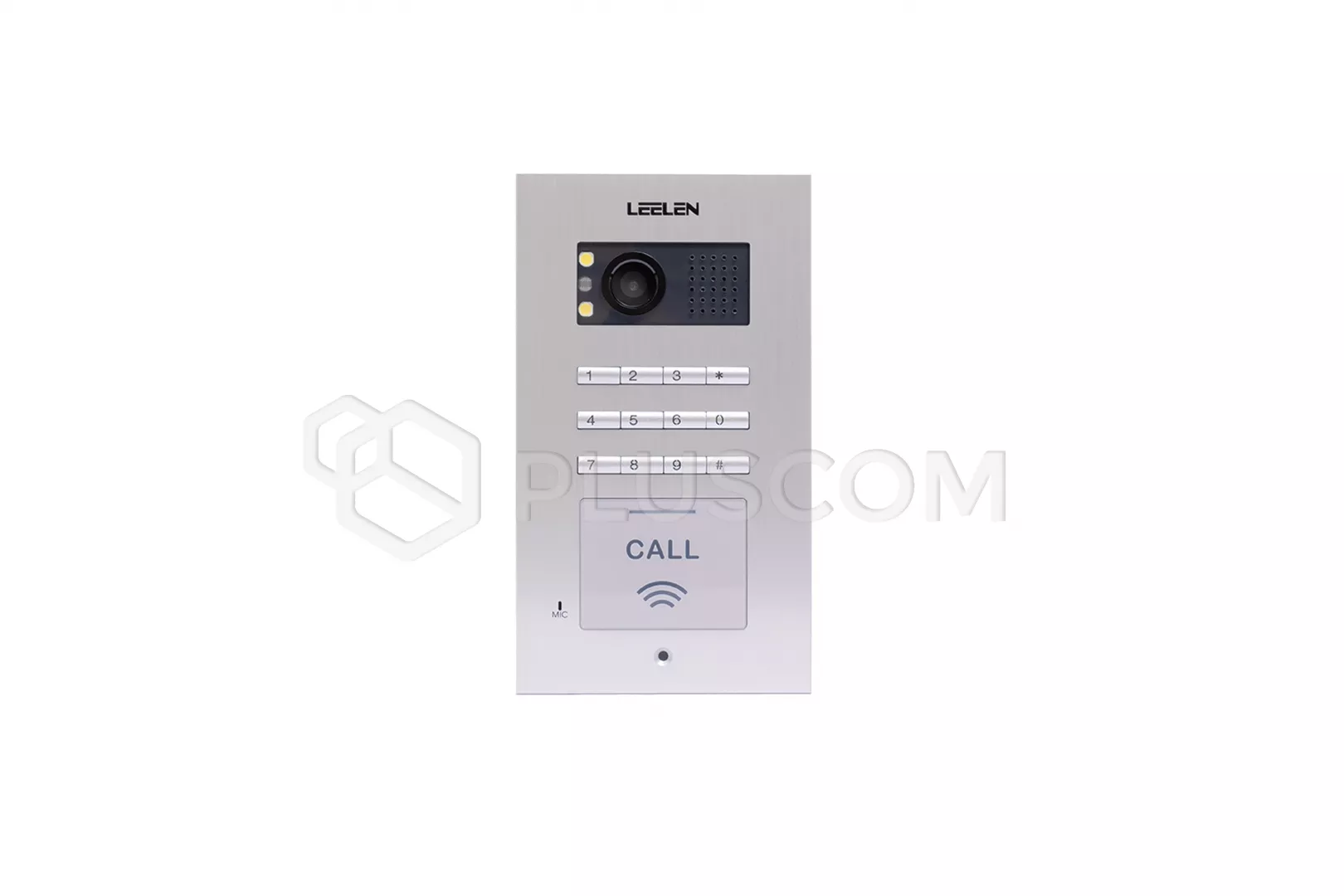

The No18pc doorphone has a concealed casing made of cast aluminum, making
it walnado and waterproof.
Doorphone JB305 No18pc
Key features:
- Flush mounting
- Installation via 4-wire cable
- The panel is made of cast aluminum
- Built-in proximity reader for kayfobs and RFID proximity cards
- Built-in numeric keypad (encryptor)
- Backlit keyboard
- SONY CCD camera (420 TV Lines) with an angle of view of 92°
- Illuminated headlamp with white LEDs
- The device is compatible with most electric locks available on Polish
Market </ li>
- Integration with the JB305_Gate2ch module

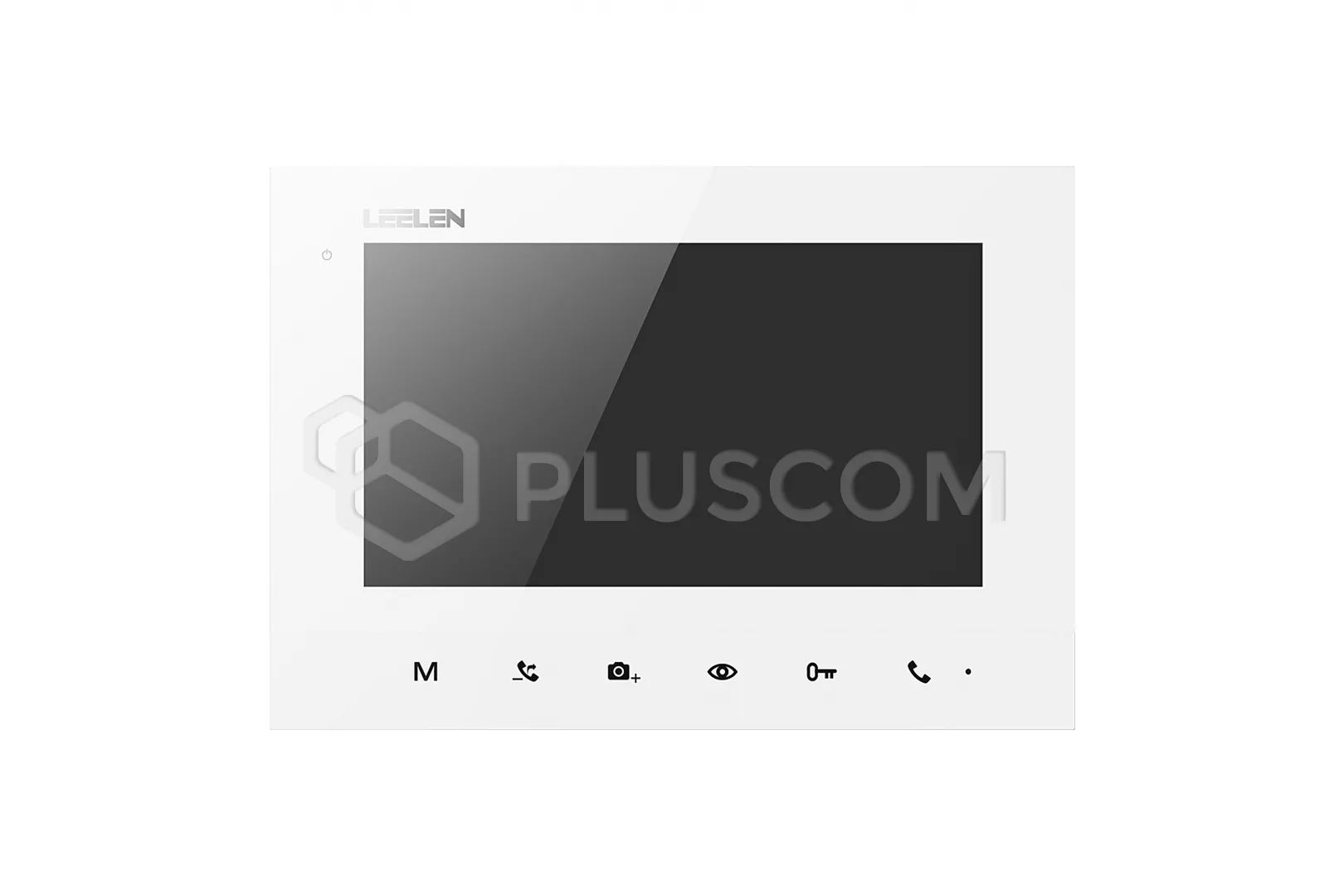

The JB305N V31w monitor is an elegant interior panel that is equipped with
touch buttons and a 7'' screen. The monitor has a built-in memory, in
which stores photos taken while calling. That way, we can see visitors.
Leelen Monitor 7' Color 305N V31w
Key features:
- 7'' LCD display with adjustable brightness and contrast call
volume
- ability to preview image from external panel
- image preview button
- intercom function between monitors
- possibility to control 3 outputs (wicket, gate, garage)
- electric lock control
- image memory - I can remember up to 200 photos with date and time

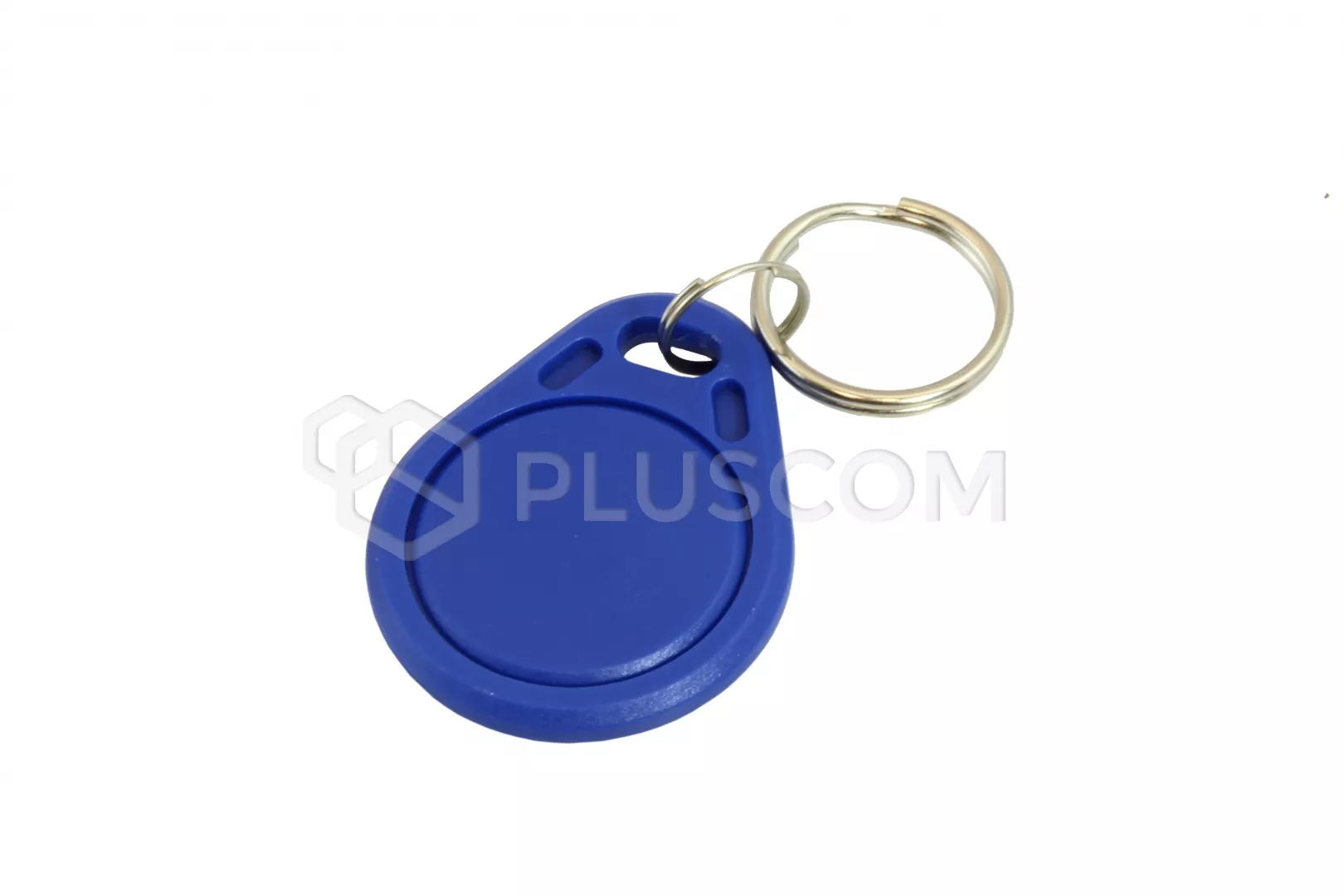

Proximity keyring MiFare 13,56MHz
Proximity keyring MiFare 13,56MHz
MiFare 13,56MHz proximity tag. Works with most 13,5KHz readers. A very
convenient solution, perfectly works as an alternative to the card.

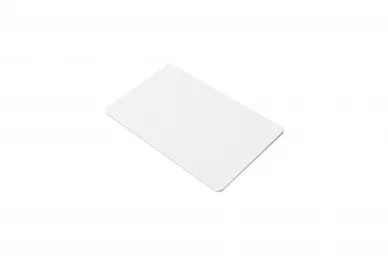

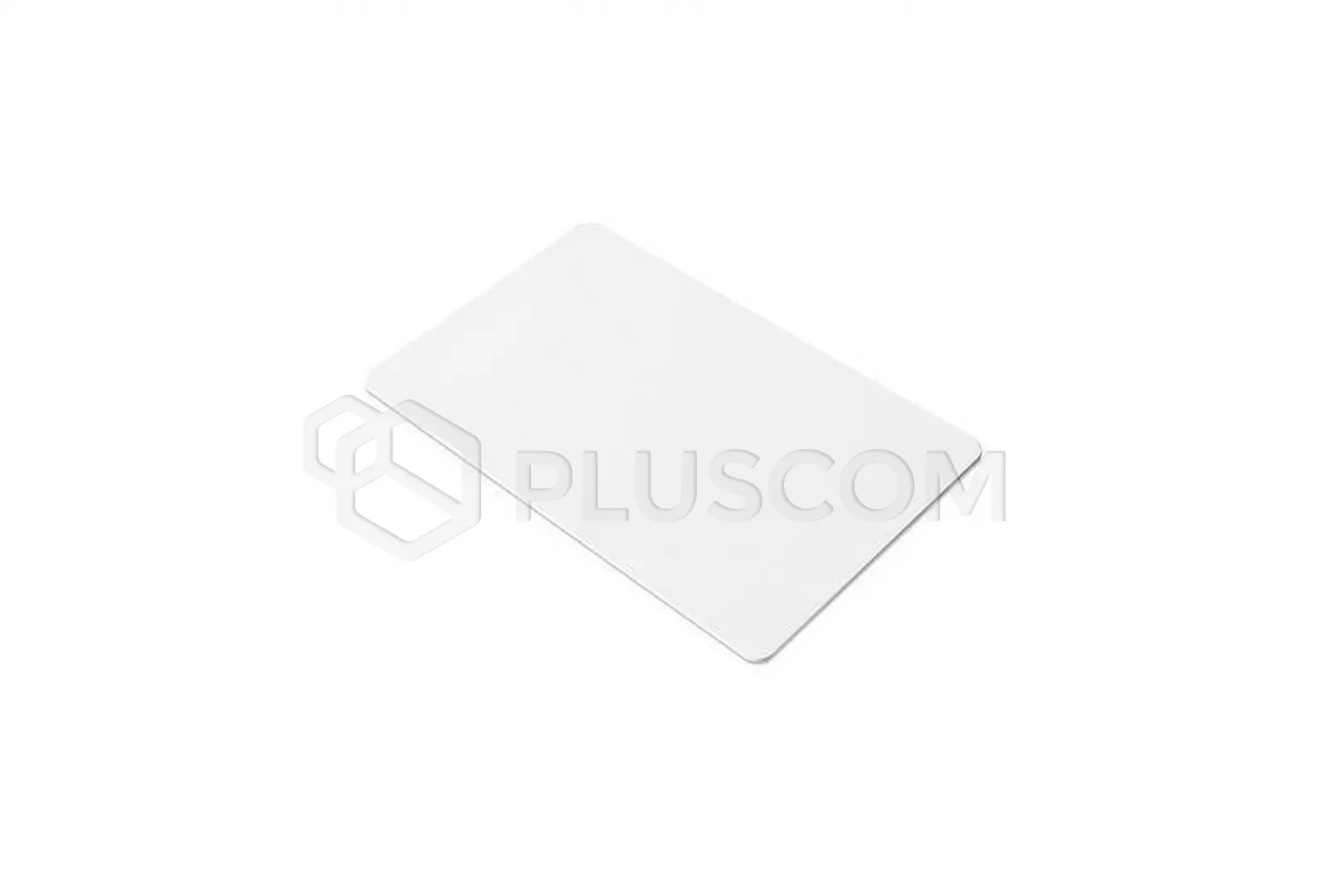

Card KZIC MiFare 13.56 MHz
Proximity card works with all series readers JB305. It has a standard
credit card size and will fit perfectly wallet next to an ATM card or business
cards.
After authorizing the card in the system, just bring it closer to the reader to
open the electric lock that he controls.

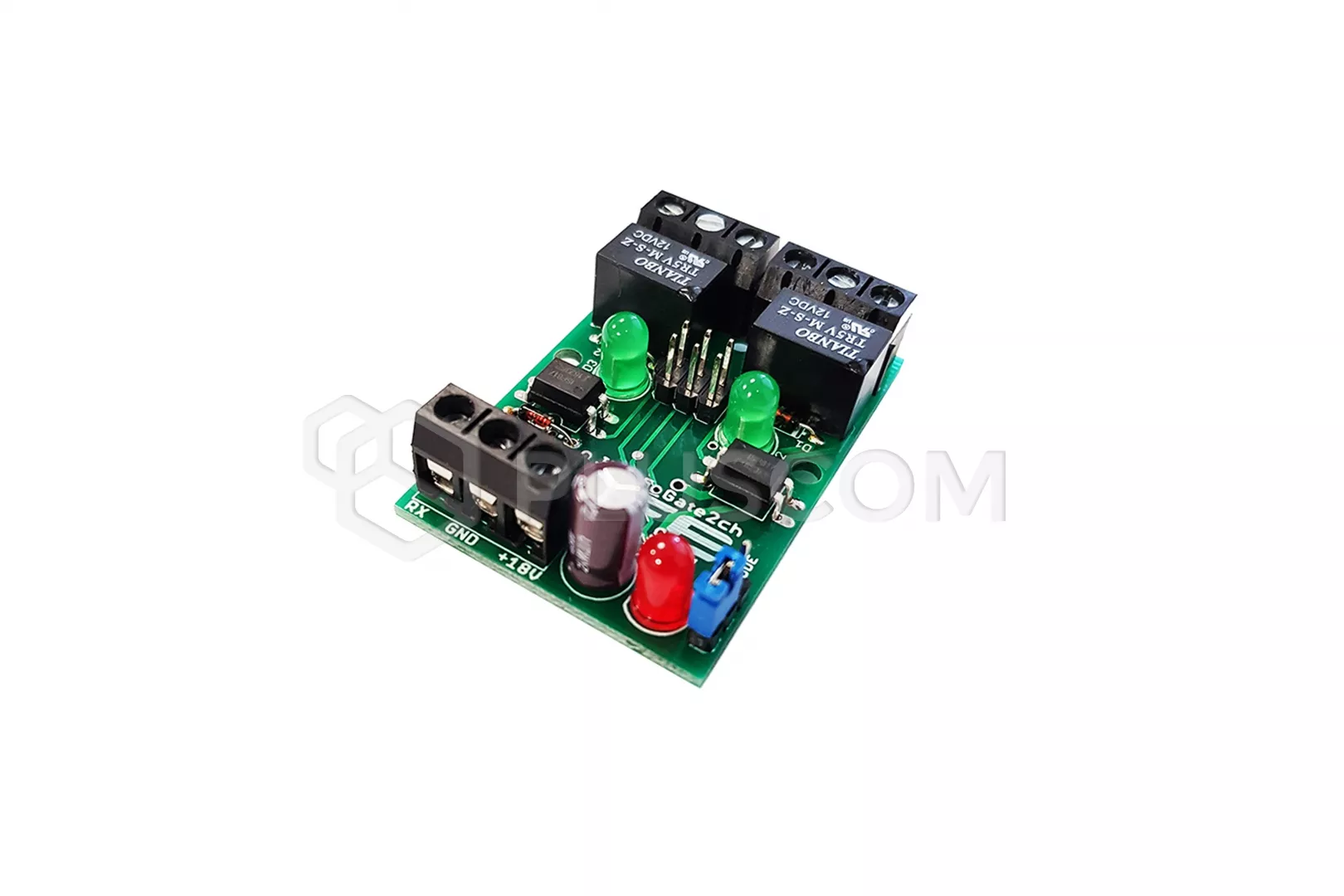

JB305 Gate2ch Gate control module
The JB305 Gate2ch gate control module is equipped with two relays. One
activates during the connection and we can use it to connect an external
doorbell. The second relay activates the monitor and we can connect it to
operate the garage door. The module can be connected to both an intercom and a
monitor.

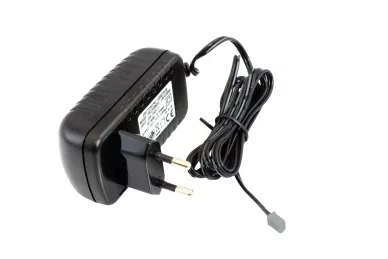

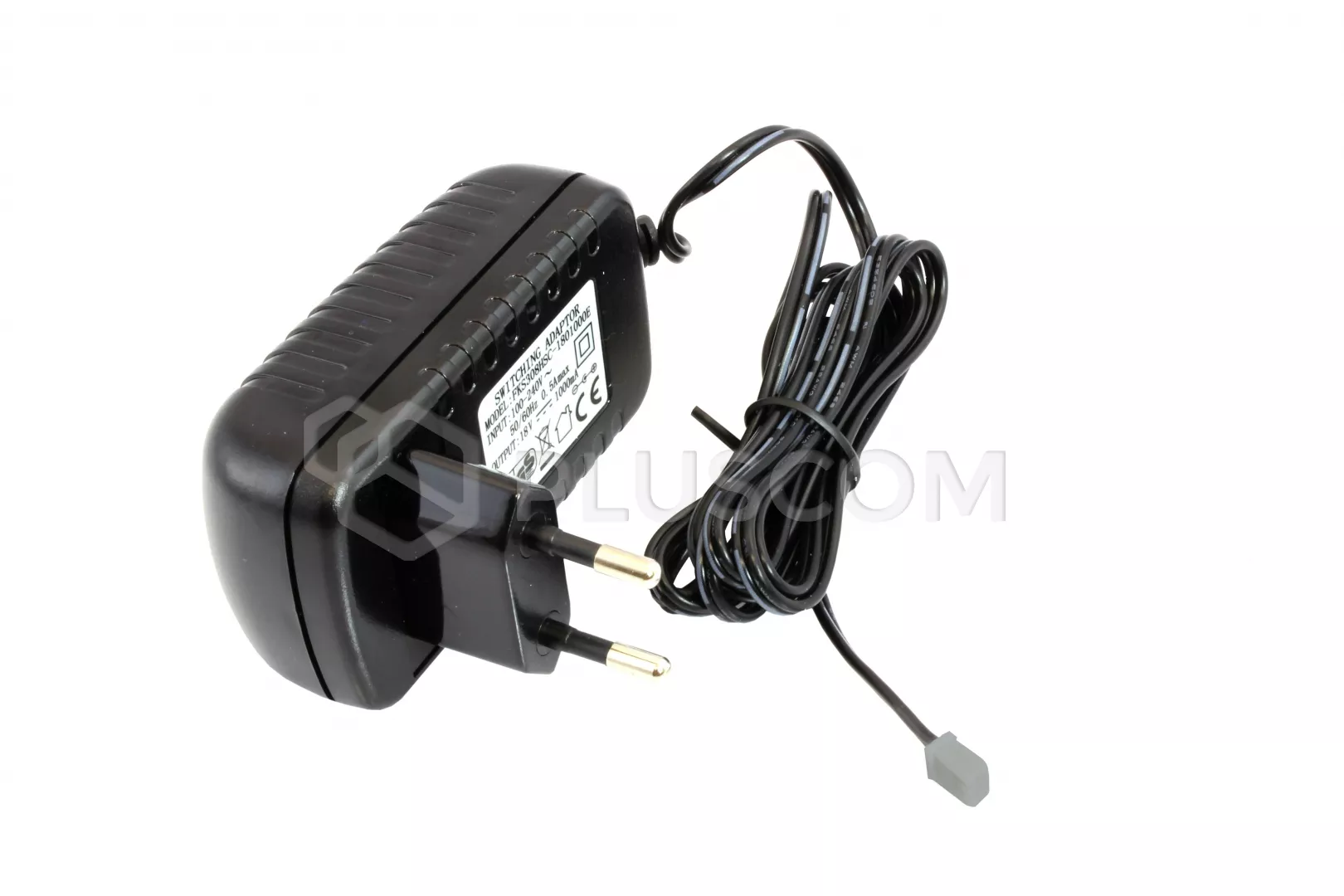

Power supply for JB305 18V DC 1A
The JB305 18V DC 1A power supply is the standard power supply used in
JB305 system. Allows powering one basic set, consisting of:
- Video intercom
- 4-wire bus
- Doorphone
- Electric lock
The power supply produces a constant voltage of 18 V and a current of 1A.
