Leelen video intercom set JB305N V31w with doorphone N15nc, Proximity
keyring, Card MiFare and power supply for DIN rail
The set will find its application in single-family homes. It's simple in
installation, durable and elegant in appearance.

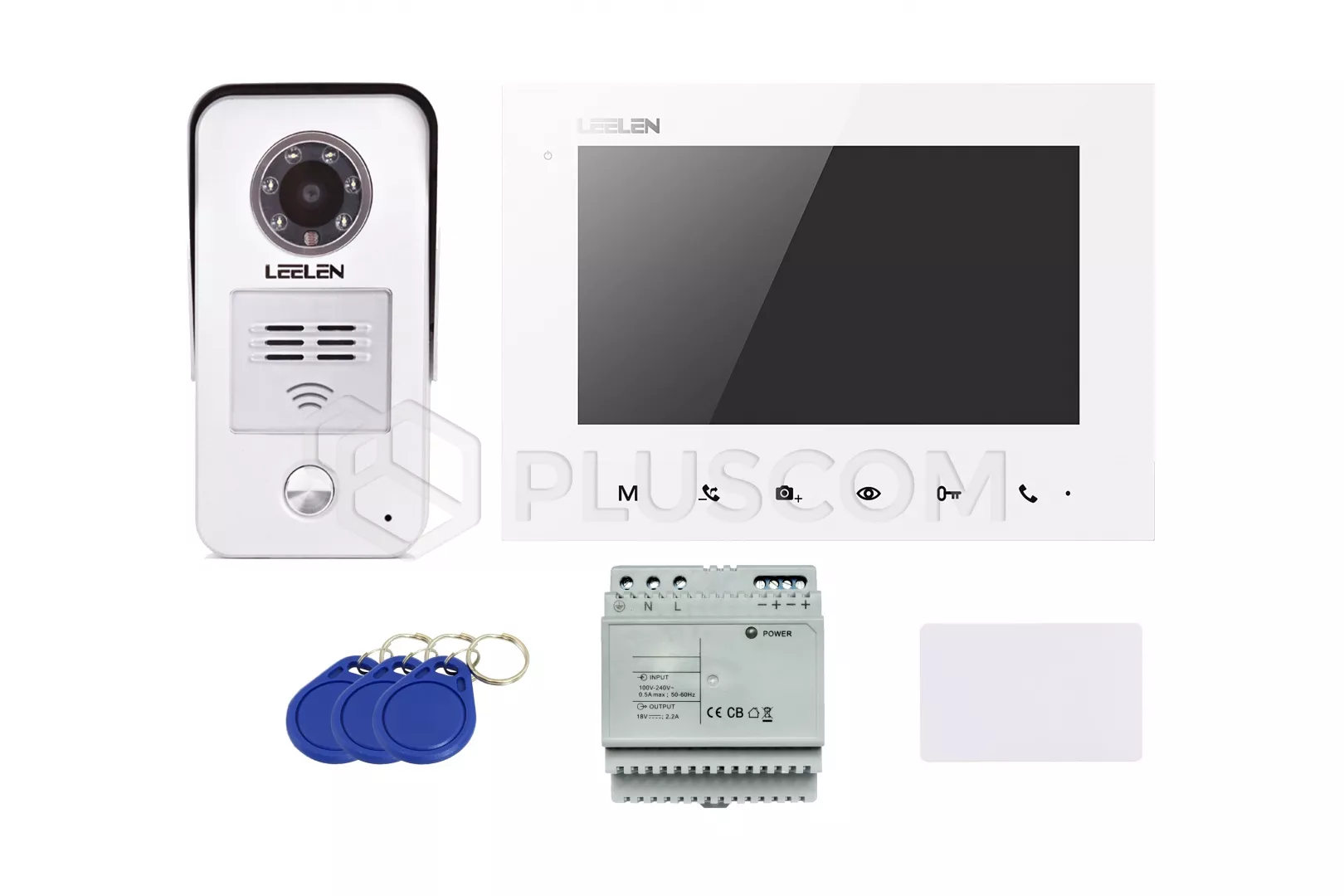

Leelen Video Doorphone Set JB305N V31W/N15nc DIN (Photo memory)
The kit includes:
- Monitor V31w 7'' white
- Doorphone N15nc
- 3 x Proximity keyring MiFare 13,56MHz
- Card MiFare 13,56MHz (1K)
- Power supply 18V DC DIN
The JB-305N video intercom system is the successor of the JB-304 system
and works on four-wire bus. A modern procsor was used in JB-305N, which
significantly improves the quality of calls and video, while reducing noise and
increases stability.
The most important features of the set include:
- surface mounting
- expandable
- built-in photo memory
- possibility of opening with a card and a proximity tag
- compatibility with most electric locks available in Polish market
- vandal and waterproof doorphone

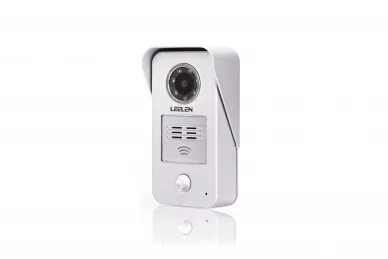

The N15nc doorphone has a concealed casing made of cast aluminum, making
it walnado and waterproof.
Leelen Doorphone 305N N15nc
Key features:
- Installation via 4-wire cable
- The panel is made of cast aluminum
- Built-in proximity reader for kayfobs and RFID proximity cards
- Camera module 110 °
- Camera illuminated with white LED diodes with light sensor
- Electronics is made in SMT technology
- Controlling 3 outputs directly from the door station (wicket, gate,
garage)
- The device is compatible with the majority of electric locks available in
Polish market

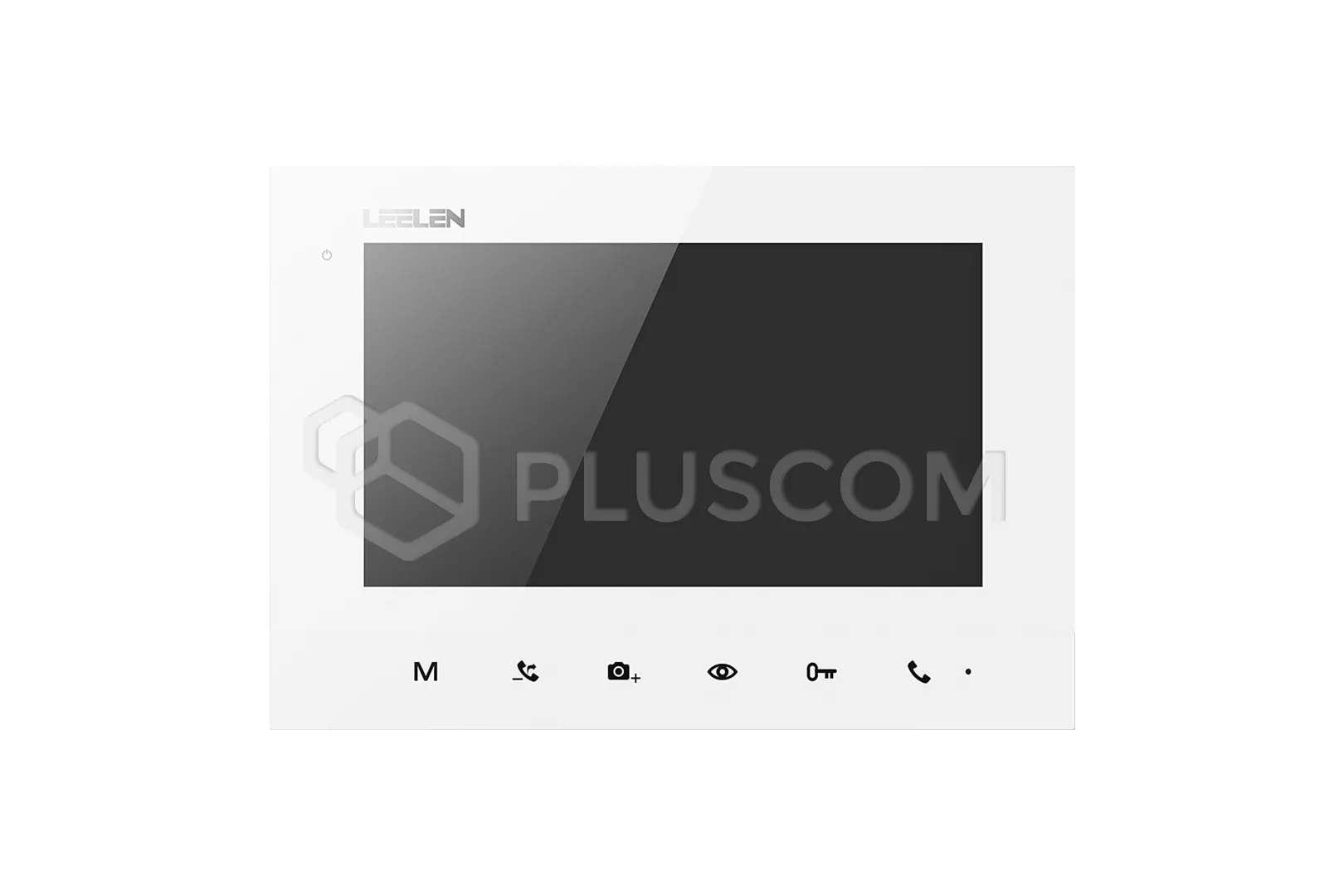

The JB305N V31w monitor is an elegant interior panel that is equipped with
touch buttons and a 7'' screen. The monitor has a built-in memory, in
which stores photos taken while calling. That way, we can see visitors.
Leelen Monitor 7 'Color 305N V31
Key features:
- 7'' LCD display with adjustable brightness and contrast call
volume
- ability to preview image from external panel
- image preview button
- intercom function between monitors
- possibility to control 3 outputs (wicket, gate, garage)
- electric lock control
- image memory - I can remember up to 200 photos with date and time

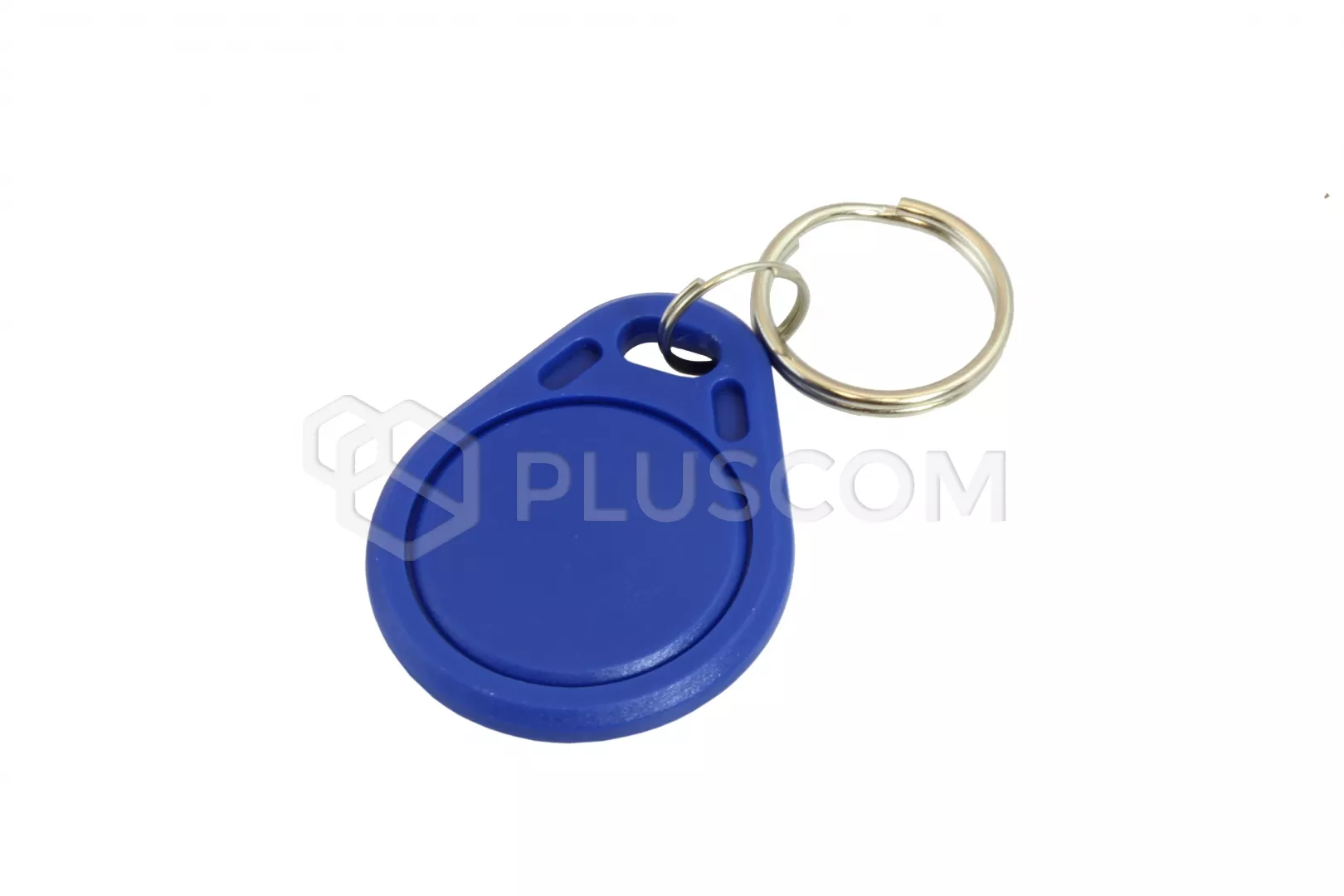

Proximity keyring MiFare 13,56MHz
Proximity keyring MiFare 13,56MHz
MiFare 13,56MHz proximity tag. Works with most 13,5KHz readers. A very
convenient solution, perfectly works as an alternative to the card.

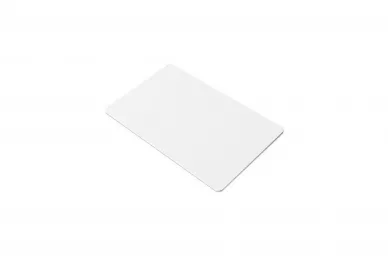

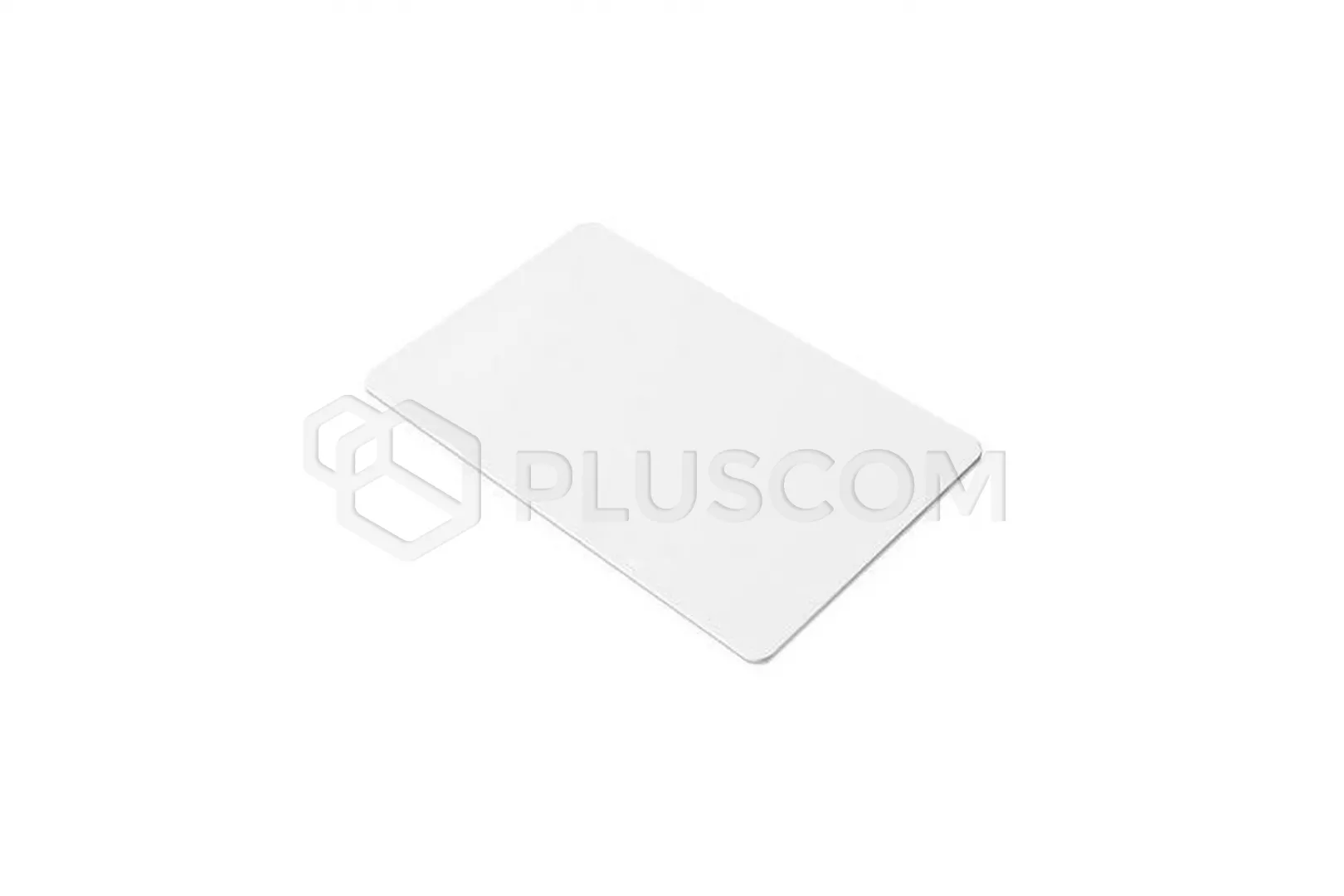

Card MiFare 13,56MHz (1K)
Proximity card works with all series readers JB305. It has a
standard credit card size and will fit perfectly wallet next to an ATM card or
business cards.
After authorizing the card in the system, just bring it closer to the reader to
open the electric lock that he controls.

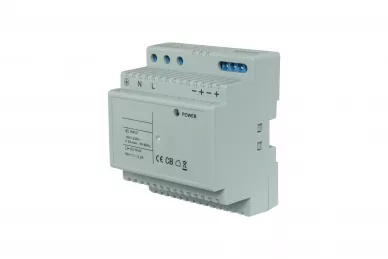

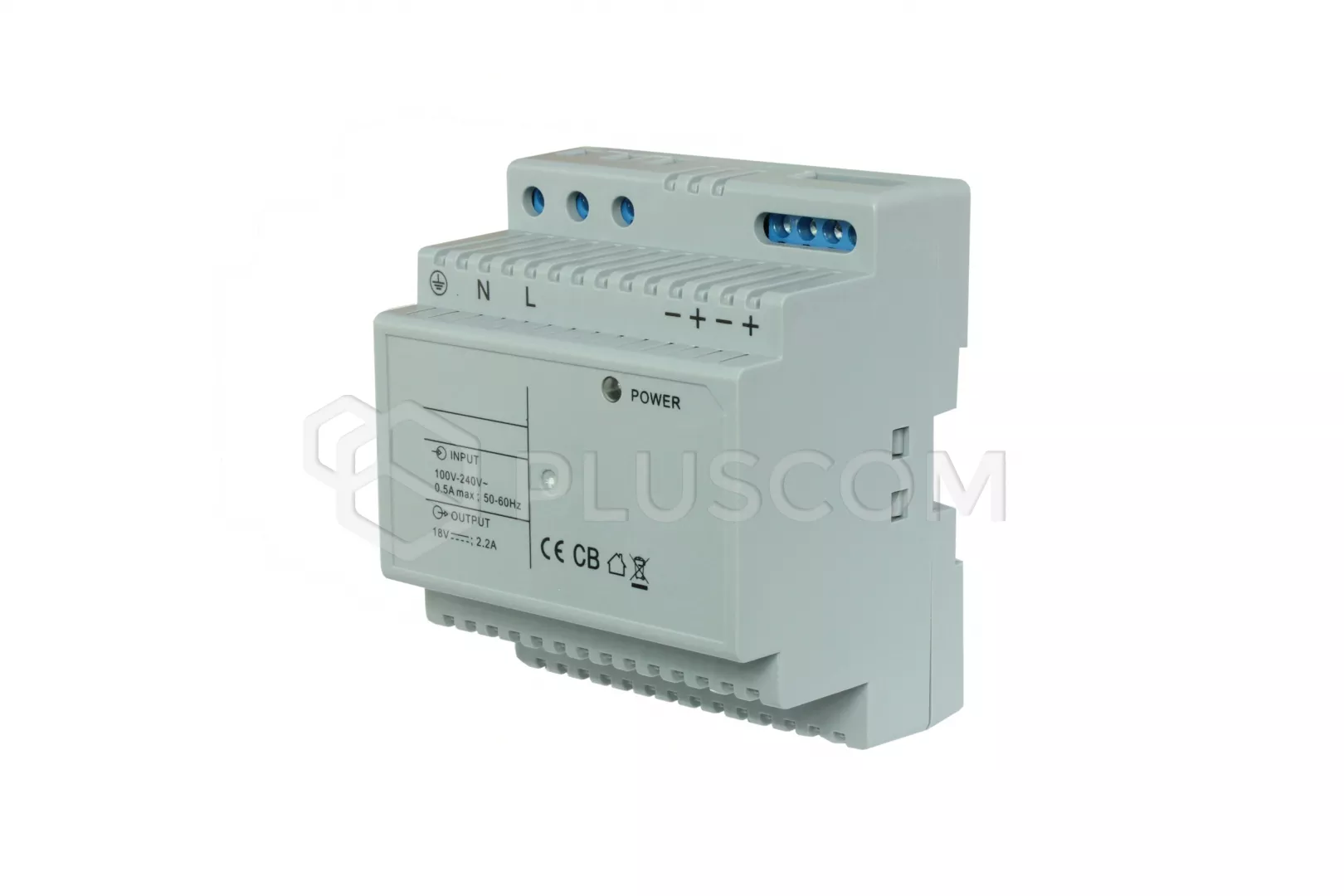

Power supply 18V DC DIN
18V DC DIN power supply allows you to power the full kit
including up to 3 doorphones and 2 monitors. The power supply gives a constant
voltage of 18 V i current of 2.2A. Designed for installation on a DIN rail.
