Leelen video intercom set JB305 N60W with doorphone No18pc, DIN power
supply and 3x key ring
The set will find its application in single-family homes. It's simple in
installation, durable and elegant in appearance.

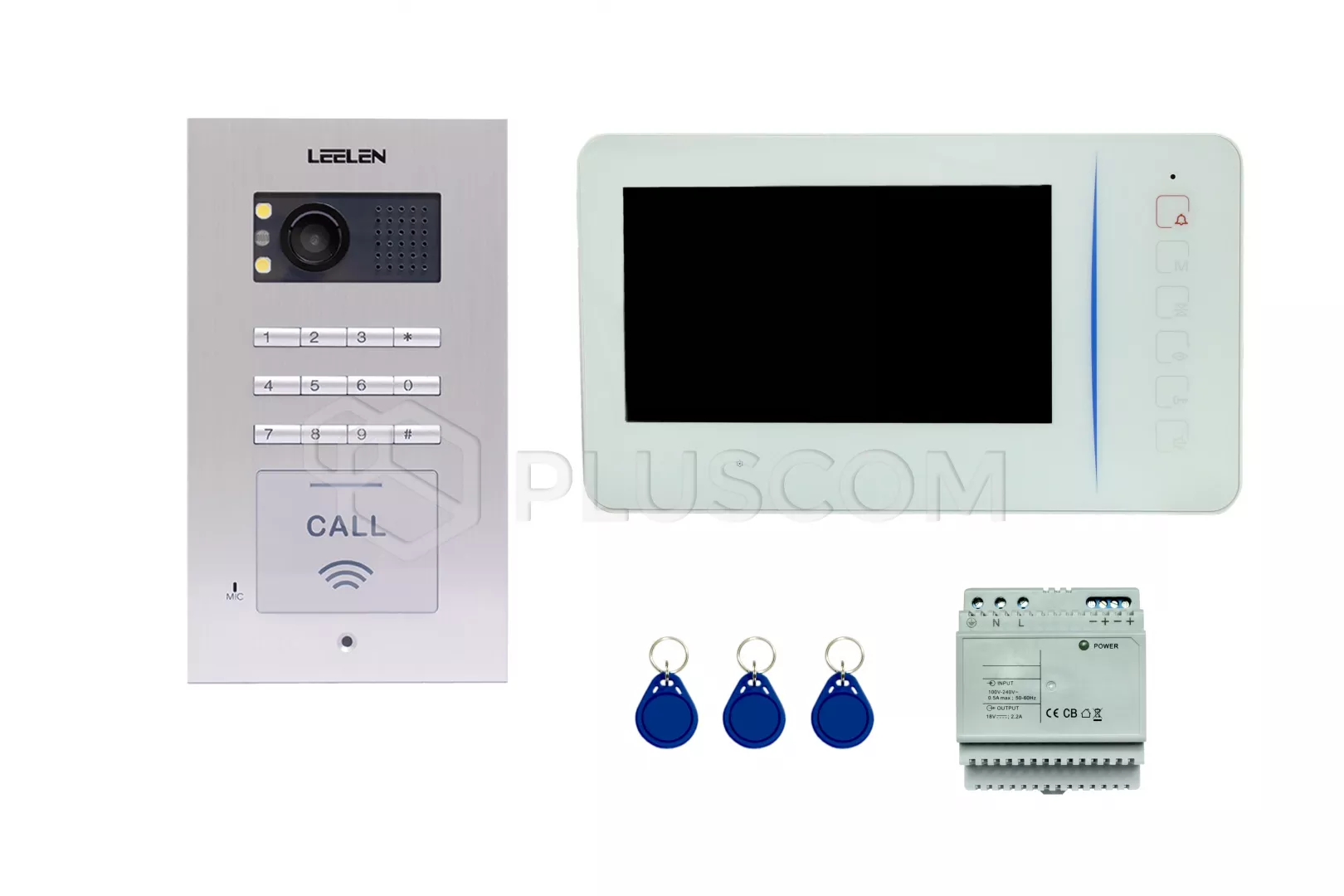

Leelen Video Doorphone Set JB305 N60W/No18pc/DIN/3x proximity keyfob
The kit includes:
- Monitor N60W 7 ' White
- Doorphone No18pc
- 3x Key ring
- Leelen 18V DC DIN power supply
The JB-305 video intercom system is the successor of the JB-304 system and
works on four-wire bus. A modern procsor was used in JB-305, which
significantly improves the quality of calls and video, while reducing noise and
increases stability.
The most important features of the set include:
- easy assembly PLUG&PLAY
- flush mounting
- expandable with 3 doorphones and 4 monitors
- service of electric locks
- support for CCTV cameras
- vandal and waterproof doorphones
- independent gate control button
- built-in numeric keypad (encryptor)
- Backlit keyboard
- proximity reader
- EXIT button
- high image and sound quality as well as trouble-free operation
- intercom function - conversation between tenants
The
No18pc doorphone has a concealed casing made of cast aluminum,
making it walnado and waterproof. It also has the ability to open inputs, using
proximity cards or key fobs, thanks built-in access control system. In
addition, it is built-in Encryptor - we will open the door with a
pre-programmed code.

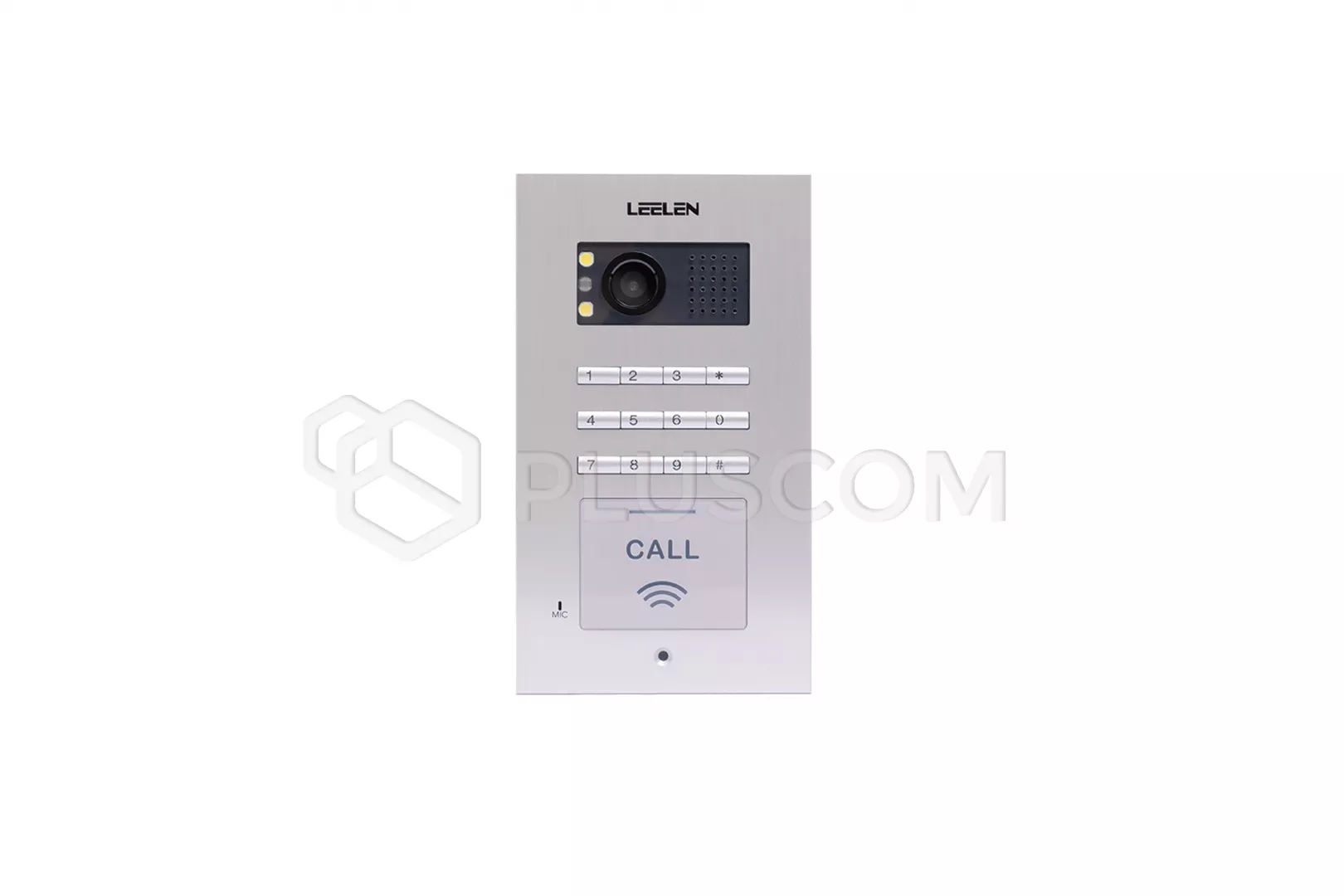

Leelen Doorphone JB305 No18pc
Key features:
- Flush mounting
- Installation via 4-wire cable
- The panel is made of cast aluminum
- Built-in proximity reader for kayfobs and RFID proximity cards
- Built-in numeric keypad (encryptor)
- Backlit keyboard
- SONY CCD camera (420 TV Lines) with an angle of view of 92°
- Illuminated headlamp with white LEDs
- The device is compatible with most electric locks available on Polish
Market </ li>
- Integration with the JB305_Gate2ch module
The
JB305 N60W monitor is an elegant interior panel that is
equipped with touch buttons and a 7 'color screen, equipped with additional
relay - an independent button to open the gate.
JB305 video monitor facilitates the identification of the caller, gives a
picture resolution 800x480. Model N60 works with doorphones giving both audio
and video transmission. It also works with analog CCTV cameras thanks
additional modules.

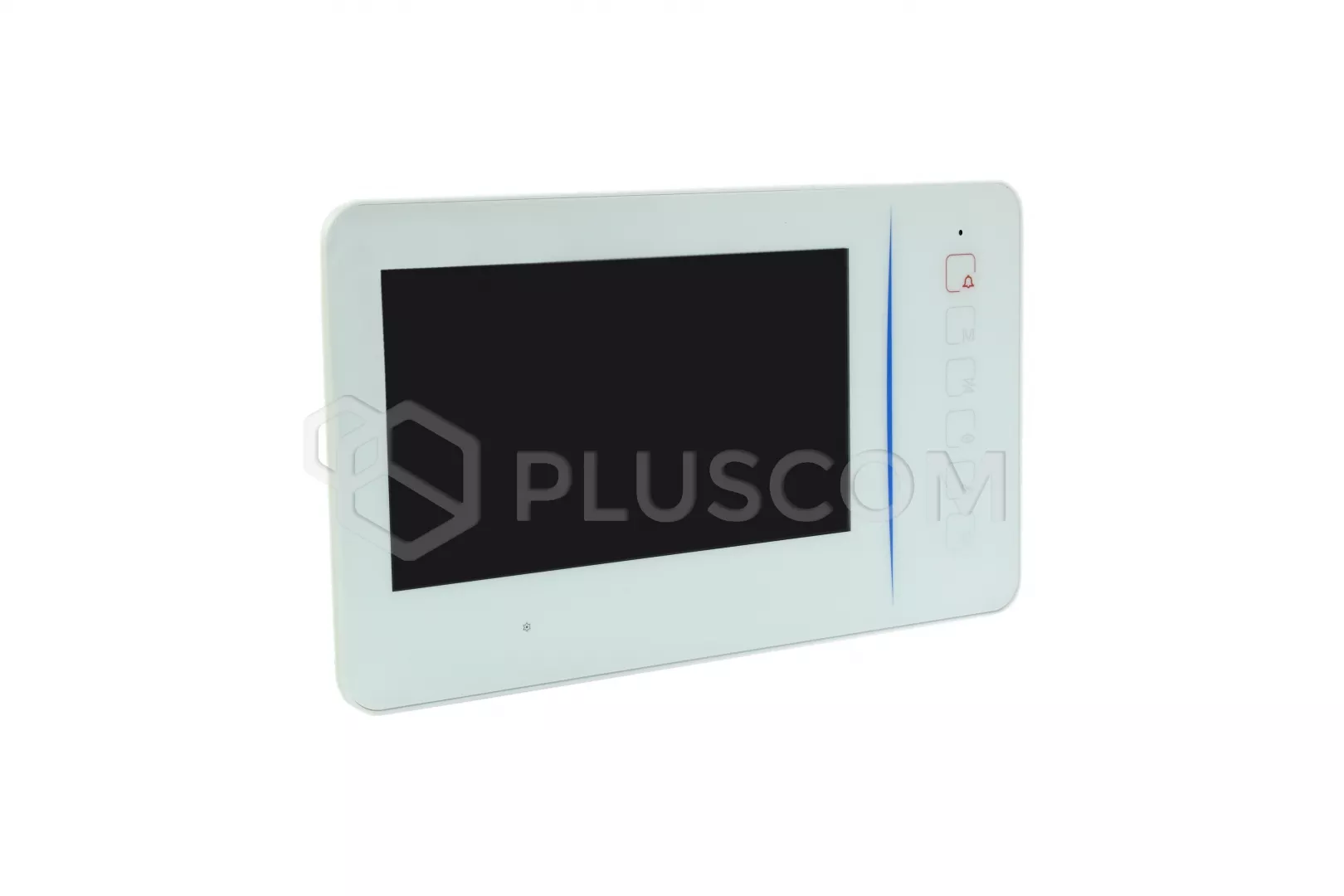

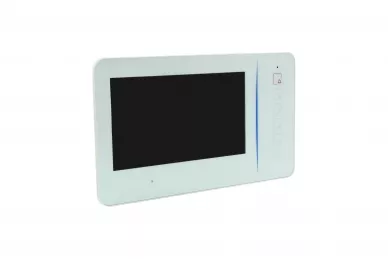

Video intercom JB305 N60 white
Key features:
- Screen: 7'' TFT-LCD
- the ability to view the image from the external panel
- conversation button and remote door opening
- independent opening of the gate
- built-in loudspeaker and volume control by means of a potentiometer,
choice from 10 different bells

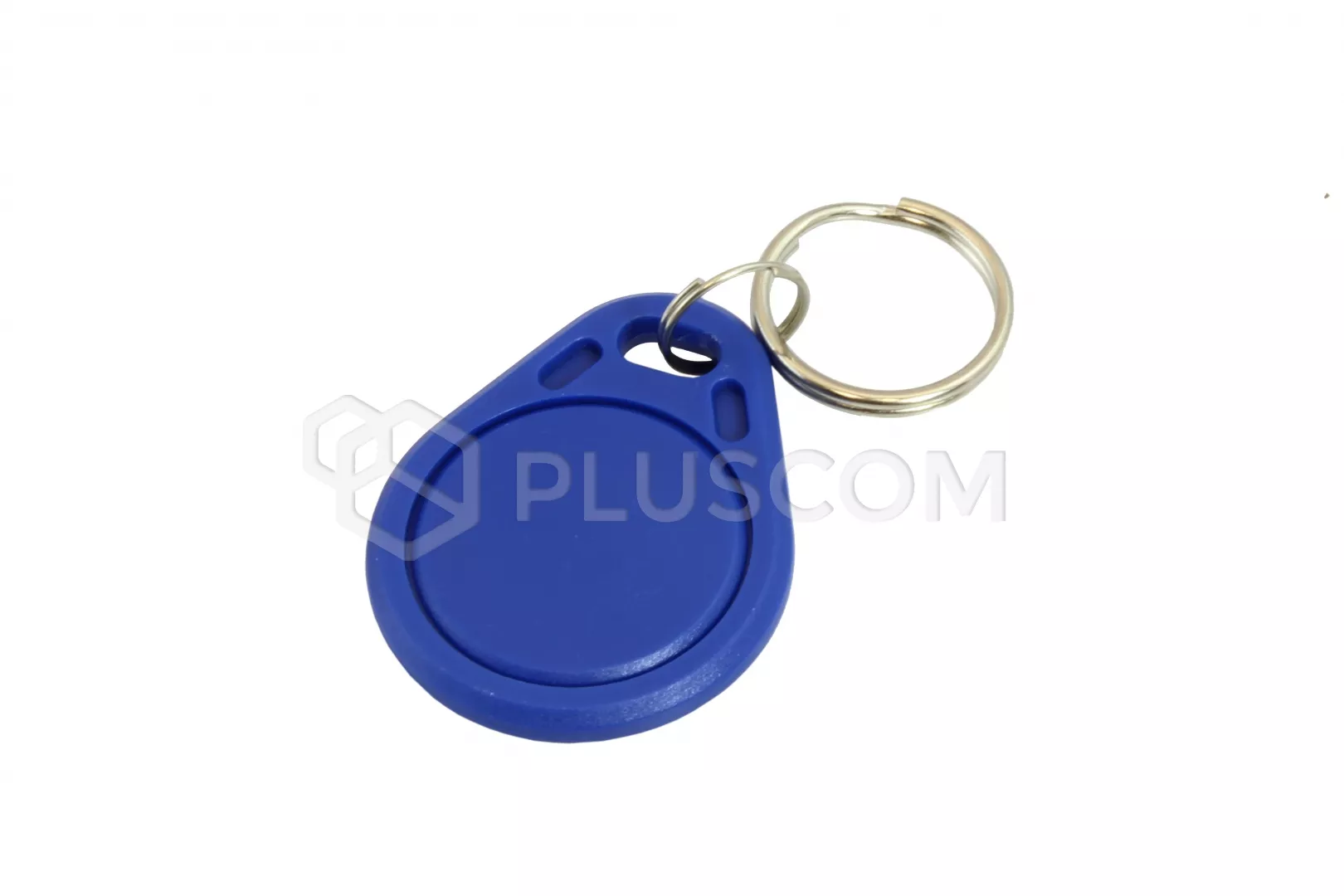

Pendant BZIC MiFare
Proximity keyring Unique 125KHz (EM4100)
UNIQUE 125KHz RFID proximity tag. Works with most 125KHz readers. A very
convenient solution, perfectly works as an alternative to the card.

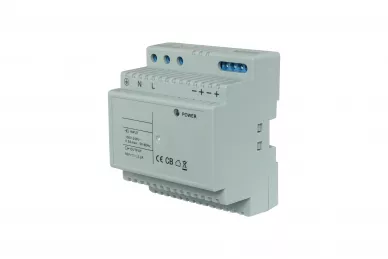

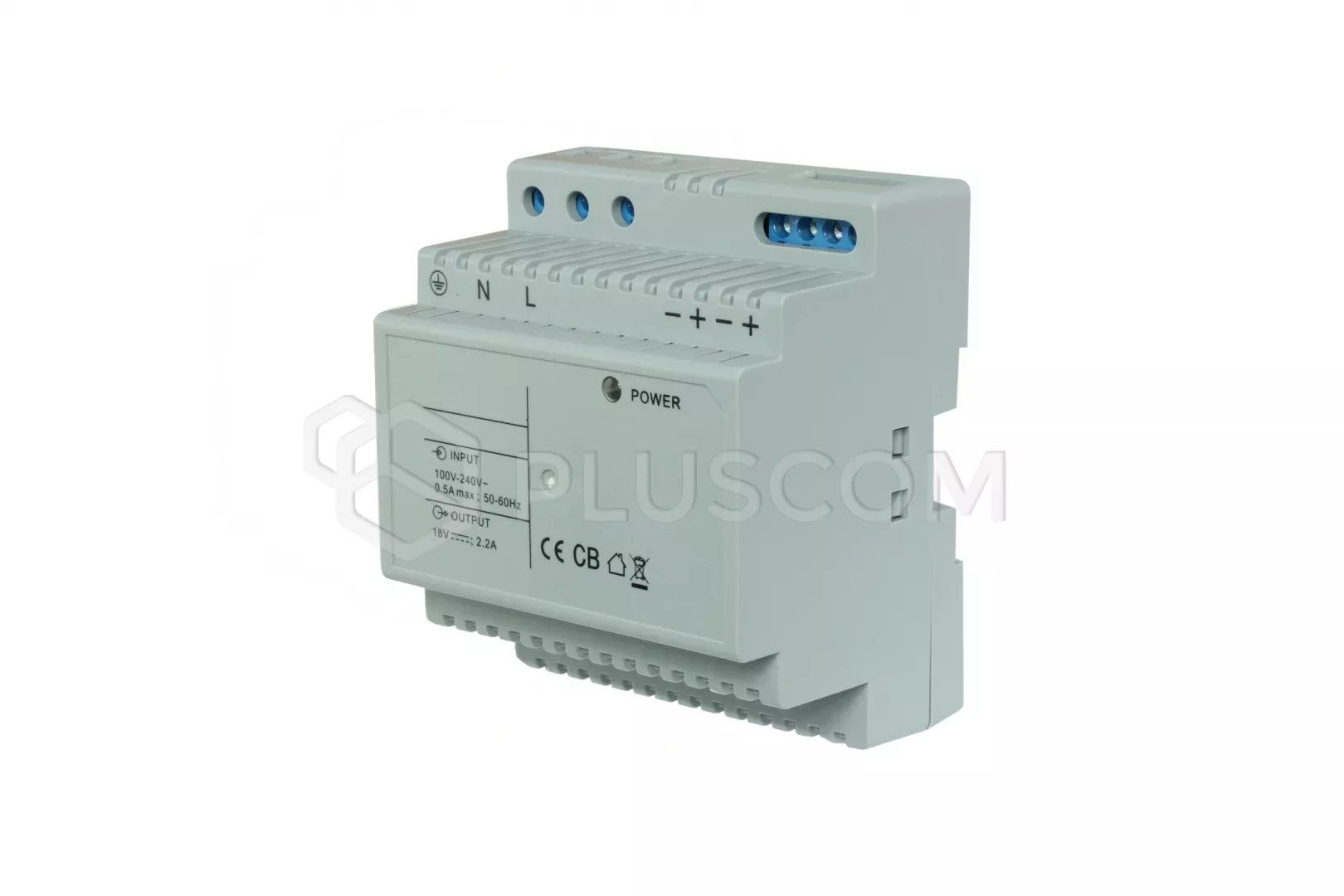

Leelen 18V DC DIN power supply
18V DC DIN power supply allows you to power a full set
containing up to 3 doorphones and 2 monitors. It gives a constant voltage of 18
V and 2.2A. Designed for installation on a DIN rail.

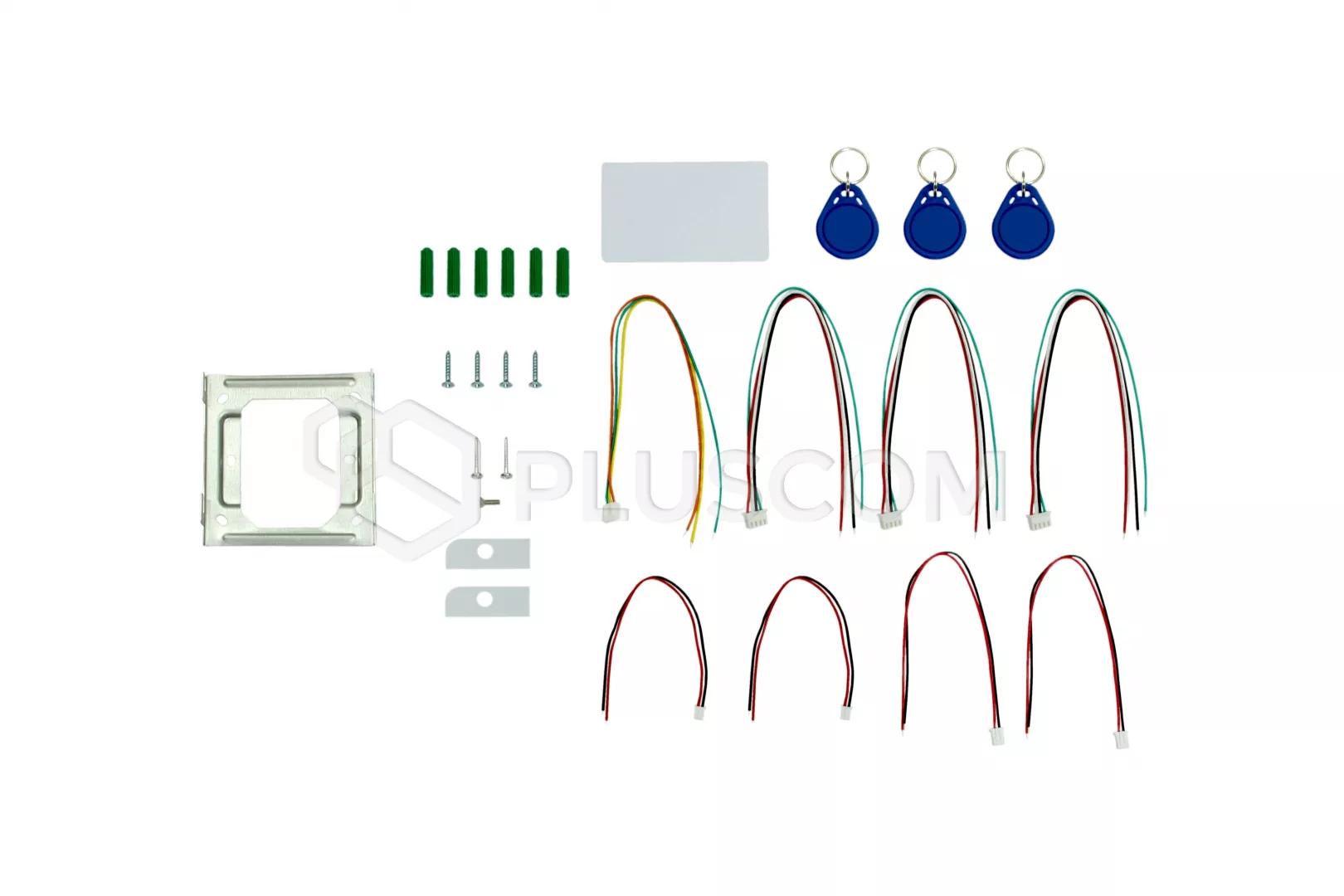

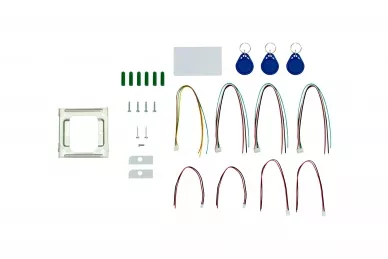

Accessories:
