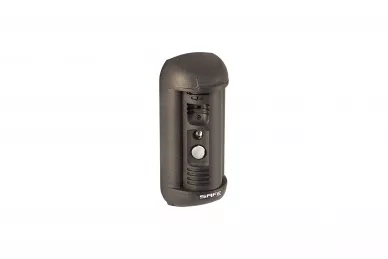

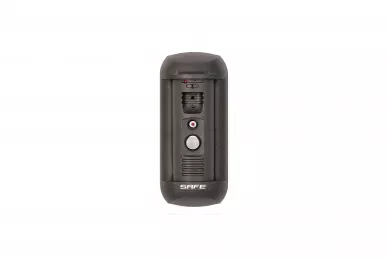

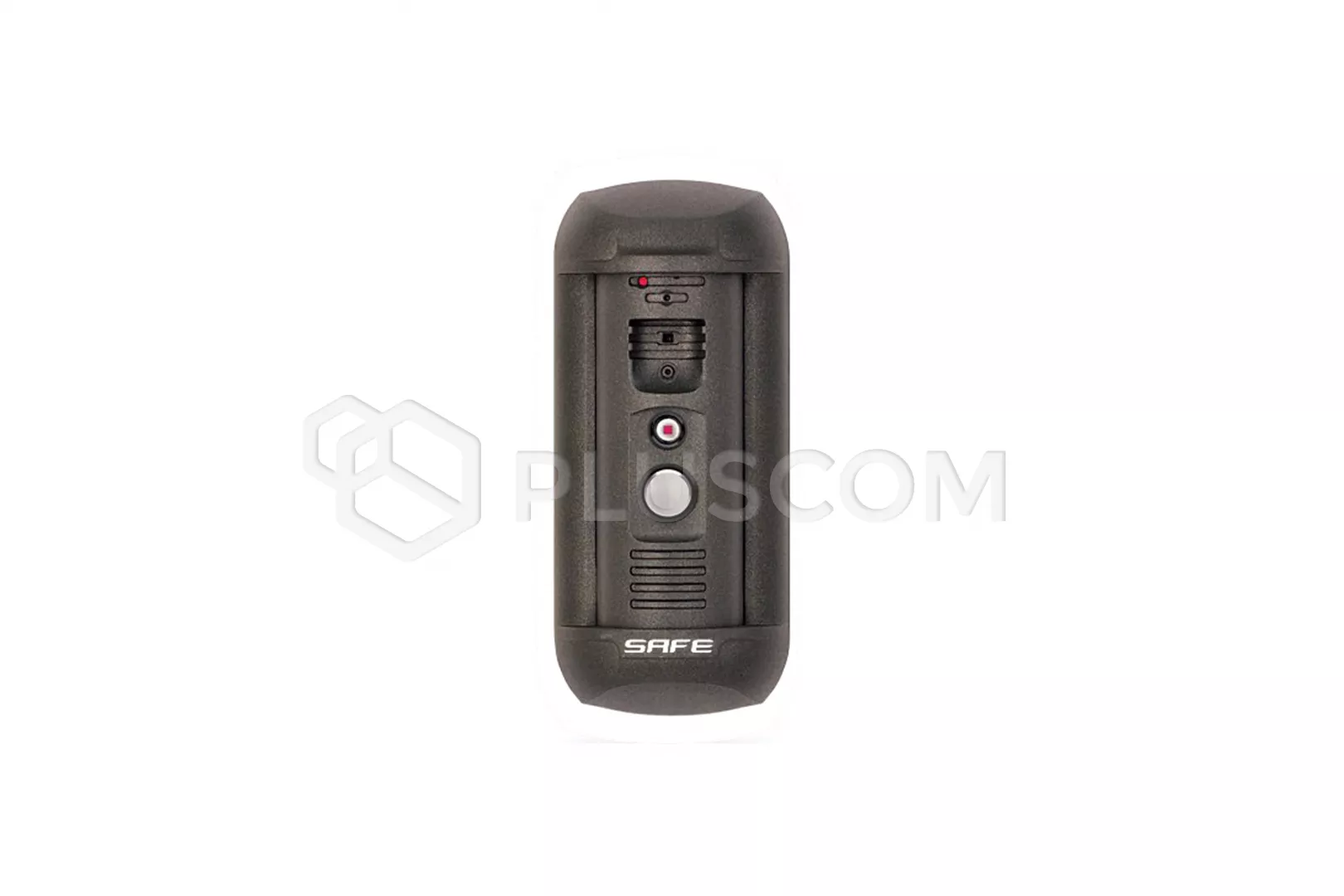

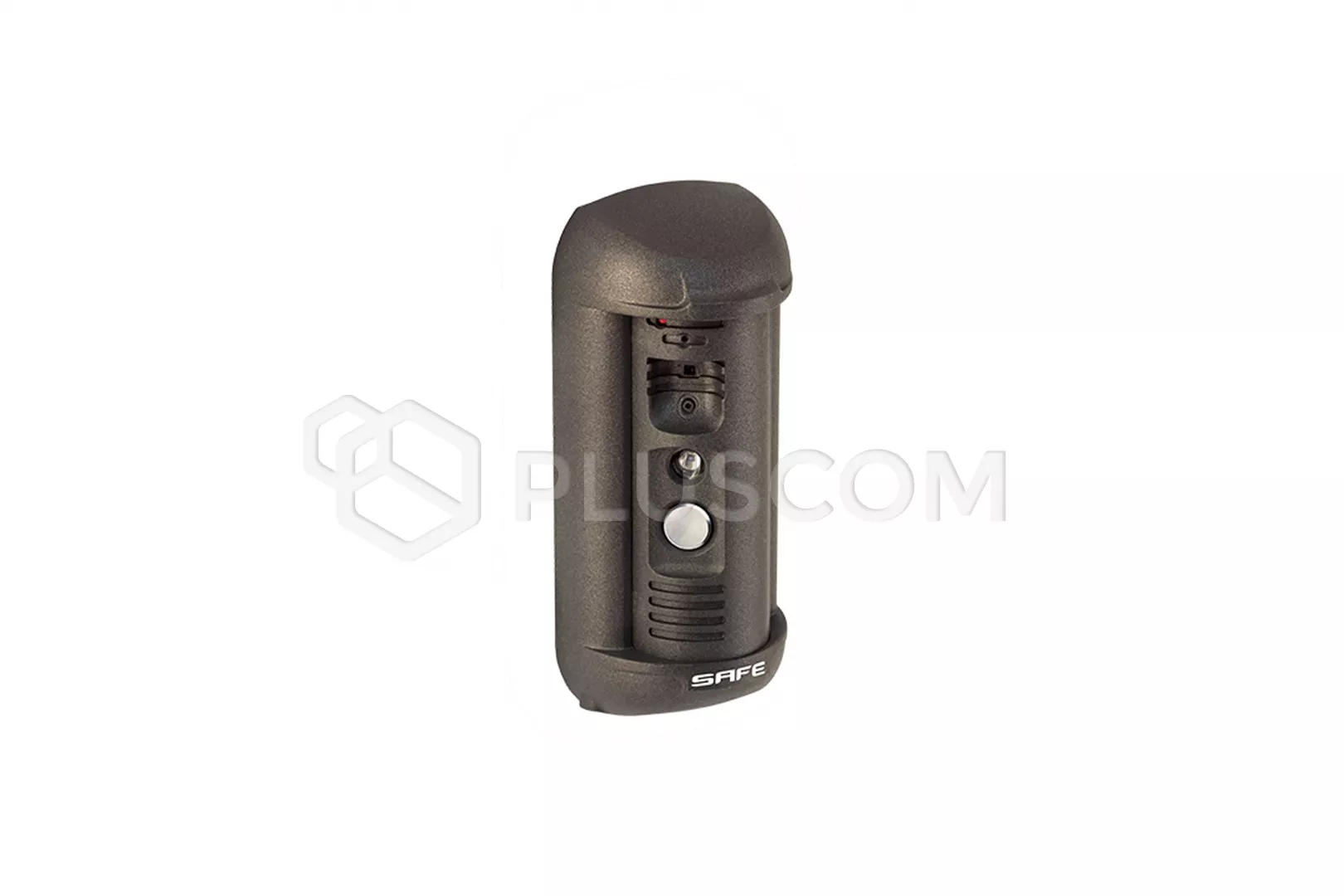

Leelen Doorphone IP SAFE S06MP

Leelen Doorphone IP SAFE S06MP (iOS, Android)

Doorphone S06MP is made of metal casting and its unique the design protects the station against attempted destruction or theft. Adding to this high tightness class (IP65) and work in the temperature range -40 to + 50 ° C, we get a device great for mounting both inside and outside the building. The method of attachment ensures angle adjustment horizontal vision up to 180 °.

The door station can also be used as an IP camera in a way continuous or by motion detection and by pressing the button "Call" will ensure recording.

The most important features S06:

• face recognition function
• built-in 8 GB MicroSD card
• three relay outputs (e.g. wicket, gate, light)
• work at night - built-in new generation IR diode
• built-in integration protocols: SIP, MODBUS, ONVIF
• doorphone control by means of a computer and mobile devices
• remote doorphone access in real time

High image quality is due to the lens with very good parameters and sensitivity. Thanks to the module and SONY DSP Effio-E we gain such functions how:

• backlight compensation
• 2D / 3DNR noise reduction
• DWDR

CHARACTERISTIC:

• video converter:: 1.3MP, colour, 1/3'' SONY Exmor, day/night
• tenderness: 0.1 lux (day)/0.01 (night) 0lux (with lighting)
• lans: 2.5mm
• view angle: 88°(horizontally), 70°(vertical)
• rotation angle adjustment: 0d 0° do 180° horizontally
• minimum distance: 0.2m
• zoom: digital, via the web interface
• noise reduction: 2DNR
• shutter speed: od 1/50 do 1/10000s (shutter speed)
•

• compression: H.264 BO/MP, Motion JPG
• video stream: double coding H.264 / MJPEG, H.264 / H.264, MJPEG / MJPEG
• main stream resolution: 1280x960 (SXGA), 1280x720 (HD)
• number of frames per second: do 25m/s
•

• audio output: built-in speaker
• audio input: built-in microphone
•

• network interface: 10Base-T/100Base-TX Ethernet
• network protocols: TCP, IPv4,/v6, HTTP, DNS, DHCP, DDNS, UDP, NTP, FTP, SIP v2.0, STUN, ModBus, RTSP, VPN, ONVIF v2.41
• connection: DHCP, static IP
• users: up to 3 user accounts

TECHNICAL SPECIFICATIONS:

• power:
• • panel zewnętrzny: PoE IEEE 802.3 af Class 0 or 12V, 0.6W
  • electromagnetic lock: max 12V, 0.4W (when powered by a switch) POE)
• power consumption: 8.9W (PoE)/7.2W(DC)
• working temperature: -40°C do 50° C
• tightness class: IP65
• dimensions: 73x166x51mm
• weight: 570g
