Leelen Doorphone IP SAFE G06MP for iOS, Android,

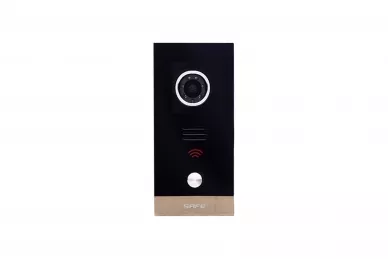

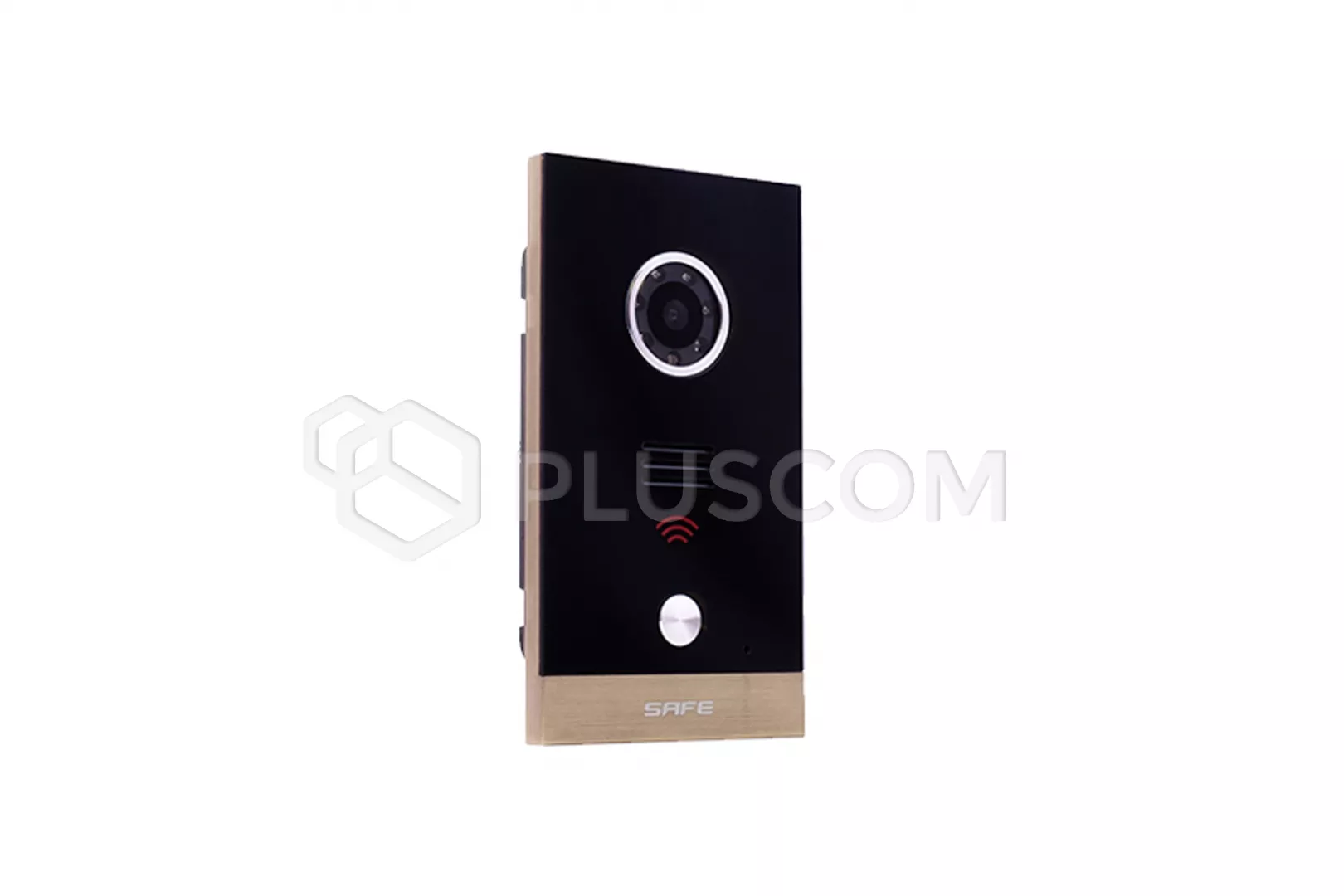

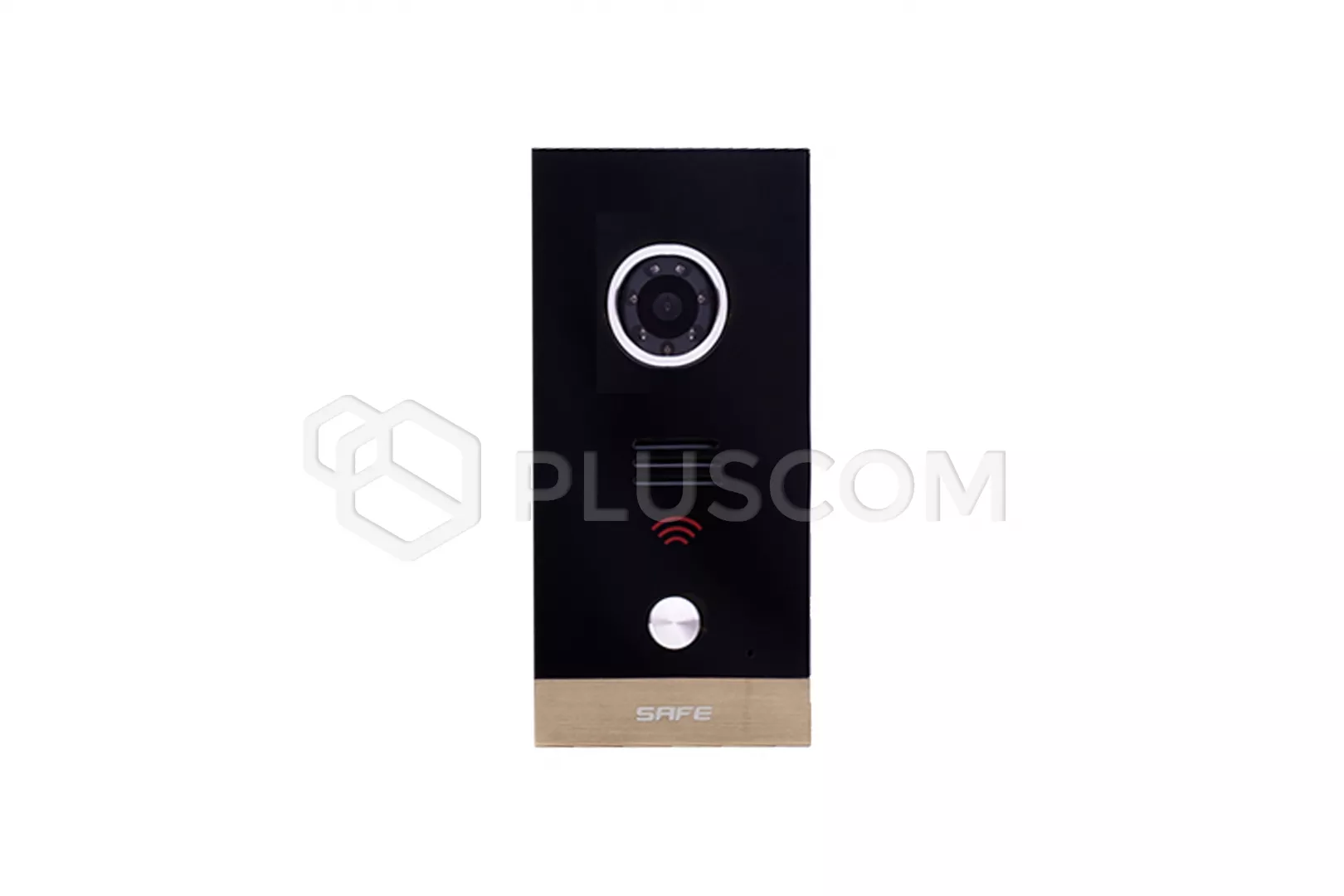

The G06MP video door phone is an elegant successor to the S06MP. Its housing is
made of anodized aluminum and tempered glass. It is flush mounted, in the kit
includes an installation box.
The door station has a built-in microphone, speaker and camera so we can get
audio video connections with a person at the gate or gate. It can also be used
as an IP camera that continuously or by detecting motion and by pressing the
"Call" button, it will ensure recording.
G06MP has built-in infrared reflectors with a range of up to 8m, providing
impeccable lighting at night or in very low light. High quality image is also
provided by the SONY DSP Effio-E image module. Its features are high image
resolution and sensitivity, and light compensation function.
KEY FEATURES
- Face recognition function
- Built-in 8 GB MicroSD card
- Three relay outputs (e.g. wicket, gate, light)
- Adapted to work at night, built-in new generation IR diode
- Remote doorphone access in real time
- Doorphone control via computer and mobile devices
- Integration with an ordinary door bell
- Saving recordings to a hard disk or to an FTP server
- You can connect several users to one doorphone
- One user can operate several doorphones
By installing
SAFE software on your computer, laptop or our
smartphone, we create a video intercom system based on standard local area
network, without additional devices.
Thanks to the SIP protocol, the Safe IP G06MP video door phone gives us new
ones The possibilities:
- we can connect with devices from other manufacturers (SIP intercoms, IP
video intercoms, IP telephones, SIP monitors, etc.)
- via IP-PBX can be operated IP system or directly can communicate with
another SIP device
- we can answer the video call and open the door by phone
- SIP STUN technology makes it possible to connect a video intercom through
internet without using a fixed IP address
- we can simultaneously connect two SIP accounts and prevent external ones
malfunctions
The video door phone also has a built-in network communication protocol
Modbus and ONVIF protocol.
The NC311P controller is a part of the G06MP equipment, thanks to which
we can during the conversation, open the door, turn the light on / off, control
the alarm, open the barrier, tip. It allows us to control up to 3 devices.
Controller increases both the video doorphone functionality and its security
urzytkowania. Connection between devices is via an encrypted protocol 1-wire -
the command is carried out after positive verification of the secret code. this
same, in the event of a hack attempt, the thief would not get into the object,
though obtain physical access to the video intercom cables and use the Brute
method Force.
TECHNICAL SPECIFICATIONS:
- Video converter: 1.3MP, color, 1/3'' SONY Exmor, day / night
- Lans: 2.5mm
- Viewing angle: 88 ° (horizontal), 70 ° (vertical)
- Compresion: H.264 BP/MP, Motion JPEG
- Resolution: main stream: 1280x1024 (SXGA), 1280x720 (HD)
- Frame rate: up to 25 frames per second for everyone resolution
- Bit rate: 32 kbit/s do 16 Mbit/s
- Audio output: built-in speaker
- Audio input: built-in microphone
- Built-in web server for viewing and setting up the device
- Built-in player for viewing records
- Support ONVIF
- PoE supply (active) or standard 12VDC
- Power consumption: 8.9 W (PoE) / 7,2 W (DC)
- IP54
- Working temperature: -40°С do + 50°С
- Dimensions: 93x168x10mm
- Weight: 570 g (netto)
- System requirements: Microsoft Internet Explorer 9.0 for Windows 07/08 /
Vista, iOS 6.0 and above, Android 4.0 and above
