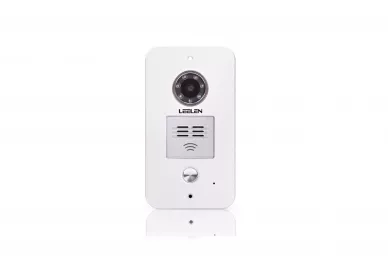

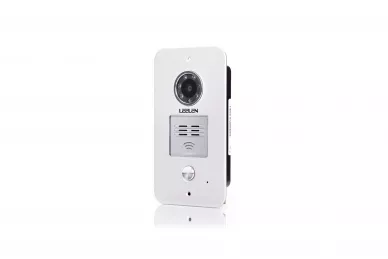

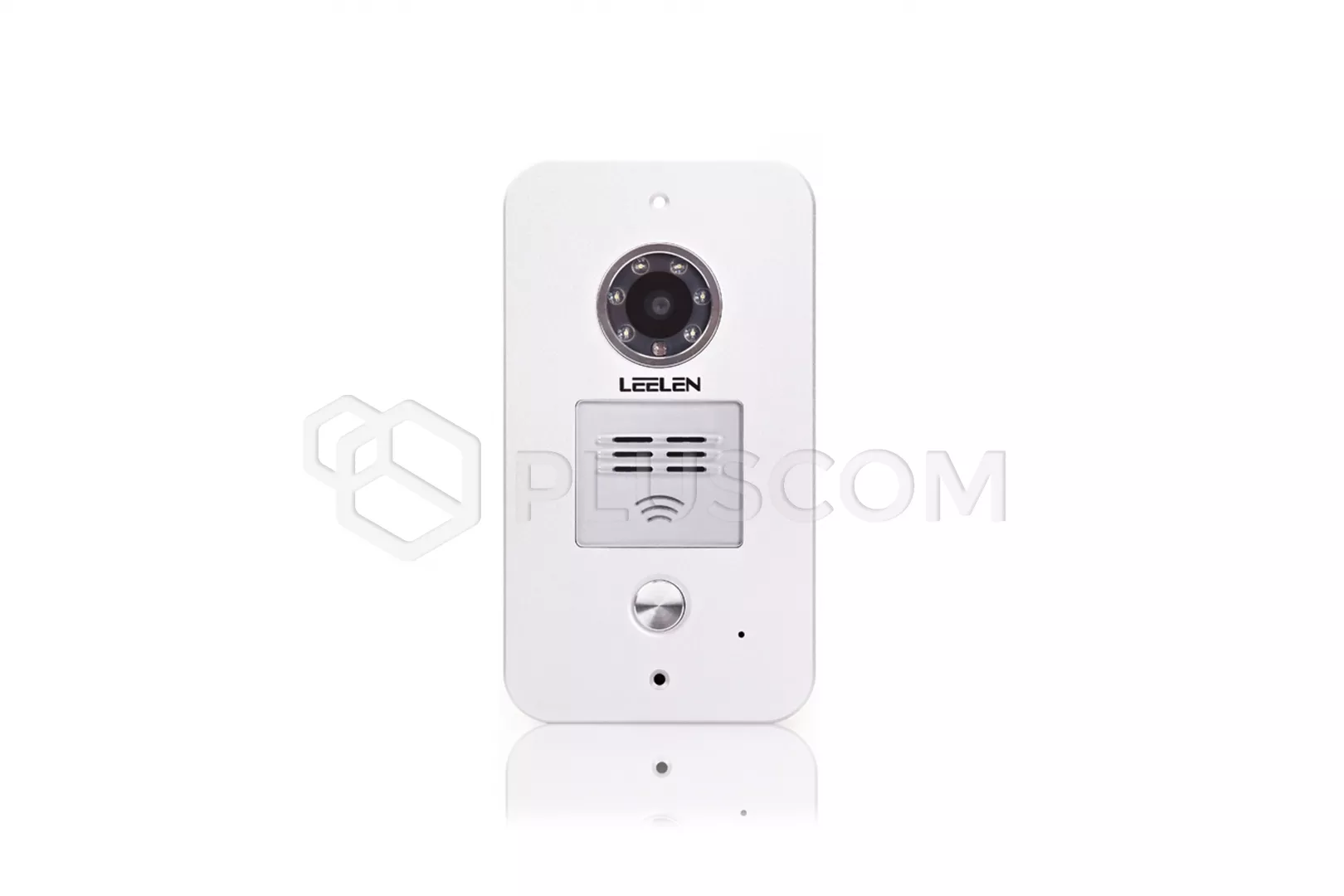

Leelen Doorphone 305N N15pc

Leelen Doorphone 305N N15pc witch built-in proximity reader

External panel 305N N15pc of the brand Leelen for use in the system JB305. It has a flush-mounted housing, which is made of cast aluminum. As a result, it is resistant to unfavorable conditions atmospheric as well as mechanical damage (vandal-proof housing).

The doorphone has the ability to open inputs with proximity cards or key fobs thanks to the built-in access control system. Everywhere Reliability and aesthetic appearance counts, the 305N N15pc doorphone will find its own application. Good volume and quality of the transmitted image, make it perfect a tool. In the JB305 system, doorphones are connected with a 4-wire cable.

Key features:

• Flush mounting
• Installation via 4-wire cable
• The panel is made of cast aluminum
• Built-in proximity reader for kayfobs and RFID proximity cards
• Camera module 110 °
• Camera illuminated with white LED diodes with light sensor
• Electronics is made in SMT technology
• Controlling 3 outputs directly from the door station (wicket, gate, garage)
• The device is compatible with the majority of electric locks available in Polish market

TECHNICAL PARAMETERS:

• Bus: 4 wires, PLUG & PLAY
• system
• Camera: 1/3 "CCD (SONY color 1/3 '' camera)
• Resolution: 540TV Lines
• Min. lighting: 0.01 Lux
• Video output: 1VP-P / 75
• Intercom time: 120 Seconds
• Audio SNR: 35dB
• Audio distortion: ≤7%
• Static current: 160mA
• Working intensity: 410mA
• Power supply: DC12V ± 10%
• Working temperature: -40 ~ + 70
• Panel dimensions: 94 x 169mm

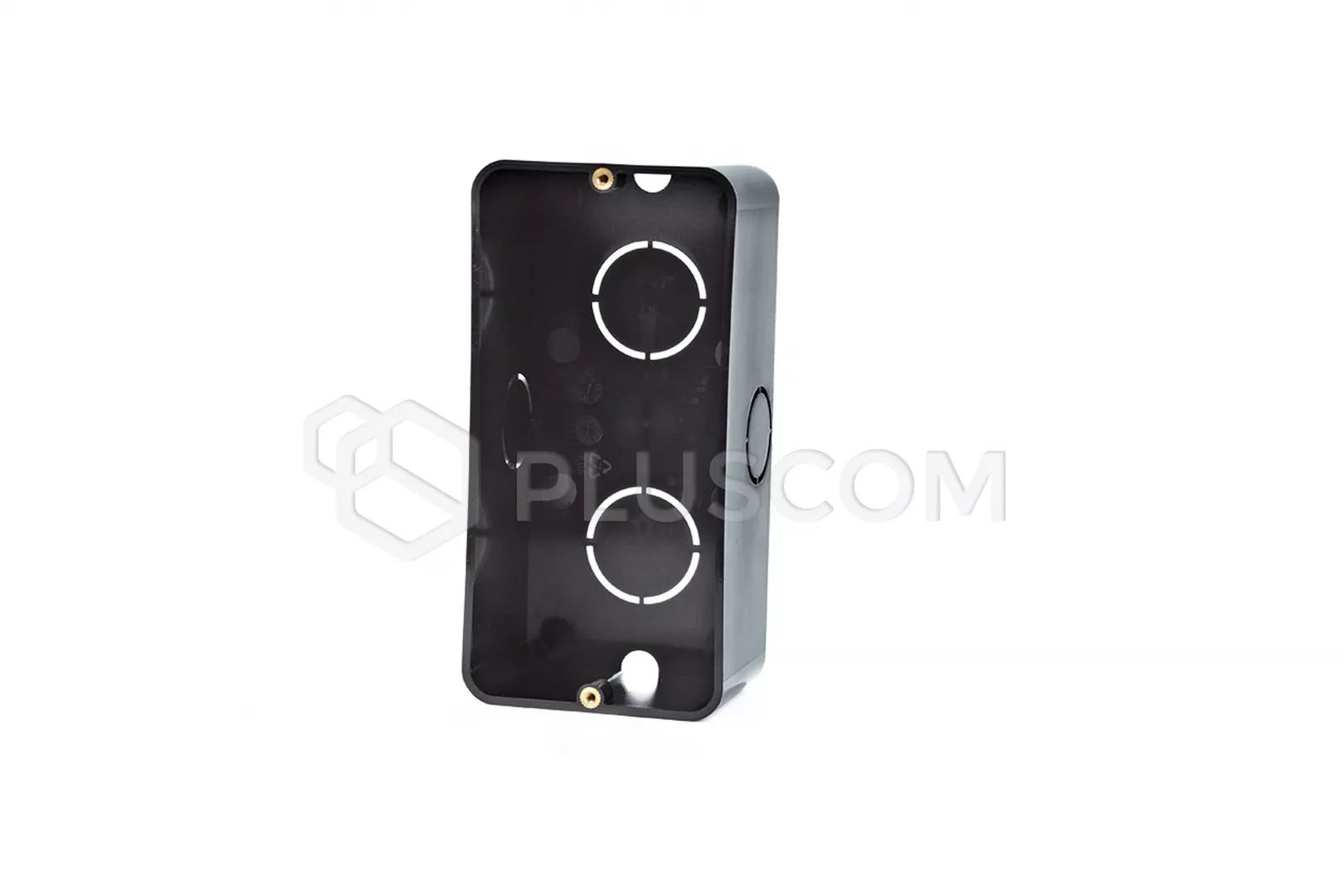

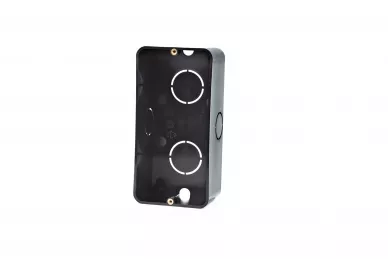

• Box dimensions: 75 x 150 x 50mm

It is possible to order a door station in a different color, according to RAL palette.

NOTE

The JB305 series is made on the newer ones microprocessors that improve the quality of devices, but at the same time this series does not is compatible with the JB304 series.

Cooperates with, among others with monitors:
