KingGates STARG824KNG control unit for 24V gates motors in a complete box

284,03 EUR including 20.00% VAT
Product code: #25939
Manufacturer: KingGates
  • The control panel in the housing with the control board and transformer
  • To one or two 24V gearmotor
  • Auto programing
  • Radio with memory for 170 pilots
  • Cooperation with an electric lock and a resistive strip
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
KingGates Bat M016 Emergency battery 24V KINGgates BAT K3 Battery charging card BAT M016

STARG824KNG Control unit for 24V gates motors to sliding gates, or for one or two 24V gates motors to swinging gate, in a complete enclosure

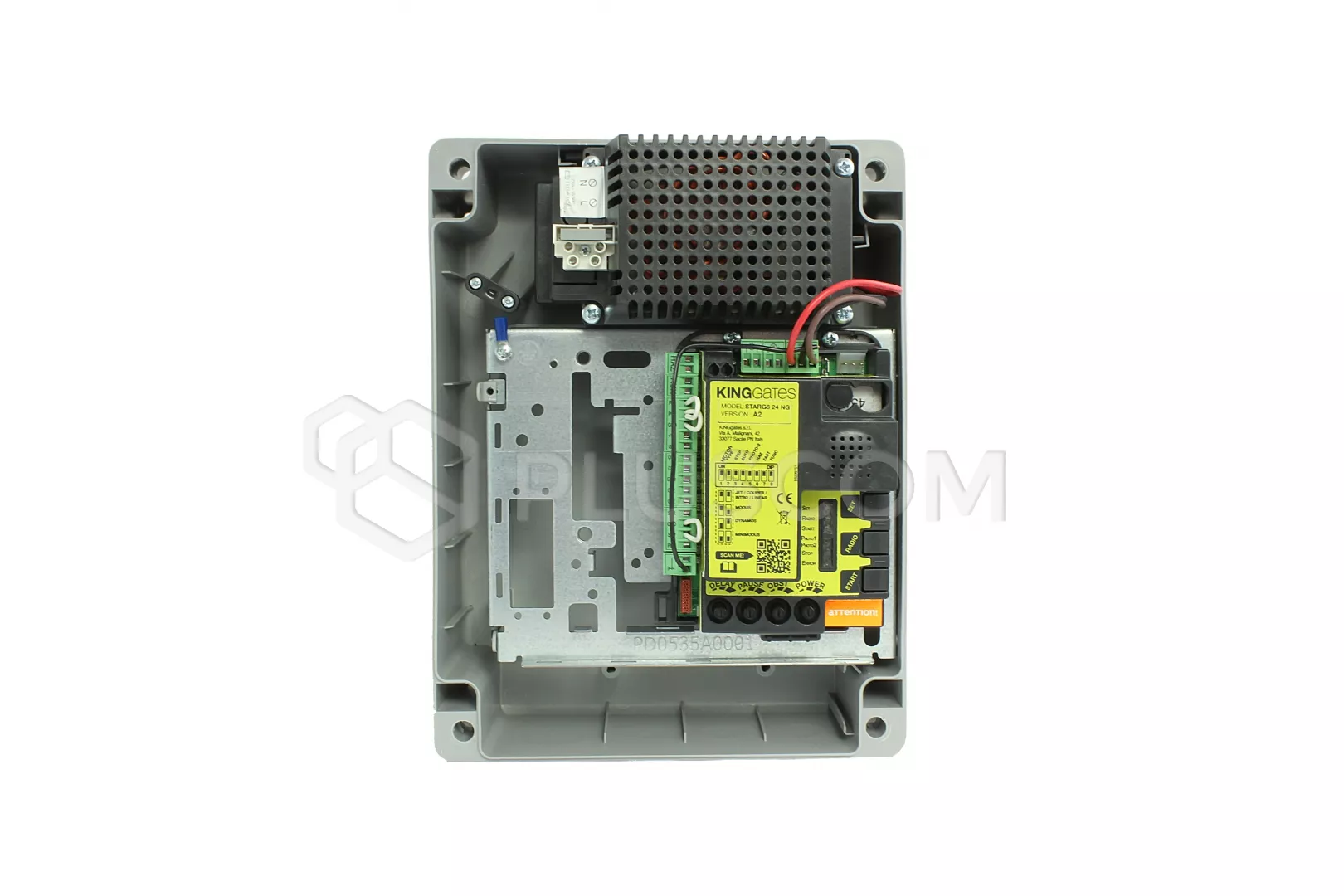

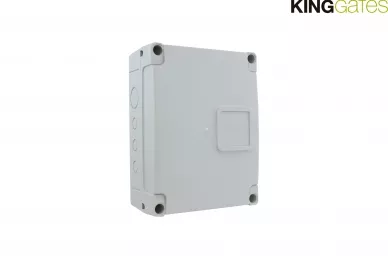

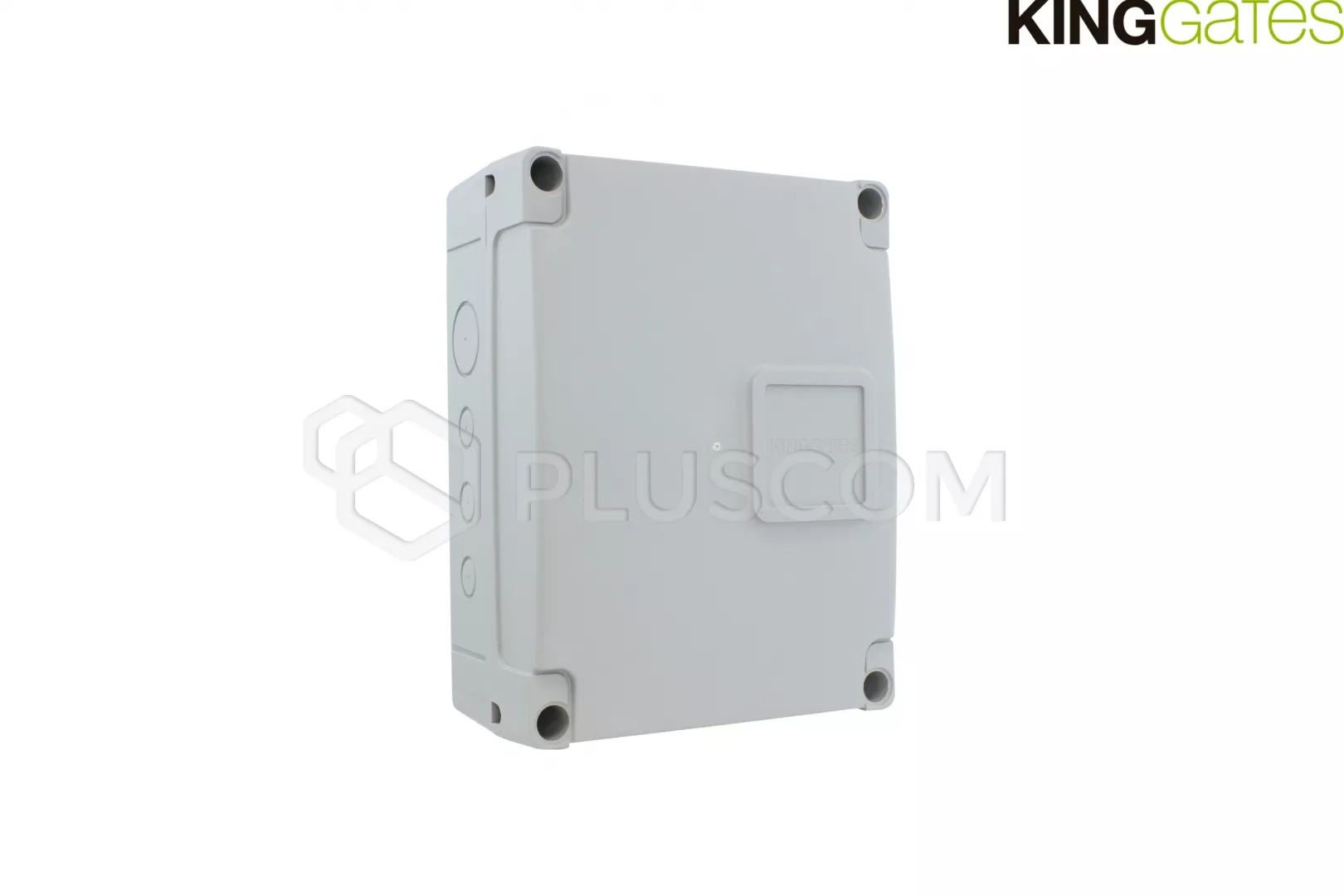

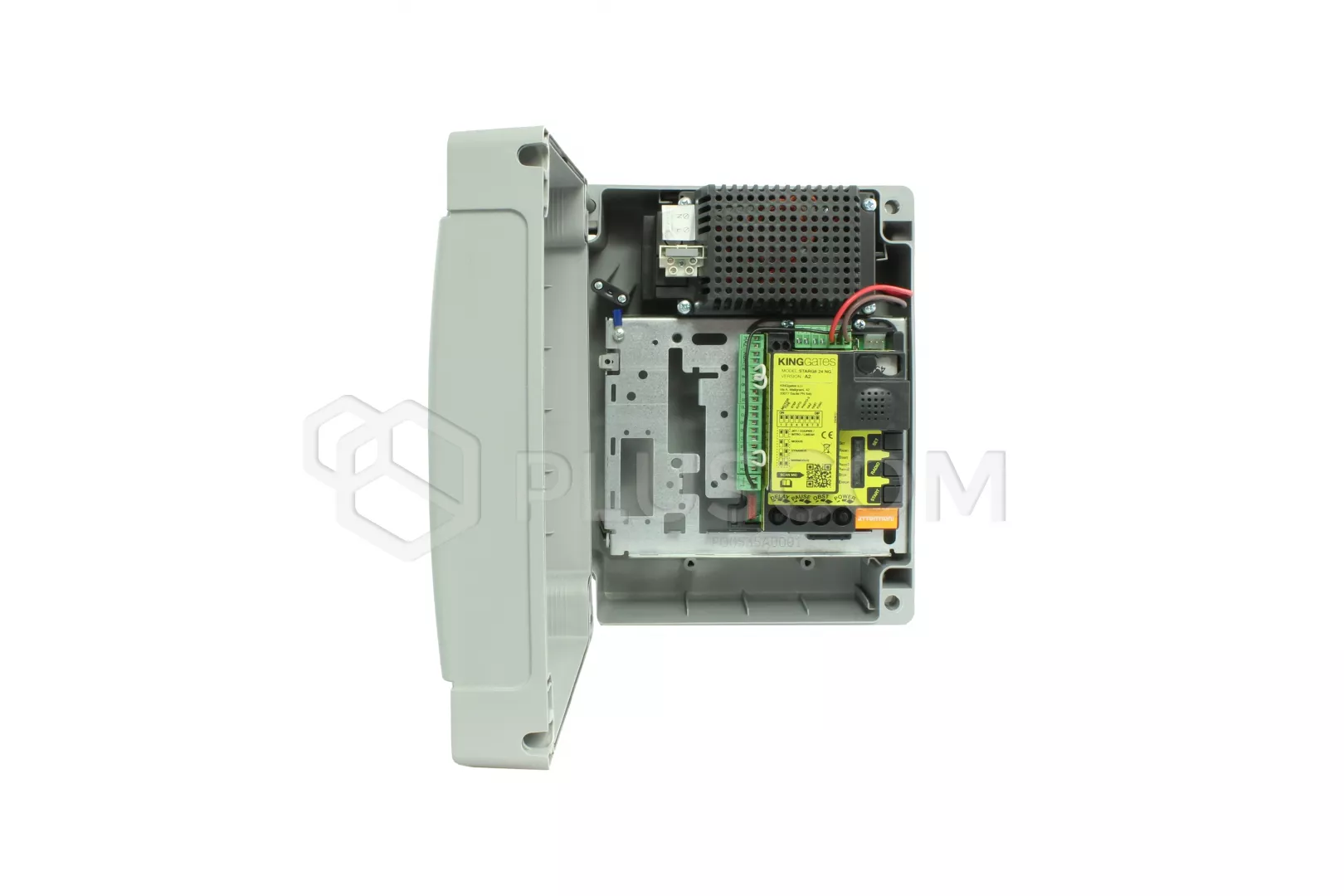

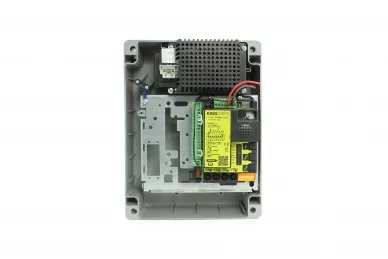

The STARG824KNG control unit in the set with the ELBOX 33 enclosure, the control board and the 150V transformer.

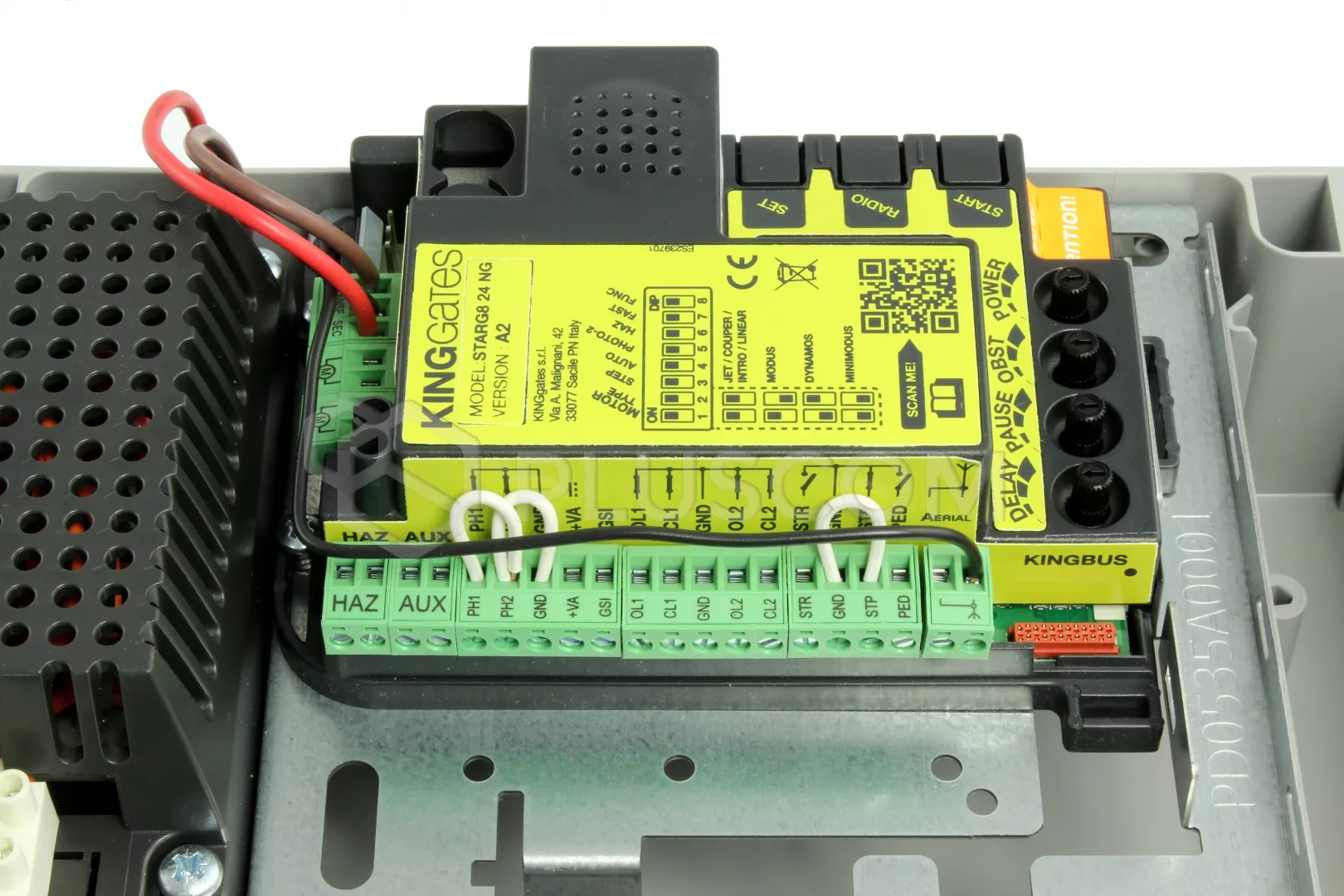

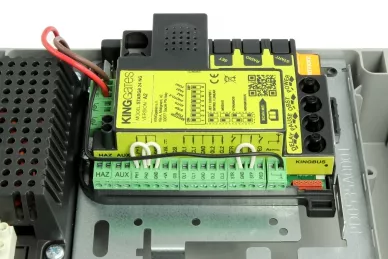

STARG824KNG is a control unit compatible with all KingGates actuators powered 24V, for both swing and sliding gates. Dedicated to KingGates drives: Jet 24, Linear 400/24, Linear 500/24, Modus 280, Modus 420, Dynamos 24.}

CENTRAL FUNCTIONS:
  • Step by step mode
  • Automatic closing
  • Wicket function
  • Adjustable speed, strength and relaxation of the wings
  • Phototest
  • Locking buttons or control center
  • in the rest condition reduces energy consumption and goes into "Stand to "
  • Gateway status indicator
  • Amperometric obstacle detection system (adjustable level sensitivity)
  • The sequence of flash flashes indicates the need for maintenance (number of cycles programmed individually)
  • Photocells on opening and closing
  • Adjustable time of automatic closure
  • Adjustable delay between wings
  • Integrated radio - memory for 170 pilots
  • Programmable control inputs
  • Maintenance management
  • Always works - thanks to the emergency battery (option), actuators they will open and close the gate even in the event of a power failure
An additional feature activated by the smartphone is cooperation with an electric lock and a resistive strip.

With the STARG824KNG control panel we can connect the WiFi KINGKONNECT module and manage it all functions offered by KING Smart electronic devices Traditional, in a simple and intuitive way.
In addition, the application provides new features such as periodic planning system maintenance, control panel controls and remote management control.

TECHNICAL PARAMETERS:
  • power supply to the control panel: AC 230V
  • engine power supply: 24V DC
  • supply of a warning lamp: 24V DC
  • frequency of the radio: 433.920 MHz
  • memory capacity: 170 nadajników
  • antenna input: RG58
  • working temperature: -20°C...+50°C
