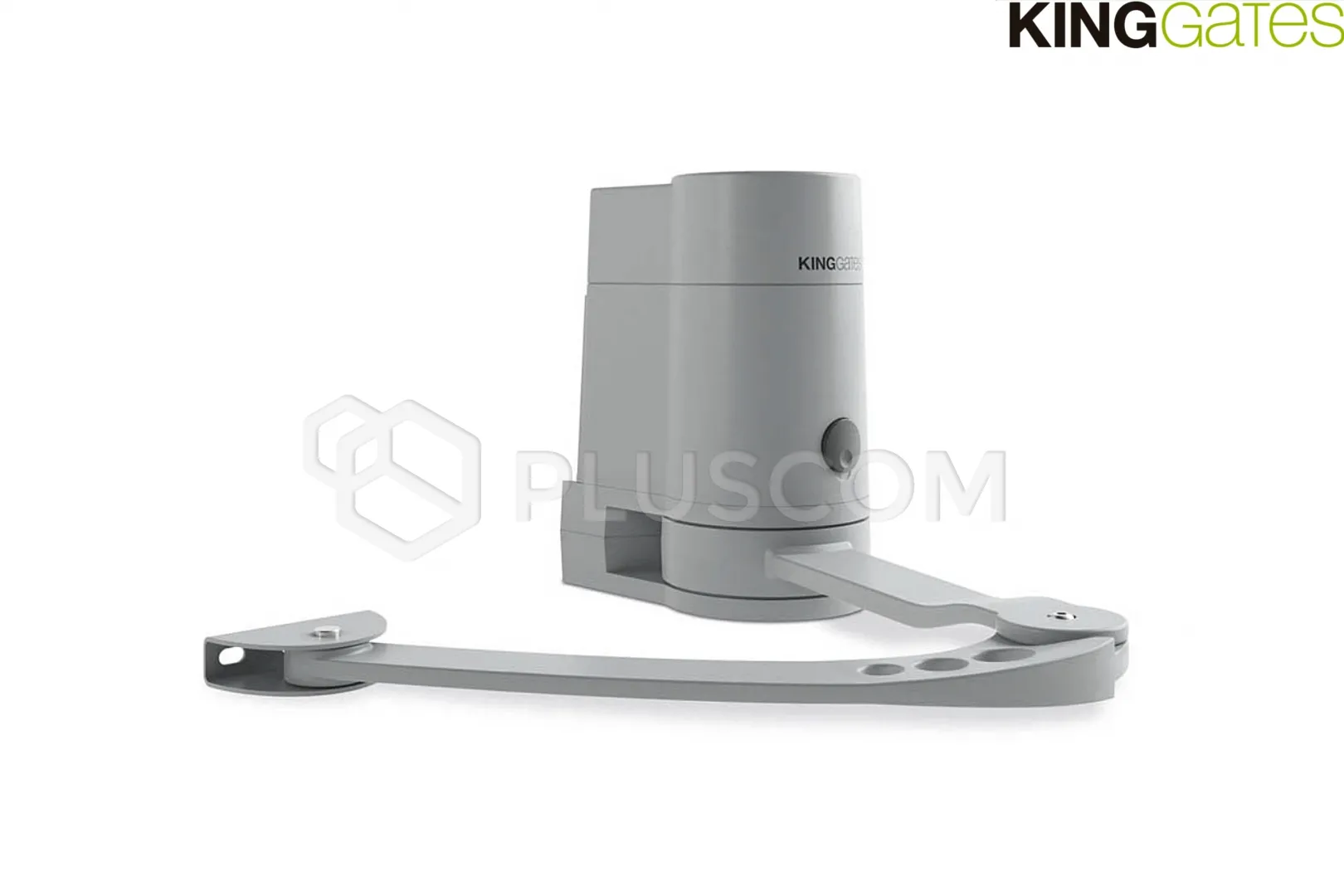

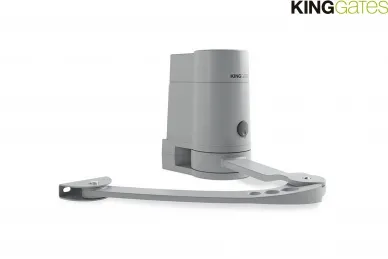

KingGates MINIMODUS 24V Motor without control unit, with articulated arm
for gate leaves up to 2m and 250kg
PURPOSE OF THE DRIVE
The MINI MODUS motor with articulated arm is designed to automate gates with:
- leaf length up to 2m
- leaf weight up to 250kg
Perfect for mounting on wide brick or stone posts.

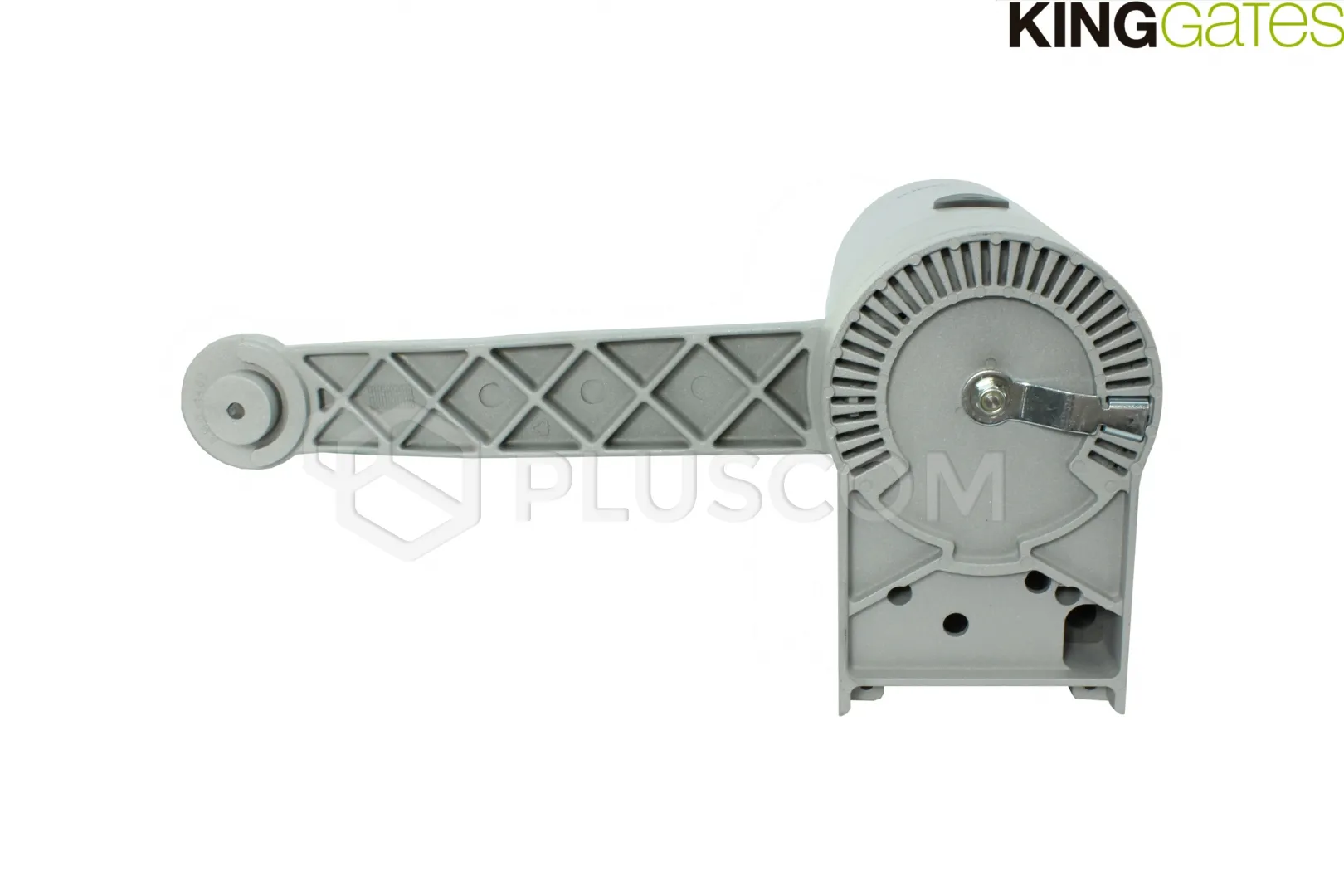

It features a precise mechanical limit switch adjustment that allows you to set
the gate leaves in the open and closed positions.
DISTINGUISHING FEATURES
- Quick and easy installation, no welding required
- Durable and compact design

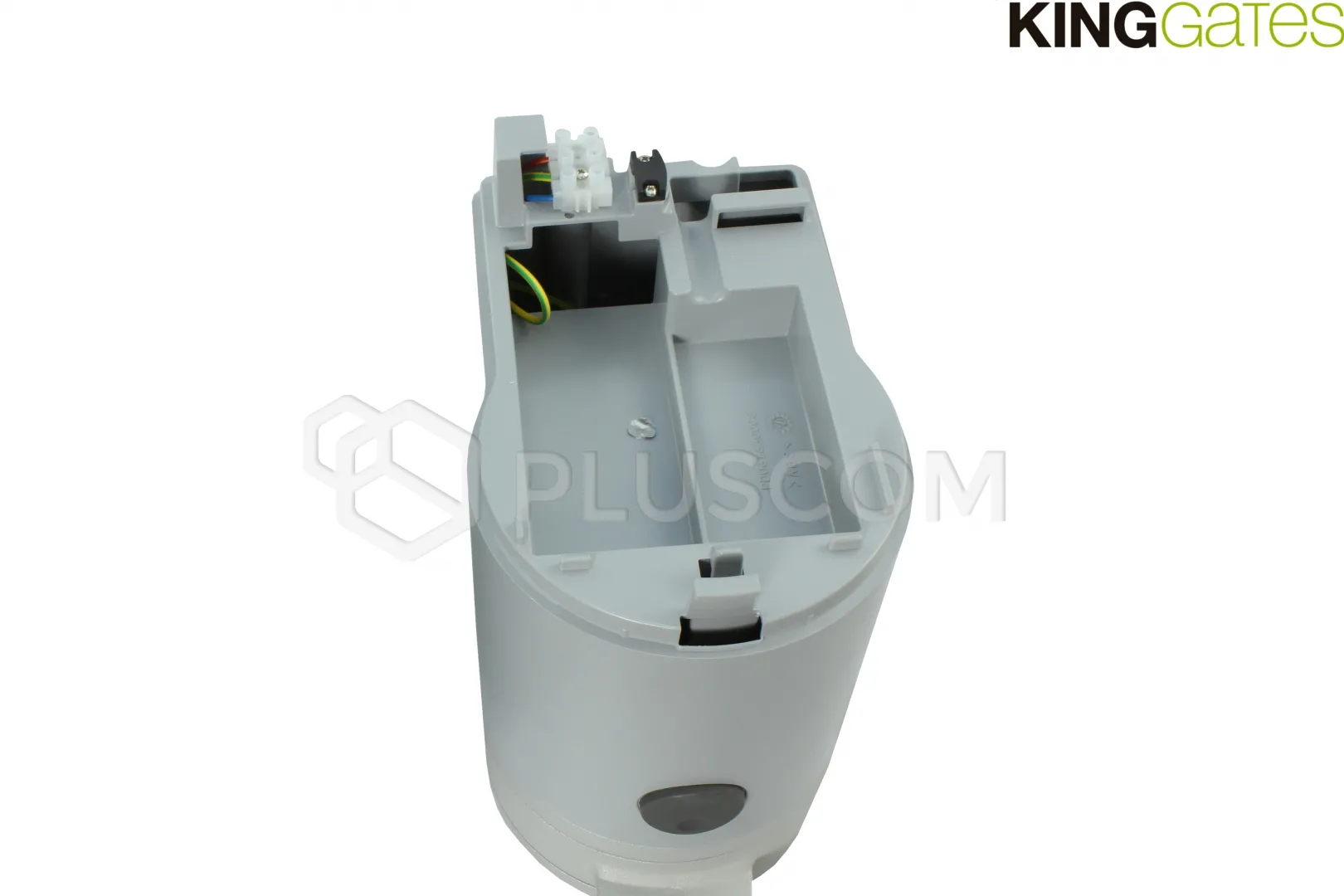

A durable aluminum body, plastic housing, spare fuses, labeled
connections, and three programming buttons are just a few examples of the
product's innovative features. PWM technology ensures safety in the event
of encountering an obstacle and allows for the adjustment of the gate's
opening and closing speed.
The drive is only 155 mm wide, so it can be installed even in limited space.
EASY AND FAST INSTALLATION
Installation of MINI MODUS actuators is quick and easy. No welding is required.

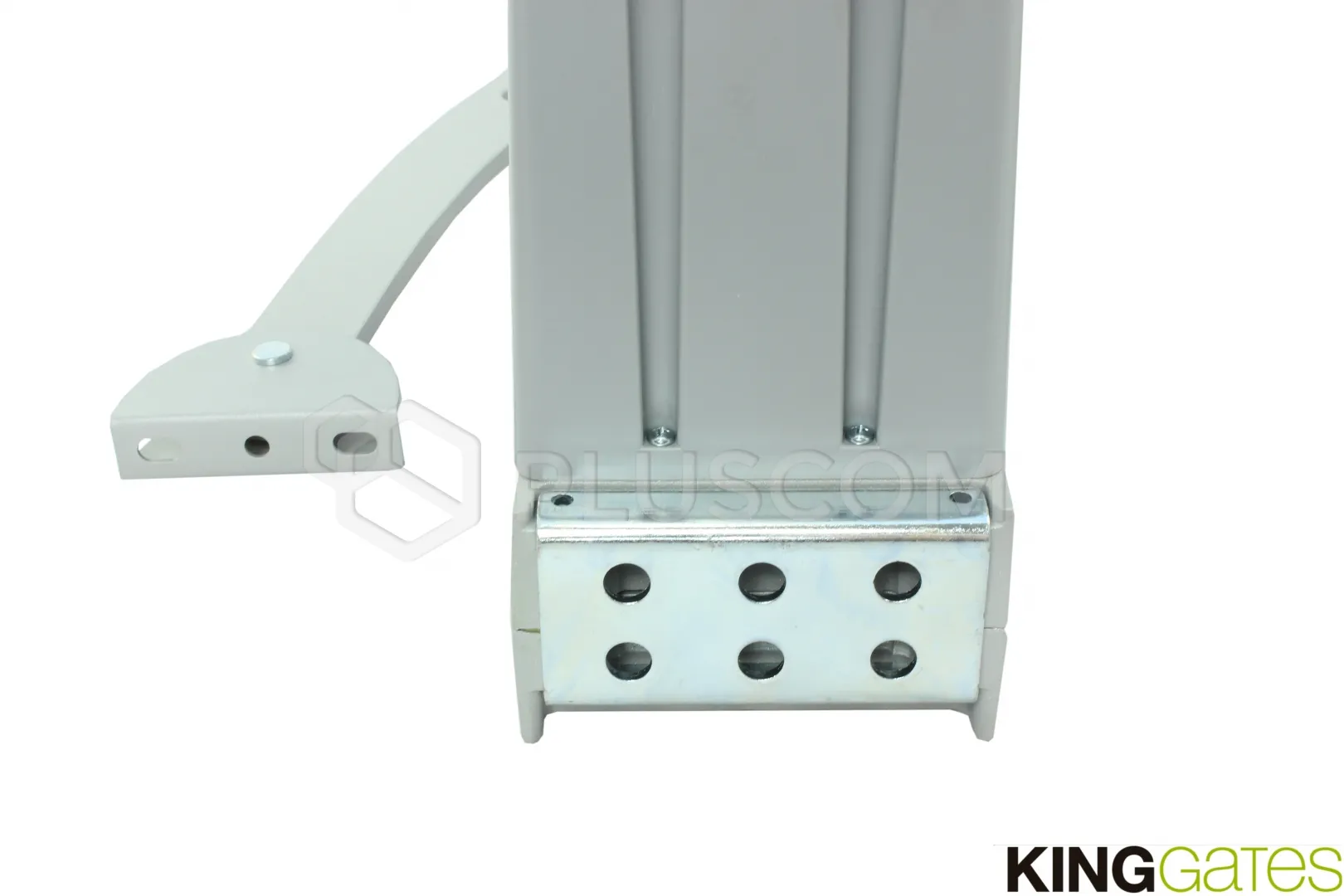

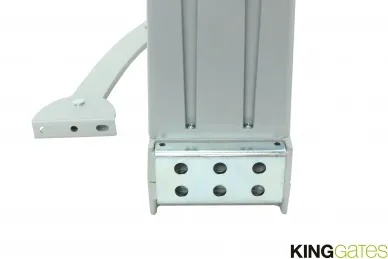

Both the actuator and the mounting bracket are attached to the door leaf with
screws. It features precise mechanical limit switch adjustment, allowing quick
setting of the gate's end positions.
It can be used with a Bat M016 emergency battery, which can effectively power
the device when there is no mains power.
TECHNICAL DATA:
- Mains power supply: 230V
- Motor power supply: 24V
- Maximum power consumption: 250W
- Maximum torque: 150Nm
- Work intensity: 50%
- Protection level: IP44
- Dimensions: 155 x 253 x 314mm
- Weight: 6.2kg
