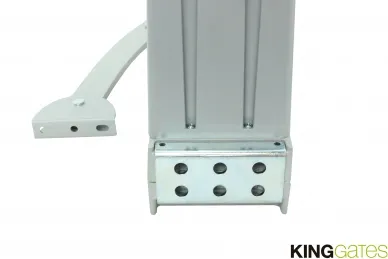

KingGates MINIMODUS 24V Operator with control unit and articulated arm for
gate leaves up to 2m and 250kg
PURPOSE OF THE DRIVE

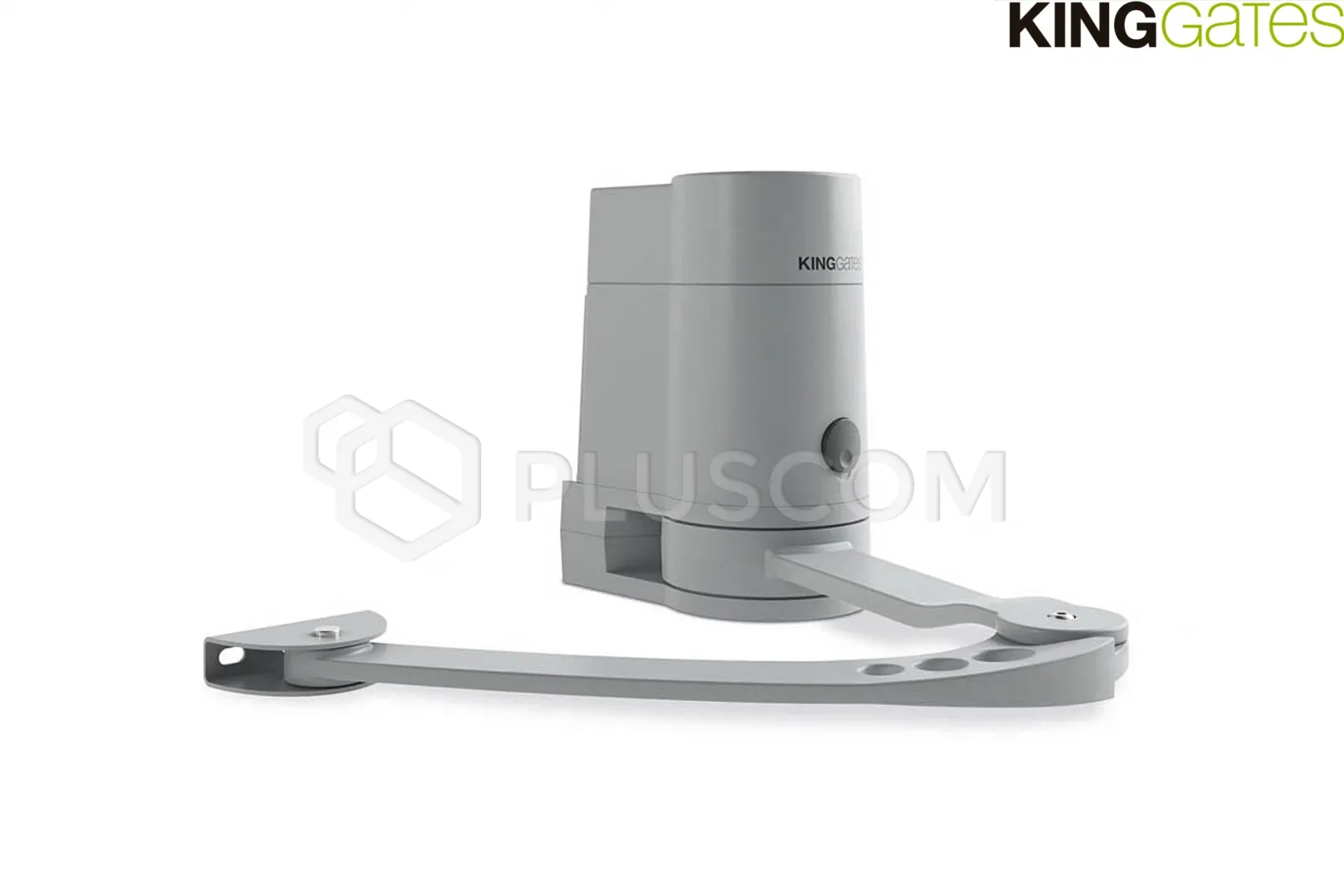

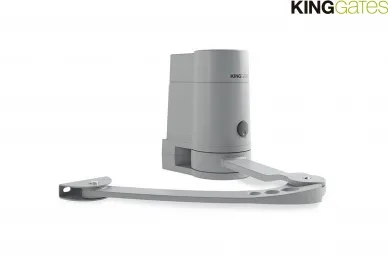

The MINI MODUS operator with articulated arm is designed to automate gates
with:
- Leaf length up to 2m
- Leaf weight up to 250kg
Perfect for mounting on wide brick or stone posts.

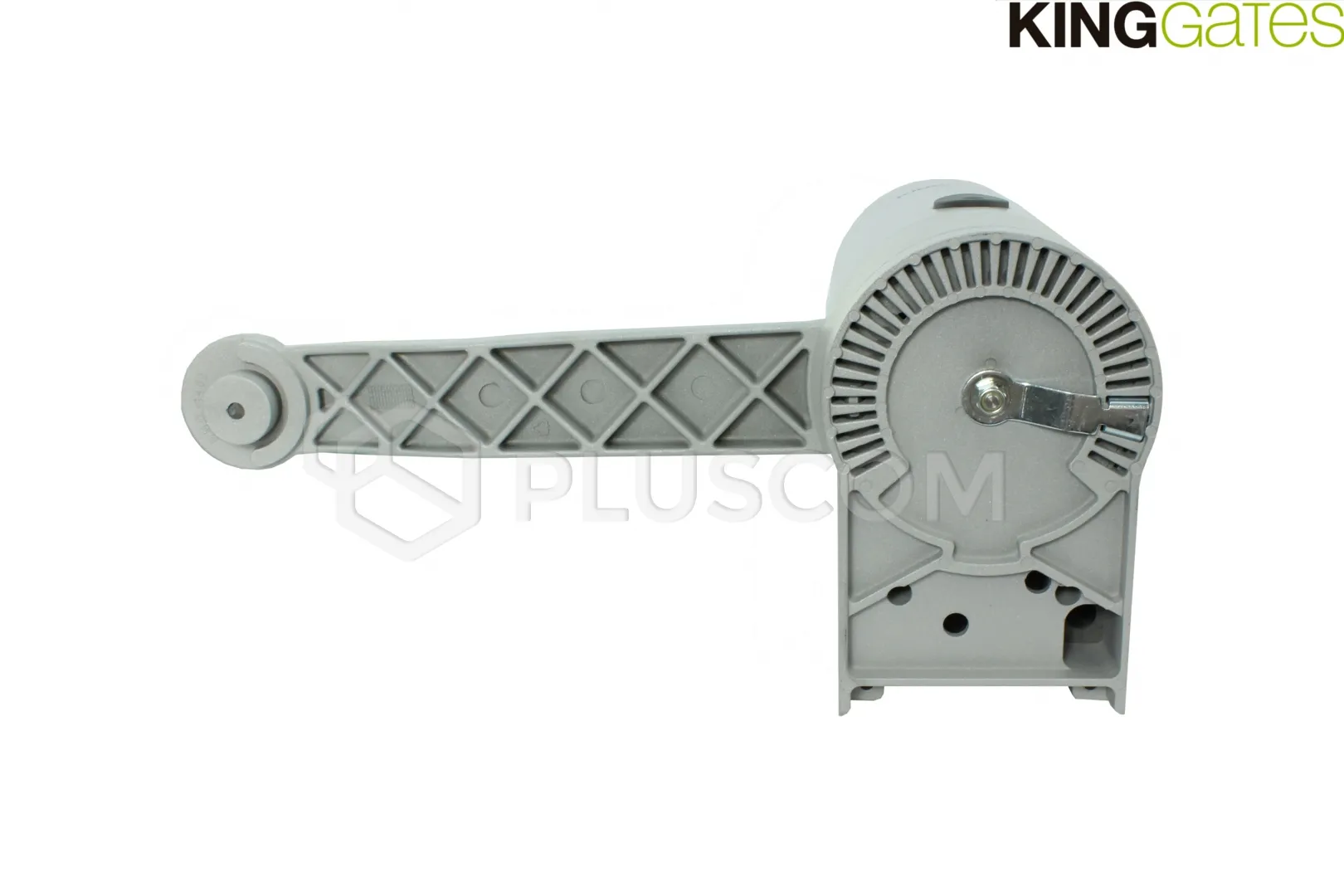

It features a precise mechanical limit switch adjustment that allows you to set
the gate leaves in the open and closed positions.
DISTINGUISHING FEATURES
- Quick and easy installation, no welding required
- Durable and compact design

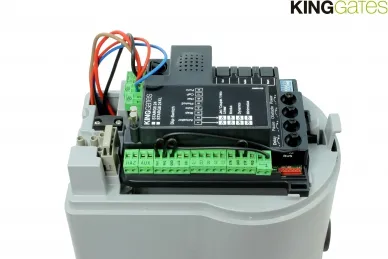

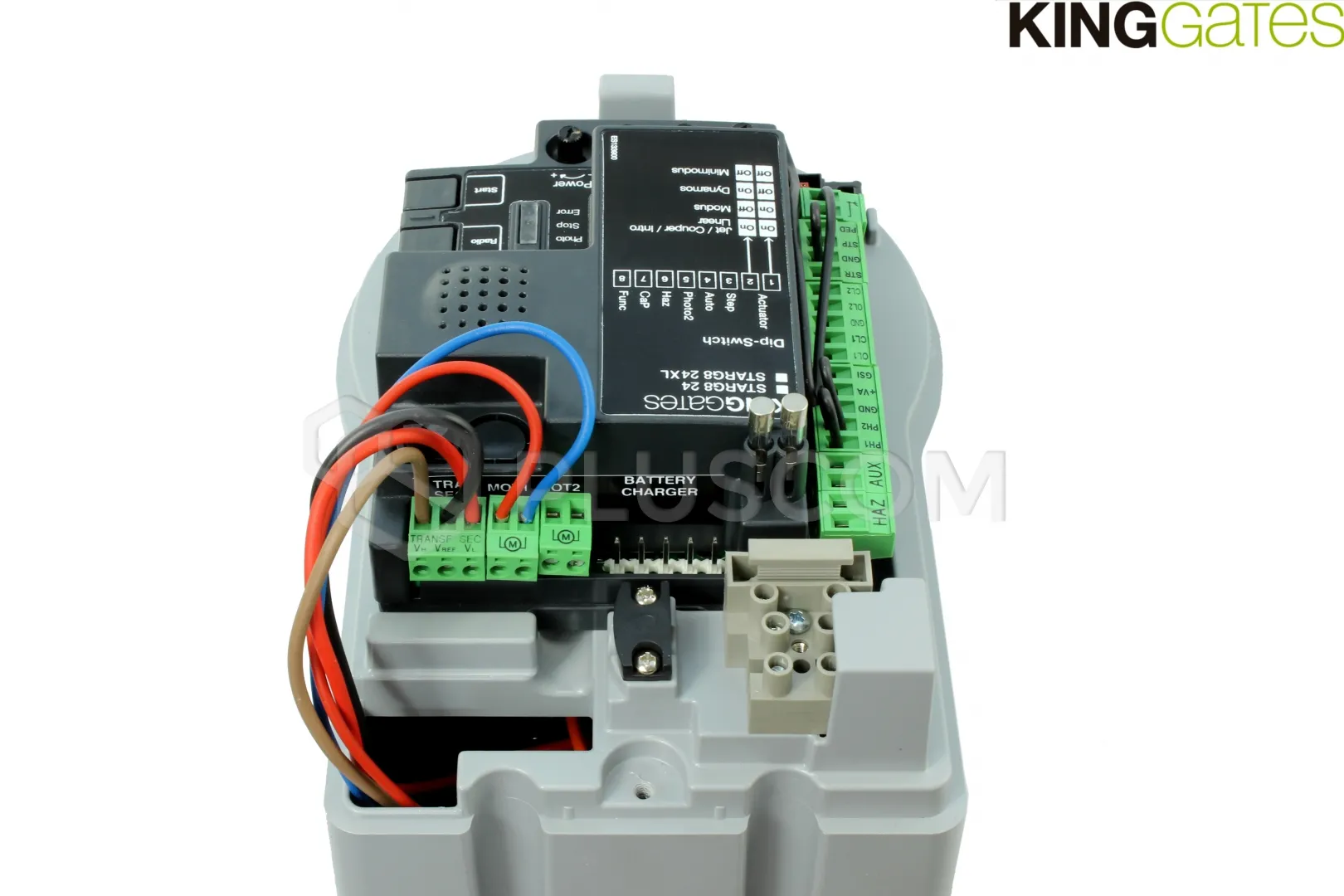

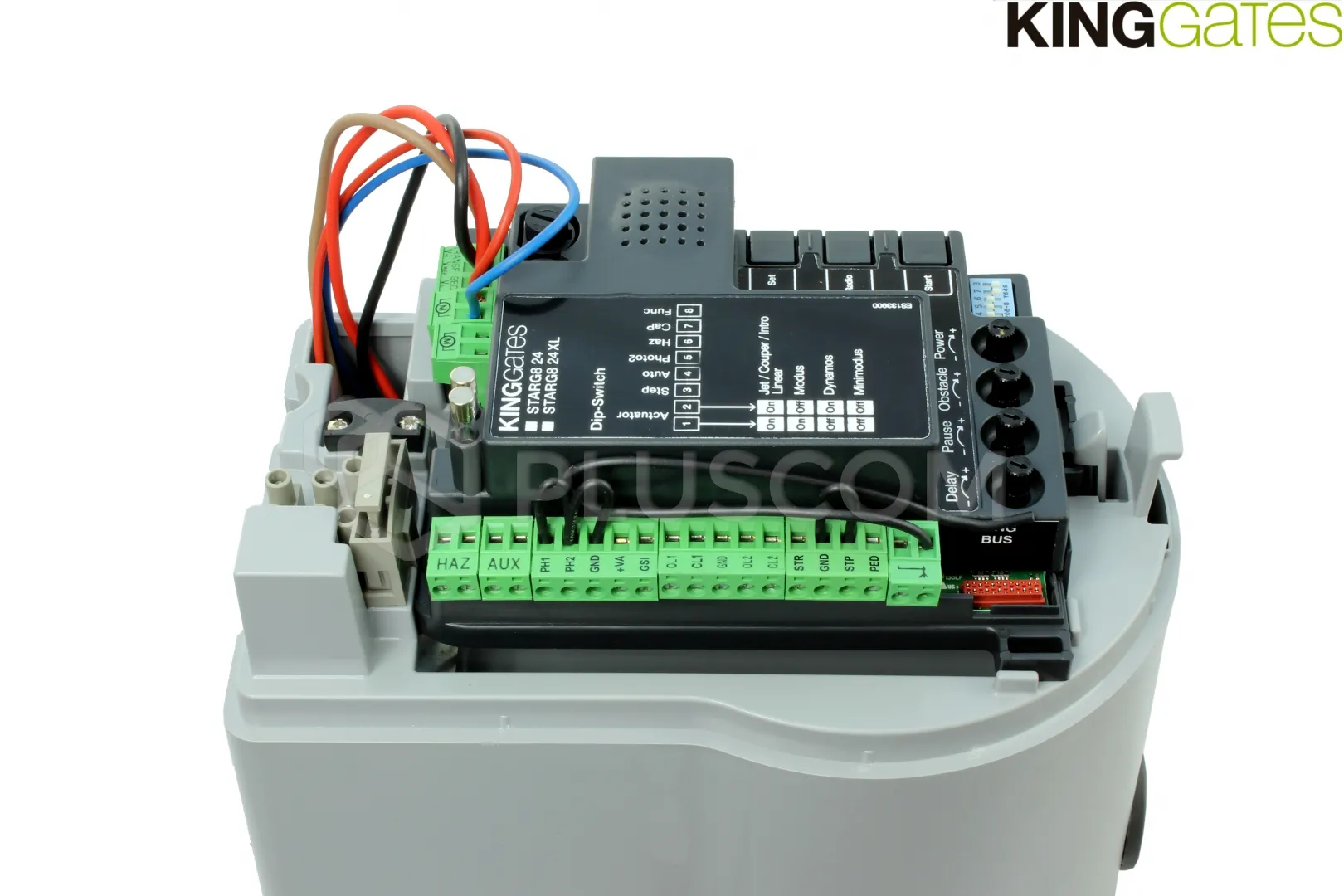

The durable aluminum body of the motor houses the STARG824NG control unit.
This simplifies the power supply connection process and the number of cables
required.

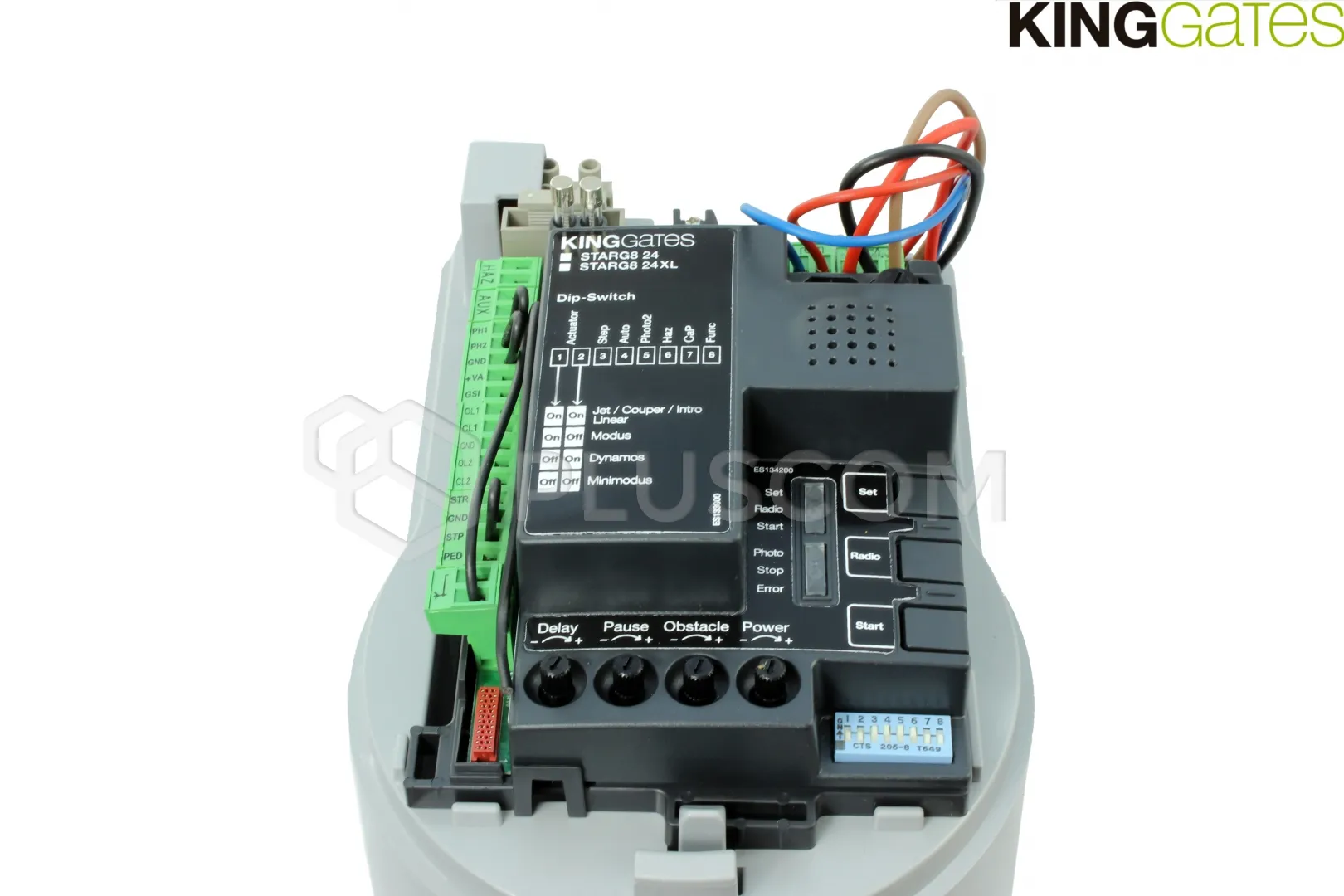

A plastic housing, spare fuses, labeled connections, and three programming
buttons are just a few examples of the product's innovative features. PWM
technology ensures safety in the event of an obstacle and allows for the
adjustment of the gate's opening and closing speed.
The built-in radio receiver is compatible with all KINGgates remote controls.
The motor is only 155 mm wide, so it can be installed even when space is
limited.
EASY AND QUICK INSTALLATION
Installation of the MINI MODUS actuators is quick and easy. No welding is

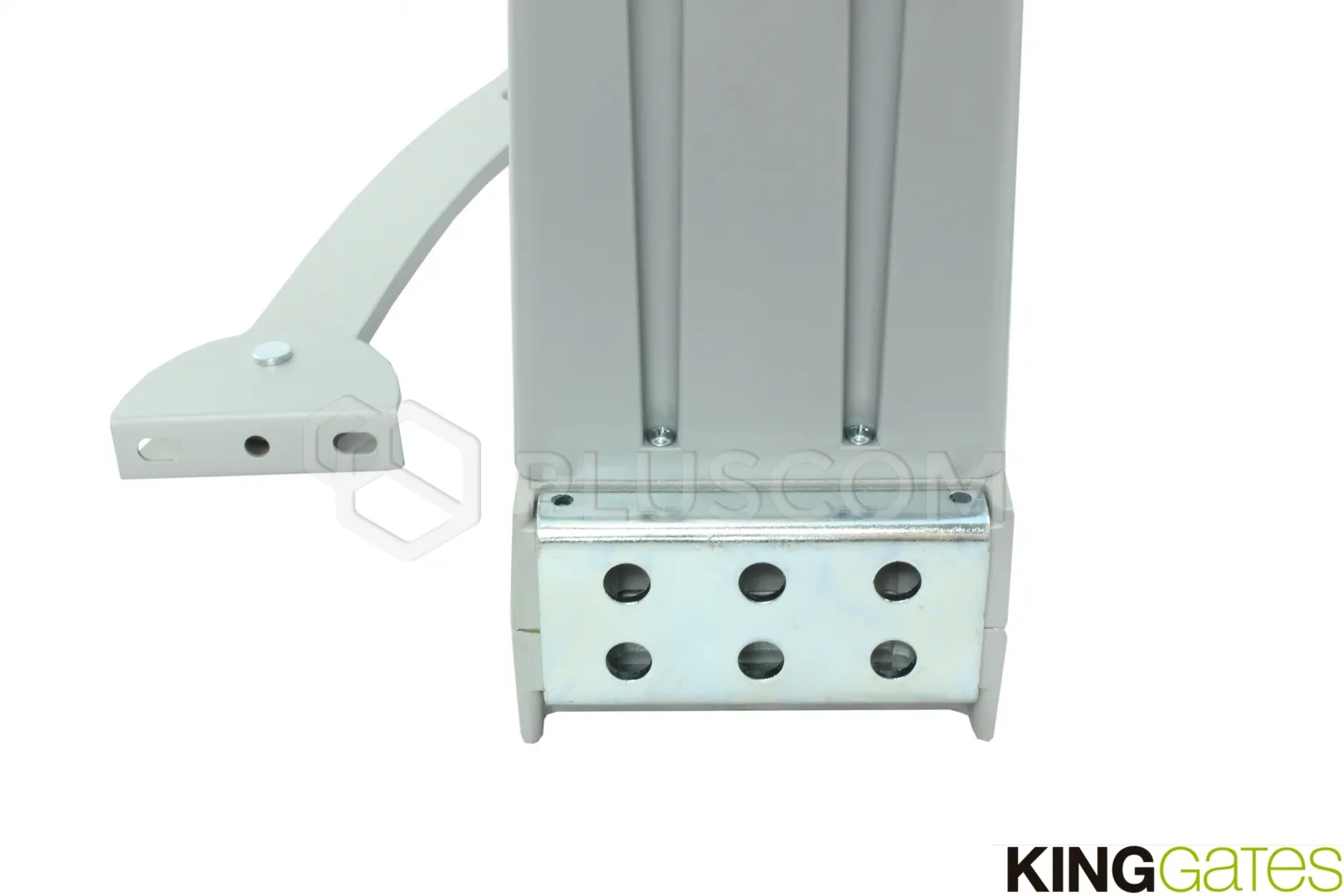

required. Both the actuator and the mounting bracket are attached to the door
leaf using screws. It features a precisely adjustable mechanical limit switch,
allowing for quick adjustment of the gate's end positions.
It can be used with a Bat M016 emergency battery, which can effectively power
the device when there is no mains power.
TECHNICAL DATA:
- Power supply: 230V
- Motor power supply: 24V
- Maximum power consumption: 250W
- Maximum torque: 150Nm
- Work intensity: 50%
- Protection level: IP44
- Dimensions: 155 x 253 x 314mm
- Weight: 6.2kg
