KingGates LINEAR500 230V Set

453,38 EUR including 19.00% VAT
In stock. Ships today!
Delivery time: 3 - 5 days
Product code: #22147
Manufacturer: KingGates
  • Drive + control panel + pilot + photocell
  • Maximum leaf length 4.5m
  • Maximum leaf weight 250kg
  • Power supply 24V
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
18,23 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
KingGates WI-CLAVIS control module Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal KINGgates BAT K3 Battery charging card BAT M016 KingGates Bat M016 Emergency battery 24V KINGgates KINGKONNECT Programmer for STARG8 control panels

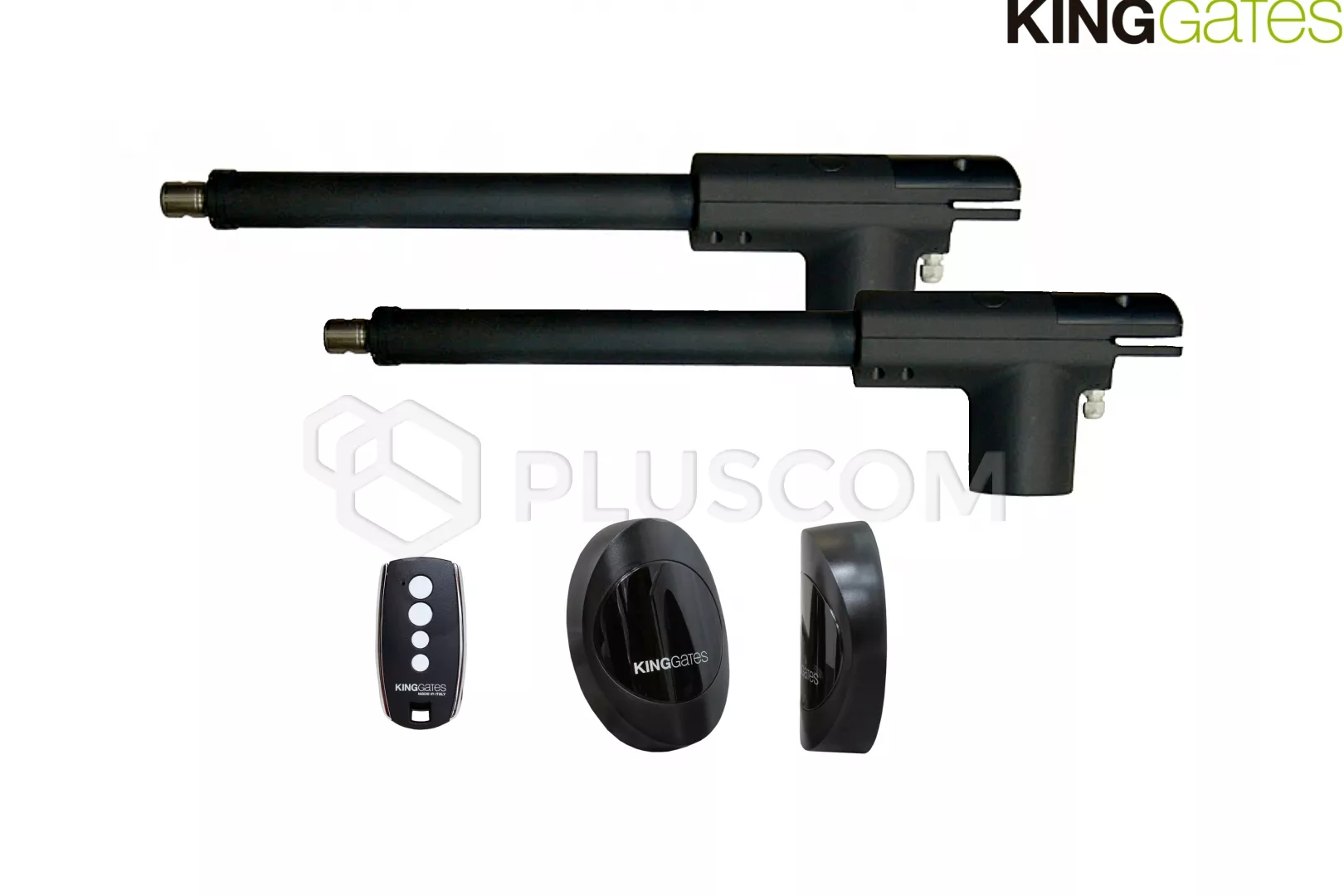

KingGates Linear 500 230V kit for swing gates leaf size 4.5m - 250 kg


The kit contains:
KingGates LINEAR500 230V Zestaw z centralą STARG8AC

KingGates LINEAR500 230V Zestaw z centralą STARG8AC

The LINEAR 500 is a telescopic cylinder ideally suited for gates mounted on wide posts, up to 30 cm. Steel telescopic piston provides mechanical durability and is embedded in a strong body. In situation power failure, a key lock is used for emergency release Nice triangular.
Thanks to the new adjustable mounting brackets, the actuator is easy in the installation. Assembly does not require welding.

The actuators are connected and controlled from the STARG8AC control unit. Control unit has many functions:
  • Step by step mode
  • Automatic closing
  • Wicket function
  • Adjustable speed, strength and relaxation of the wings
  • Phototest
  • Locking buttons or control center
  • in the rest condition reduces energy consumption and goes into Stand to
  • Gateway status indicator
  • Amperometric obstacle detection system (adjustable level sensitivity)
  • The sequence of flash flashes indicates the need for maintenance (number of cycles programmed individually)
  • Photocells on opening and closing
  • Adjustable time of automatic closure
  • Adjustable delay between wings
  • Integrated radio - memory for 170 pilots;
  • Programmable control inputs
  • Maintenance management
  • Always works - thanks to the emergency battery (option), actuators they will open and close the gate even in the event of a power failure
CONSTRUCTION AND ASSEMBLY:

The casing provides IP54 protection degree . The strong body was made of die-cast aluminum and protected with an epoxy coating. I guarantee is high resistance to changing weather conditions. To because of the outbreaks corrosion prevent the piston rod from jamming in the drive, they are made of stainless steel.

The set includes handles and fixing screws. Assembly does not require welding.

PARAMETERS:
  • maximum wing length: 4.5m
  • maximum weight of the leaf: 250 kg
  • work intensity: 30%
  • telescopic cylinder stroke: 500mm
  • motor power: 230V
  • power consumption: 340W
  • working temperature: -20 ° C ... 55 ° C
  • dimensions: 800x100x177mm
