KingGates Linear 400 24V Set

KingGates Linear 400 set for a double-leaf gate with a leaf length of 3m and weighing 300 kg.

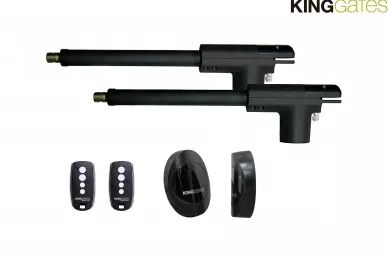

SET COMPOSITION: 2 Linear 400 24V telescopic actuators STARG824NG control panel with built-in radio receiver KingGates STYLO4K 4-channel - 2 pcs KINGgates Photocell VIKY 30 mounting accessories

KingGates Linear 400 24V kit

LINEAR 400 is a telescopic actuator ideal for gates mounted on wide pillars. Steel telescopic piston provides mechanical durability and is embedded in a strong body. In a disappearance situation power supply a lock with a triangular key is used for emergency disengagement Nice.
The actuators are connected and controlled from the STARG824NG control panel. The control panel has many functions:

• Working in step-by-step mode
• Auto close feature
• adjustable speed, force and relaxation of the wings
• phototest
• blocking buttons or control panel
• stand-by mode
• Gate Status Indicator (GSI)
• amperometric obstacle detection
• sequence of lamp flashes indicates maintenance is required
• adjustable auto-close time
• integrated radio receiver - memory for 170 remote controls
• programmable control inputs
• connection of Wi-Fi control module, KINGKONNECT for management control panels from the installer's position

CONSTRUCTION AND ASSEMBLY:

The housing provides IP54 protection. The strong body is made of die-cast aluminum and protected with an epoxy coating. I guarantee is high resistance to changing weather conditions occurring in our "Polish climate". To prevent the possibility due to corrosion foci jamming of the piston rod in the drive, they are made of stainless steel.

The set includes handles and mounting screws. Assembly does not require welding.

PARAMETERS:

• maximum leaf length: 3m
• maximum sash weight: 300kg
• duty cycles: 70 cycles/day
• stroke of telescopic cylinder: 400mm
• motor voltage: 24V
• control panel voltage: 230V
• power consumption: 120W
• operating temperature: -20°C...55°C
• dimensions: 700x100x177mm
