KingGates LINEAR 400 24V actuator for gate leaf 3m/300kg

KingGates LINEAR 400 24V actuator for gate leaves 3m/300kg

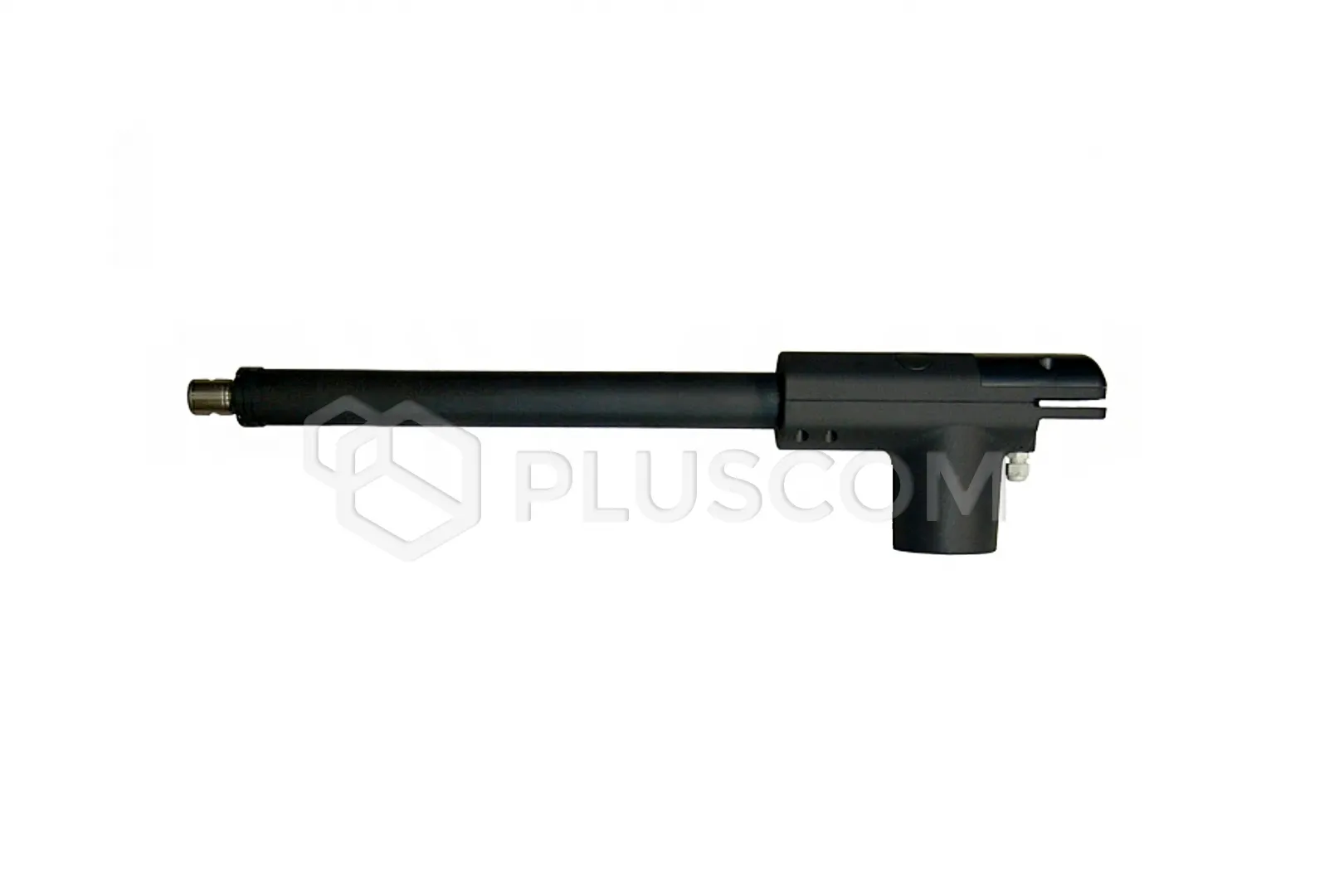

The LINEAR 400 is a telescopic actuator ideal for gates mounted on wide posts. The steel telescopic piston ensures mechanical durability and is embedded in a strong body. In the event of a power outage, a Nice triangular key lock is used for emergency release.

CONSTRUCTION AND INSTALLATION:
The housing provides an IP54 protection rating. The strong body is made of die-cast aluminum and protected with an epoxy coating. This guarantees high resistance to changing weather conditions occurring in our "Polish" climate. To prevent the piston rod from seizing in the actuator due to corrosion, it is made of stainless steel.

Thanks to the new, adjustable mounting brackets, the actuator is easy to install.
The kit includes brackets and mounting screws. Installation does not require welding.

PARAMETERS:

• Maximum leaf length: 3m
• Maximum leaf weight: 300kg
• Duty cycle: 90%
• Telescopic actuator stroke: 400mm
• Motor voltage: 24V
• Power consumption: 120W
• Operating temperature: -20°C...55°C
• Dimensions: 700x100x177mm
• Weight: 5.5kg
