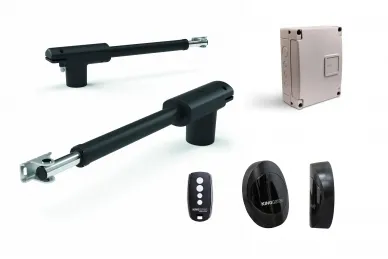

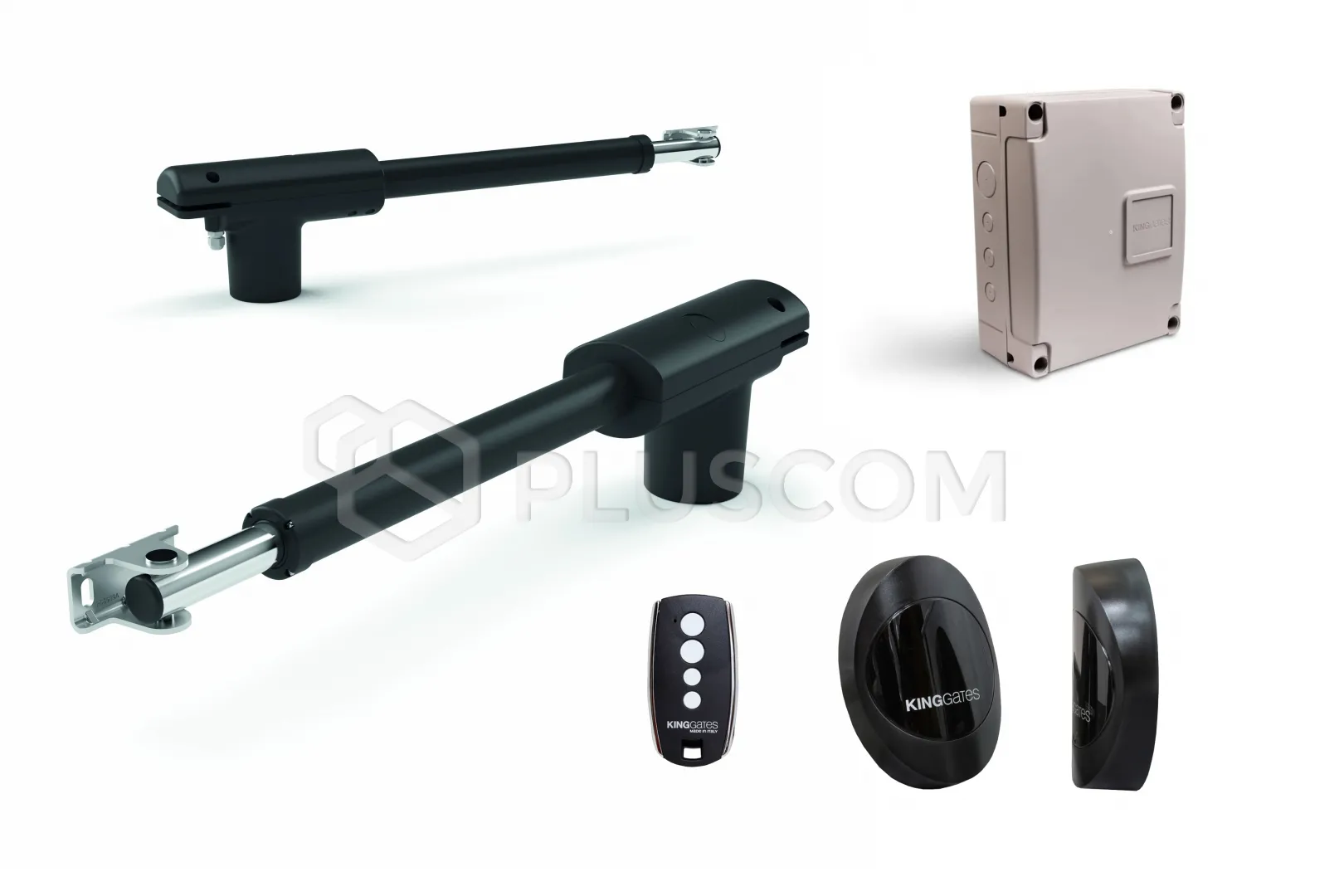

KingGates LINEAR 400 230V LT set for a double-leaf gate with a leaf length
of 3m and a weight of 300kg.
|
KIT COMPOSITION:
|

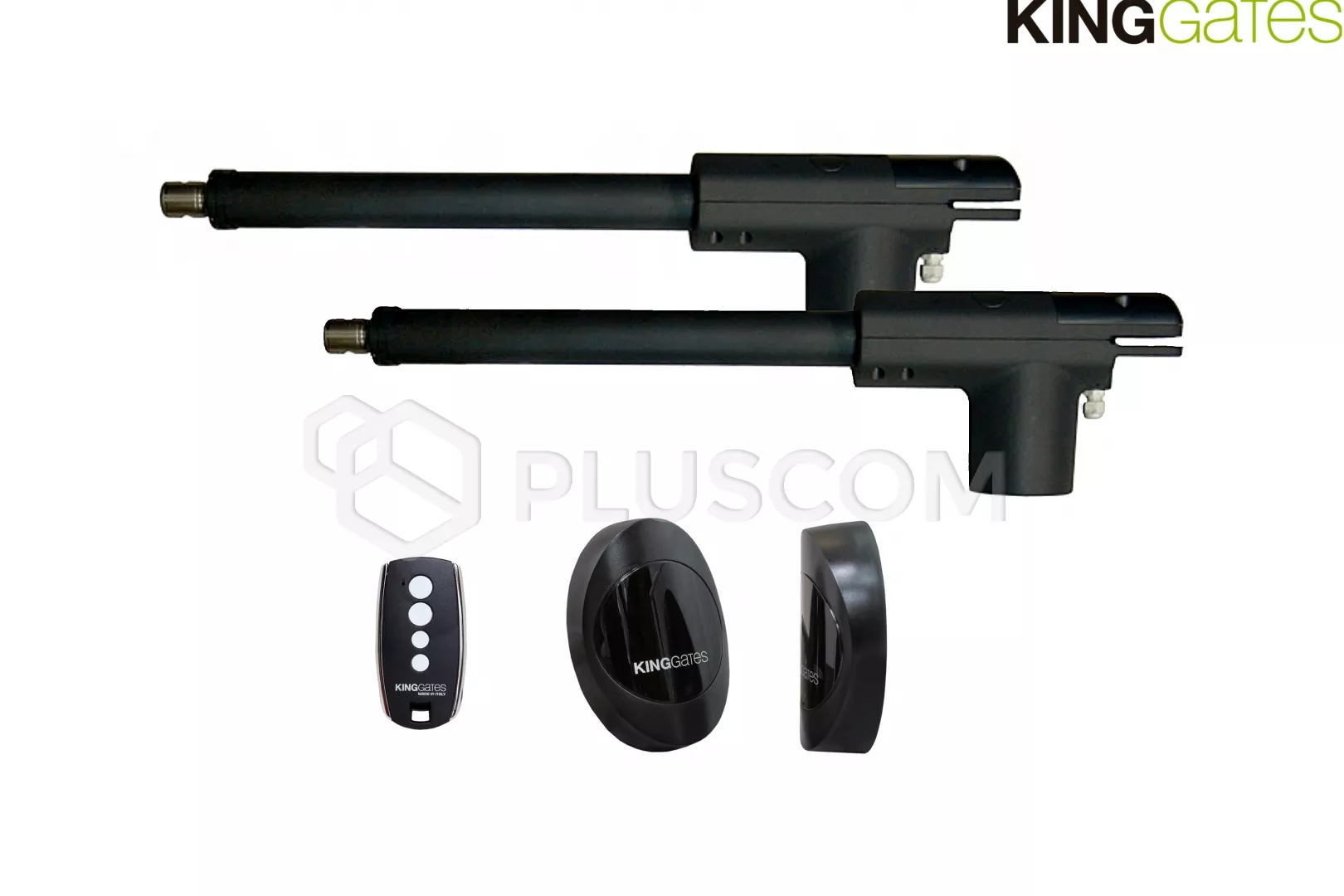

KingGates Linear 400 230V kit
|
LINEAR 400 is a
telescopic actuator ideally suited for gates
mounted on wide posts. The steel telescopic piston provides mechanical
durability and is mounted in a strong body. In the event of a power failure,
the Nice triangular key lock is used for emergency release.
Thanks to the new, adjustable mounting brackets, the actuator is easy to
install.
The actuators are connected and controlled from the STARG8AC
control unit. The control unit has many functions:
- Operation in "step by step" mode
- Automatic closing function
- adjustable speed, force and leaf relaxation
- phototest
- blocking buttons or control unit
- "Stand by" mode
- gate status indicator (GSI)
- photocells on opening and closing
- amperometric obstacle detection system
- sequence of lamp flashes signals the need for maintenance
- adjustable automatic closing time
- integrated radio receiver - 170 memory pilots
- programmable control inputs
- connection of Wi-Fi control module, KINGKONNECT to manage control units
from the installer's position
CONSTRUCTION AND ASSEMBLY:
The housing provides IP54 protection class. The strong body
was made of pressure die-cast aluminum and protected with an epoxy coating.
This guarantees high resistance to changing weather conditions occurring in our
"Polish climate". In order to prevent the possibility of the piston
rod jamming in the drive due to corrosion centers, it was made of stainless
steel.
The set includes handles and mounting screws. Assembly does not require
welding.
4-channel Stylo4K remote control is a modern and elegant
device characterized by high quality of workmanship. It is based on a
dynamically changing code with a frequency of 433.92 MHz. It is fully
compatible with all integrated radio receivers in KingGates control units.
Works with the universal 2-channel external radio receiver Fred Myo 2
The range of the remote control is 100 meters.
VIKY 30 pair of photocells are made of polycarbonate material ensuring high durability of the product.
They cooperate with any control unit with a classic PHOTO/STOP relay input and with any system
powered by 12/24V AC/DC.
The photocell housing protects against the ingress of dust and rain, which means they can be installed outdoors and operate in the temperature range: -20°C...+55°C.
PARAMETERS:
- maximum leaf length: 3m
- maximum leaf weight: 300kg
- working cycles: 30 cycles/day
- telescopic actuator stroke: 400mm
- engine voltage: 230V
- control unit voltage: 230V
- power consumption: 340W
- operating temperature: -20°C...55°C
- dimensions: 700x100x177mm
