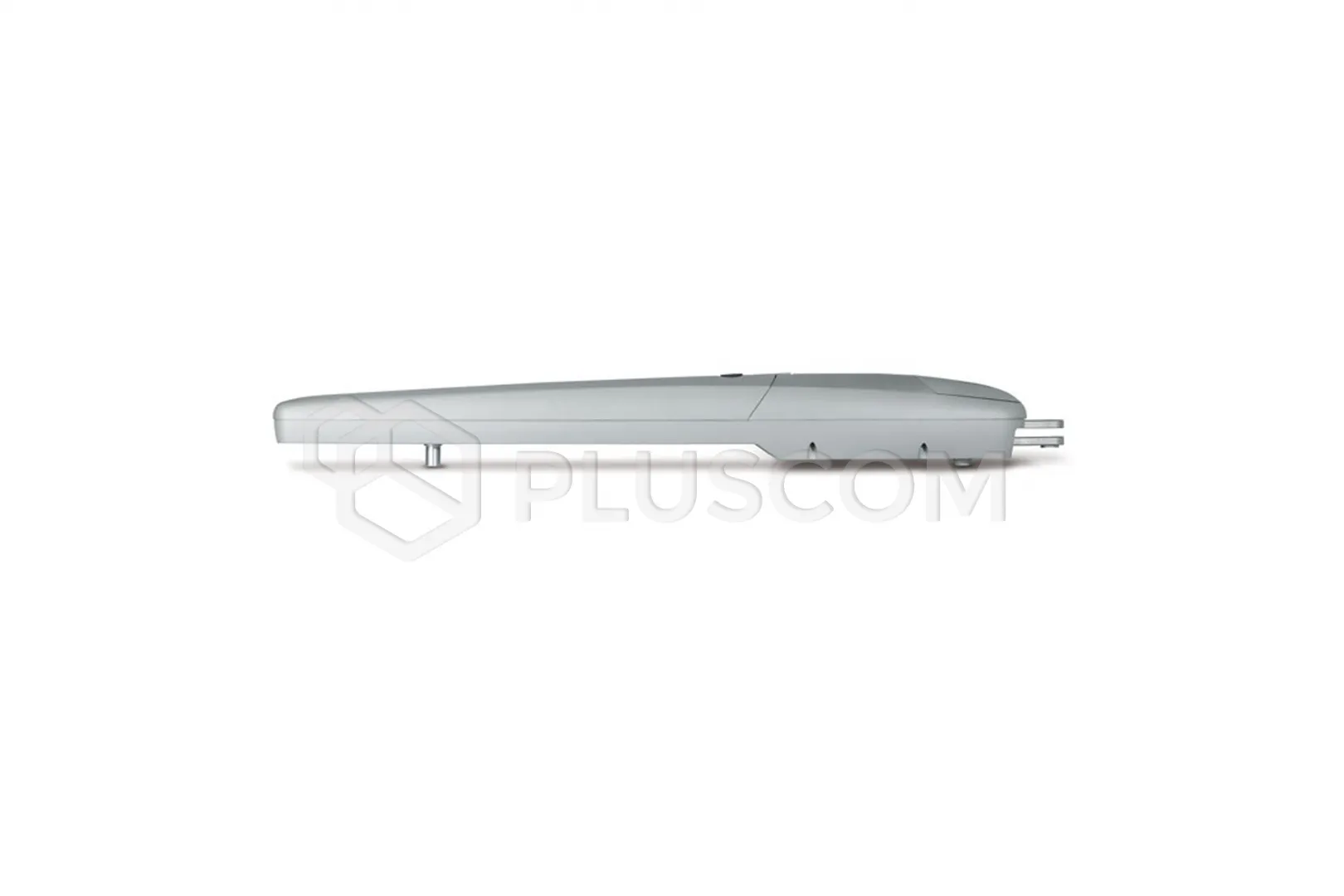

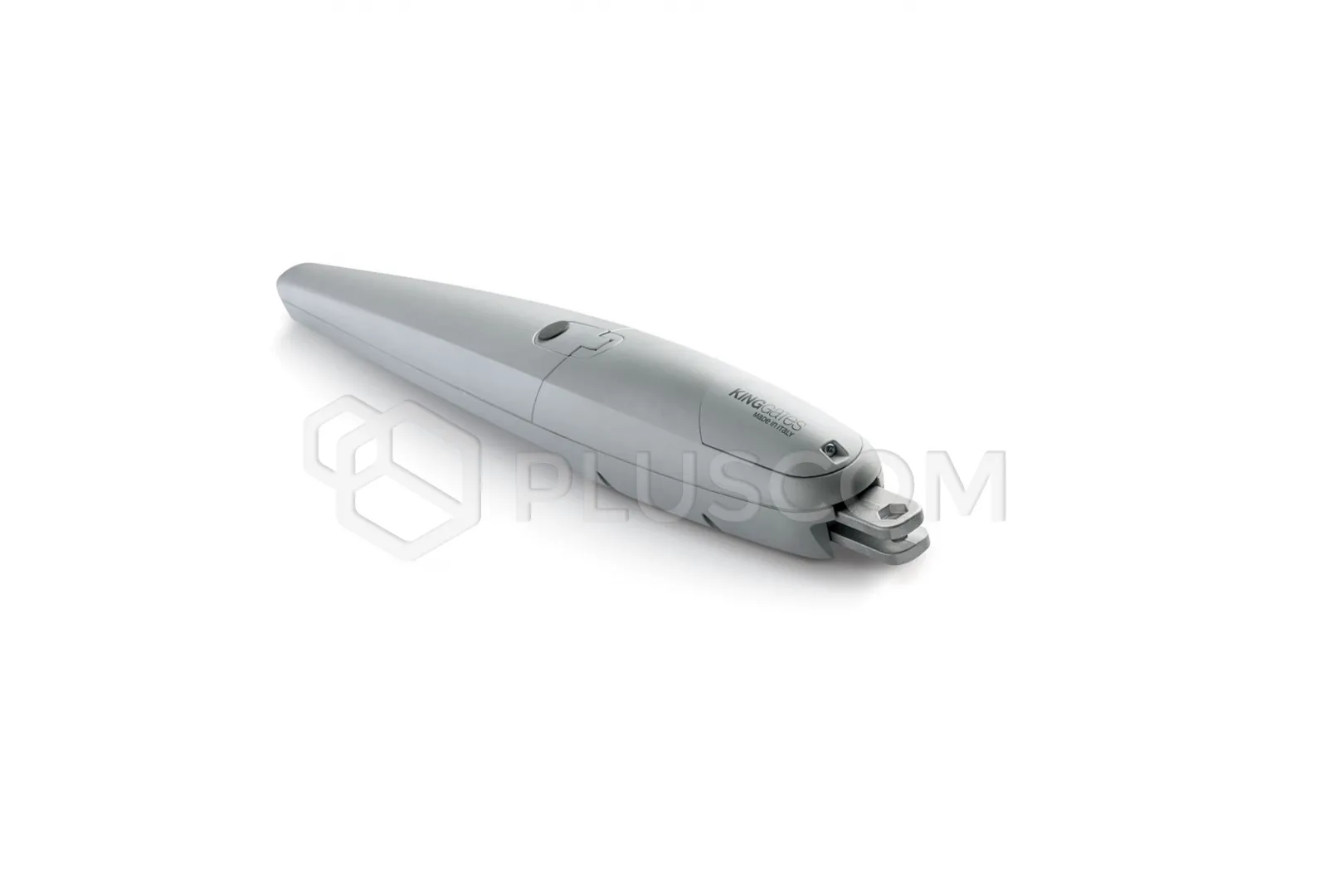

KingGates JET XL 24V Swing Gate Actuator 6m/750kg

Product code: #43765
Manufacturer: KingGates
  • Maximum leaf length 6m
  • Maximum leaf weight 750kg
  • Power supply 24V
  • Gate function
  • End stops
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
KingGates STYLO4K 4-channel KINGgates BAT K3 Battery charging card BAT M016 KingGates Bat M016 Emergency battery 24V KINGgates Photocell VIKY 30

KingGates JET XL 24V Swing Gate Operator 6m/750kg


Driver for residential and residential gates. The JET XL set offers many innovative features, such as a slowdown function during opening and closing, obstacle detection to ensure safety, partial opening for pedestrian access, and an automatic safety test mode. It also allows entry through one leaf. Additionally, both actuators are equipped with limit switches that determine the leaf's opening limit.

After installing the actuators, the installer has easy access to all electrical connections, as they are made "from above," which significantly simplifies installation and subsequent maintenance.

The robust housing ensures that the actuator will operate in all weather conditions, high and low temperatures.

TECHNICAL DATA:

  • Power supply: 24V
  • Motor power: 170W
  • Gate speed: 0.016m/s
  • Maximum pulling force: 2400 N
  • Work intensity: 80%
  • Travel (without end stops): 540 mm
  • Protection level: IP 44
  • Operating temperature: -20°C to +55°C
  • Dimensions: 81030x115x110 mm
  • Operator weight: 9 kg
Download
User manual 3.01 MB
