KingGates JET 24V Set

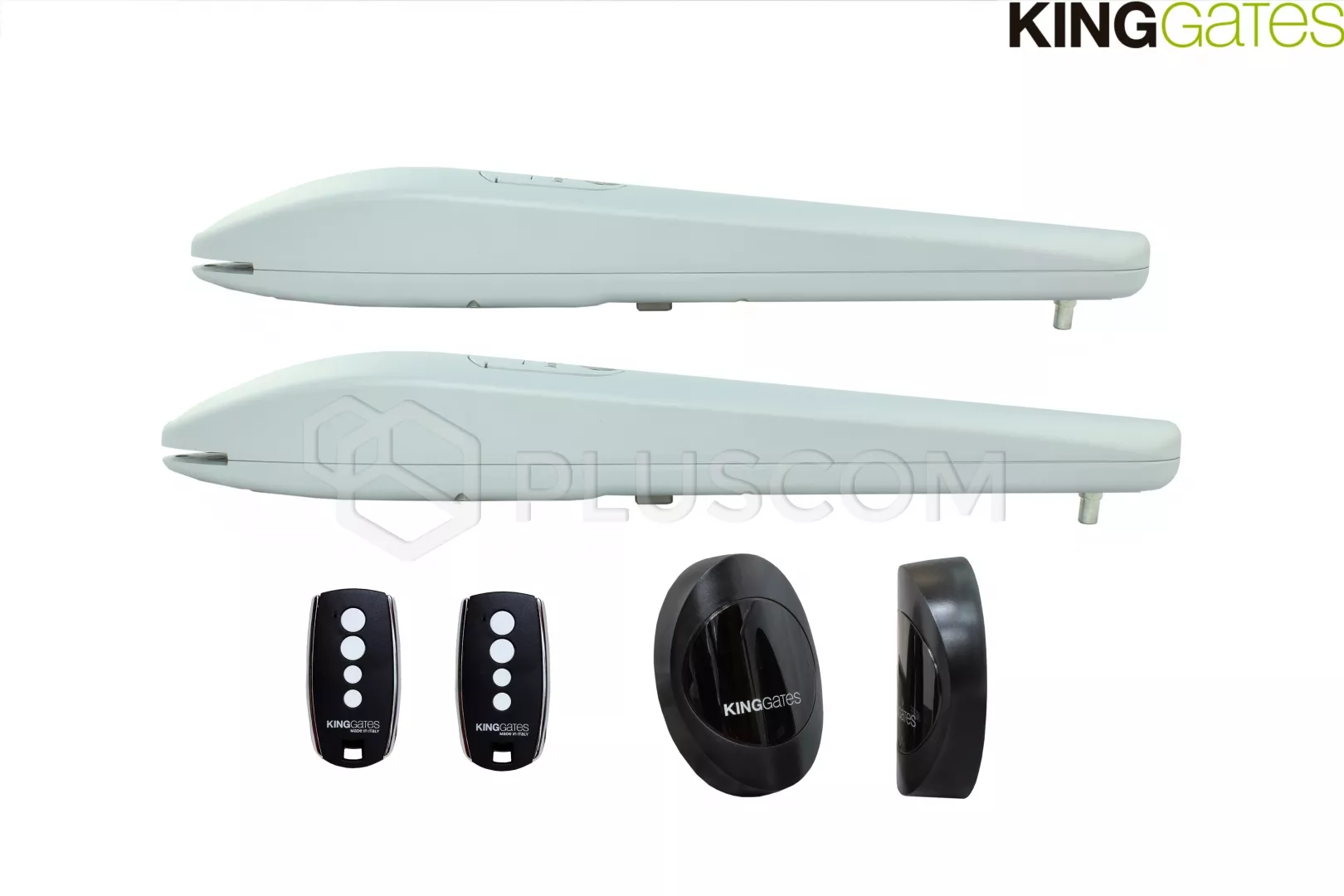

KingGates JET KIT 24V with STARG824NG control panel

Drive for residential and home gates. The JET kit offers a lot innovative functions such as the slowdown function on opening and closing, obstacle detection to ensure safety, partial opening for pedestrian access or automatic safety test mode. It also makes it possible to set the entrance through one leaf. Additionally both actuators are equipped with end stops they define leaf opening limit.

The operation of the actuators is controlled by the King Gates STARG824NG control panel, which has many functions:

• Step by step mode
• Automatic closing
• Wicket function
• Adjustable speed, strength and relaxation of the wings
• Phototest
• Locking buttons or control center
• in the rest condition reduces energy consumption and goes into Stand to
• Gateway status indicator
• Amperometric obstacle detection system (adjustable level sensitivity)
• The sequence of flash flashes indicates the need for maintenance (number of cycles programmed individually)
• Photocells on opening and closing
• Adjustable time of automatic closure
• Adjustable delay between wings
• Integrated radio - memory for 170 pilots;
• Programmable control inputs
• Maintenance management
• Always works - thanks to the emergency battery (option), actuators they will open and close the gate even in the event of a power failure

After installing the actuators, the installer has easy access to all electrical connections because they are made "from the top", co greatly facilitates assembly and subsequent conservation works.

The solid housing will ensure that the drive will work in all conditions atmospheric, high and low temperatures.

TECHNICAL PARAMETERS:

• motor power: 24 VDC
• maximum power consumption: 120W
• velocity: 0.020 m/s
• maximum pulling force: 2000N
• work intensity: 90%
• stroke (without end stops): 360mm
• protection level: IP44
• operating temperature range: -20°C ÷ +55°C
• automatic weight: 7kg
• drive dimensions: 820x100x110mm
