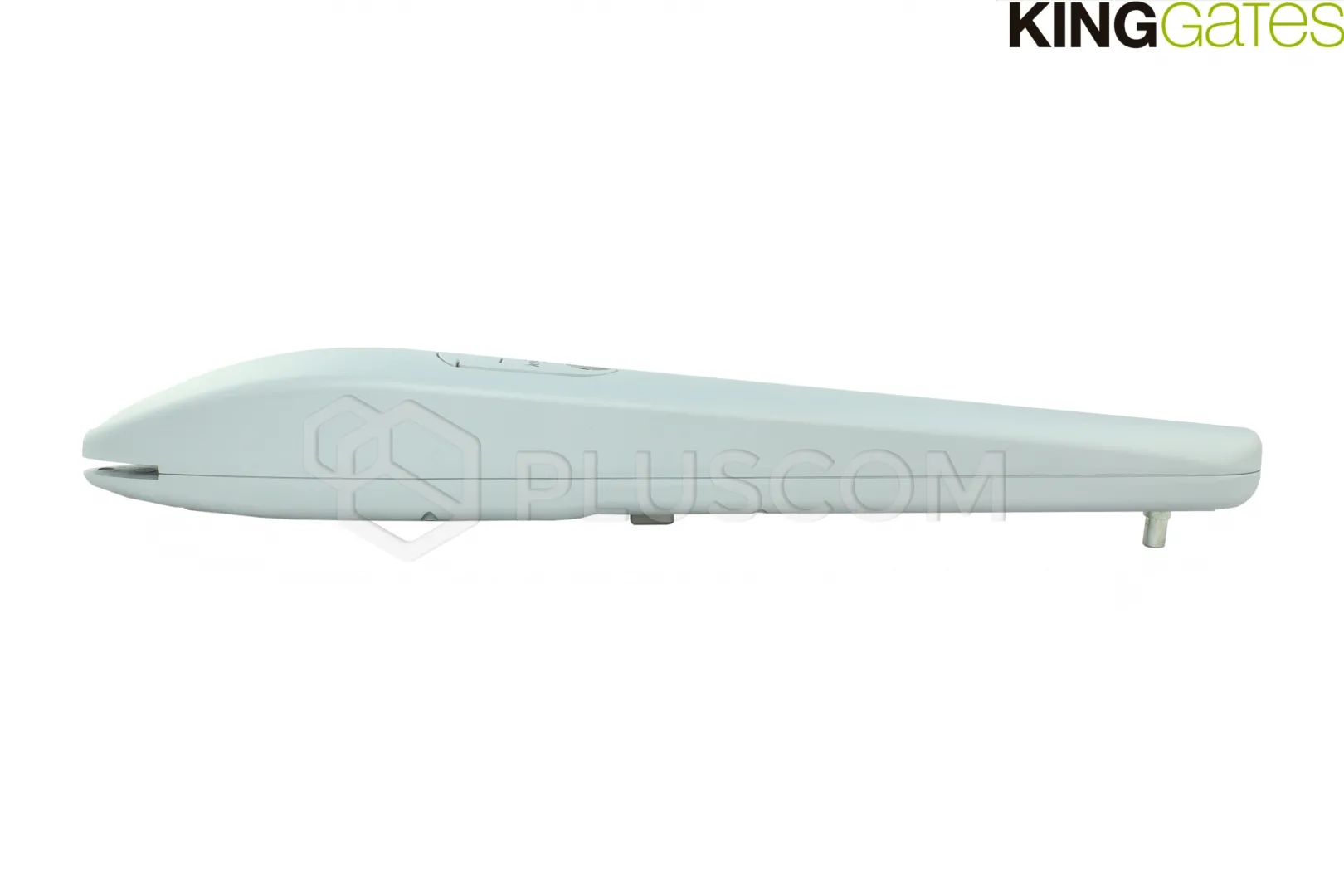

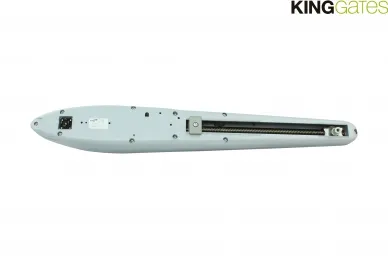

KingGates JET 230V Swing Gate Actuator 3m/600kg

Product code: #43760
Manufacturer: KingGates
  • Maximum leaf length 3m
  • Maximum leaf weight 600kg
  • Power supply/Motor 230V/230V
  • Possibility of setting the entrance through one wing
  • End stops
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

KingGates JET 230V Swing Gate Operator 3m/600kg


Driver for residential and residential gates. The JET set offers many innovative features, such as a slowdown function during opening and closing, obstacle detection to ensure safety, partial opening for pedestrian access, and an automatic safety test mode. It also allows entry through one leaf. Additionally, both actuators are equipped with limit switches that determine the leaf's opening limit.

After installing the actuators, the installer has easy access to all electrical connections, as they are made "from above," which significantly simplifies installation and subsequent maintenance.

The robust housing ensures that the actuator will operate in all weather conditions, high and low temperatures.

TECHNICAL DATA:

  • Power supply: 230V
  • Motor power: 200W
  • Gate speed: 0.016m/s
  • Maximum pulling force: 2000 N
  • Work intensity: 30%
  • Travel (without end stops): 360 mm
  • Protection level: IP 44
  • Operating temperature: -20°C to +55°C
  • Dimensions: 820 x 100 x 110 mm
  • Operator weight: 8 kg

Compatible with:

KingGates JET 230V Swing Gate Actuator 3m/600kg in the diagram KINGgates Jet 230
Download
User manual 1.99 MB
