KingGates ELEVO 600N 24V Set for garage doors about height 240cm

163,16 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #19520
Manufacturer: KingGates
  • maximum thrust: 650N
  • surface of the gate: to 10m²
  • built-in control unit STAR EVO + 2 x STYLO 2K
  • included: rail 3m (GR013), toothed belt
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
KingGates STYLO4K 4-channel Nice SPA2R02 external disengagement kit with steel cable KINGgates Photocell VIKY 30

KingGates ELEVO 24V Set for garage doors with an area of ​​10 m², height up to 240 cm

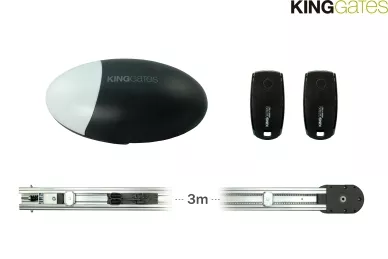

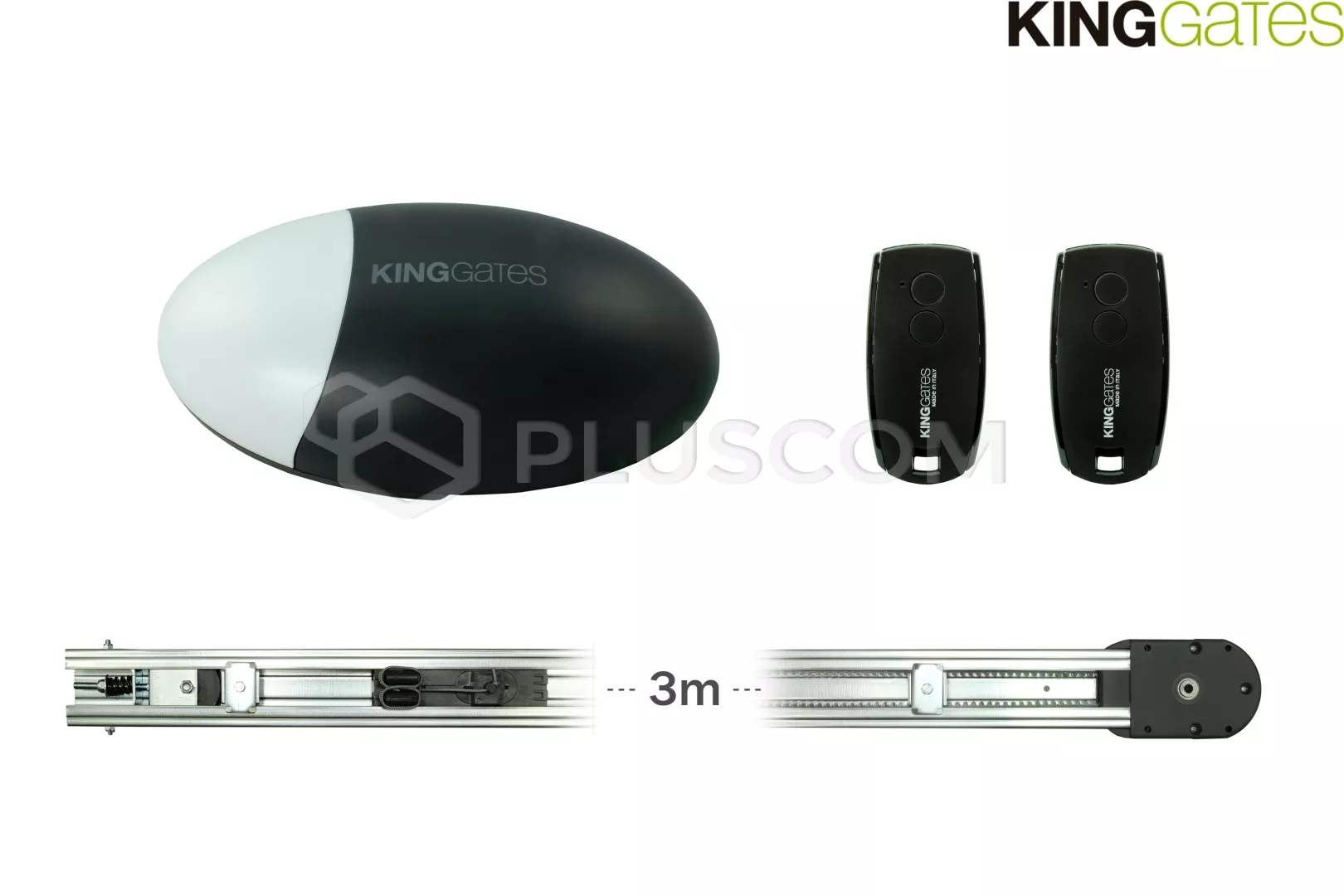

SET COMPOSITION:

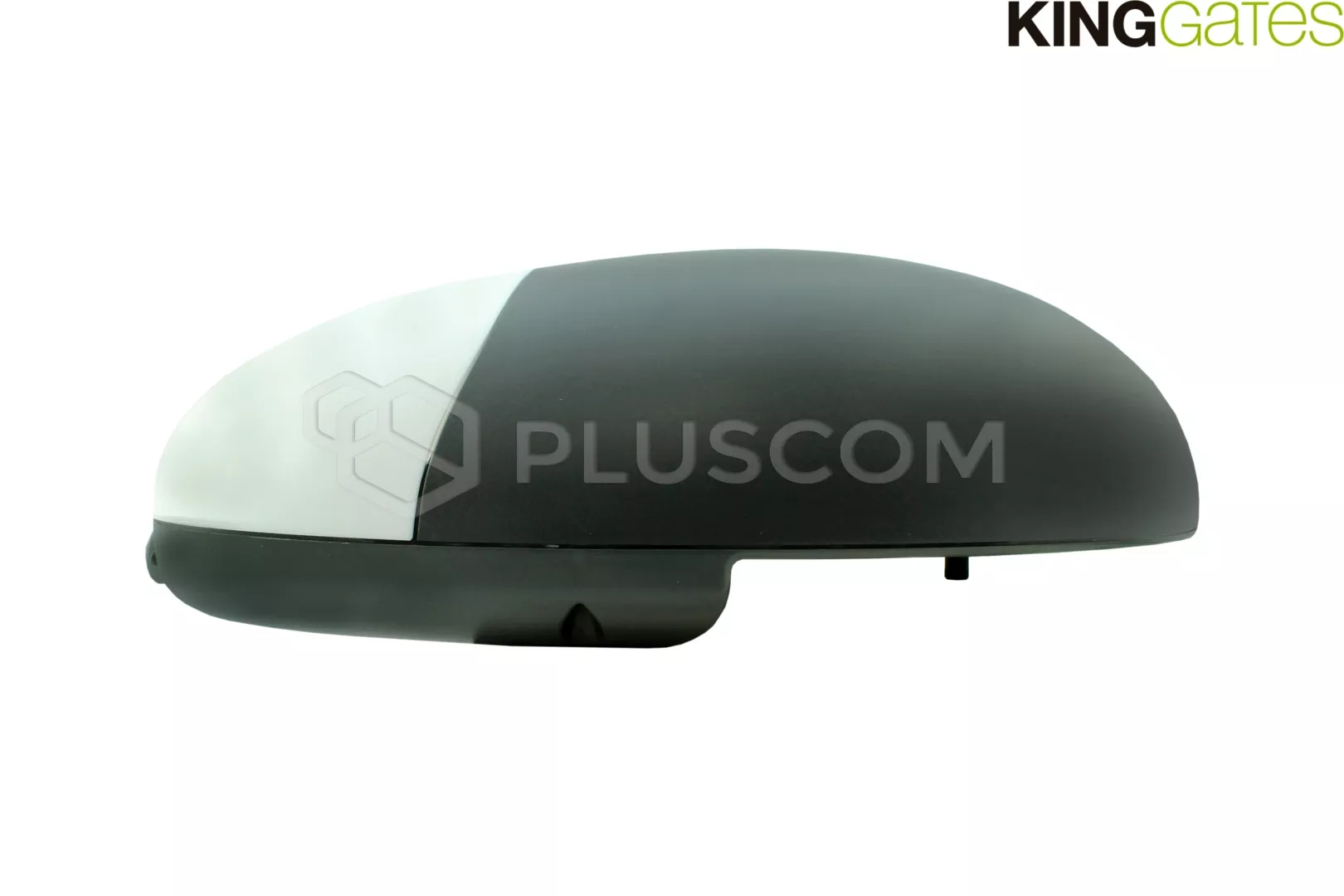

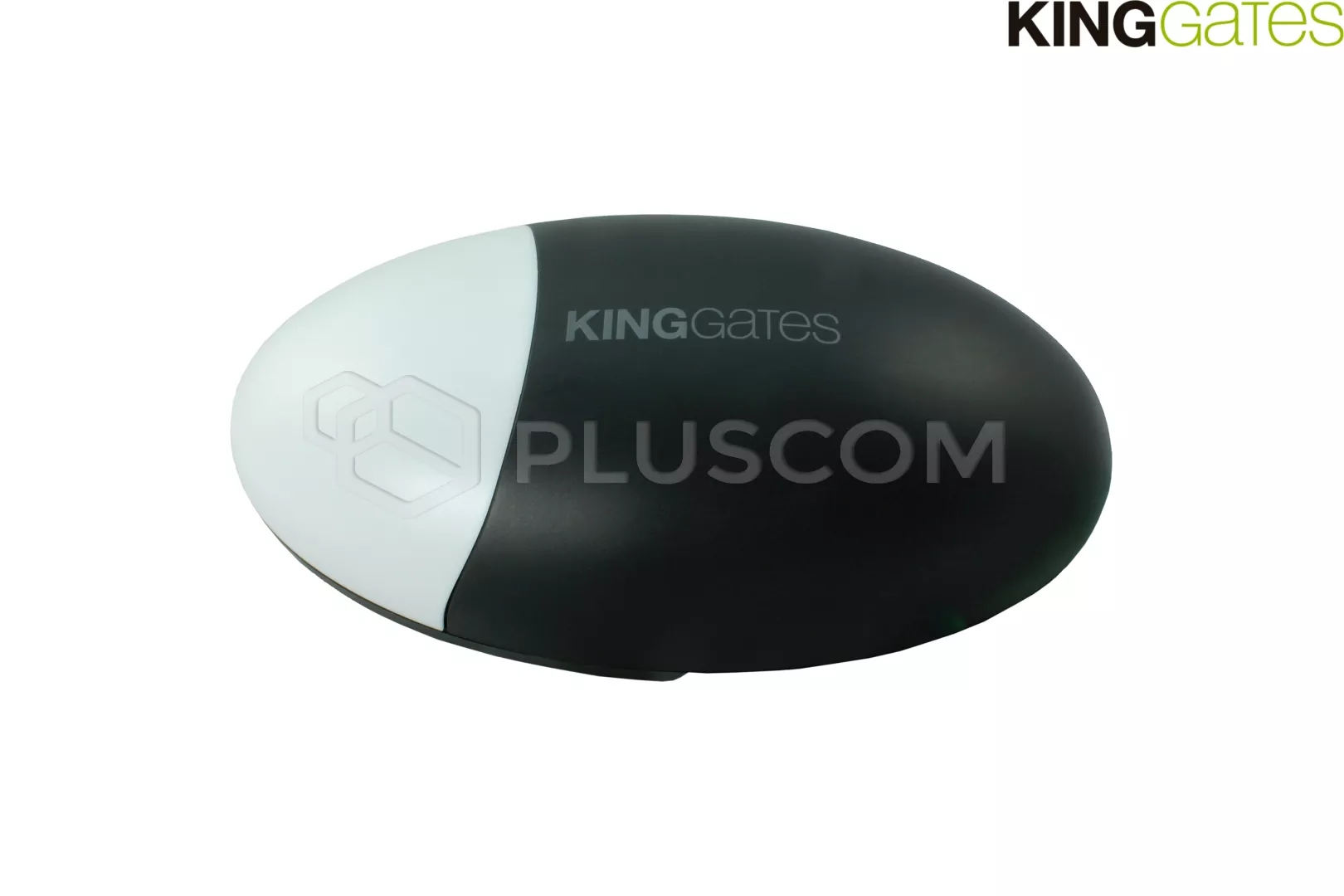

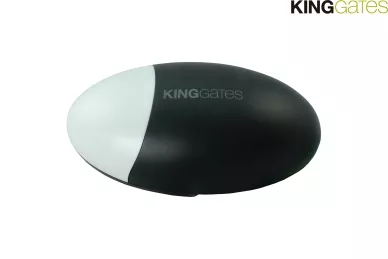

  • ELEVO 620 actuator with built-in STAR EVO control unit
  • KingGates Stylo 2K 2-channel - 2pcs

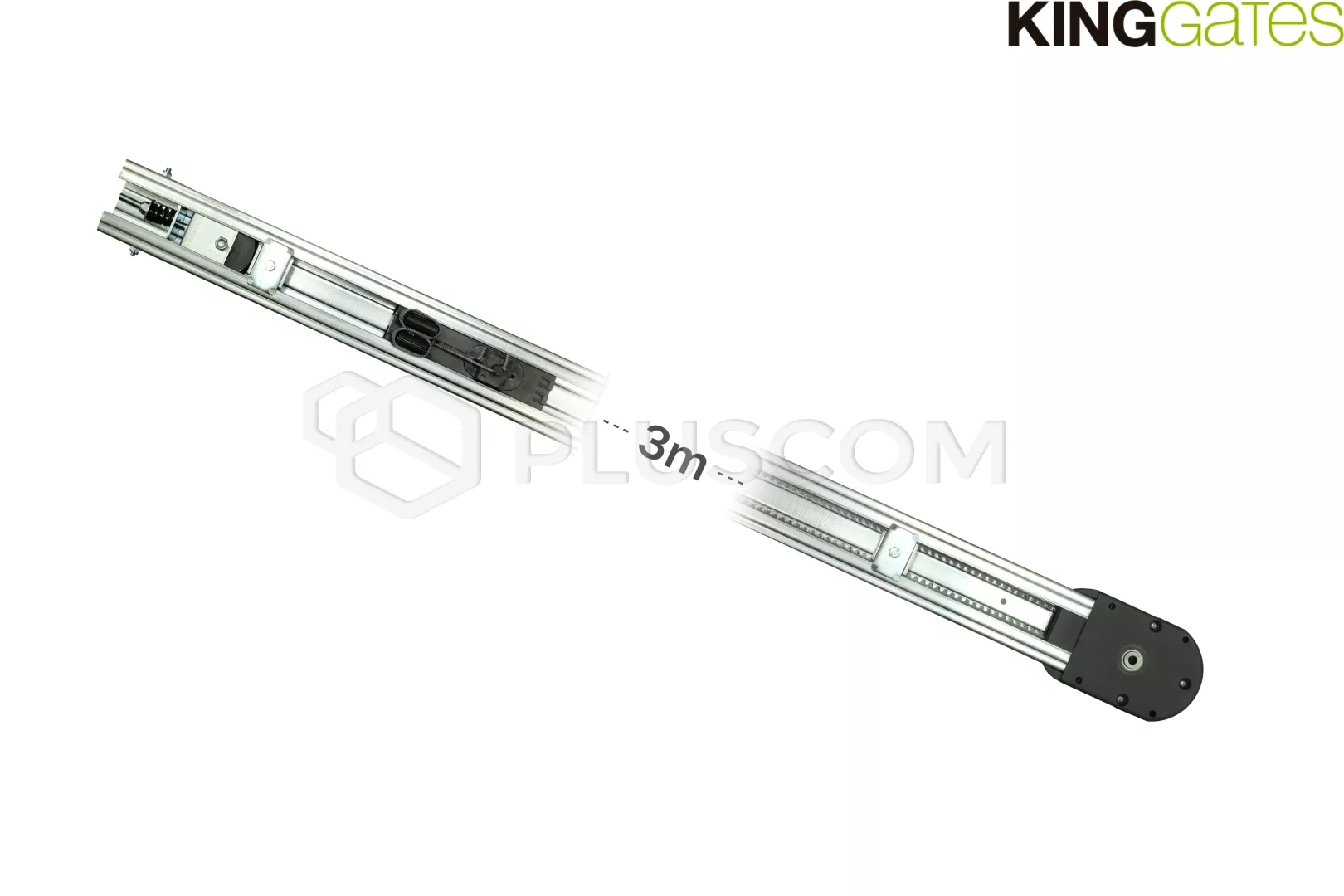

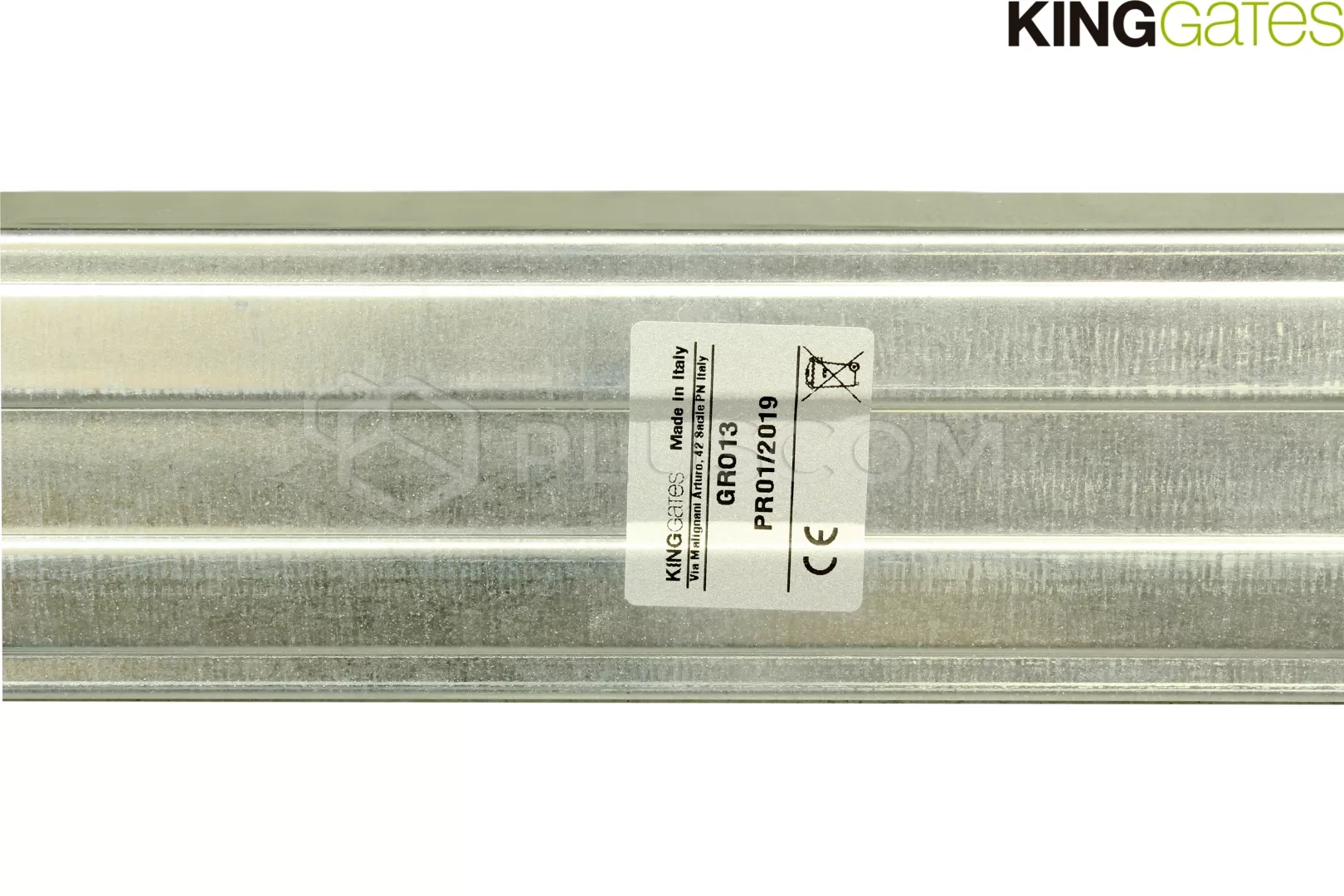

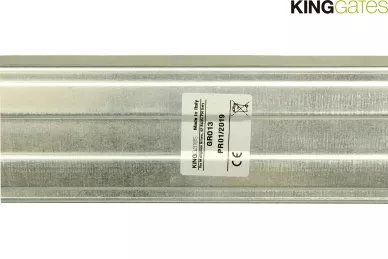

  • 1-piece guide rail 3m with reinforced strip (GR013)
KingGates ELEVO 24V Set for garage doors

KingGates ELEVO 24V Set for garage doors
Elevo is the new automation for garage doors by KINGgates. Thanks to the 620 N torque of the motor, this device is the ideal solution to open and close sectional doors up to 10 m2.

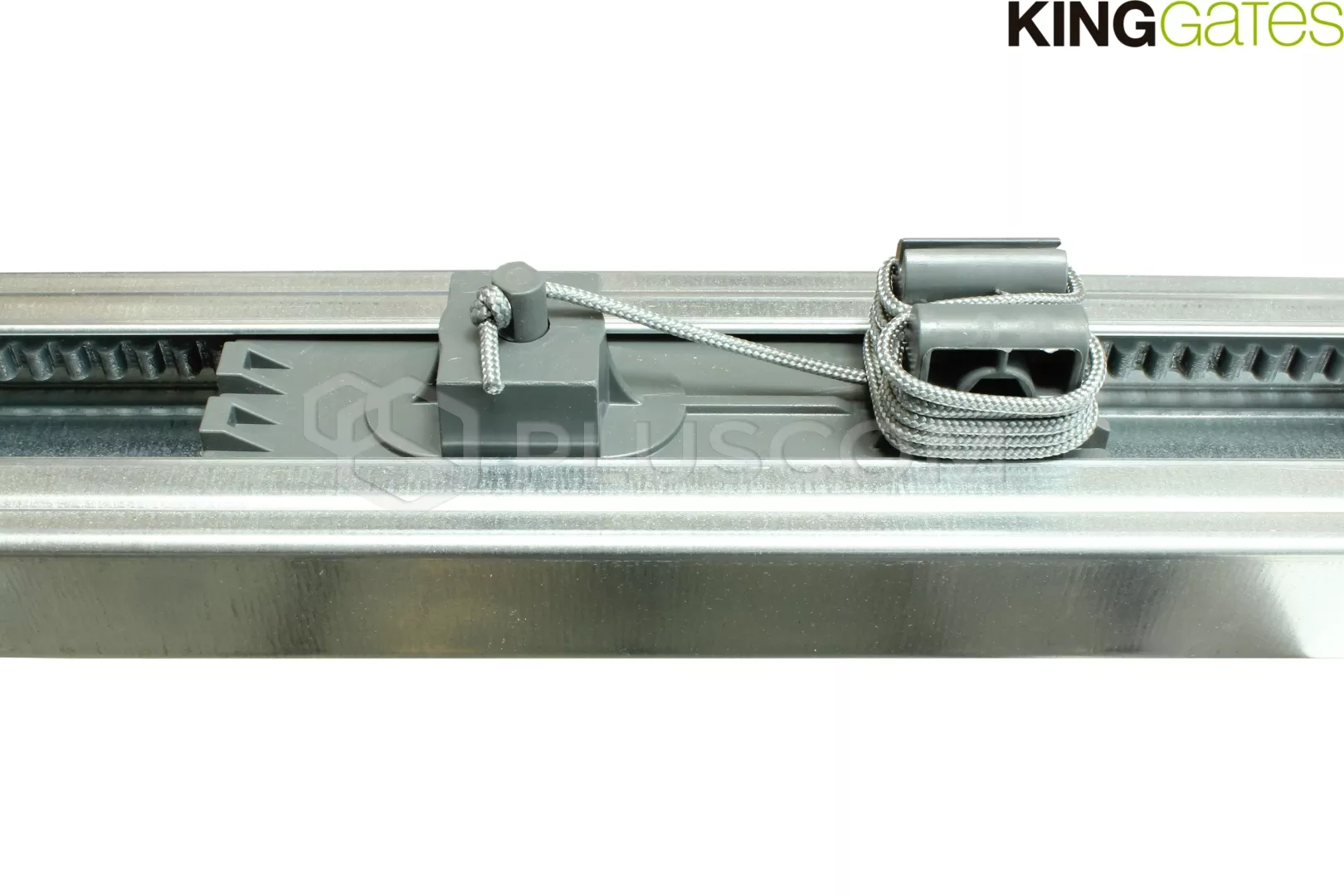

Just a few minutes to assemble this automation: the guide is already completely assembled in a-single-piece version.The pro led steel guide guarantees a smooth movement of the door during the opening and closing phases, while the use of the belt with steel core allows to get a low level of noisiness.

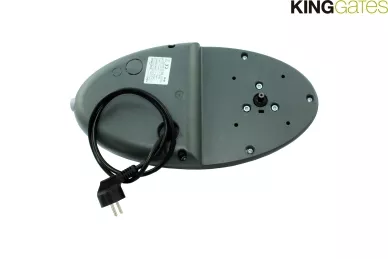

The assembling of the motor group with the guide quickly occurs through 4 screws and in case of problems of encumbrance to the ceiling, the motor is designed to be angled of 90° with respect to the axle of the guide.

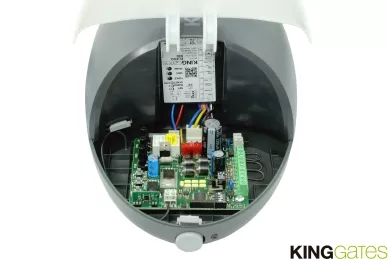

Elevo becomes even more powerful and simple to program, thanks to the newly developed control panel STAR EVO. The installation procedure follows the same logic that distinguishes all KINGgates control units. The main parameters are adjusted intuitively using 3 potentiometers and 4 dip switches. The garage lighting is guaranteed by a practical LED courtesy light integrated into the electronic board.

TECHNICAL PARAMETERS:
  • pulling force: 620N
  • work intensity: 30 cycles per day
  • power supply: 230V
  • motor power: 24V
  • power input: 200W
