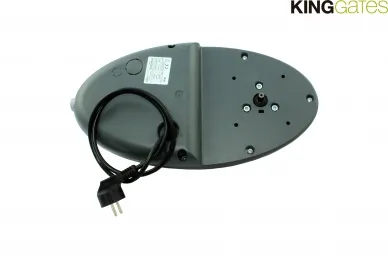

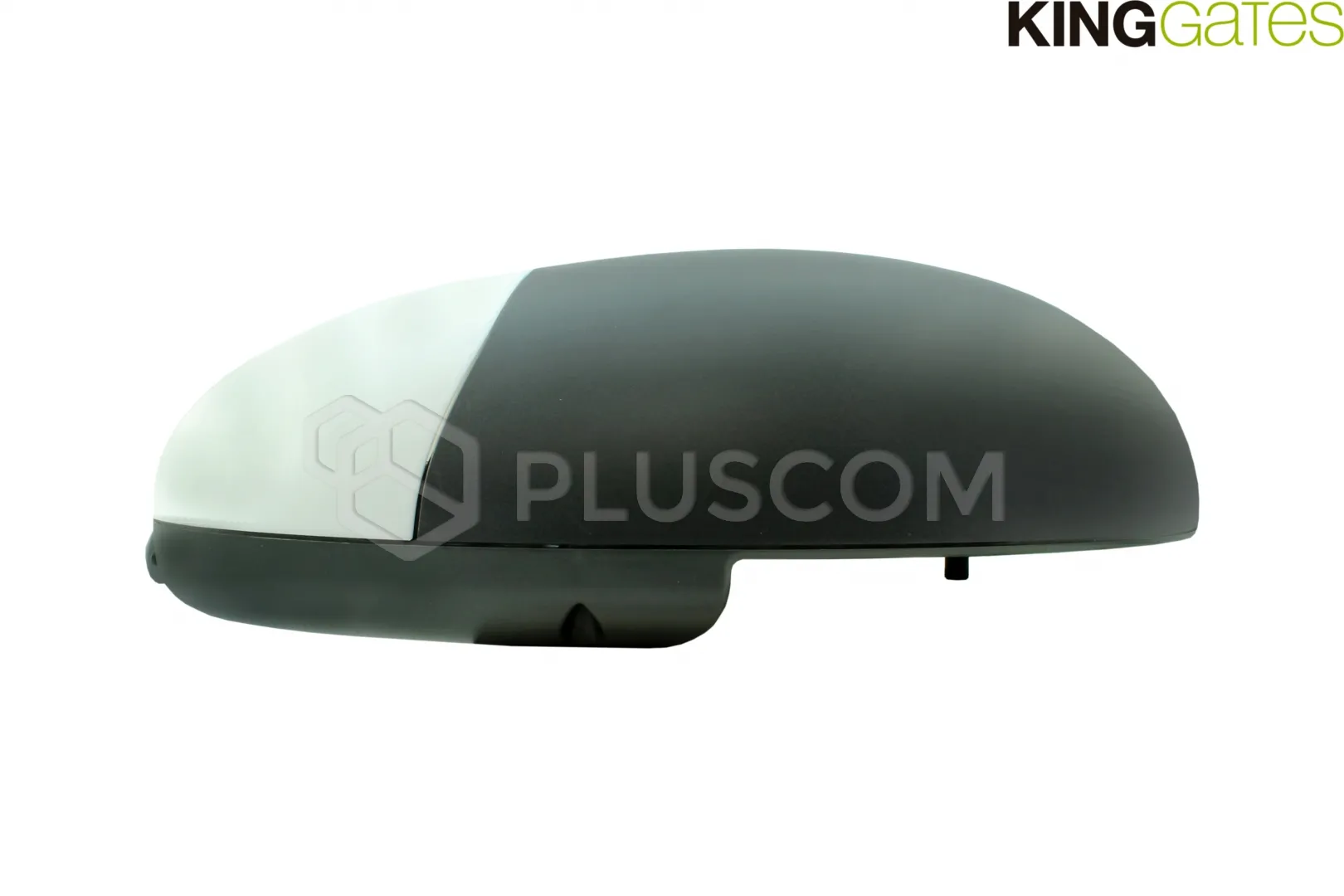

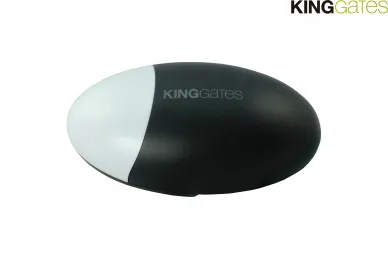

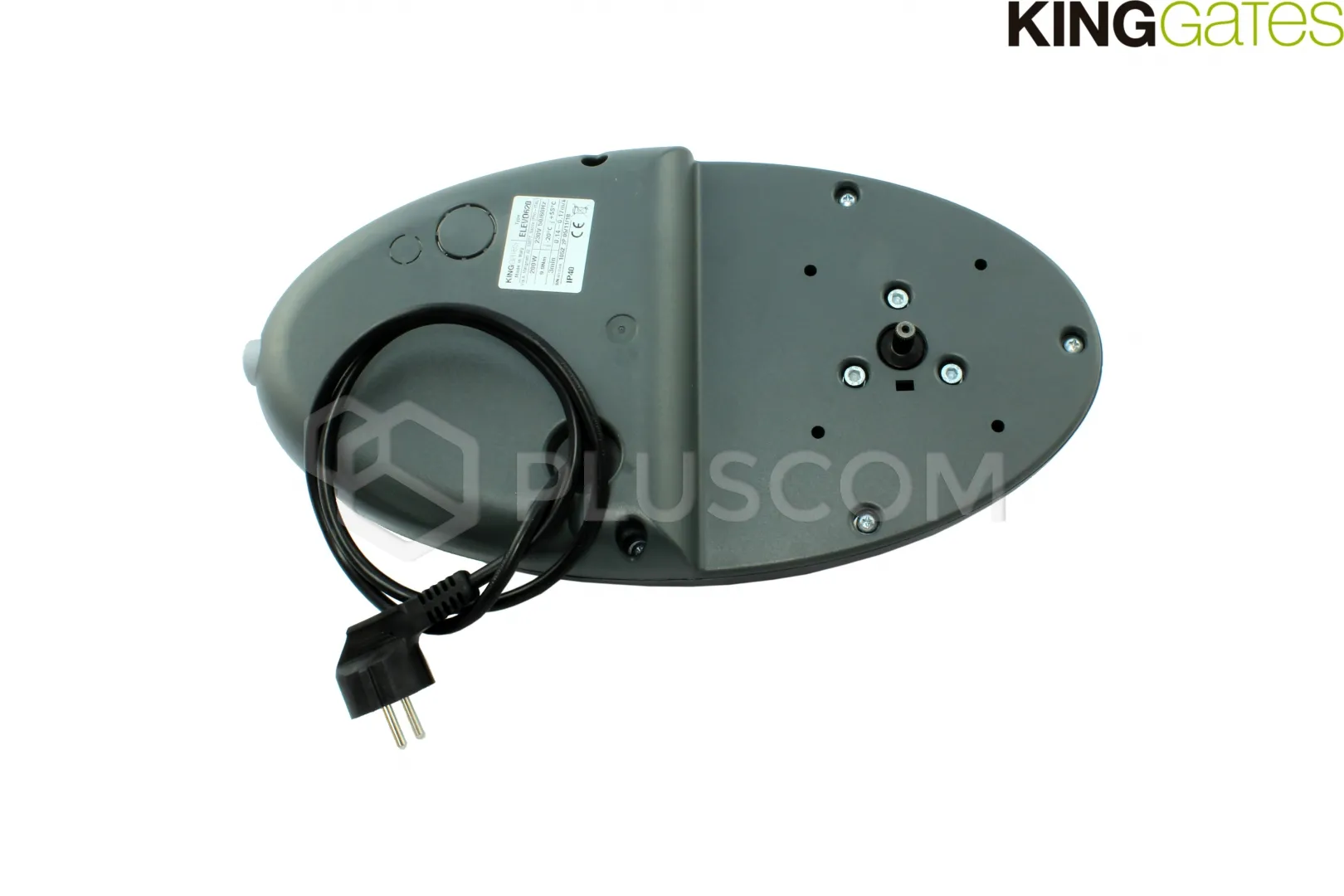

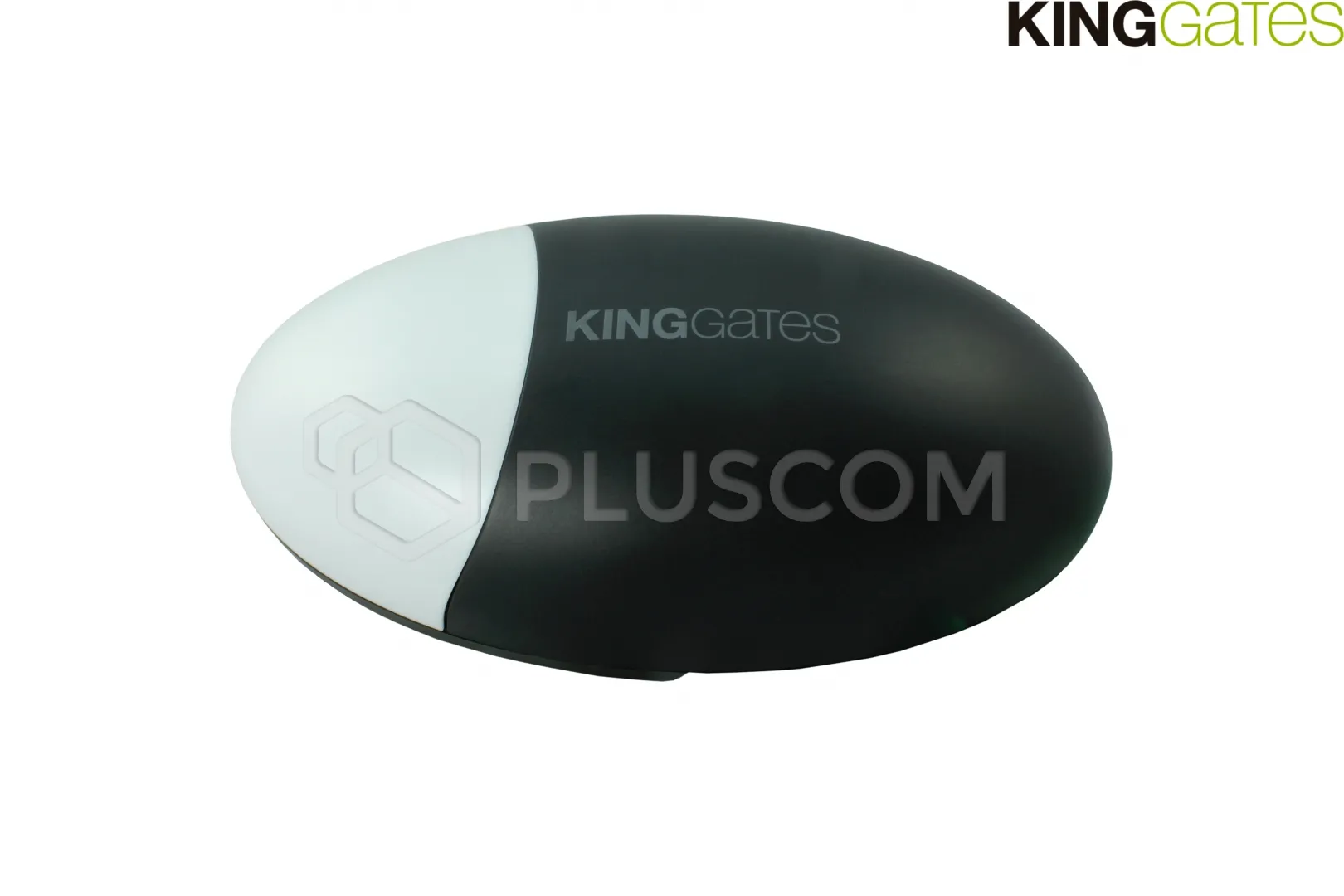

KingGates ELEVO 24V Actuator Head 1000N

Product code: #43759
Manufacturer: KingGates
  • Pulling force: 1000N
  • Surface of the gate: to 16m²
  • Built-in control unit and radio receiver
  • LED auxiliary lighting built into the control unit
  • Actuator with 90° rotation
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
KingGates STYLO4K 4-channel Nice SPA2R02 external disengagement kit with steel cable KINGgates Photocell VIKY 30

KingGates ELEVO 24V 1000N Motor Head for Garage Doors up to 240cm High and Up to 16m²


Elevo is KingGates' new garage door automation system. An easy-to-use and highly functional garage door operator. A pulling force of 1000N is sufficient to operate a sectional door up to 16m².

PURPOSE OF THE DRIVE:
Automation of garage doors up to 240 cm high and with an area of ​​up to 16 m²
  • Tilting and pivoting door - area up to 11 m²
  • Sectional door - area up to 16 m²
The actuator is mounted on a rail using four screws. If space is limited, the actuator head can be rotated 90° relative to the rail. A durable, reinforced toothed belt is used for drive transmission, the greatest advantage of which is its quiet operation and lack of maintenance.

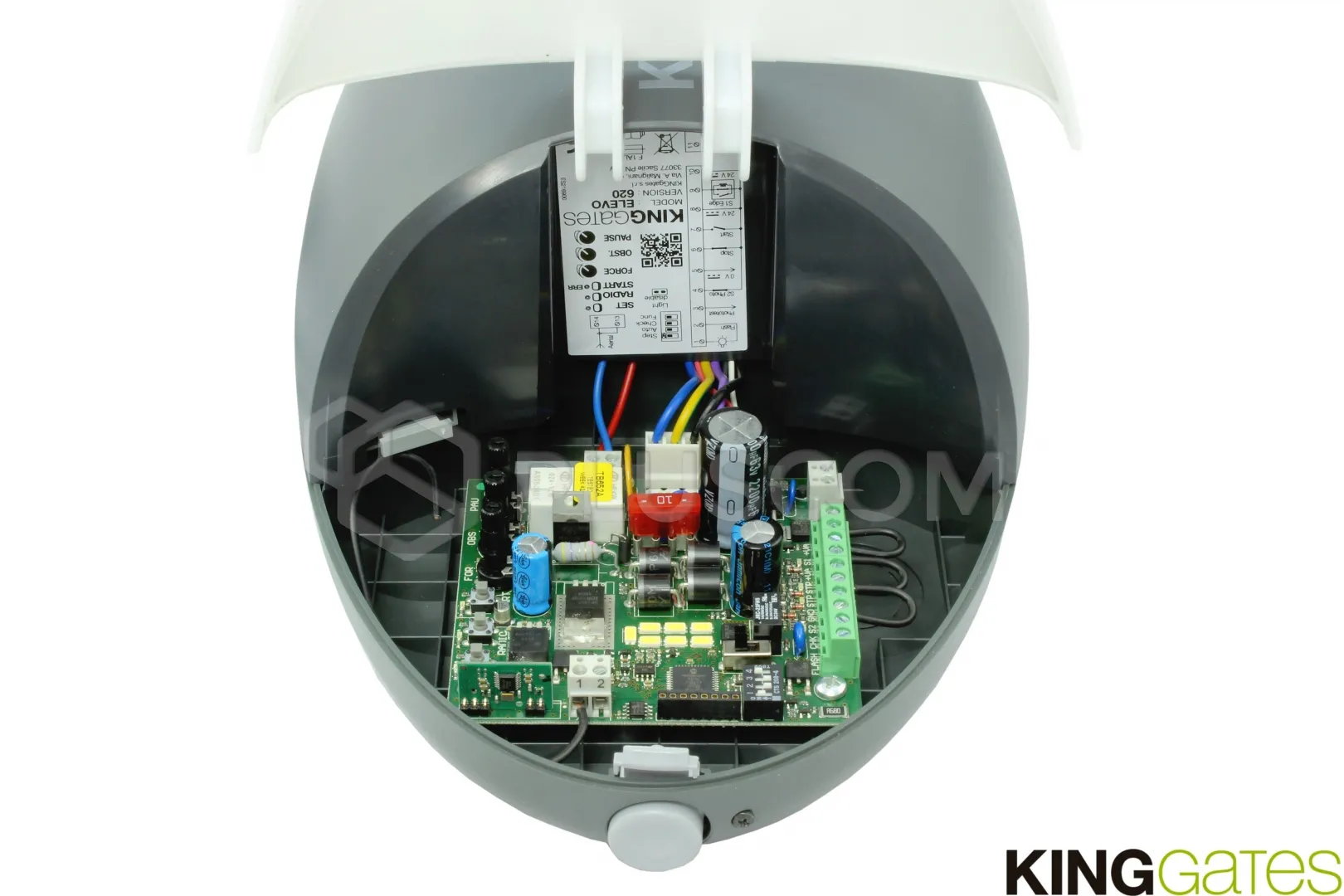

The modern STAR EVO control unit is easy to program, following the KINGgates logic. Main parameters are set intuitively using three potentiometers and four dip switches. Auxiliary LED lighting, built into the control unit, provides practical illumination of the garage.
Some practical functions performed by the STAR EVO control unit and features that distinguish the ELEVO 1000 model:

Built-in radio receiver (433.92MHz): Compatible with King-Gates gate transmitters
Auto-programming: Parameters set using dip switches and speed and force adjustment
Electronic speed control: During start-up, the gate moves gently and slowly, before closing, the drive slows down to close the gate quietly, the entire movement is smooth, without jerks or noise
Easy access: The housing has a convenient latch, allowing for easy and quick access to the control unit
Actuator head can be rotated 90°

TECHNICAL PARAMETERS:

  • Pulse force: 1000N
  • Work intensity: 60 cycles per day
  • Power supply: 230V
  • Motor power supply: 24V
  • Power consumption: 390W
  • Protection rating: IP40
  • Operating temperature: -20°C ÷ +55°C
  • Dimensions: 390x210x130mm

Compatible with:

KingGates ELEVO 24V Actuator Head 1000N in the diagram KINGgates Elevo 1000
Download
Datasheet 5.17 MB
