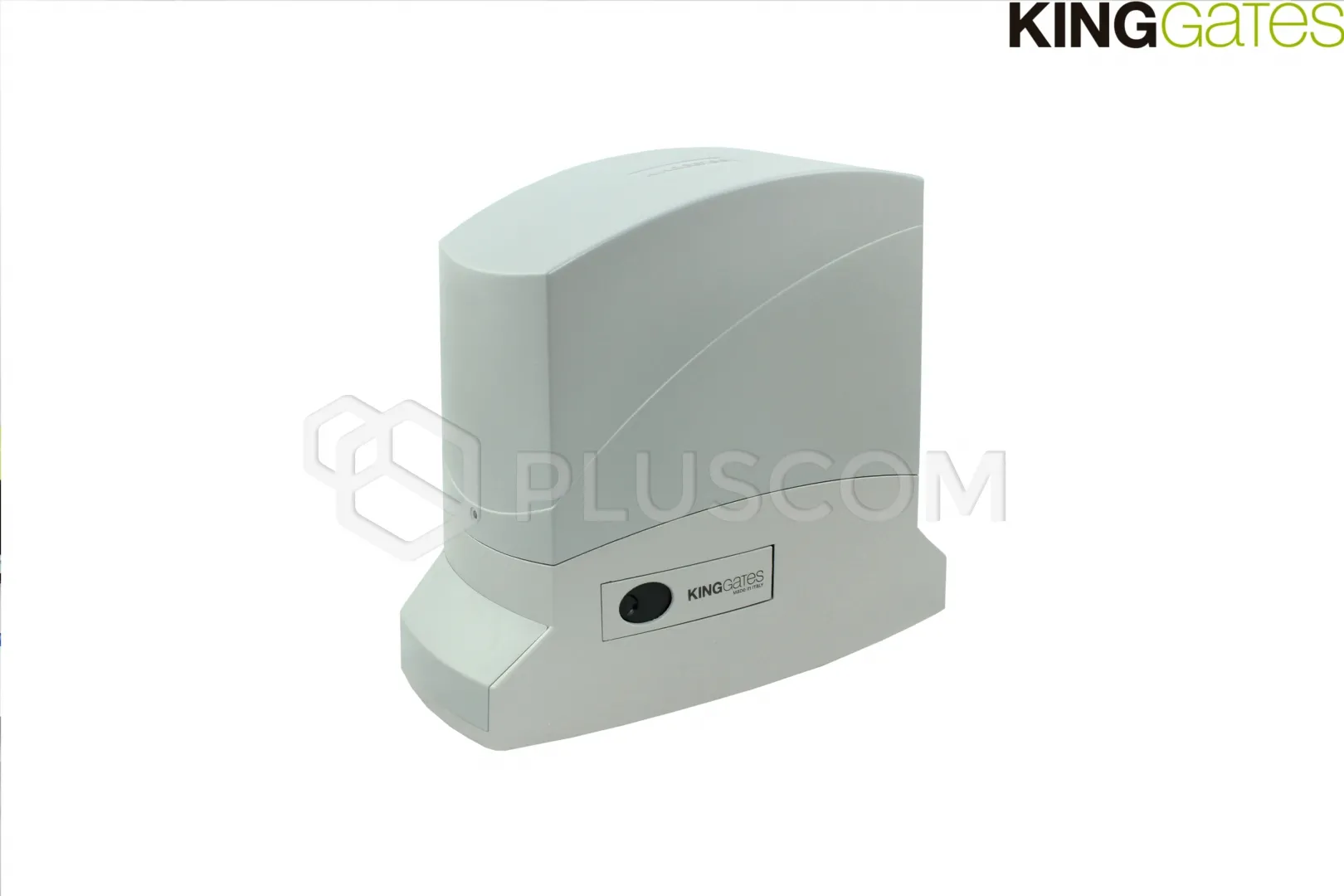

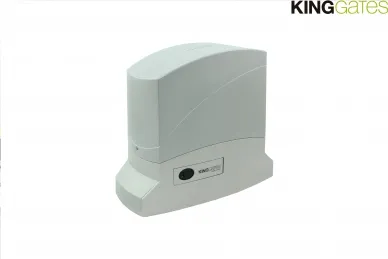

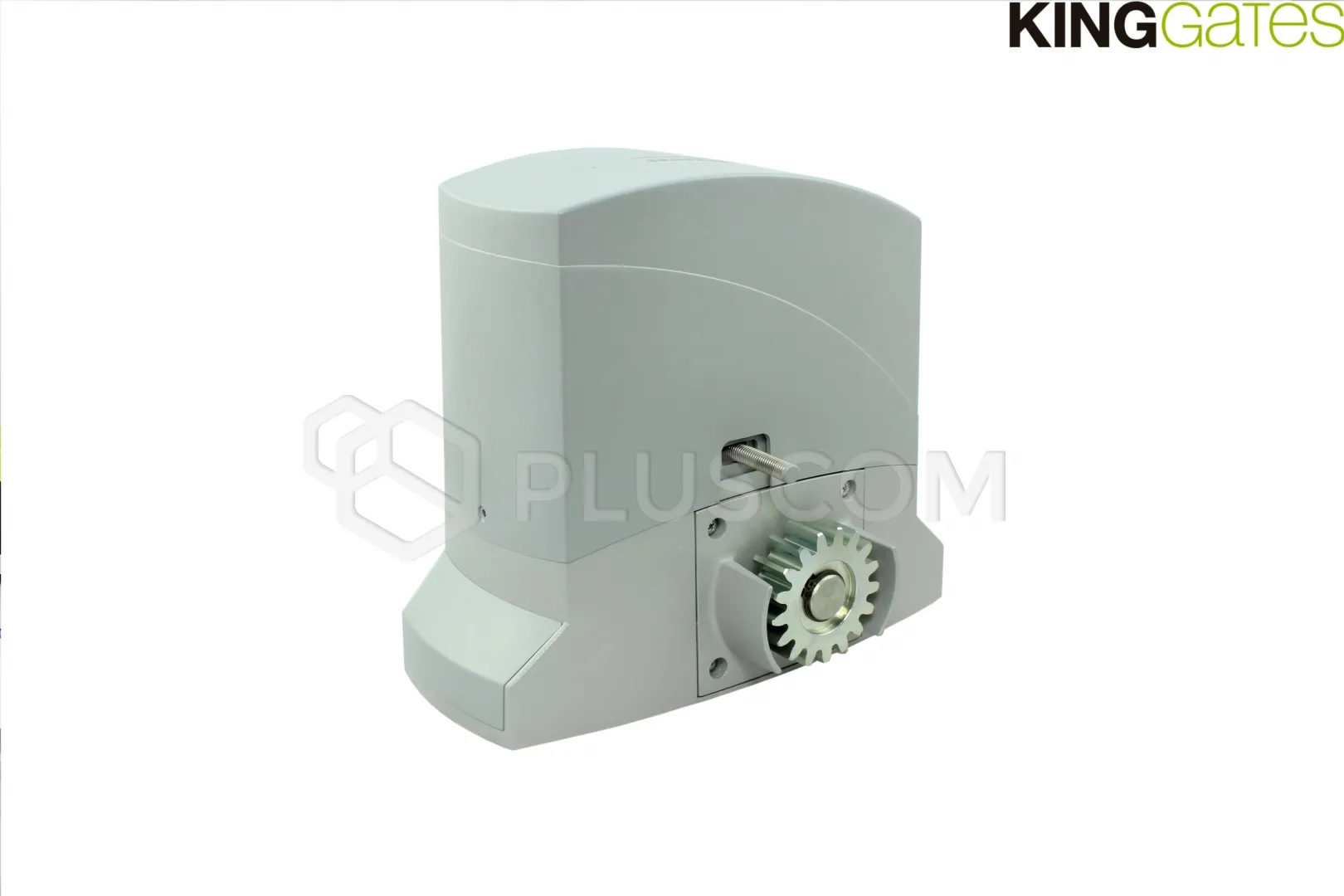

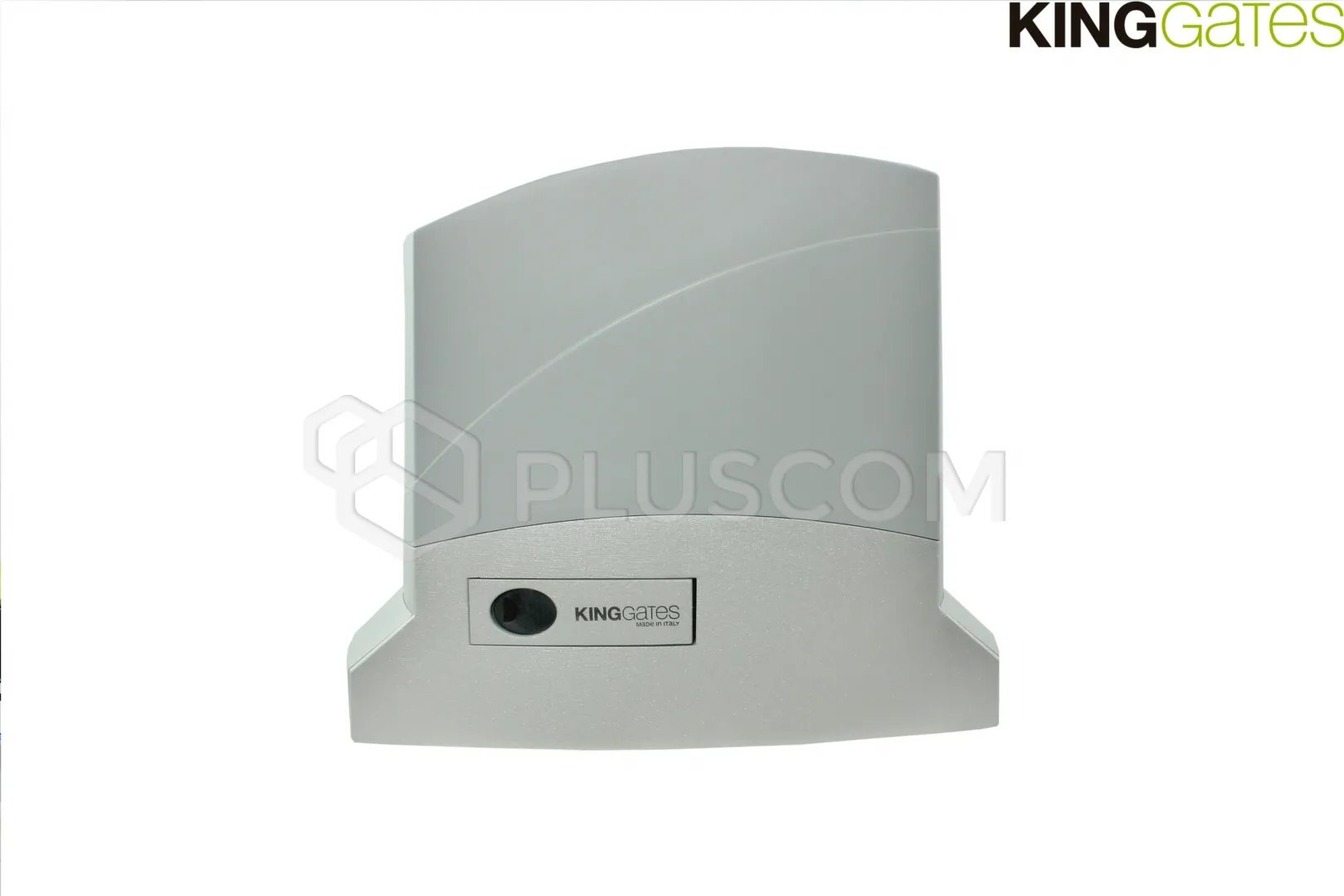

KingGates DYNAMOS gate drive 600kg 24V

KingGates DYNAMOS 24V 600kg Sliding Gate Operator 600kg

Dynamos is a robust actuator made of cast aluminum with ABS plastic components coated with UV protection, allowing it to operate in all conditions.
The actuator has an 375W motor, making it suitable for sliding gates with a maximum weight of 600kg. The internal gear has spirally arranged teeth; this special design allows for maximum adhesion of the worm teeth to the worm wheel.

The most important advantages of the drive and the set include:

• Manual release - in the event of a power outage, The practical release mechanism allows for emergency disengagement of the drive and manual opening of the gate.
• Smooth operation - The drive is programmed so that the gate leaf gently starts and slowly stops during opening and closing. This ensures smooth operation of the gate and – equally important – makes no noise when closing.
• Automatic closing - the gate closes automatically after each opening.
• Wicket function - there's no need to wait for the entire gate to open and close. Thanks to the wicket function, it will open so that you can quickly and easily pass through.
• Safety - thanks to the photocell system, detecting an obstacle will stop the gate at the appropriate distance.
• Phototest - the actuator checks the photocells for proper operation before each gate opening.
• Water-resistant - the device's airtight, waterproof housing will withstand all weather conditions.

The Nice STARG824NG control unit stands out for its multitude of functions and easy programming process.

Main features of the control unit:

• Built-in 433.92MHz radio
• Works with 1 or 2 24V actuators
• Electric lock output, can also be used to connect additional lighting
• Option to connect an external antenna to increase the range of the radio control
• Mutual leaf delay during closing
• Pause during automatic closing within the range of 9-180 seconds
• Obstacle recognition
• Motor force adjustable with a trimmer
• Programmable slowdown phases during gate opening and closing

The receiver can store 180 transmitters in its memory.

EMERGENCY GATE OPENING
A practical drive release mechanism allows for emergency disengagement of the motor and manual opening of the gate. A patented key releases the aluminum lever.

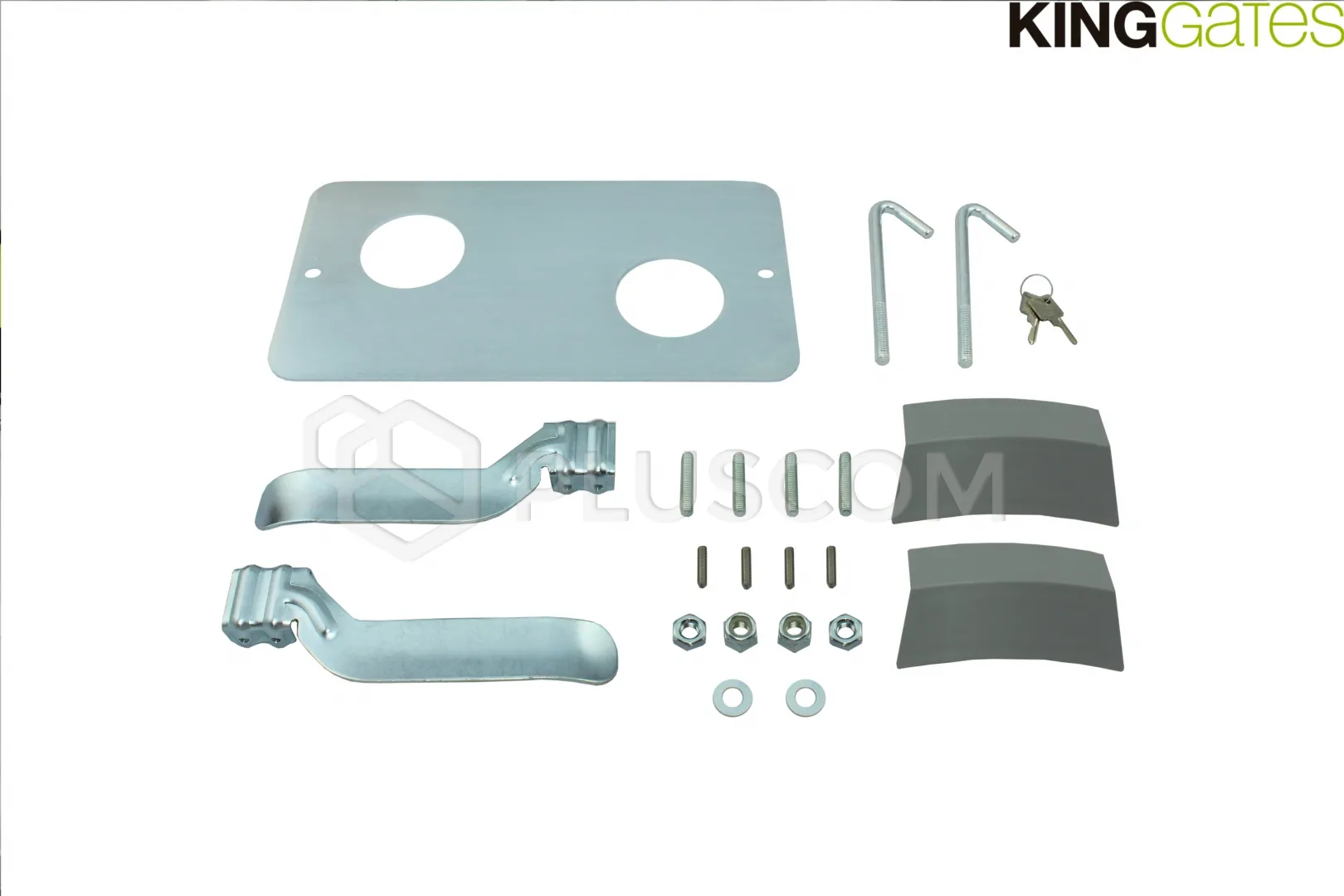

The set includes all necessary mounting accessories:

• Mounting plate with anchors
• Drive mounting and leveling screws
• Rack limiter arm (2 pcs.) (left and right)
• Two keys to unlock the drive

EMERGENCY POWER SUPPLY The drive can be equipped with an additional battery that will ensure operation even in the event of a power outage.

TECHNICAL PARAMETERS:

• Power supply: 230V AC
• Motor power supply: 24V DC
• Power: 375W

• Maximum pulling force: 600N
• Speed: 0.34 m/s
• Work intensity: 90%

• Operating temperature: -20°C...55°C
• Dimensions: 325x185x274mm
• Weight: 11kg
