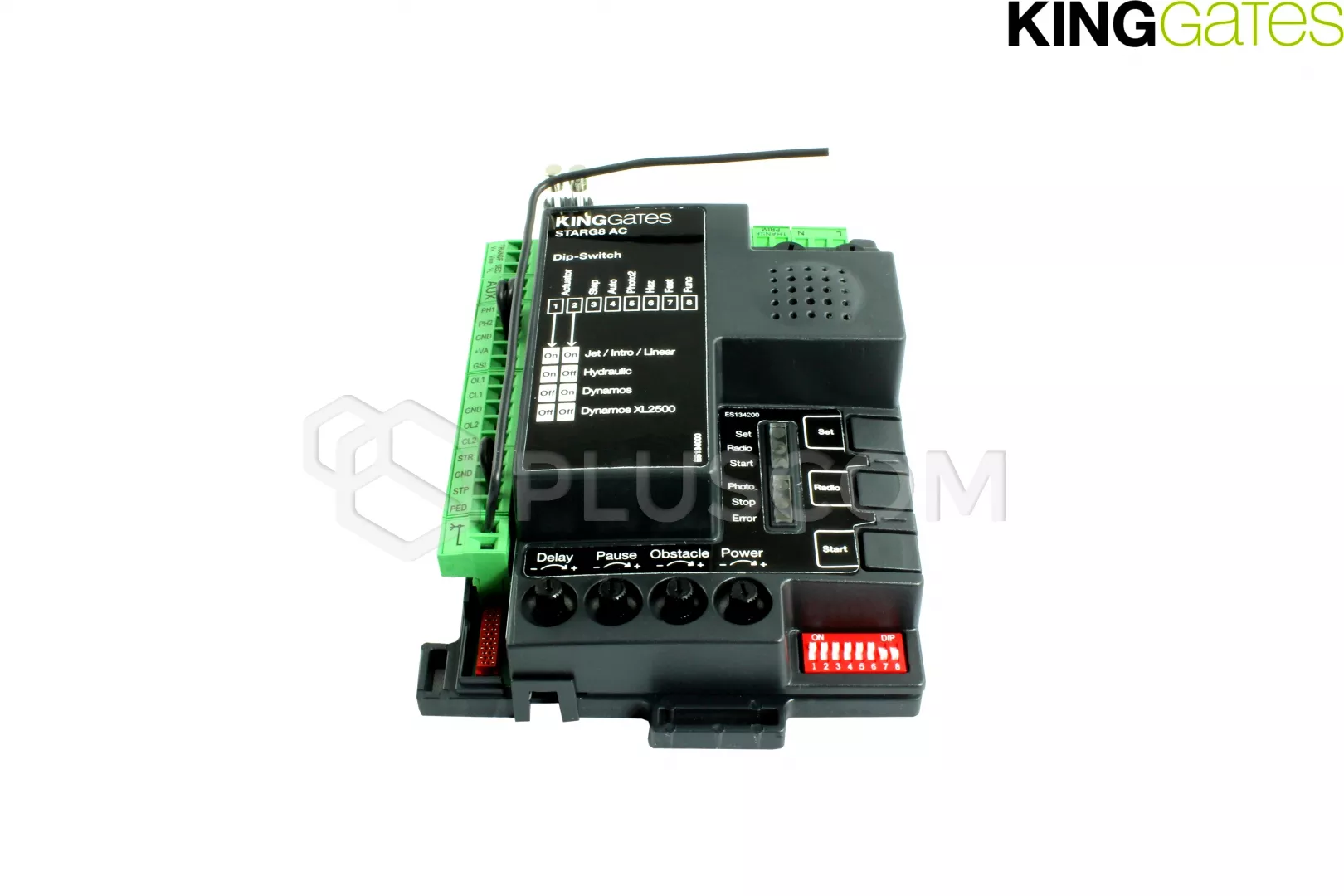

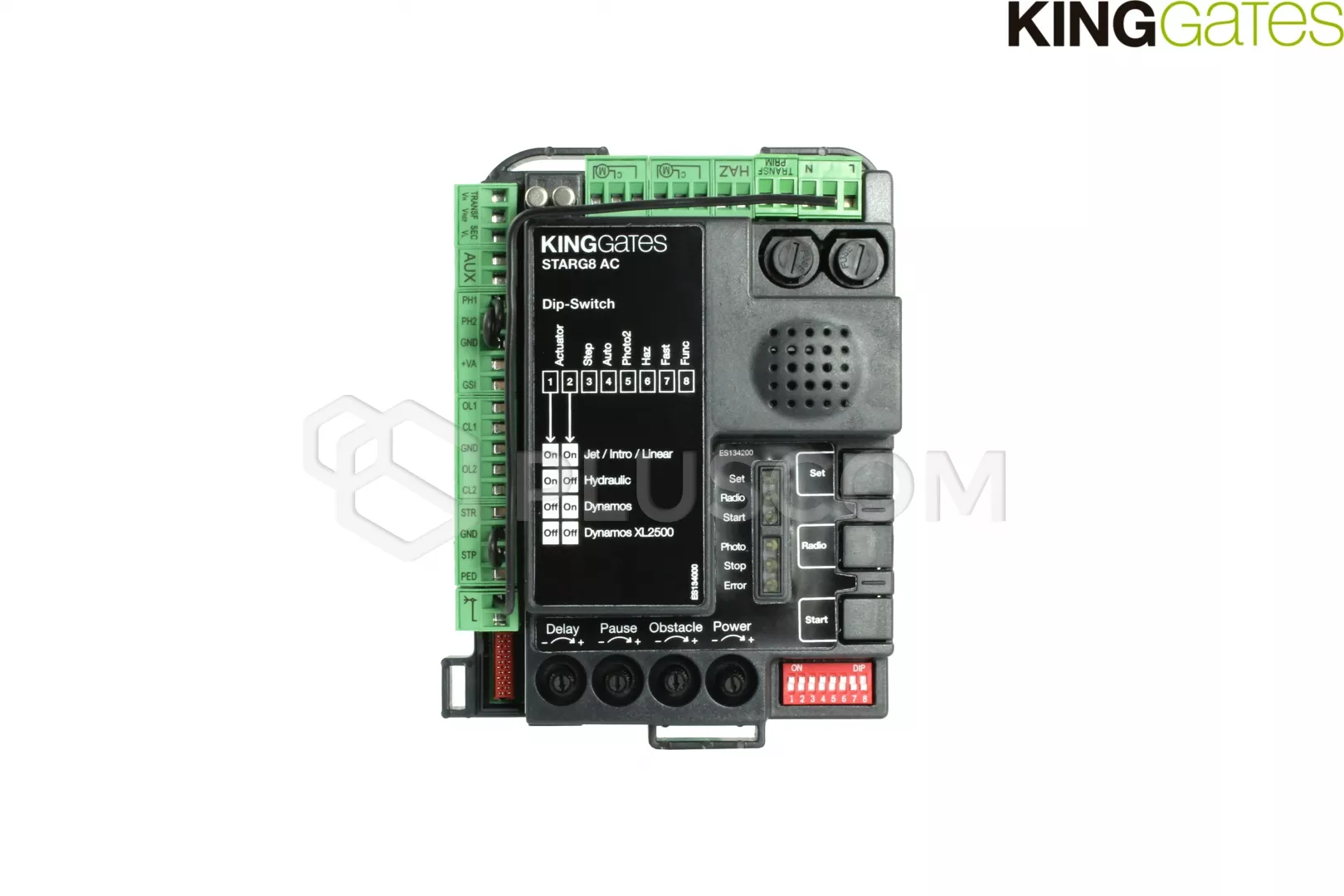

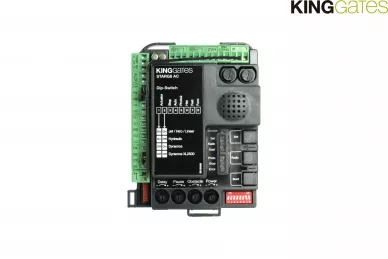

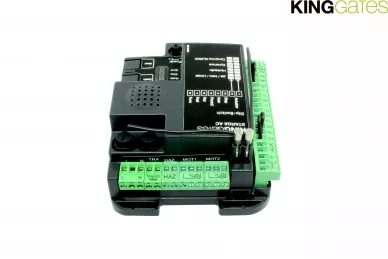

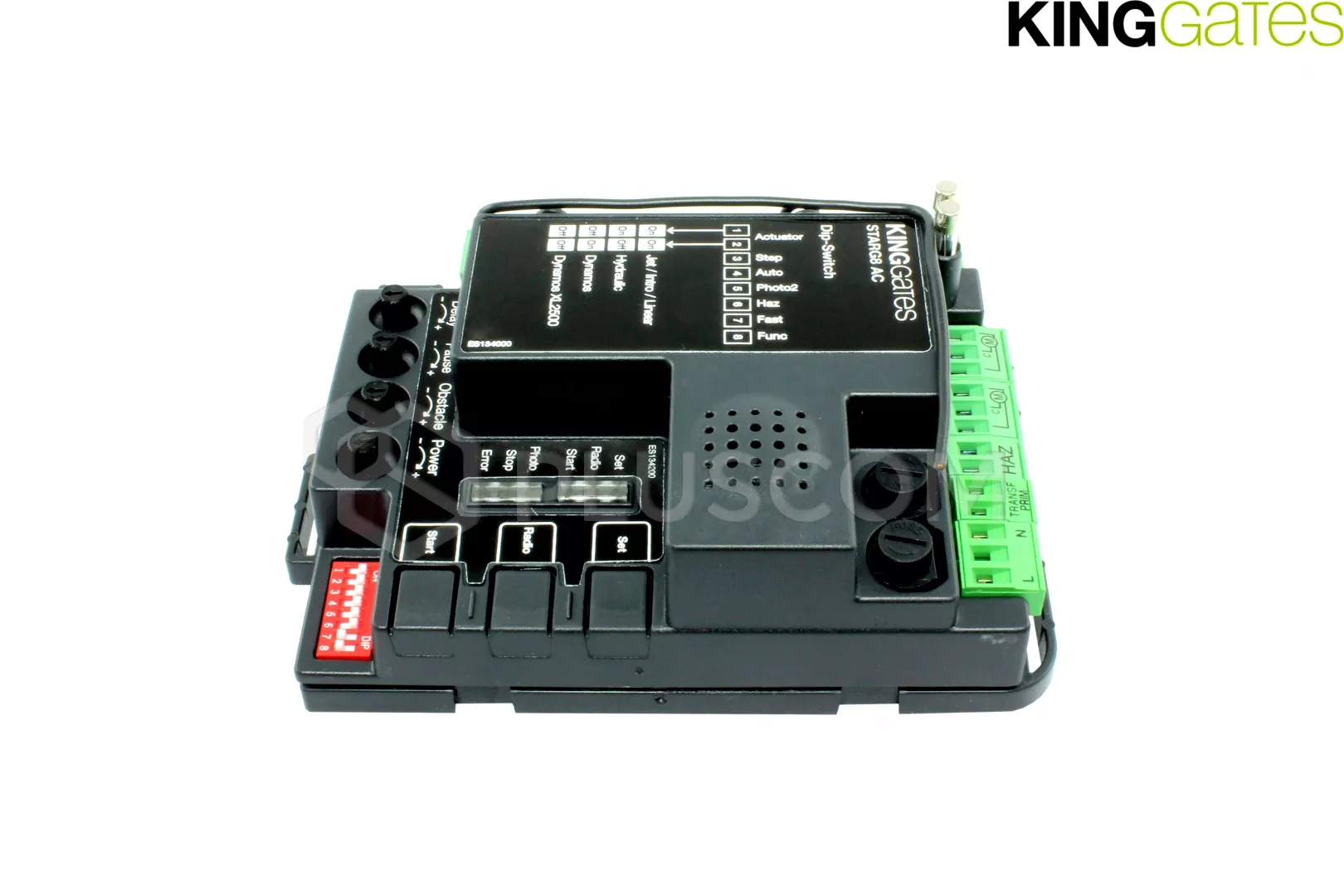

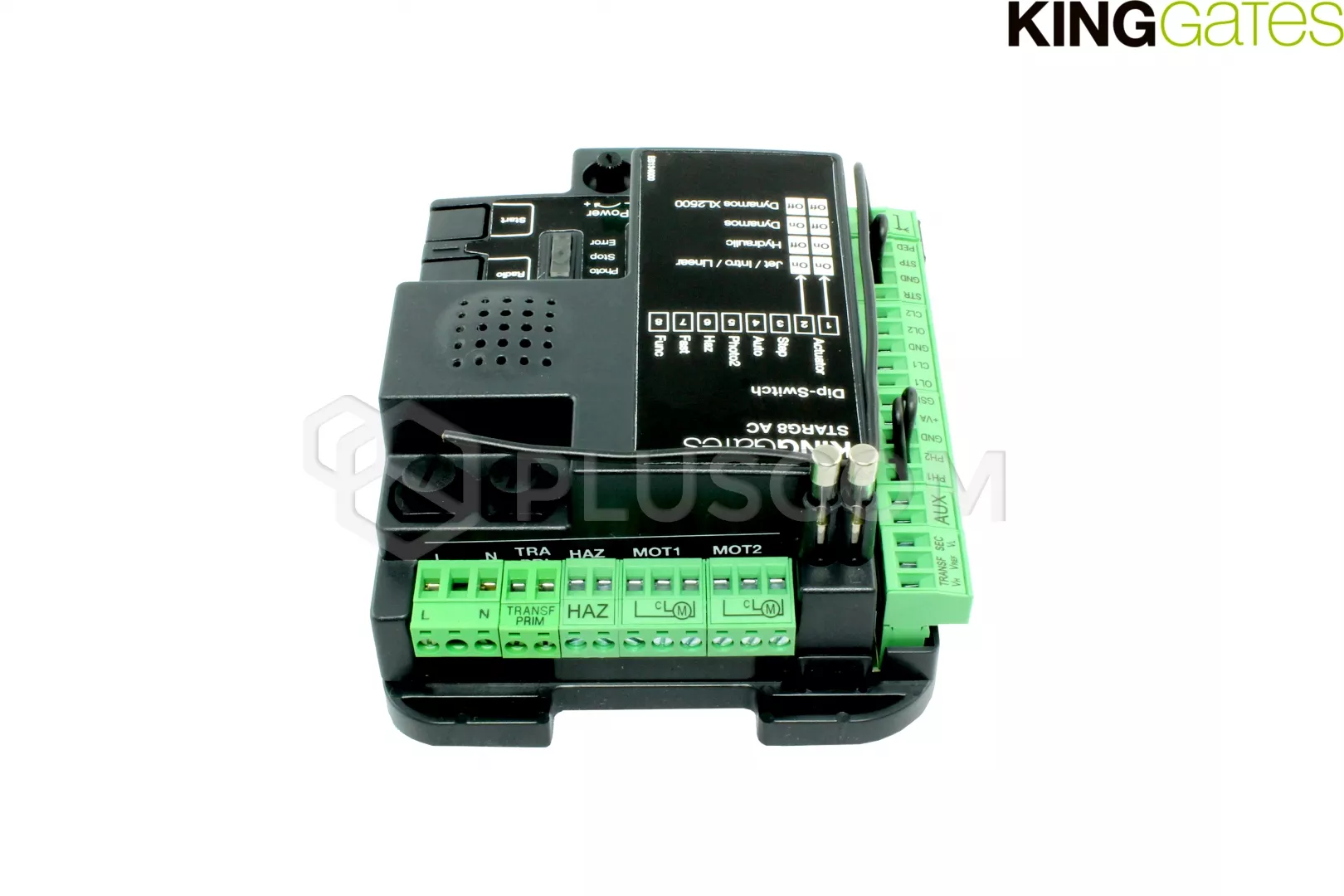

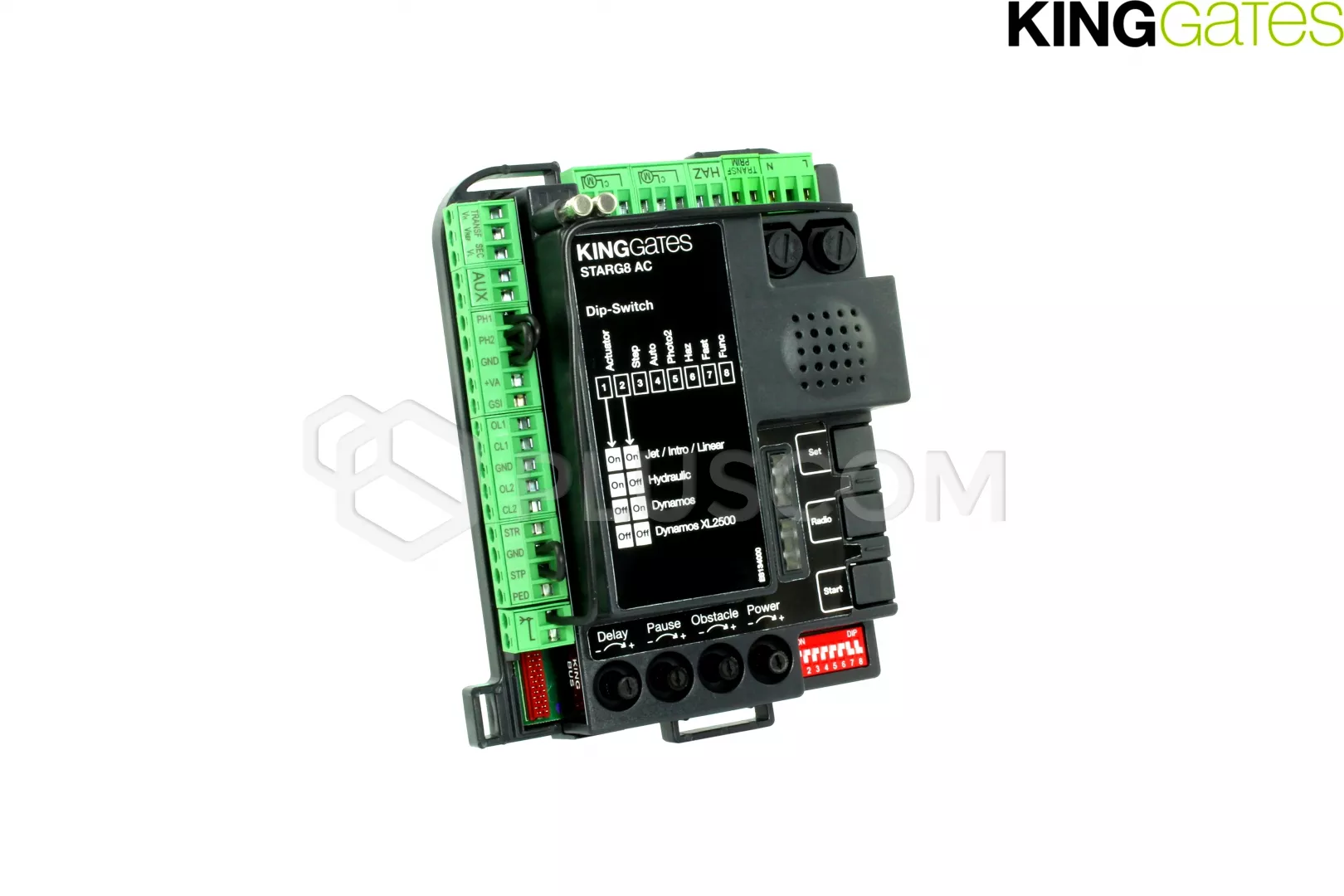

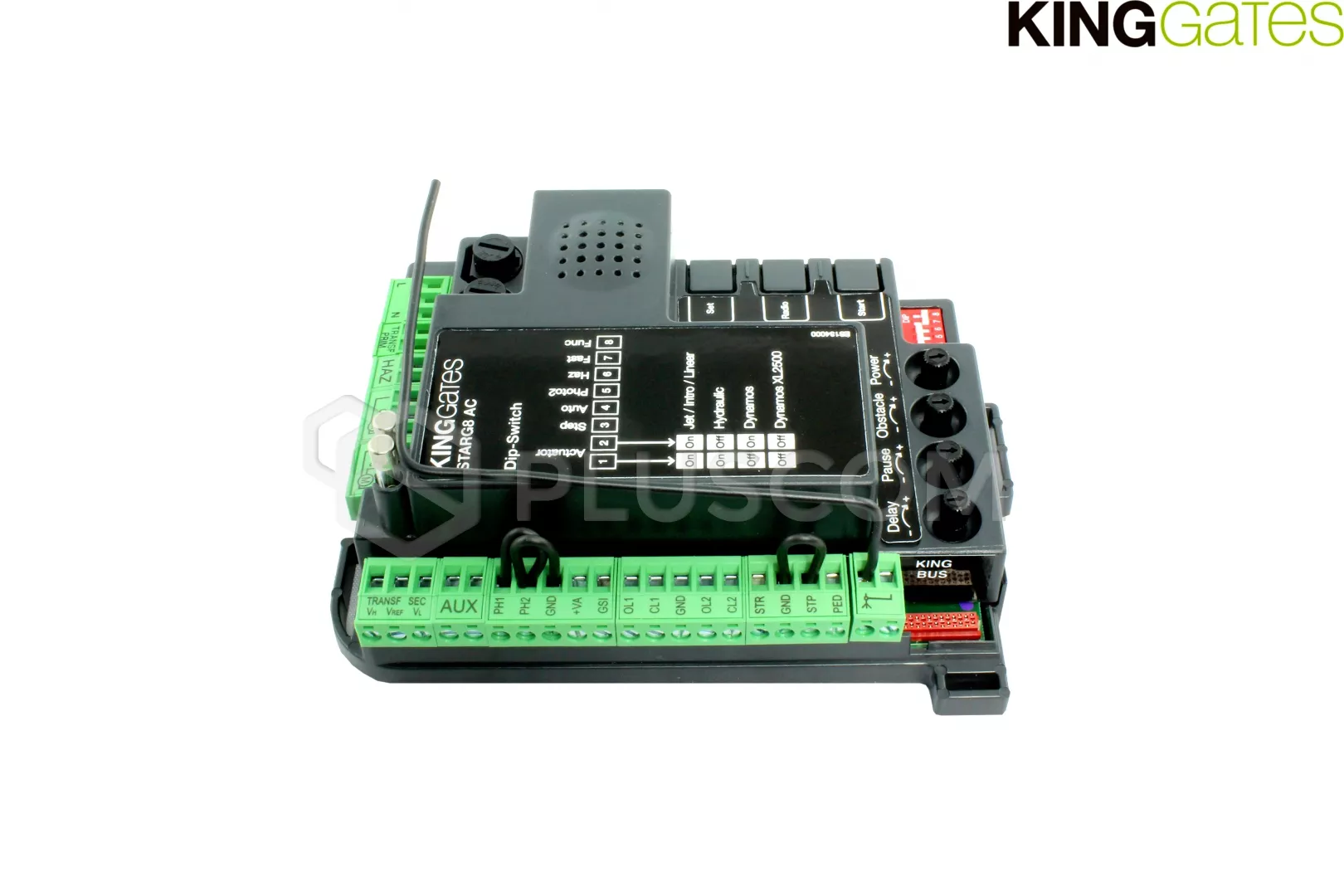

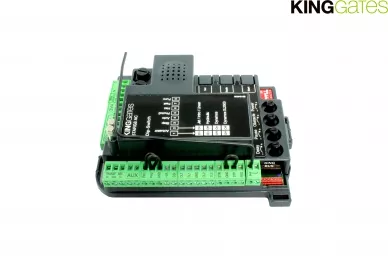

KingGates 12S015 control unit electronics board STAG8 AC

Control unit for 230V gates motors to sliding gates, or for one or two 230V gates motors to swinging gate

STARG8 AC is a control unit compatible with all KingGates actuators powered 230V, for both swing and sliding gates. Dedicated to KingGates drives: Jet 24, Linear 40024, Linear 50024, Modus 280, Modus 420, Dynamos 24.

The programming of the control panel is done using trims and DIP switches.

CENTRAL FUNCTIONS:

• Step by step mode
• Automatic closing
• Wicket function
• Adjustable speed, strength and relaxation of the wings
• Phototest
• Locking buttons or control center
• in the rest condition reduces energy consumption and goes into Stand to
• Gateway status indicator
• Amperometric obstacle detection system (adjustable level sensitivity)
• The sequence of flash flashes indicates the need for maintenance (number of cycles programmed individually)
• Photocells on opening and closing
• Adjustable time of automatic closure
• Adjustable delay between wings
• Integrated radio - memory for 170 pilots;
• Programmable control inputs
• Maintenance management
• Always works - thanks to the emergency battery (option), actuators they will open and close the gate even in the event of a power failure

An additional feature activated by the smartphone is cooperation with an electric lock and a resistive strip.

With the STARG824 control panel we can connect the WiFi KINGKONNECT module and manage it all functions offered by KING Smart electronic devices Traditional, in a simple and intuitive way.
In addition, the application provides new features such as periodic planning system maintenance, control panel controls and remote management control.

TECHNICAL PARAMETERS:

• power supply to the control panel: AC 230V
• engine power supply: 230V DC
• supply of a warning lamp: 24V DC
• frequency of the radio: 433.920 MHz
• antenna input: RG58
• working temperature: -20°C...+50°C
