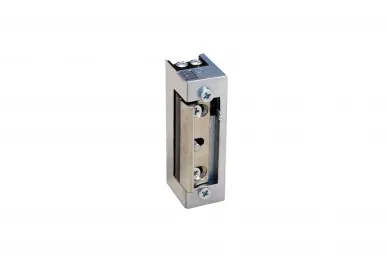

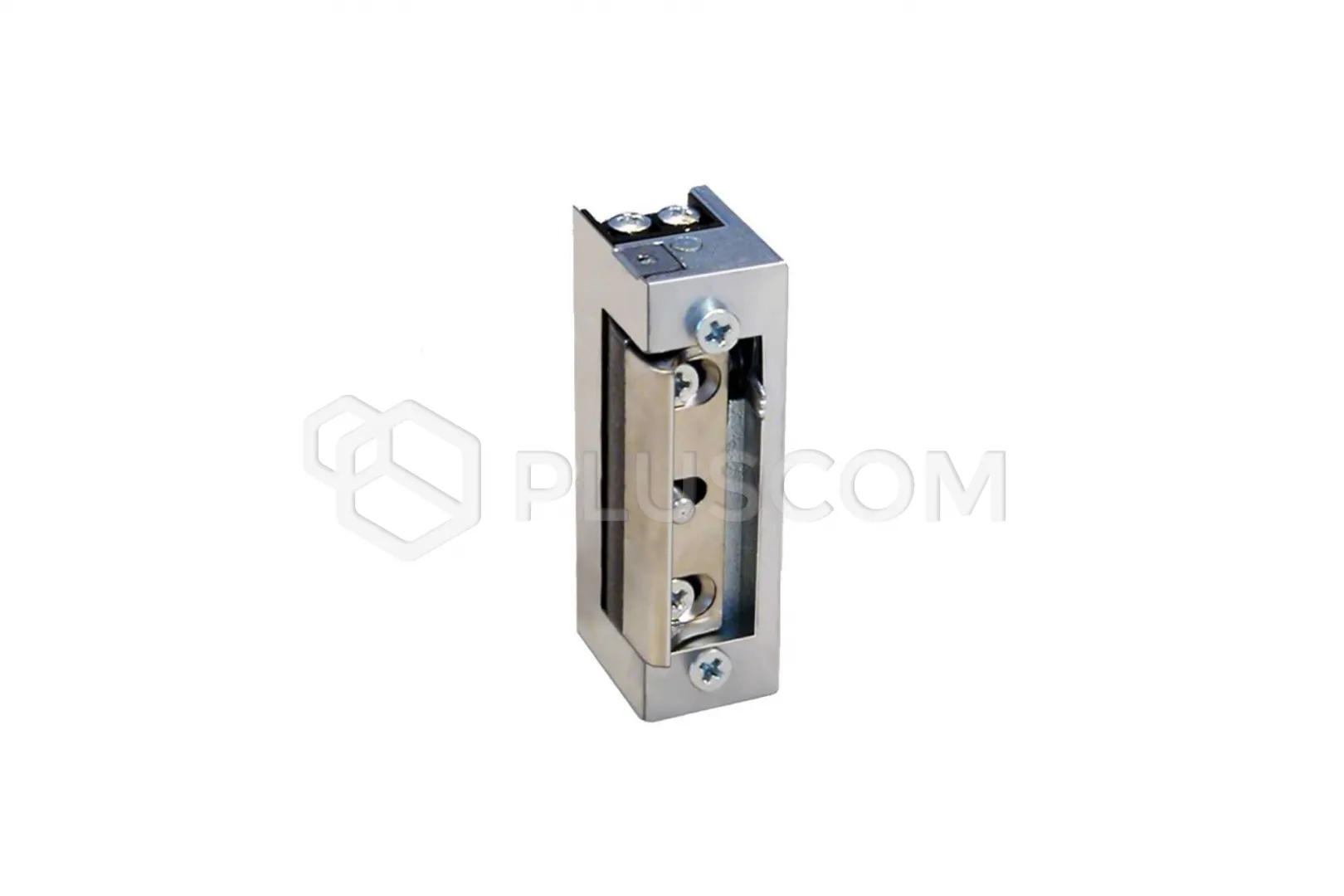

JiS 1743R 12-24VAC/DC Electric strike with switch and memory

27,95 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #40513
Manufacturer: JiS
  • Universal, left/right with switch and memory
  • Power: 12-24V AC/DC
  • Adjustment: 4mm
  • Width: 21,5mm
  • For use in narrow profiles
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Electric strike 1743R 12-24VAC/DC left/right electric strike with switch and internal memory


Electric strike 1743R 12-24VAC/DC with switch and internal memory can be installed in left/right door frames, thanks to its small dimensions it is designed for use in narrow profiles.
The electric strike can be controlled by an access control system, video intercom, intercom or by means of a closing button.

PRINCIPLE OF OPERATION:
The electric strike has been equipped with a memory mechanism. Its operation consists in providing a short impulse that releases the lock, it remains in this state until the door is opened. After opening, the lock is released when the door closes, the electric strike remains closed. This feature is useful in battery-powered situations, where low power consumption is required.

Additionally, the electric strike is equipped with a mechanical switch that can only be activated when the door is open. It releases the lock and the door can be opened without applying electric impulses for any time.

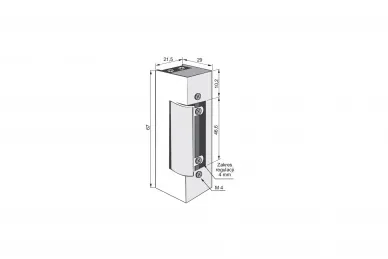

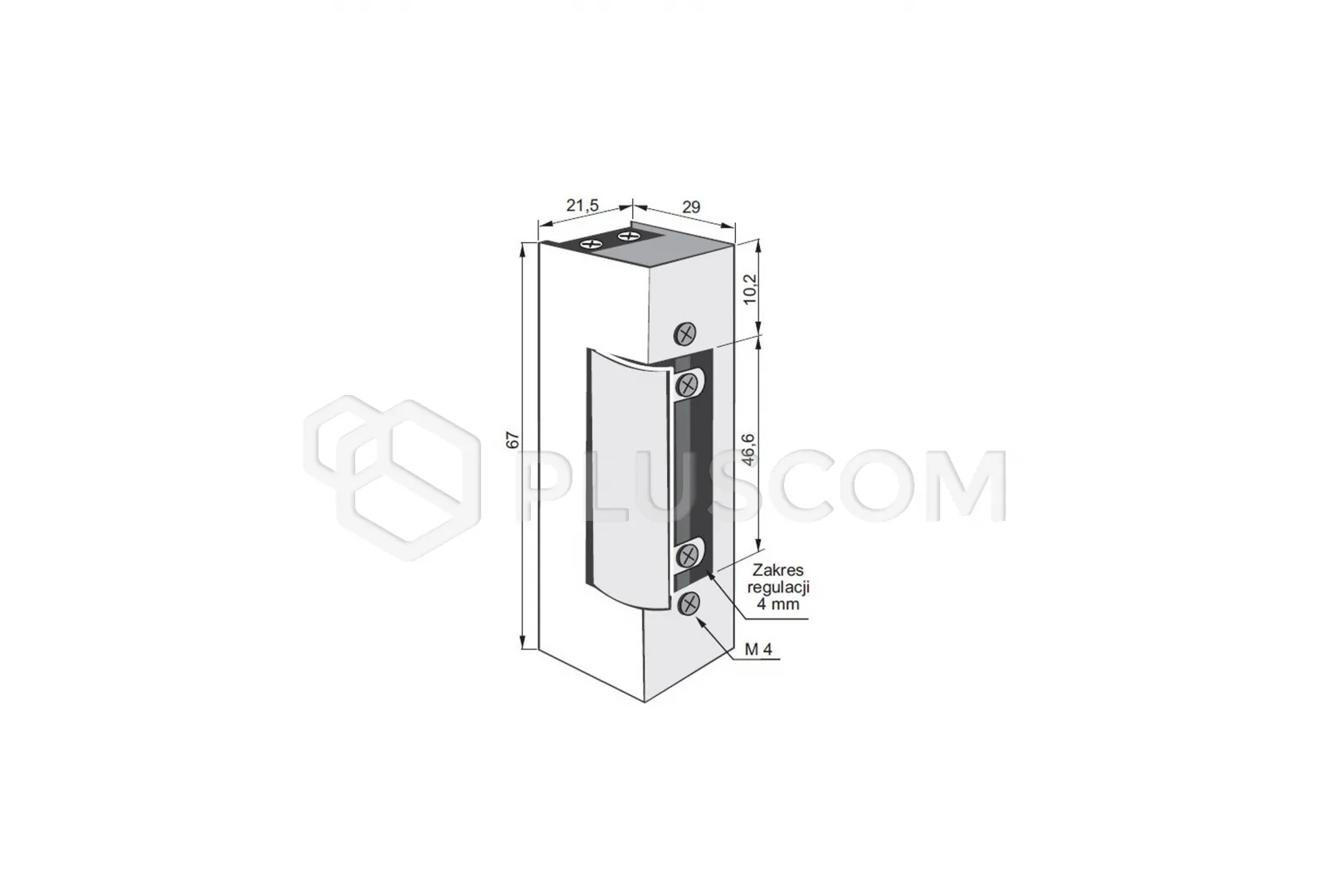

DIMENSIONS AND ADJUSTMENT:
  • The "tongue" of the electric strike can be adjusted within the range of 4 mm
  • mounting screw spacing 52mm
  • universal left/right
  • width 21.5mm
