JiS 1720R 12-24V AC/DC Universal electric strike with a switch

26,36 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #26229
Manufacturer: JiS
  • Universal, left/right with a switch
  • Power: 12-24V AC/DC
  • Regulation: 4mm
  • Width: 21.5mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Universal electric strike JiS 1720R 12-24V AC / DC left / right with a switch


JiS 1720R 12-24V AC / DC is a basic model of an electric strike with a switch that can be installed in left / right door frames.

The electric strike can be operated with 12V DC / 12V AC or 24V DC / 24V AC. The control can be realized by the access control system, video intercom, intercom, or by means of a normally open button.


PRINCIPLE OF OPERATION:
Applying voltage to the coil causes the release of the lock after a voltage decay the electric strike locks immediately. In order for the electric strike to be open, the voltage must be present at the terminals at all times. Additionally, the electric strike is equipped with a mechanical switch that can be used only activate when the door is open. It releases the lock and the door can be opened without impulse electric for any time.

DIMENSIONS AND ADJUSTMENT:
  • ''language '' the electric strike can be adjustable in the range 4mm.
  • 52mm mounting bolt spacing
  • universal left / right
  • width 21.5mm

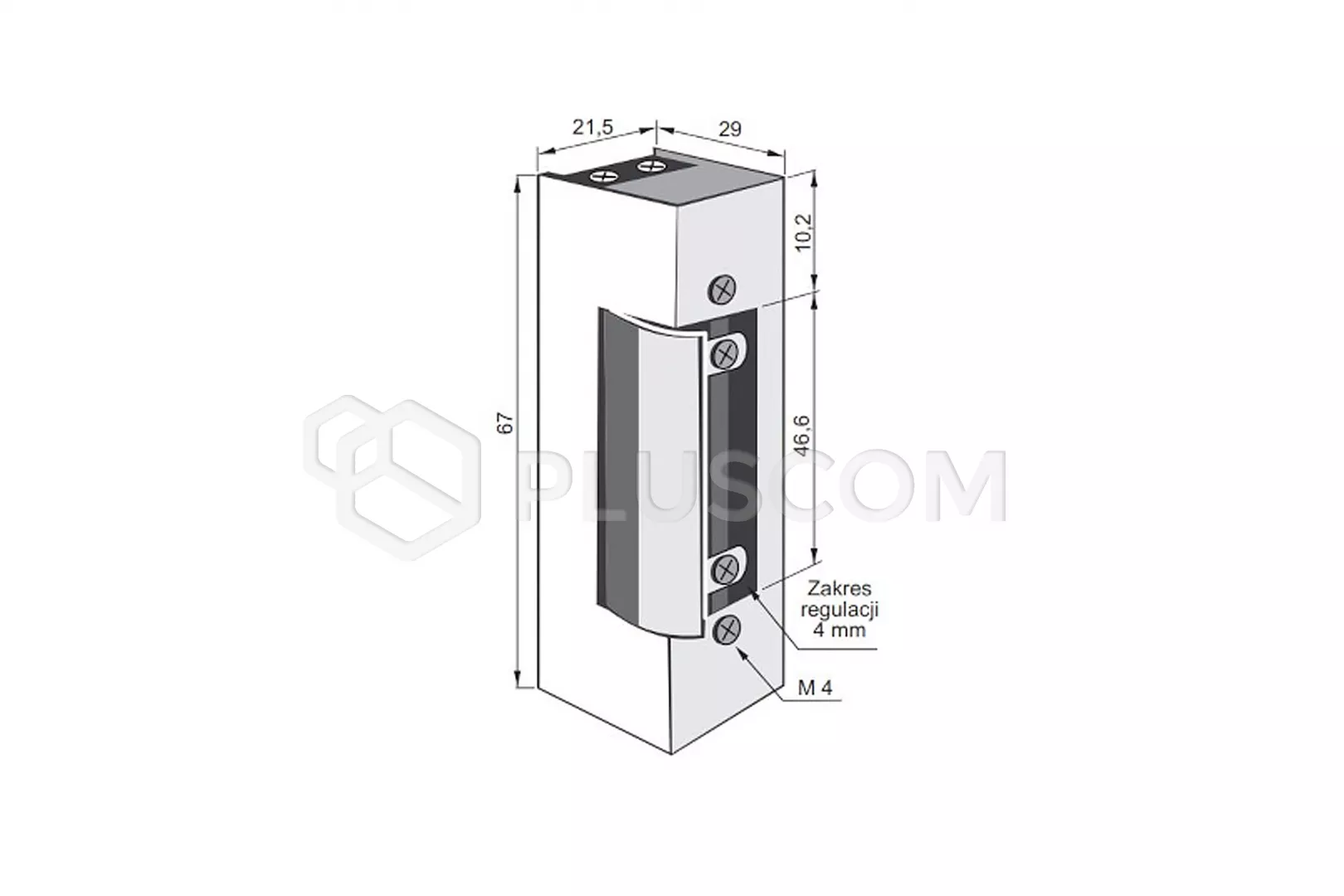

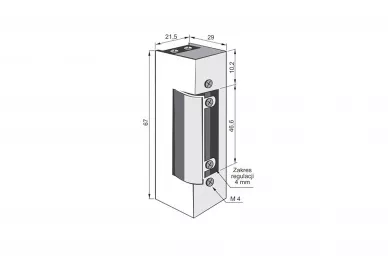

Dimensions:

Dimensions:
