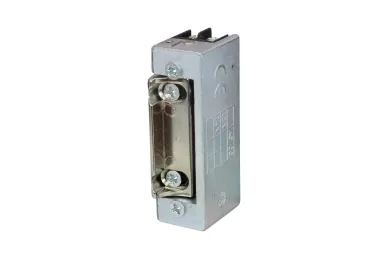

JiS 1711 12V DC Reversible electric strike

28,82 EUR including 22.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #6486
Manufacturer: JiS
  • Reversible left/right
  • Power: 12V DC
  • Regulation: 5mm
  • Width: 21,5mm

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

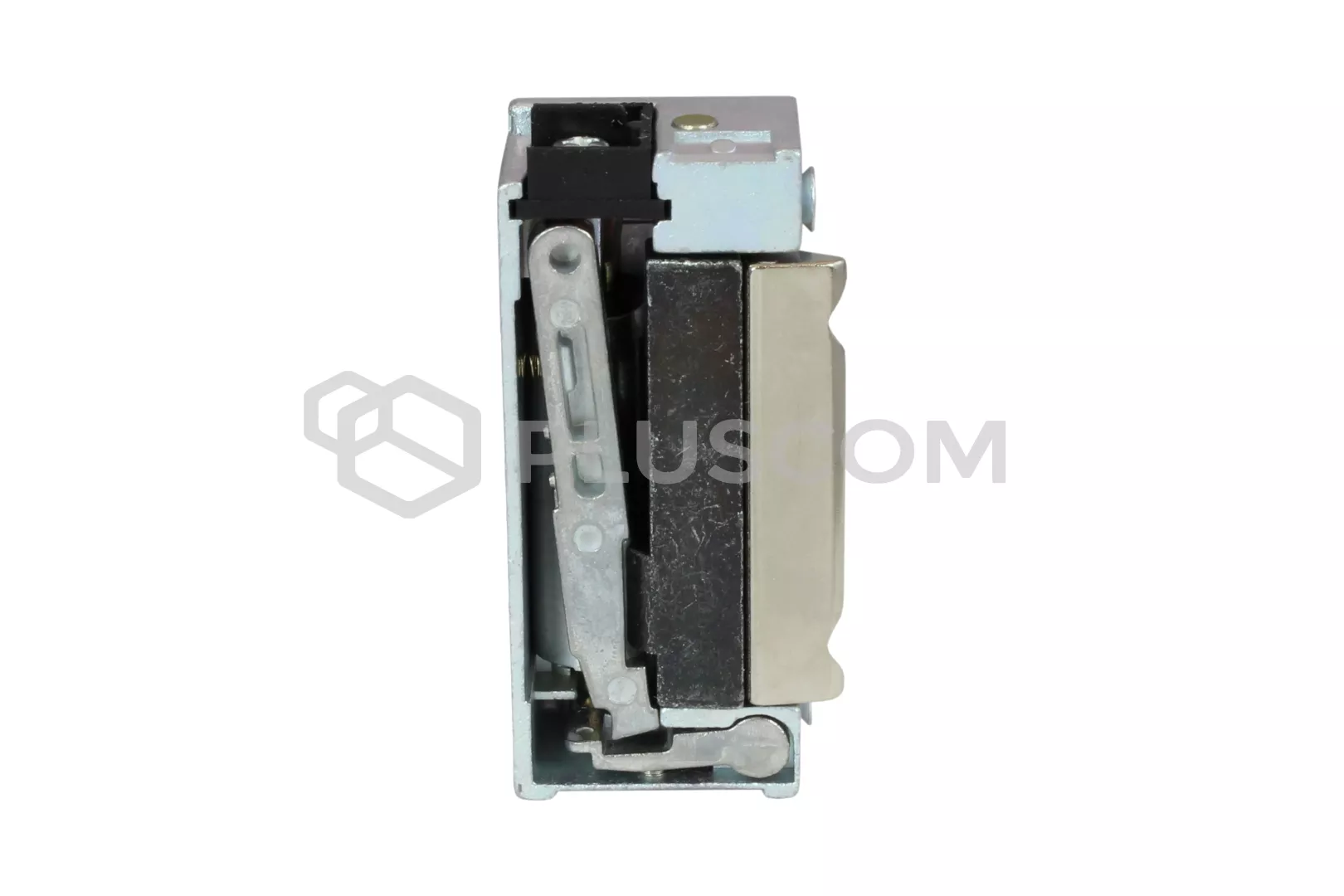

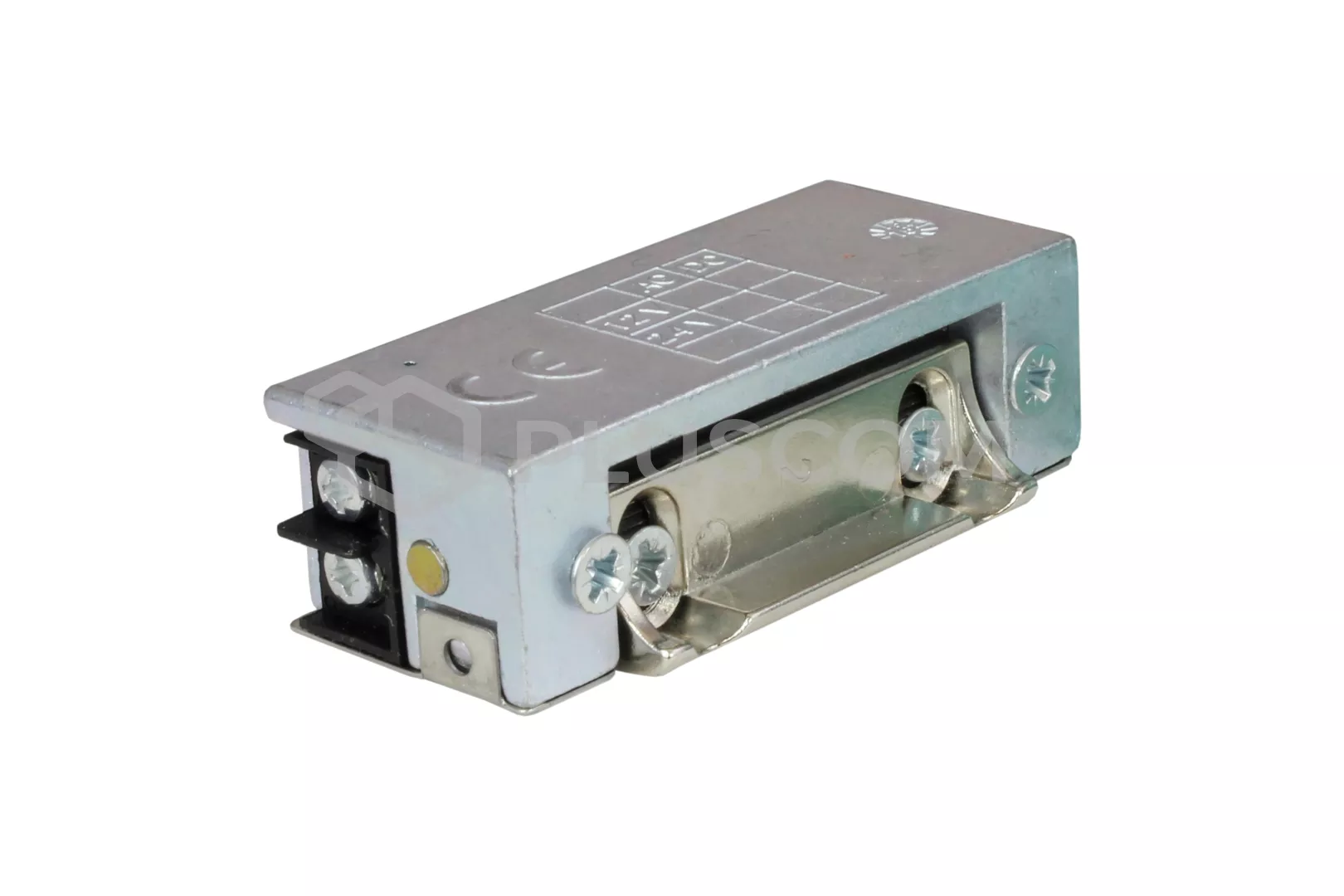

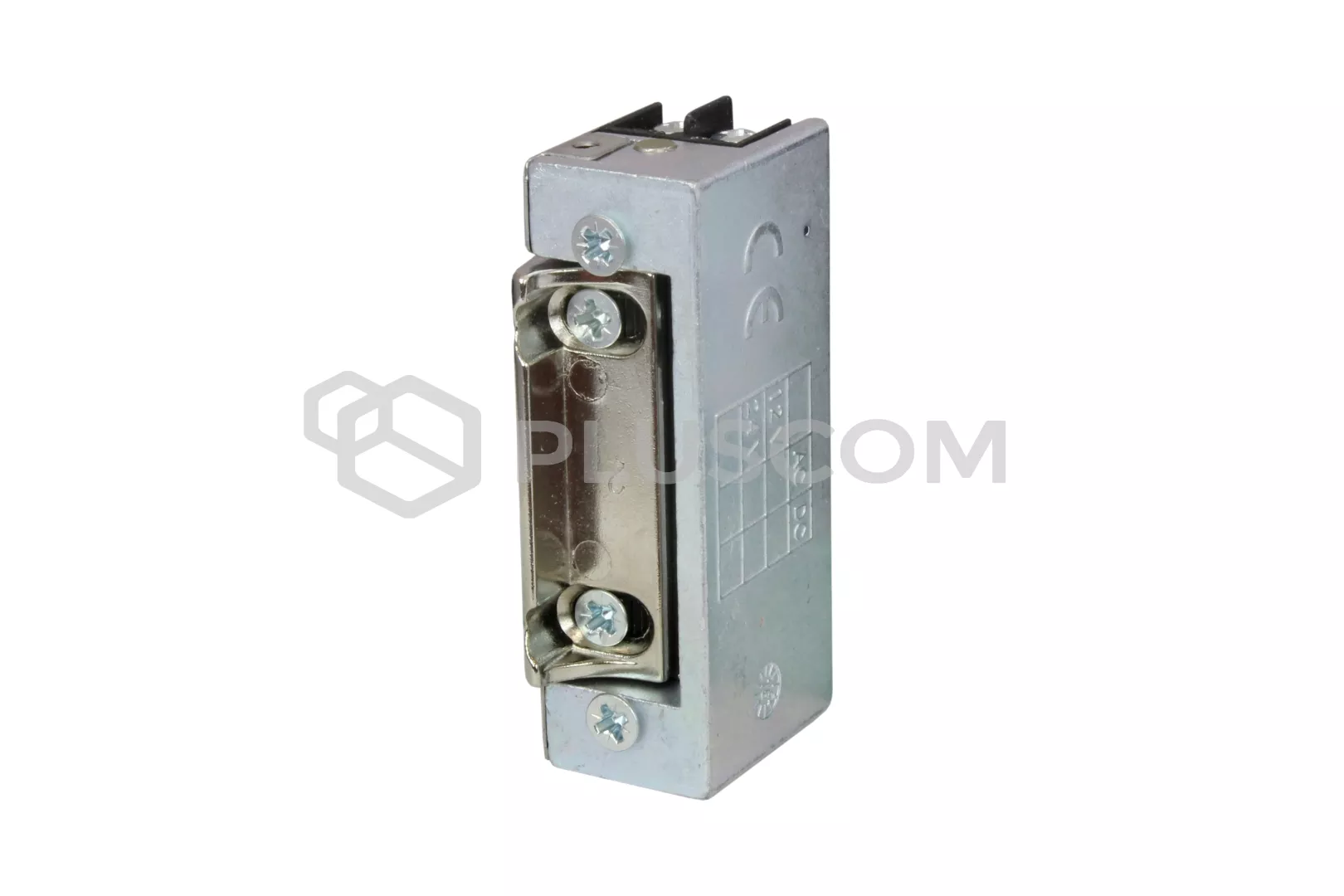

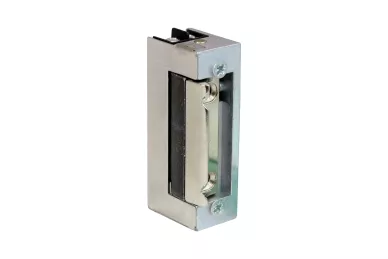

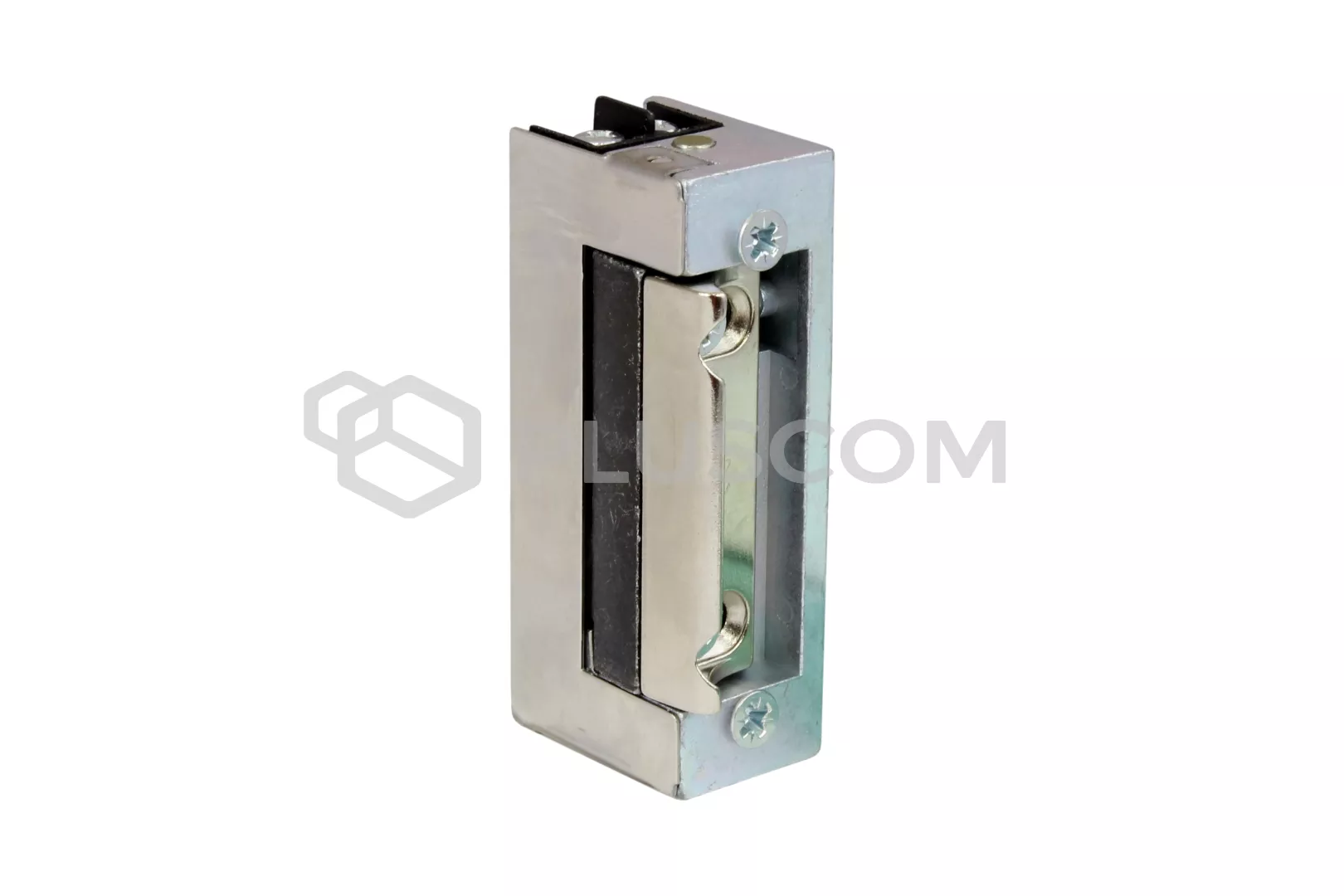

Reversible Electric strike JiS 1711 12V DC


JiS 1711 12V DC can be installed in door frames left/right
JiS 1711 12V DC Reversible Electric latch releases

JiS 1711 12V DC Reversible Electric latch releases

JiS 1711 12V DC Reversible Electric latch releases

JiS 1711 12V DC Reversible Electric latch releases

Electric latch releases can be controlled voltage:
  • DC 8-15V, 0.14-0.24A
PRINCIPLE OF OPERATION:

Electrocatch
reversible type, its normal state is open (NO) If voltage is applied to the coil to lock the electro, loss of power will unlock the door. Door lock was closed to the voltage must be present at all times at the terminals. This mode of operation is used in evacuation systems in public buildings, offices, schools or cinemas, where loss of power to open the door.


DIMENSIONS AND ADJUSTMENTS:
  • "language" electric latch releases can be adjusted in the range of 5 mm
  • 52mm spacing of the mounting screws
  • universal left/right
  • width 21,5mm

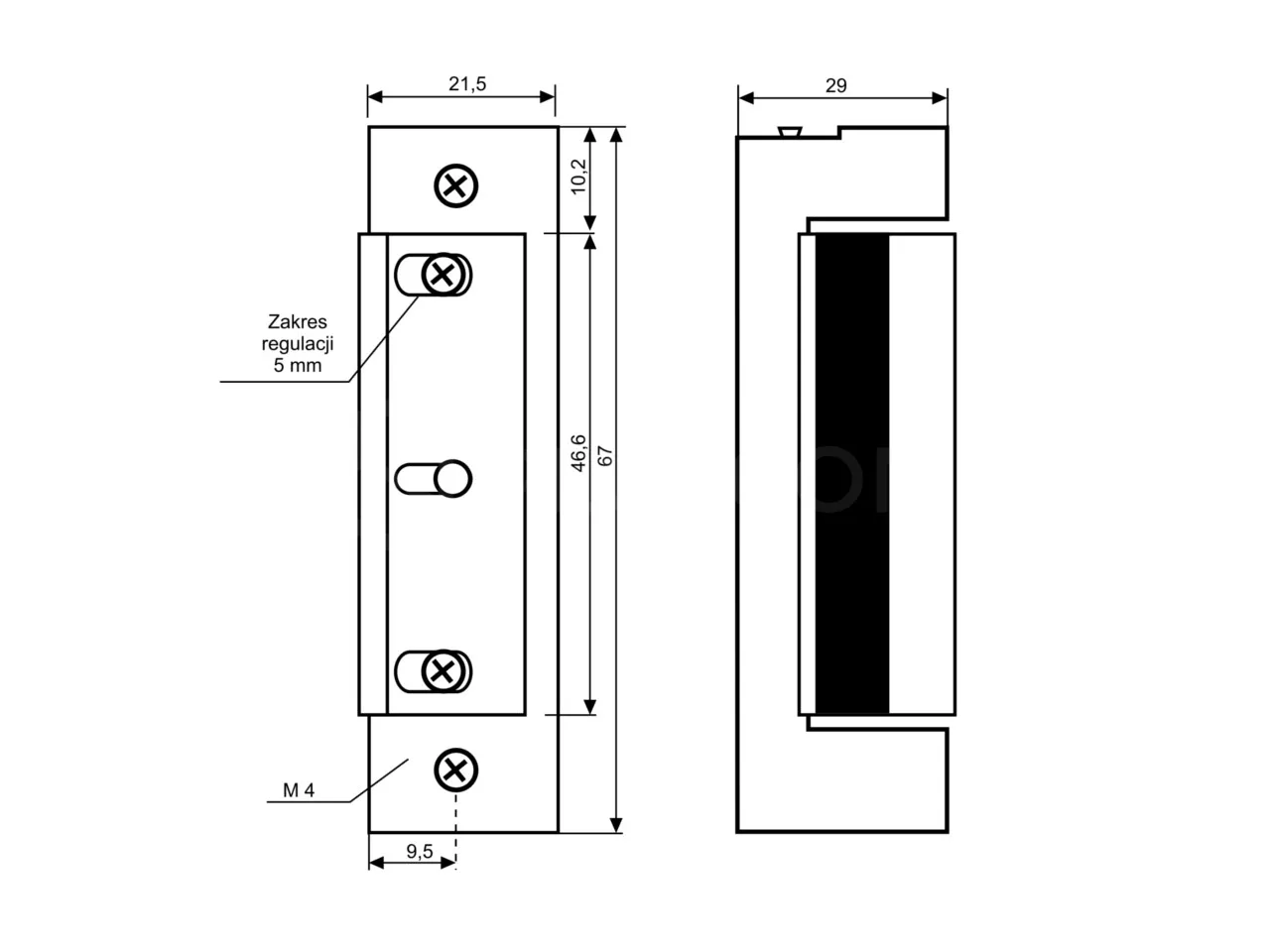

Dimensions (mm):

Dimensions (mm):


Download
Datasheet 0.22 MB
