JiS 1411RF 12V DC Reversible electric strike

38,94 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #6485
Manufacturer: JiS
  • Radial, reversible left/right
  • Power: 12V DC
  • Regulation: 3mm
  • Width: 16,5mm
  • For use in narrow profiles

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Reversible Electric strike JiS 1411RF 12V DC left/right


JiS 1411RF 12V DC can be installed in door frames left/right, thanks to its compact dimensions designed for use in narrow profiles.

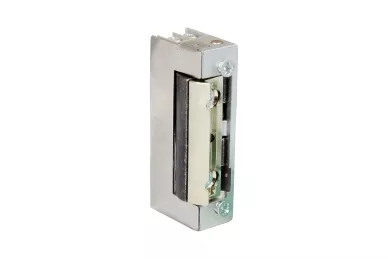

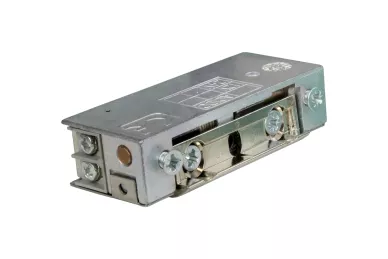

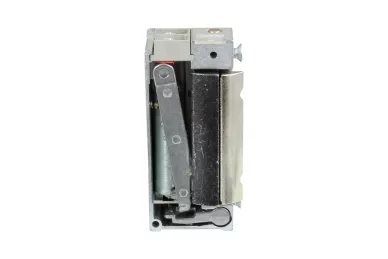

JiS 1411RF 12V DC Reversible Electric latch releases

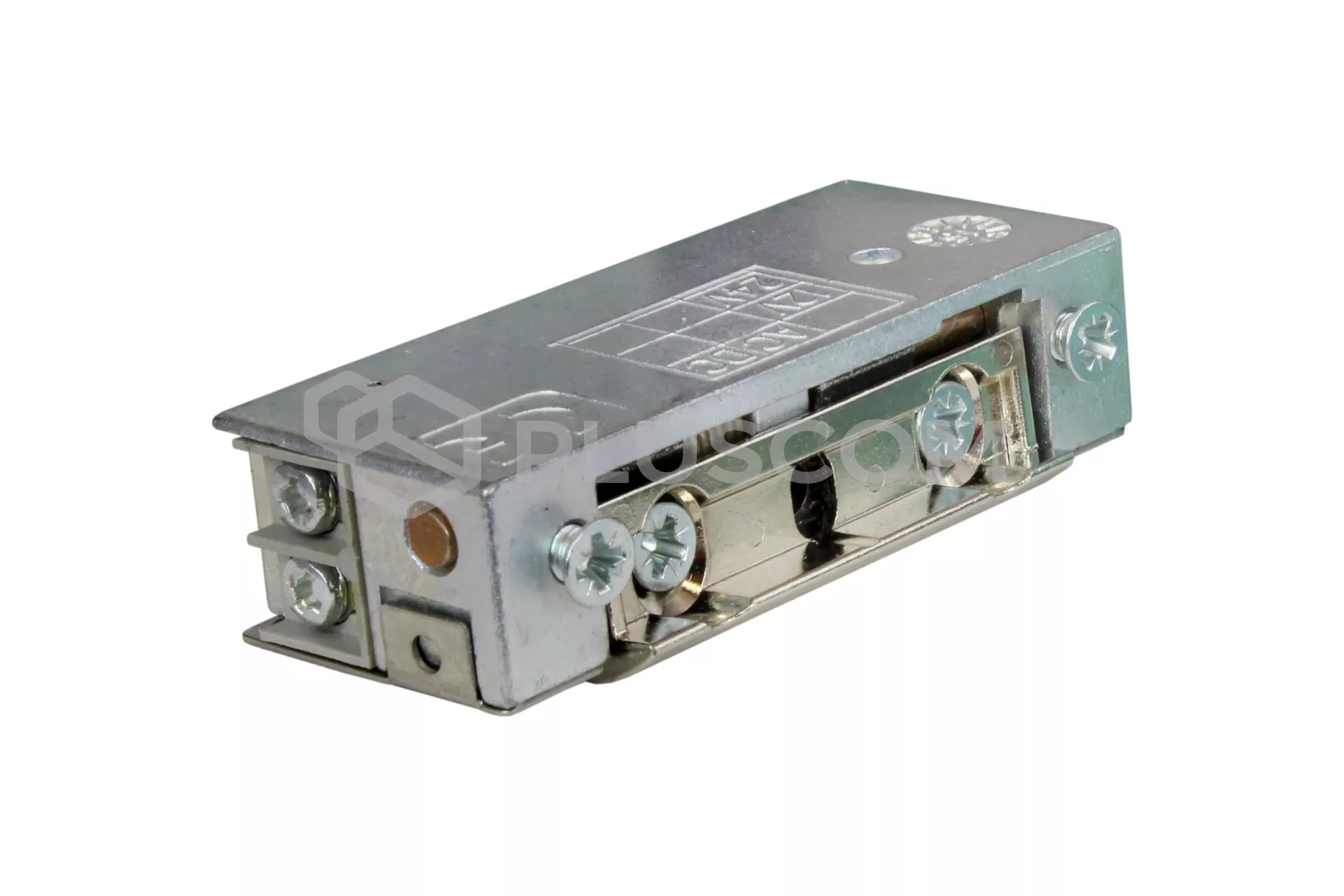

JiS 1411RF 12V DC Reversible Electric latch releases

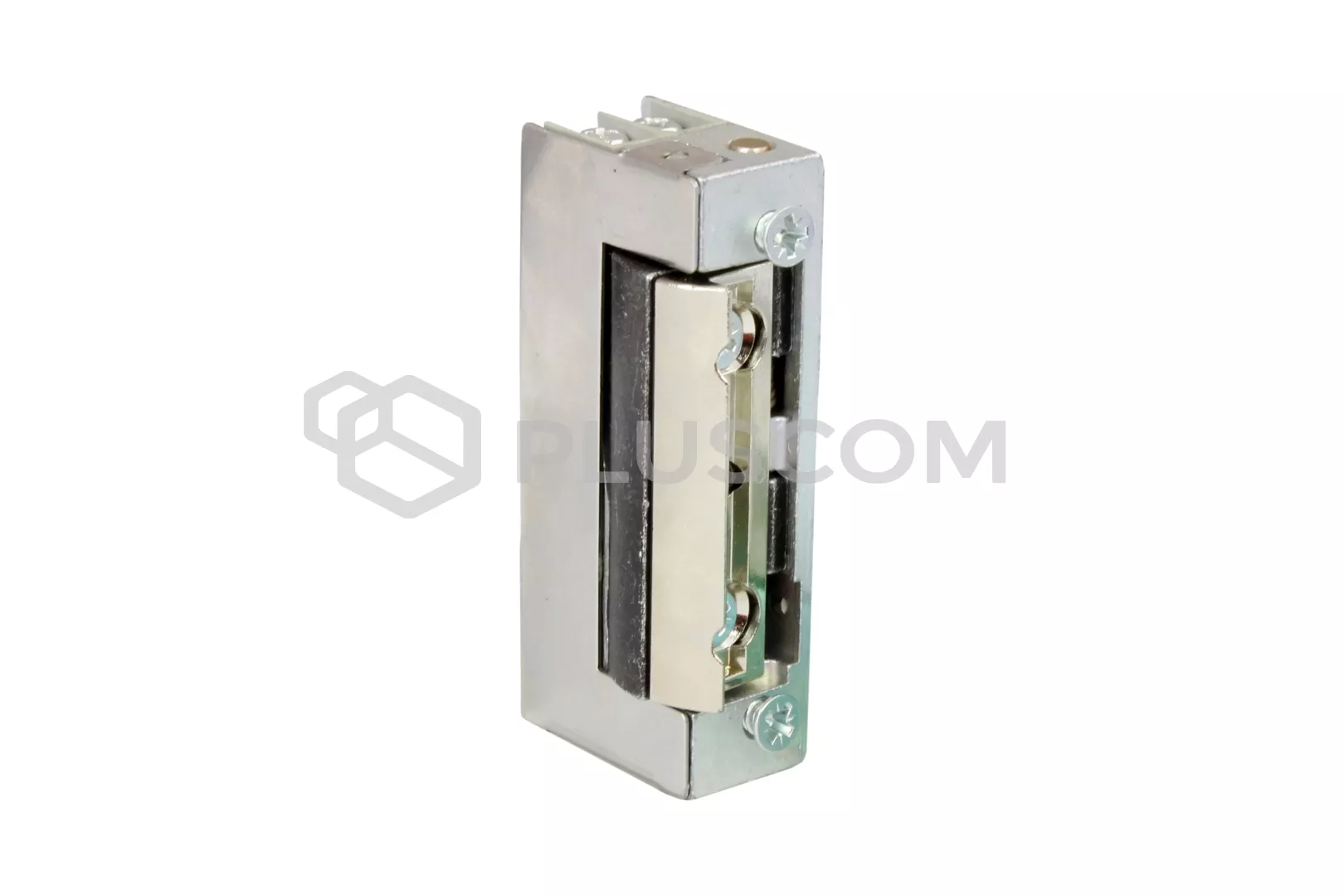

JiS 1411RF 12V DC Reversible Electric latch releases

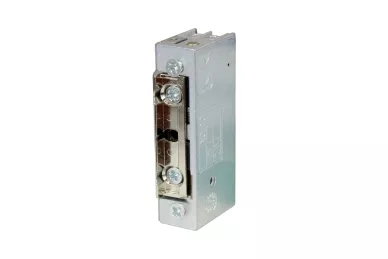

JiS 1411RF 12V DC Reversible Electric latch releases

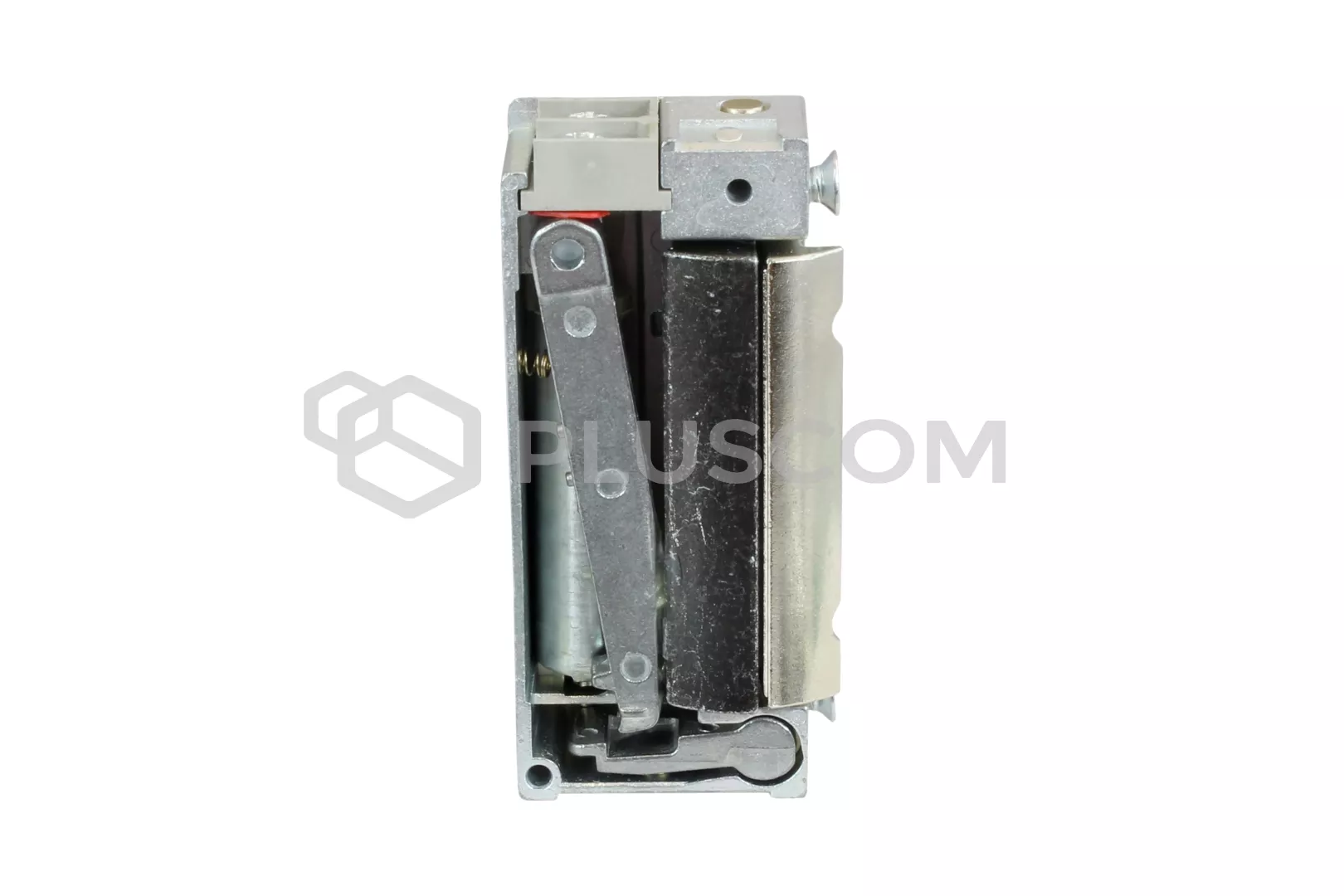

Radial type hitch. Special construction of the mechanism opens the electro "language" with minimal deflection. This allows installation of the electro with less undercut frame.

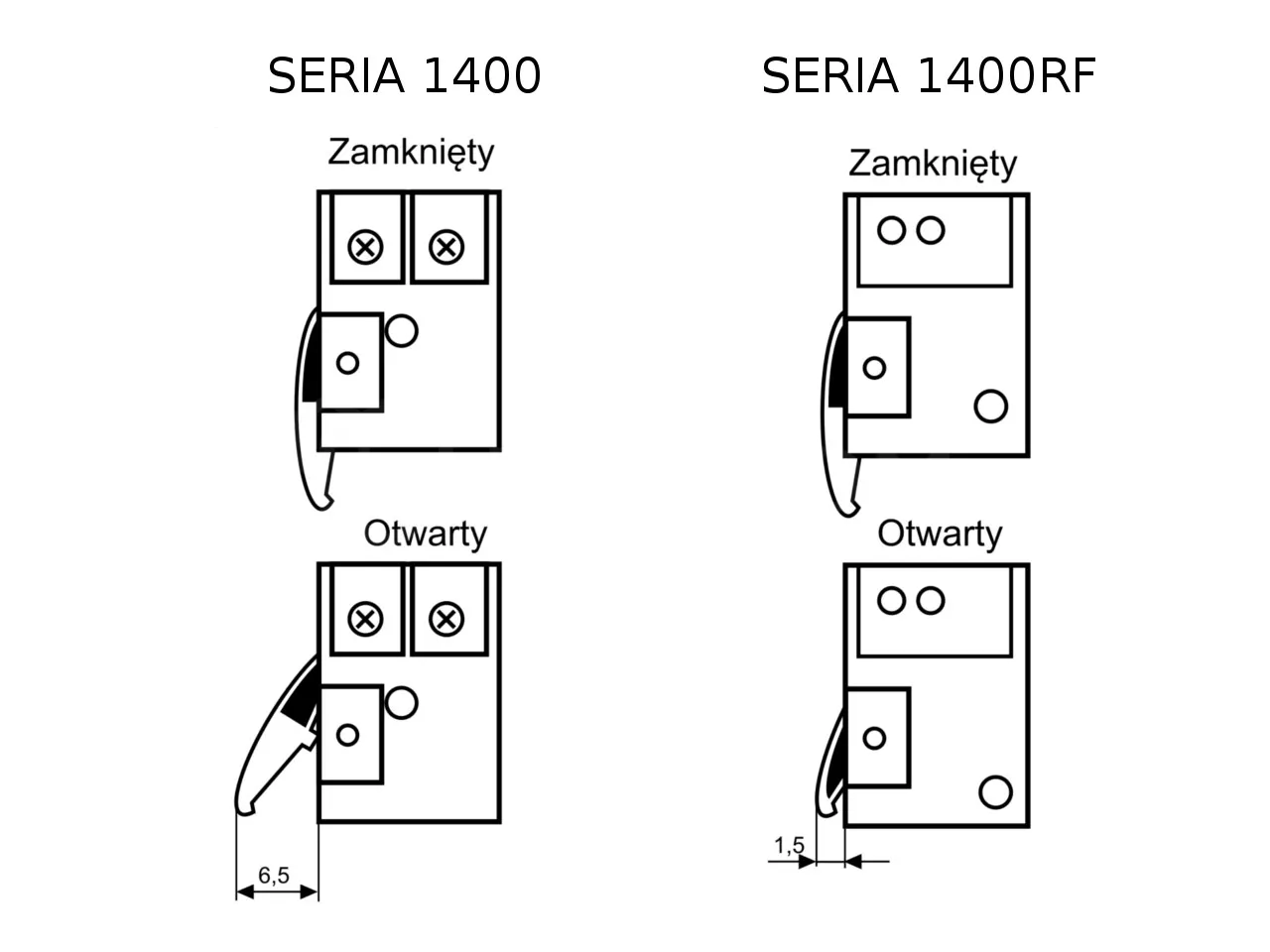

Comparison: 1400 vs. 1400RF

Comparison: 1400 vs. 1400RF




Electric latch releases can be controlled voltage:
  • DC 10-14V, 0.5-0.75A

PRINCIPLE OF OPERATION:


Electrocatch
reversible type, its normal state is open (NO) If voltage is applied to the coil to lock the electro, loss of power will unlock the door. Door lock was closed to the voltage must be present at all times at the terminals. This mode of operation is used in evacuation systems in public buildings, offices, schools or cinemas, where loss of power to open the door.


DIMENSIONS AND ADJUSTMENTS:
  • "language" electric latch releases can be adjusted in the range of 3 mm
  • 52mm spacing of the mounting screws
  • universal left/right
  • width 16,5mm

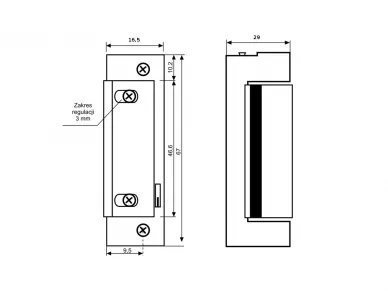

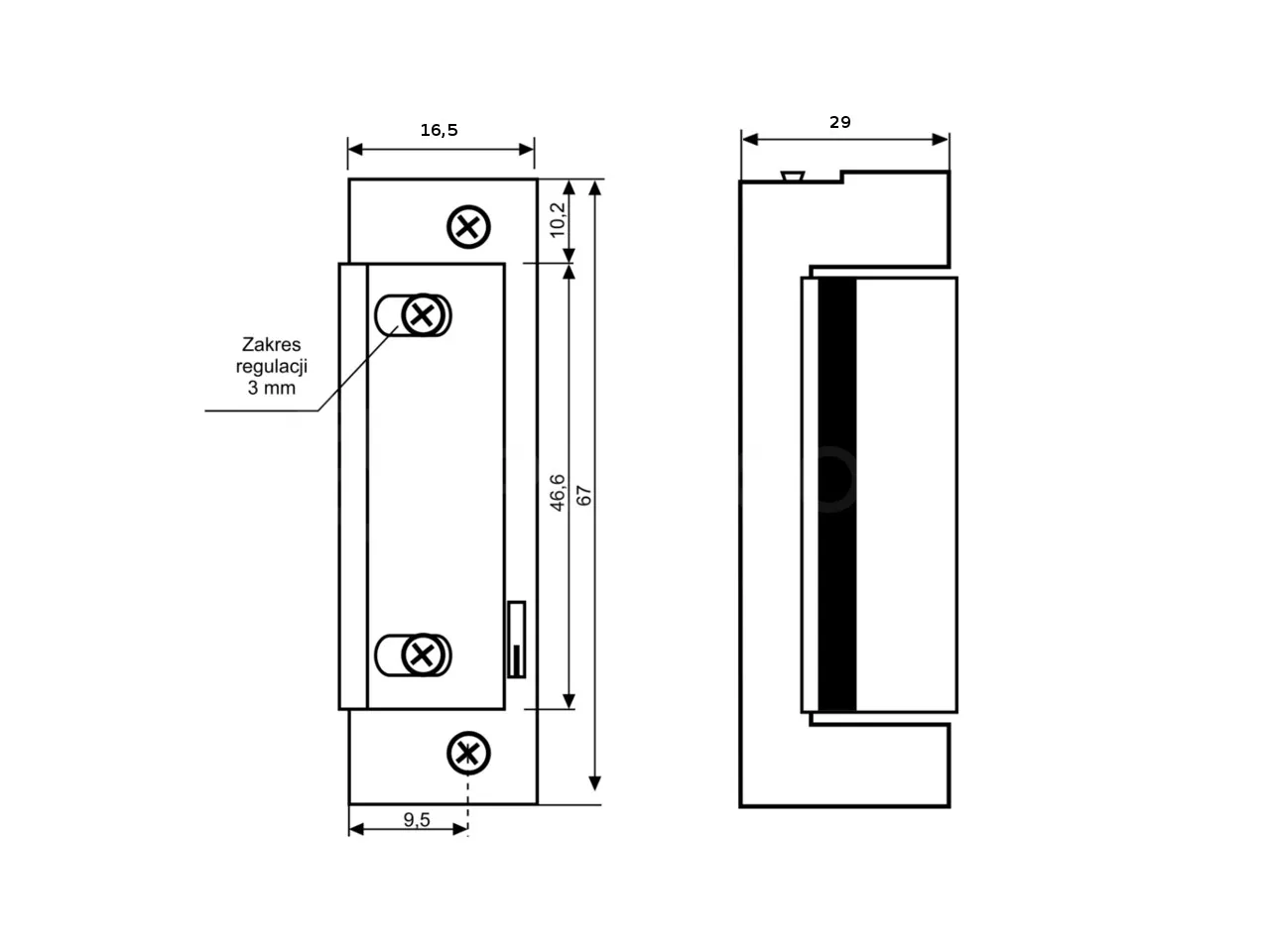

Dimensions (mm):

Dimensions (mm):


Download
Datasheet 0.3 MB
