The JA-182J remote control is designed to remotely arm/disarm the system, activate panic alarms and control equipment .
The key fob has a built-in convenient "child lock".

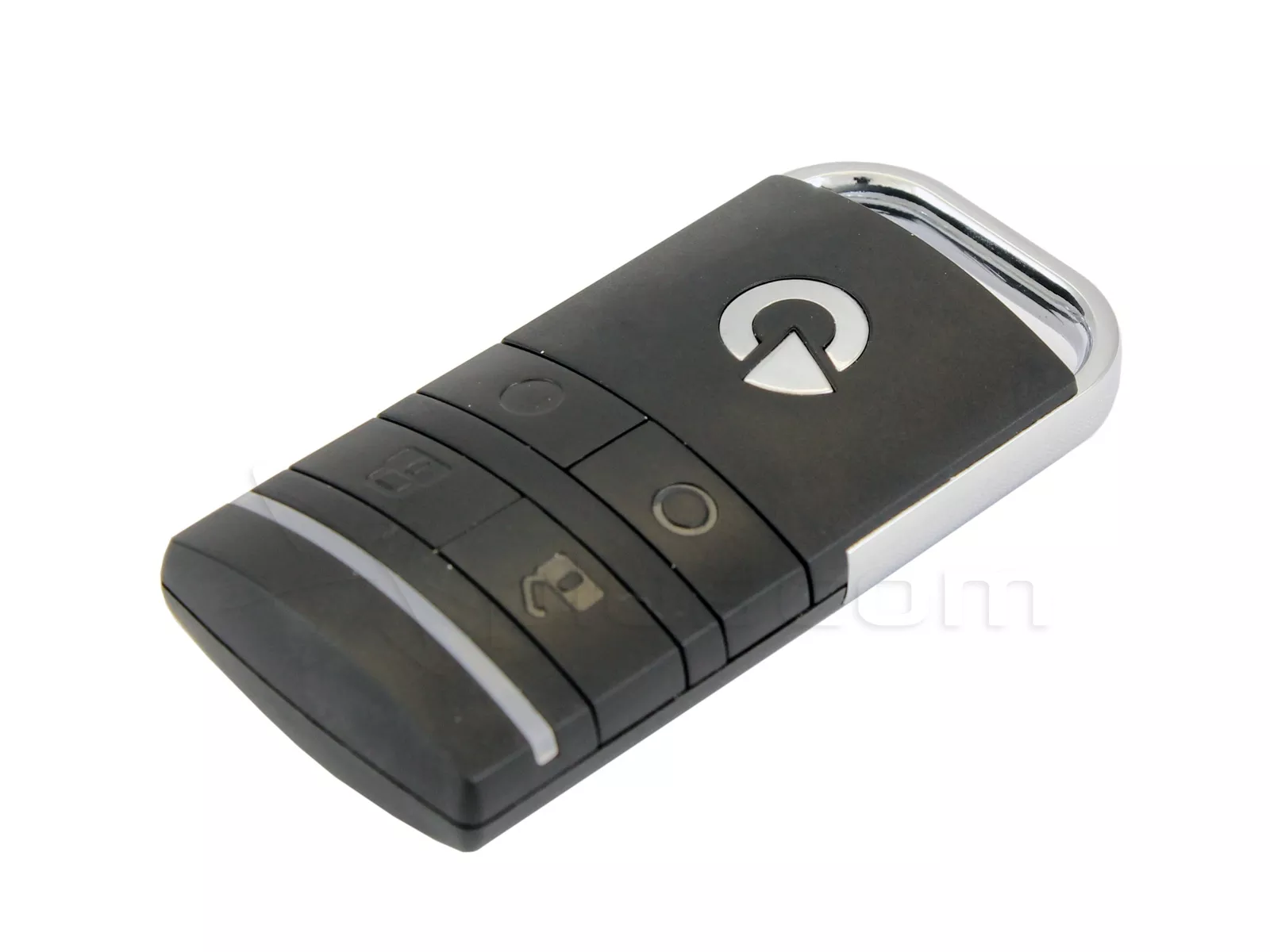

Jablotron JA-154J two-way four-button remote control

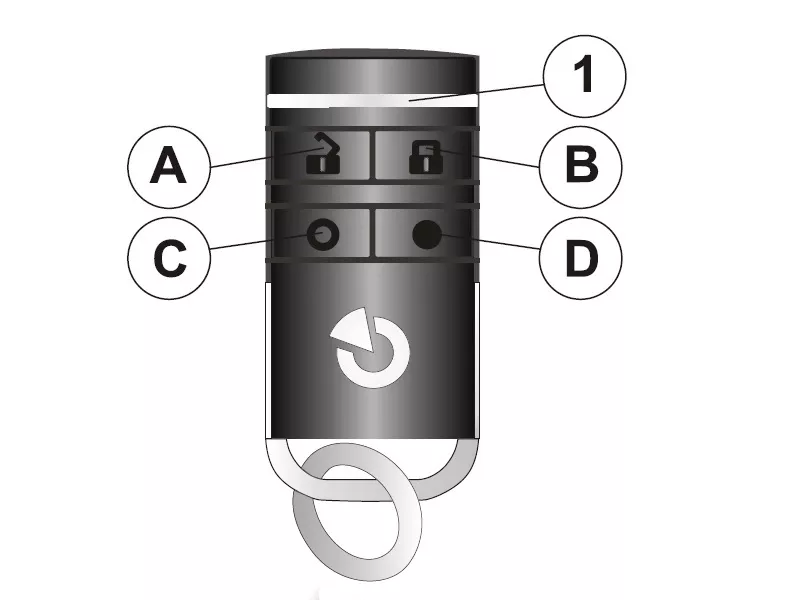

Figure:
1 – LED indication;
A – unset button (turn off a PG output,
B – set button (turn on a PG output);
C – turn off PG button (unset button);
D – turn on PG button (set button).
Battery replacement
Low battery indication is signalled on the remote control after any button is pressed.
The action assigned to the button is done and the yellow LED flashes with 3 quick beeps.
The remote still works as usual but the RF range goes slowly down. If a new battery (type CR 2032) is inserted, low battery indication ends. Low battery reports are sent to the control panel too.

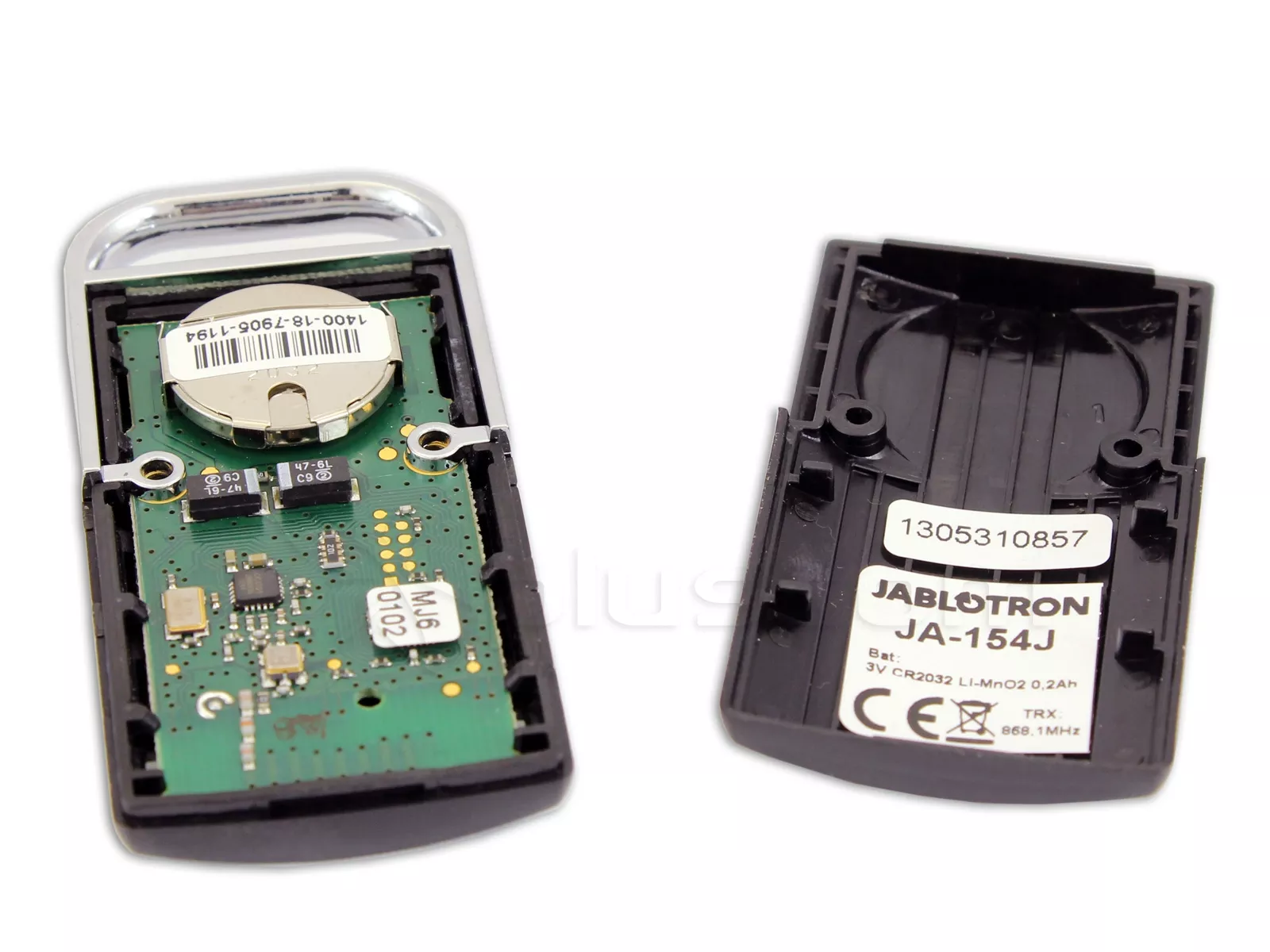

To change the battery unscrew the 2 screws from the back plastic, remove the cover with the metal strut from the housing.
Then press any button a few times and insert a new battery.
Locking the keyfob
The remote control buttons can be locked (blocked) against accidental pressing.
Locking is disabled by default, pressing any button triggers its function immediately.
If the buttons are locked, a control command is sent when a button is pressed 2 x quickly (panic too).
