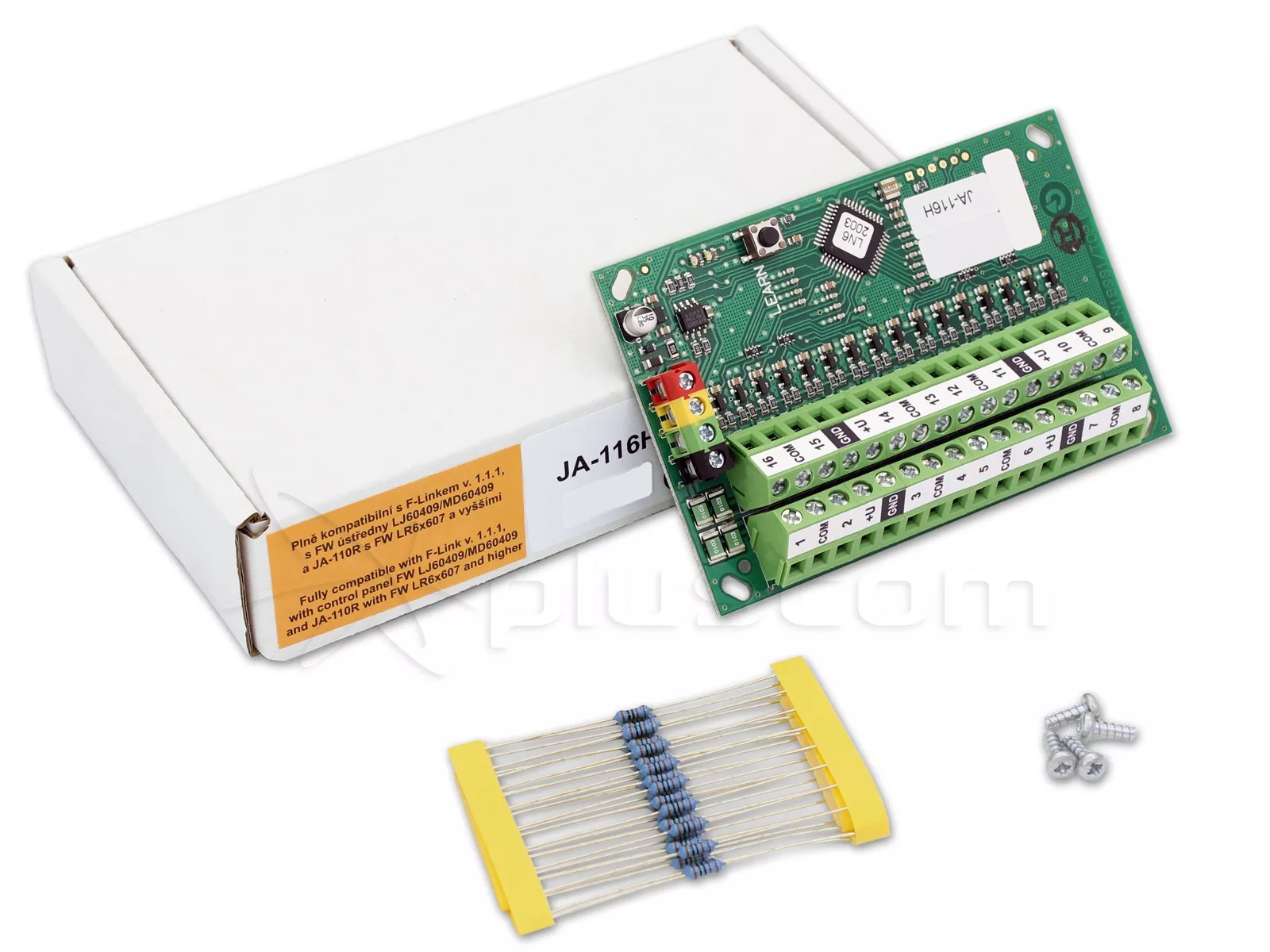

Jablotron JA-116H BUS expander – 16 inputs

Out of stock. Archived Product.

Bus expander is used for powering and connecting up to 16 detectors with contact outputs.

It is possible to install the module straight into the JA-106K control panel.

Maximum acceptable load of all outputs from +U GND is 4 x 100mA.

Jablotron JA-116H BUS expander – 16 inputs

Jablotron JA-116H BUS expander – 16 inputs

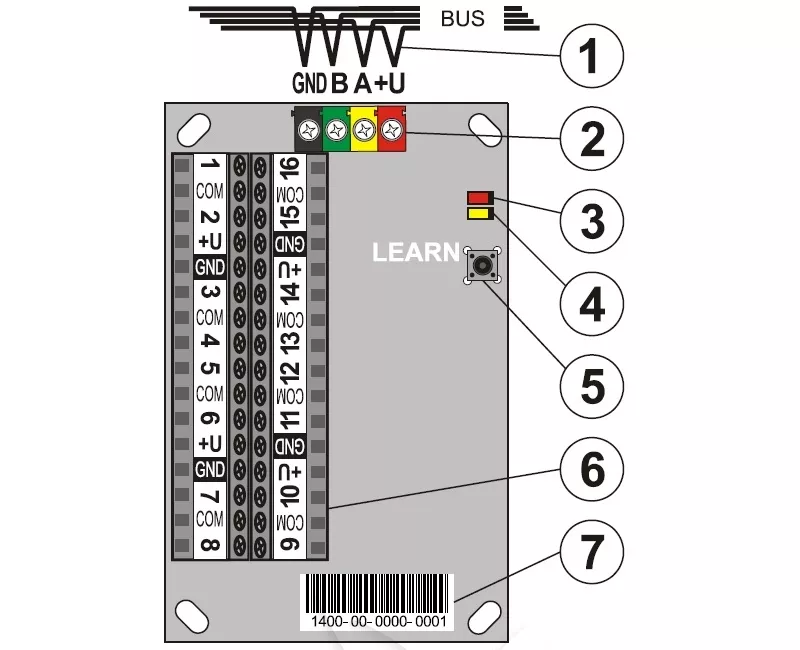

Figure:
1 – BUS cable;
2 – digital BUS terminals;
3 – red LED indicator;
4 – yellow LED indicator;
5 – LEARN (enroll) button;
6 – input terminals;
7 – production code
