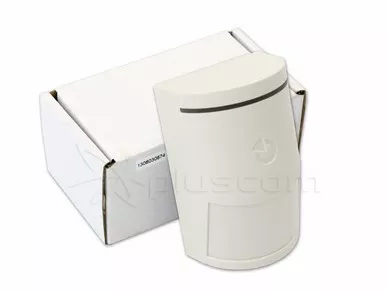

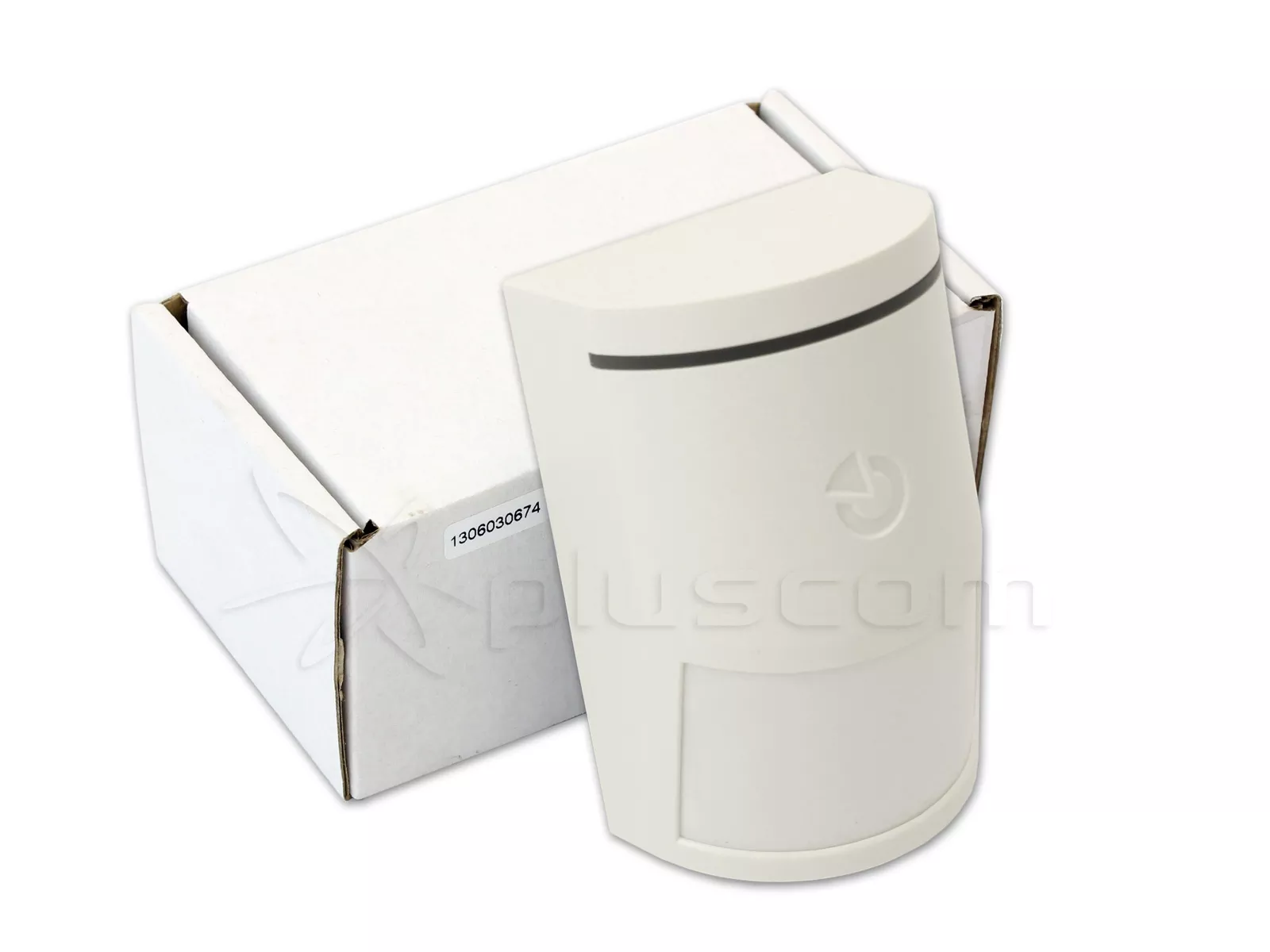

The JA-110P is a bus PIR motion detector designed to protect interiors by infrared motion detection in the room . The characteristics of detection can be optimized by using interchangeable lenses.
Installation
The detector can be installed onto a wall or in the corner of the room.
There should be no objects which quickly change temperature (electric heaters, gas appliances, etc.) or which move (e.g. curtains hanging above a radiator) or pets in the detector’s field of sight.
It is not recommended to install the detector opposite windows or floodlights or in places with over-intense air circulation (close to ventilators, heat sources, air conditioning outlets, unsealed doors, etc.).
There should be no obstacles in front of the detector which might obstruct its view.
Installation Jablotron JA-110P Bus PIR motion detector

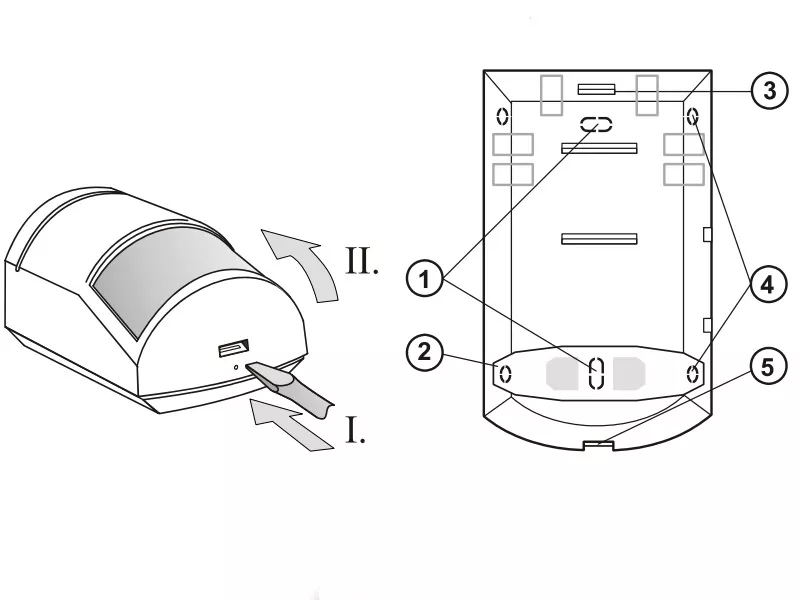

1 – holes for installing on a flat wall;
2, 4 – holes for installing in a corner;
3 – PCB tab;
5 – cover tab

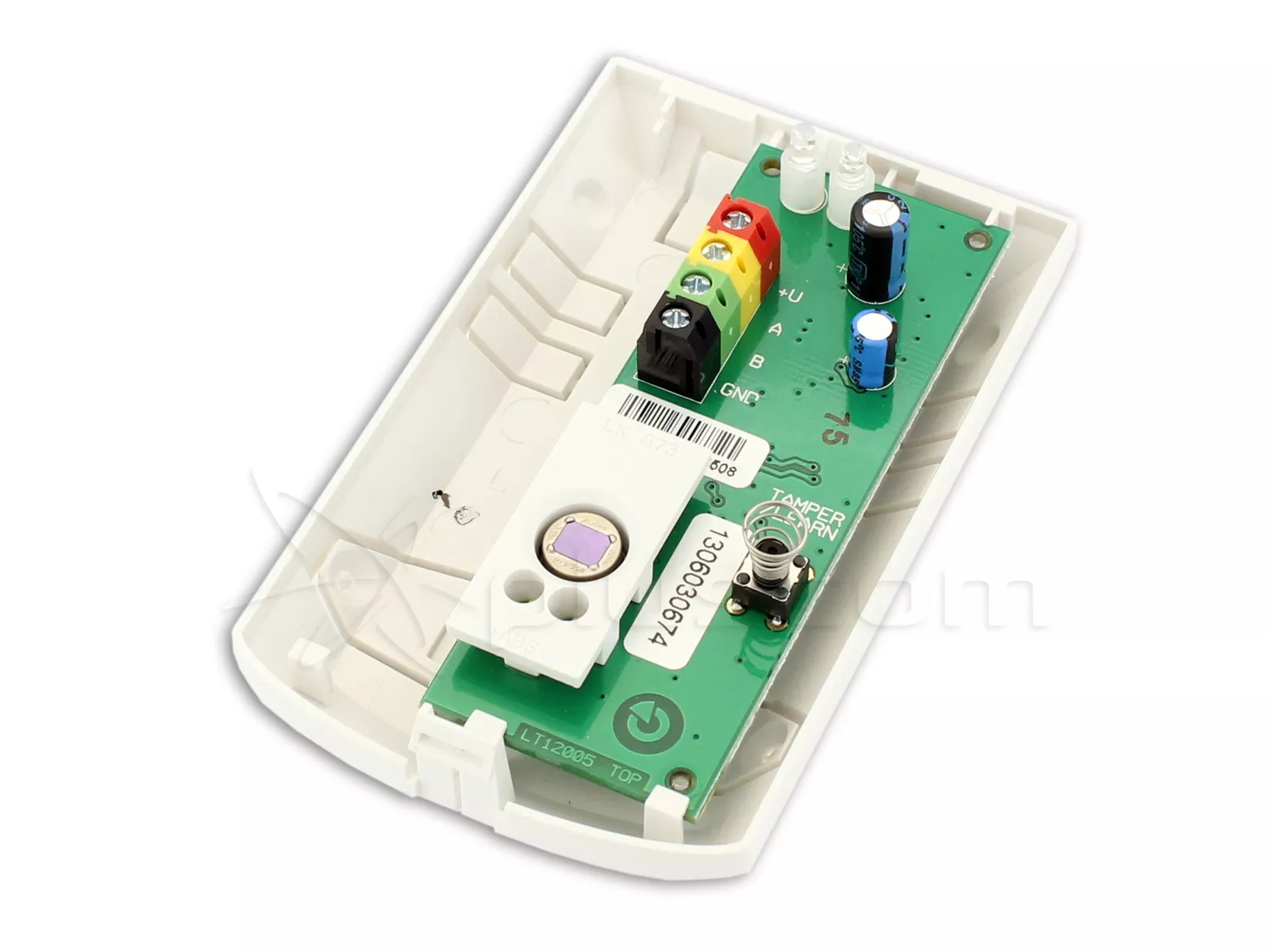

- Open the detector cover (by pushing the tab - 5). Avoid touching the PIR sensor inside (11) – you could damage it.
- Take out the PCB – it is held by tab 3
- Punch through the holes for the screws and the cable in the plastic base. The recommended detector installation height is 2.5m above the floor.
- Insert the bus cable and attach the plastic base to the wall using screws (vertically, with the cover tab facing downwards).
- . Insert the PCB back and connect the bus cables to the terminals (8)
Jablotron JA-110P Bus PIR motion detector

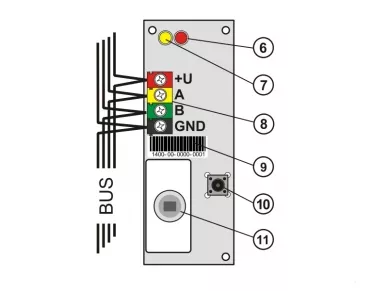

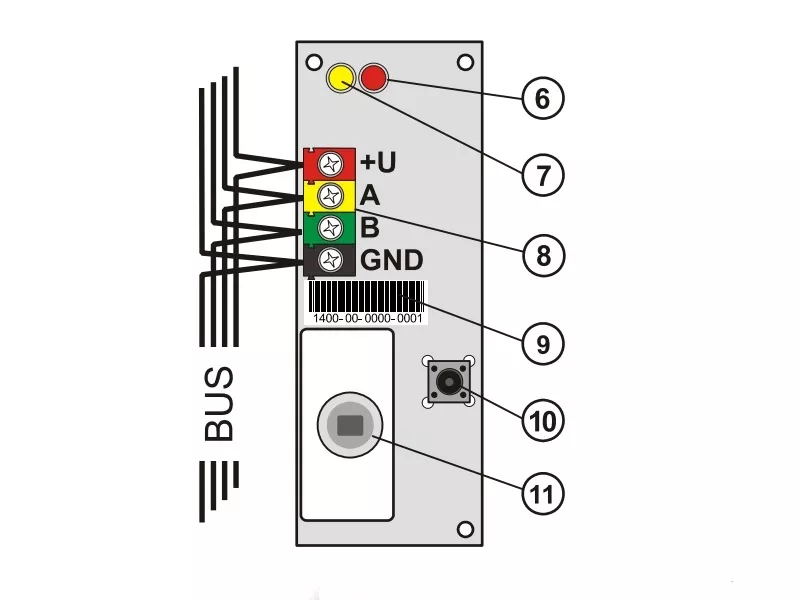

6 – red detector activation indicator;7 – yellow fault indicator; 8 – digital bus terminals;9 – production code;10 – tamper contact; 11 – PIR sensor;
- Proceed according to the control panel installation manual. Basic procedure:
- When the device is switched on, the yellow LED (7) starts flashing repeatedly to indicate that the module has not been enrolled into the system.
- Go to the F-Link program, select the required position in the Detectors window and launch the enrollment mode by clicking on Enroll option.
- Press the tamper contact in the detector (10) – the detector is thus enrolled and the yellow LED indicator goes off.
- Close the detector cover.
Detector internal settings
The detector properties can be set in the Detectors window of the F-link program. When at the detector position, use the Internal settings option to open a dialog window where you can set:
Immunity level: Defines false alarm immunity. The Standard level (default setting) combines basic immunity with a rapid reaction. The Increased level provides higher immunity but the detector reaction is slower.
LED movement indication: Allows the user to disable movement indication with a red LED.
Detection characteristics

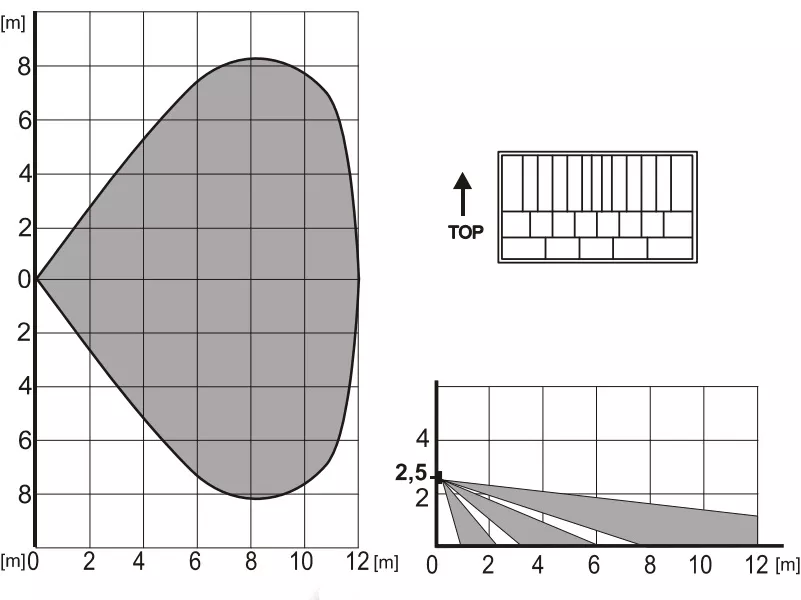

The standard lens that is supplied with the JA-110P detector covers an area of 110 degrees / 12m. The area is covered by 3 beams – see the following figure.
Detection characteristics Jablotron JA-110P Bus PIR motion detector
