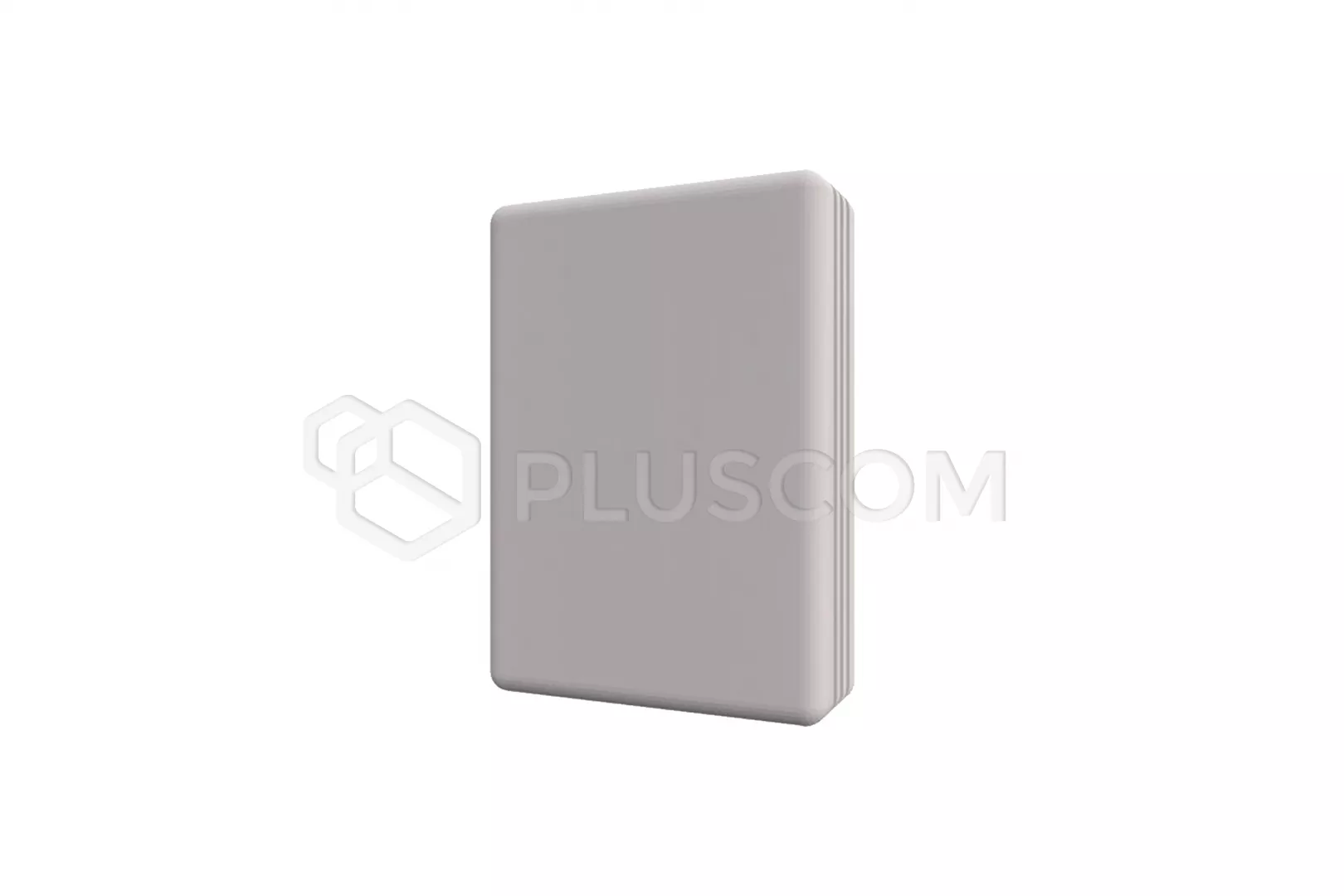

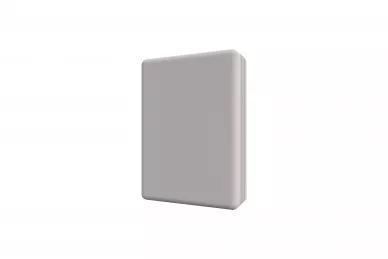

Intesis PA-RC2-WMP-1 Air conditioner communication module

Intesis PA-RC2-WMP-1 Communication module of Panasonic ECOi and PACi air conditioners to the Wi-Fi interface.

Intesis PA-RC2-WMP-1 is an adapter enabling full and natural integration Panasonic ECOi and PACi air conditioners with home automation systems on the IP protocol. It allows you to remotely control the air conditioning.
Communication is based on simple ASCII protocol and Wi-Fi configuration supports dynamic or static IP addresses.
Thanks to the module, we can control and monitor:

• turn the air conditioner on and off
• modes
• temperature settings
• room temperature
• fan speed
• position of the paddle

The PA-RC2-WMP-1 adapter does not require a wired installation to connect air conditioner and home controller. It is powered directly from the AC system and has the ability to automatically detect WiFi devices.

FEATURES

• intuitive web interface for WiFi configuration
• supported Wi-Fi standards b / g / n
• quick and easy installation (connect and configure WiFi)
• Simultaneous control of the air conditioner with IR remote and systems home automation

TECHNICAL DATA

• 14V, 54mA power adapter
• Wi-Fi 802.11 (b / g / n) radio parameters
• RF frequency band: 2.4 GHz
• output power (average): 8 dBm (modulated signal in the antenna system; 11Mb / s)
• LED indicators 1 x Device status
• temperature From 0ºC to 40ºC
• ABS housing (UL 94 V-0). Thickness 2.5 mm
• dimensions 70 x 100 x 28 mm
• weight 103g
