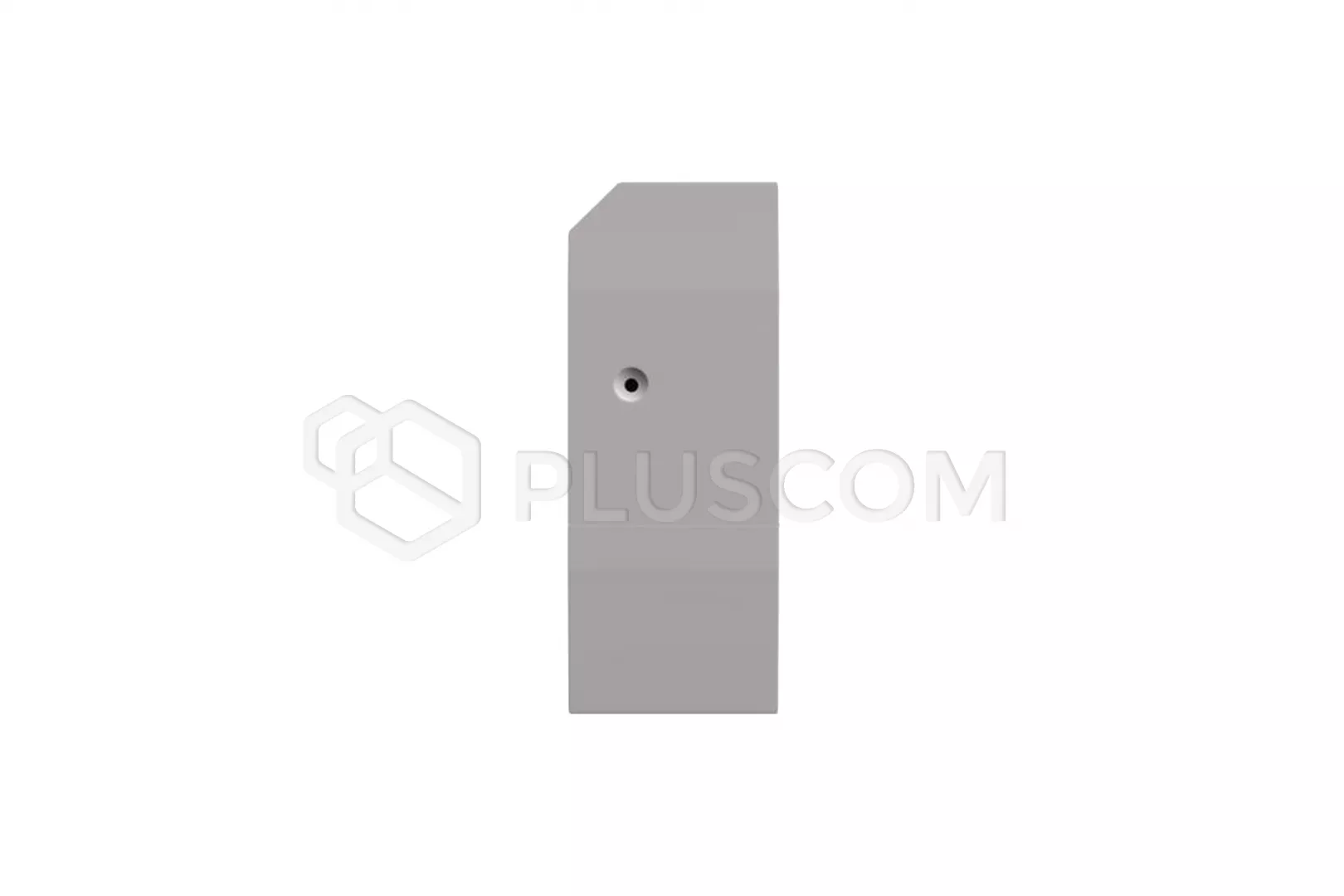

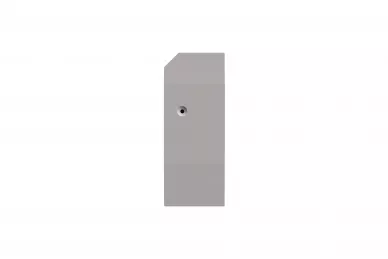

Intesis MH-AC-WMP-1 Air conditioner communication module

374,45 EUR including 23.00% VAT
Product code: #25560
Manufacturer: Fibaro
  • For Mitsubishi Heavy Domestic air conditioners
  • Power supply directly from the AC system
  • No cable installation between devices
  • Automatic update
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Intesis MH-AC-WMP-1 Communication module of Mitsubishi Heavy Domestic air conditioners for Wi-Fi interface.


Intesis MH-AC-WMP-1 is an adapter enabling full and natural integration Mitsubishi Heavy Domestic air conditioners with home automation systems based on IP protocol. It allows you to remotely control the air conditioning.
Communication is based on simple ASCII protocol and Wi-Fi configuration supports dynamic or static IP addresses.
Thanks to the module, we can control and monitor:
  • turn the air conditioner on and off
  • modes
  • temperature settings
  • room temperature
  • fan speed
  • position of the paddle
The MH-AC-WMP-1 adapter does not require a wired installation to connect air conditioner and home controller. It is powered directly from the AC system and has the ability to automatically detect WiFi devices.

FEATURES
  • intuitive web interface for WiFi configuration
  • supported Wi-Fi standards b / g / n
  • quick and easy installation (connect and configure WiFi)
  • simultaneous control of the air conditioner with the IR remote control and home automation systems
TECHNICAL DATA
  • power supply 12V, 60mA
  • Wi-Fi 802.11 (b / g / n) radio parameters
  • RF frequency band: 2.4 GHz
  • output power (average): 8 dBm (modulated signal in the antenna system; 11Mb / s)
  • LED indicators 1 x Device status
  • temperature From 0ºC to 40ºC
  • ABS housing (UL 94 V-0). 2.1 mm thick
  • dimensions 127 x 50 x 17 mm
  • weight 80g
Download
Maual 0.82 MB
Datasheet 0.22 MB
