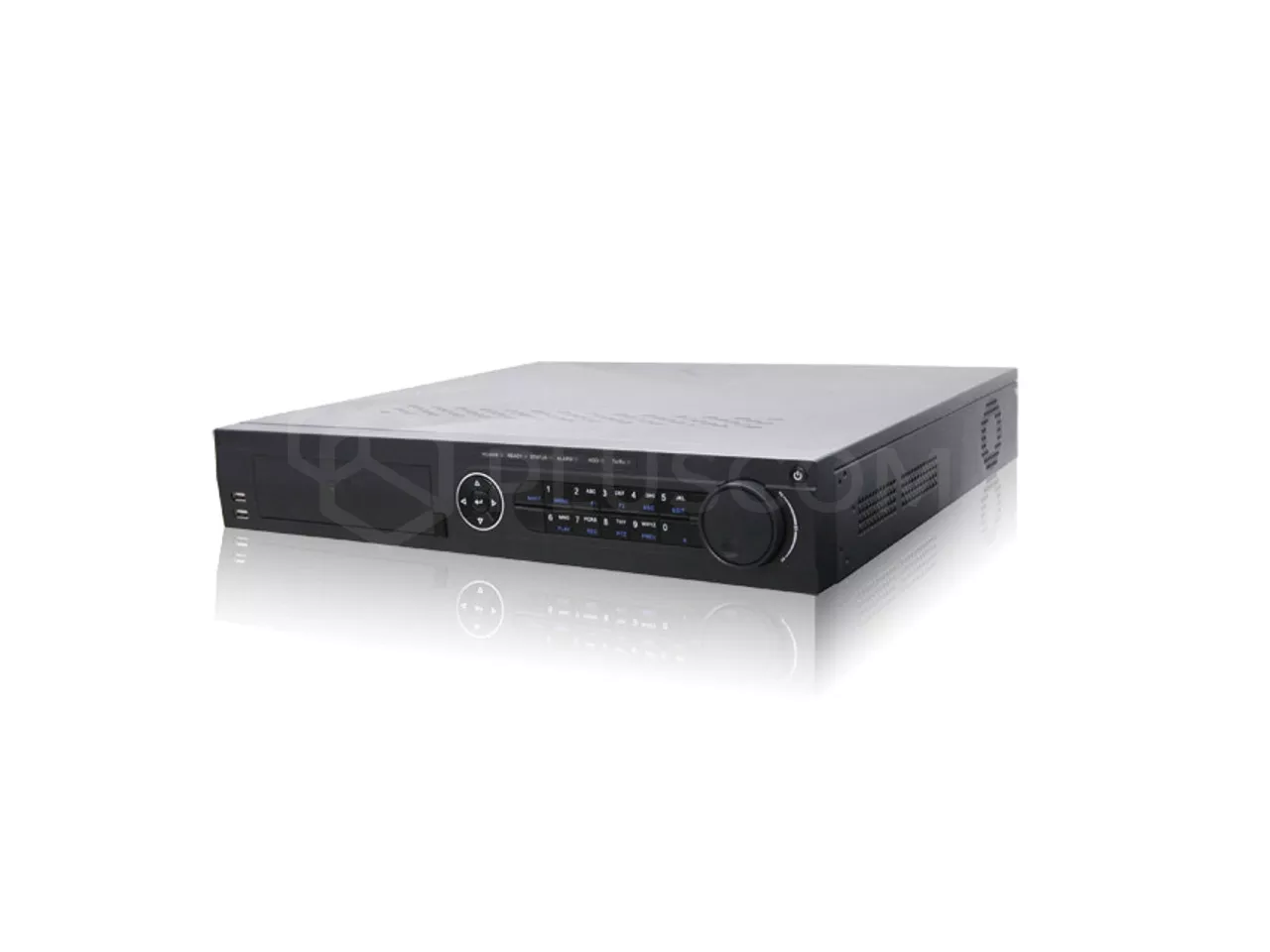

Hikvision NVR DS-7708NI-ST

Out of stock. Archived Product.

HIKVISION products from the competition are distinguished by high quality, innovative solutions and stable operation. The reliability of the DVR manufacturer confirms the 36 month warranty period.

In addition to the primary task of which is to be implemented by means of monitoring or Security and Hikvision cameras have advanced image analysis functions to analyze, collect and manage information.


Below are some of the basic parameters of  Hikvision DS-NVR 7708NI-ST

VIDEO/AUDIO INPUT

  • IP Video Input: 8-ch
  • Two-way Audio: 1-ch, BNC (2.0 Vp-p, 1kΩ)
VIDEO/AUDIO OUTPUT
  • VGA and HDMI Output: 1-ch, resolution: 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
RECORGING RESOLUTION: 6MP /5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

FRAME RATE:
  • Main stream: 25 fps
  • Sub-stream: 25 fps
AUDIO OUTPUT:  2-ch, BNC (Linear, 600Ω)

PLAYBACK RESOLUTION: 6MP /5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

SYNCHRONOUS PLAYBACK: 5-ch 1080p or 10-ch 720p

HARD DISK DRIVER
  • Interface Type: 4x SATA Interface
  • Capacity: Up to 4TB capacity for each disk
EXTERNAL INTERFACE
  • Network Interface: 1x RJ45 10M/100M/1000M adaptive Ethernet Interface
  • Alarm 16x in / 4x out
  • 1x eSATA
  • RS-232 and RS-485
GENERAL
  • Power Supply: 230 V AC
  • Consumption: ≤ 35 W (without hard disk)
  • Working Temperature: -10°C...+55°C
  • Dimensions: 445x390x70mm (WxDxH)
  • Weight: ≤ 4 Kg (without hard disk)
