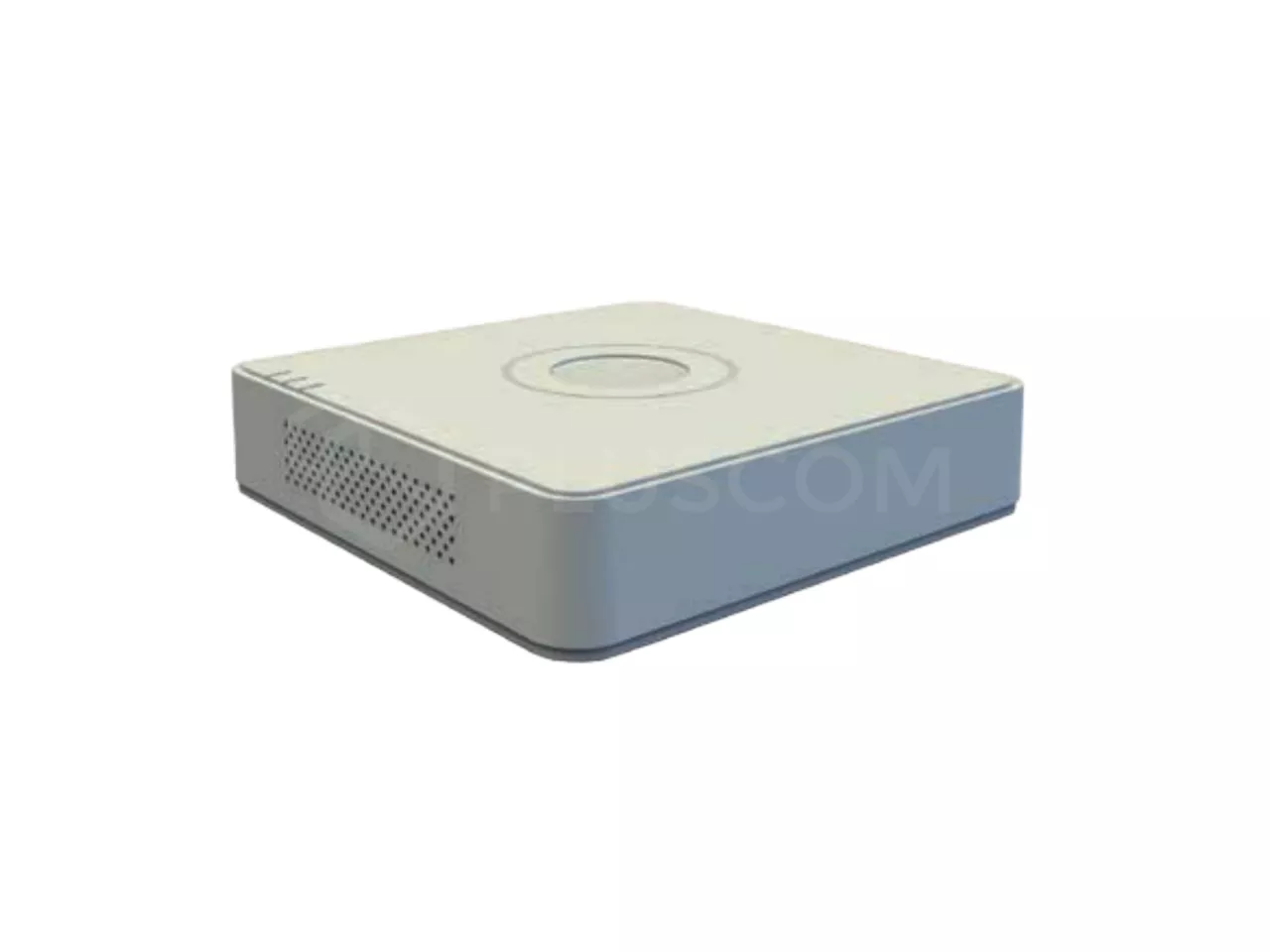

Hikvision NVR DS-7104NI-SN/P

Out of stock. Archived Product.
HIKVISION products from the competition are distinguished by high quality, innovative solutions and stable operation. The reliability of the DVR manufacturer confirms the 36 month warranty period.

In addition to the primary task of which is to be implemented by means of monitoring or Security and Hikvision cameras have advanced image analysis functions to analyze, collect and manage information.

Below are some of the basic parameters of Hikvision DS-NVR7104NI-SN/P

RECORDING
  • support 4 IP cameras (max 2 Mpx)
  • maximum bandwidth video from cameras 25Mbit/s
  • independent configuration of resolution, frame rate, bit rate and video quality for each channel
  • each channel supports two independent streams
  • many types of recording: manual, continuous, alarm, motion detection,
  • works with cameras other companies required to comply ONVIF, PSIA
PLAY
  • two channels of simultaneous playback in 1080p
  • Output bandwidth 40Mbit/s
  • function pentaplex
  • Pause, Reverse, the release accelerated video playback, jump to the front, back, during playback, support timeline with the mouse
  • the ability to zoom during playback
  • intelligent search for the specified area
CONNECTORS, PORTS
  • 1x RJ45 10/100 Mbit
  • 4x PoE RJ45 10/100Mbit (max power 35W PoE)
  • VGA and HDMI (simultaneous operation) maximum resolution of 1920x1080 pixels
  • 1x SATA (SATA HDD up to 4TB)
  • 2x USB 2.0
  • audio in / out RCA
POWER DIMENSIONS
  • power supply: 48V DC
  • operating temperature: -10°C...+ 55°C
  • size: 255x205x45mm
  • weight: <1kg
SOFTWARE
The recorder is running Linux, the interface is modern and functions are distributed in an intuitive way, the search for and configuration will not make trouble for even novice users. Support is provided current web browsers and DVR service with their level is carried out without the use of mechanisms ActiveX controls.

For remote operation of the recorder is free software iVMS-4200 for its help we can manage 256 DVR Hikvision. The program allows you to create accounts with varying degrees of powers, full for the administrator and individual limited powers for the guest.

STORAGE AND COMPRESSION
NVR can connect one SATA hard disk with a capacity of up to 4TB. Memory expansion is possible by the support network drives (NAS).
The image is recorded using H.264 compression which allows to obtain the best image quality while minimizing network bandwidth utilization. At the time, memory overflow data is automatically overwritten in order from the oldest, it prevents the loss newest material. The recorder has a USB port to which you can connect an external hard disk or pen drive to copy the selected fragments VIDEO or archiving.

The recorder works perfectly with cameras by HIKVISION.

Each channel can set the parameters recorded after the event. for example, when motion is detected in a defined area may be an increase in recording speed and bitrate. In the remaining time continuous recording parameters can be substantially lower by what the volume of material on the HDD is significantly reduced and the storage of the material is increased.
Specification
The number of supported cameras: 4,
Video compression standard: H.264 / MJPEG
Video output:
1 x HDMI
1 x VGA
Move detector: Yes
Recording frame rate: max 2Mpx
Compatybility: ONVIF, PSIA
HDD disc: Brak
Supply voltage: 48V DC
Operating temperature: -10 ... +55°C
Download
Datasheet 0.57 MB
User Manual 7.9 MB
