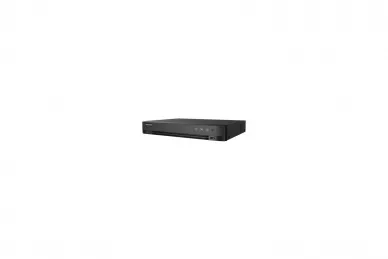

Hikvision iDS-7204HTHI-M1/S

441,52 EUR including 23.00% VAT
Product code: #35717
Manufacturer: Hikvision
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision iDS-7204HTHI-M1/S


Technical parameters:

Motion Detection 2.0

  • Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;

Perimeter Protection

  • Line Crossing Detection/Intrusion Detection: 4-ch

Recording

  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate: Main stream:8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Video Bitrate: 32 Kbps to 16 Mbps
  • Dual-stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bitrate: 64 Kbps

Video and Audio

  • IP Video Input: 4-ch (up to 8-ch) Up to 8 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input: 4-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • Total Bandwidth: 96 Mbps
  • HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • CVBS Input: PAL/NTSC
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Synchronous playback: 4-ch
  • VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • HDTVI Input: 8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • Video Output Mode: HDMI/VGA independent output
  • AHD Input: 5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input: 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)4-ch via coaxial cable
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

  • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection: 32
  • Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

  • SATA: 1 SATA interface
  • Capacity: Up to 10 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex)
  • USB Interface: Front panel: 1 × USB 2.0Rear panel: 1 × USB 2.0
  • Alarm In/Out: N/A (optional to support)

General

  • Power Supply: 12 VDC, 2 A
  • Consumption: ≤ 10 W (without HDD)
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity: 10% to 90%
  • Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Weight: ≤ 1.8 kg (without HDD, 4.0 lb.)
