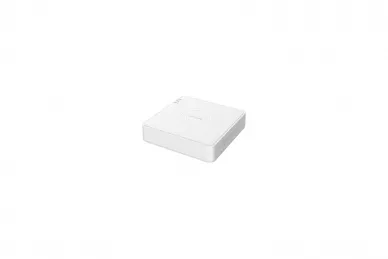

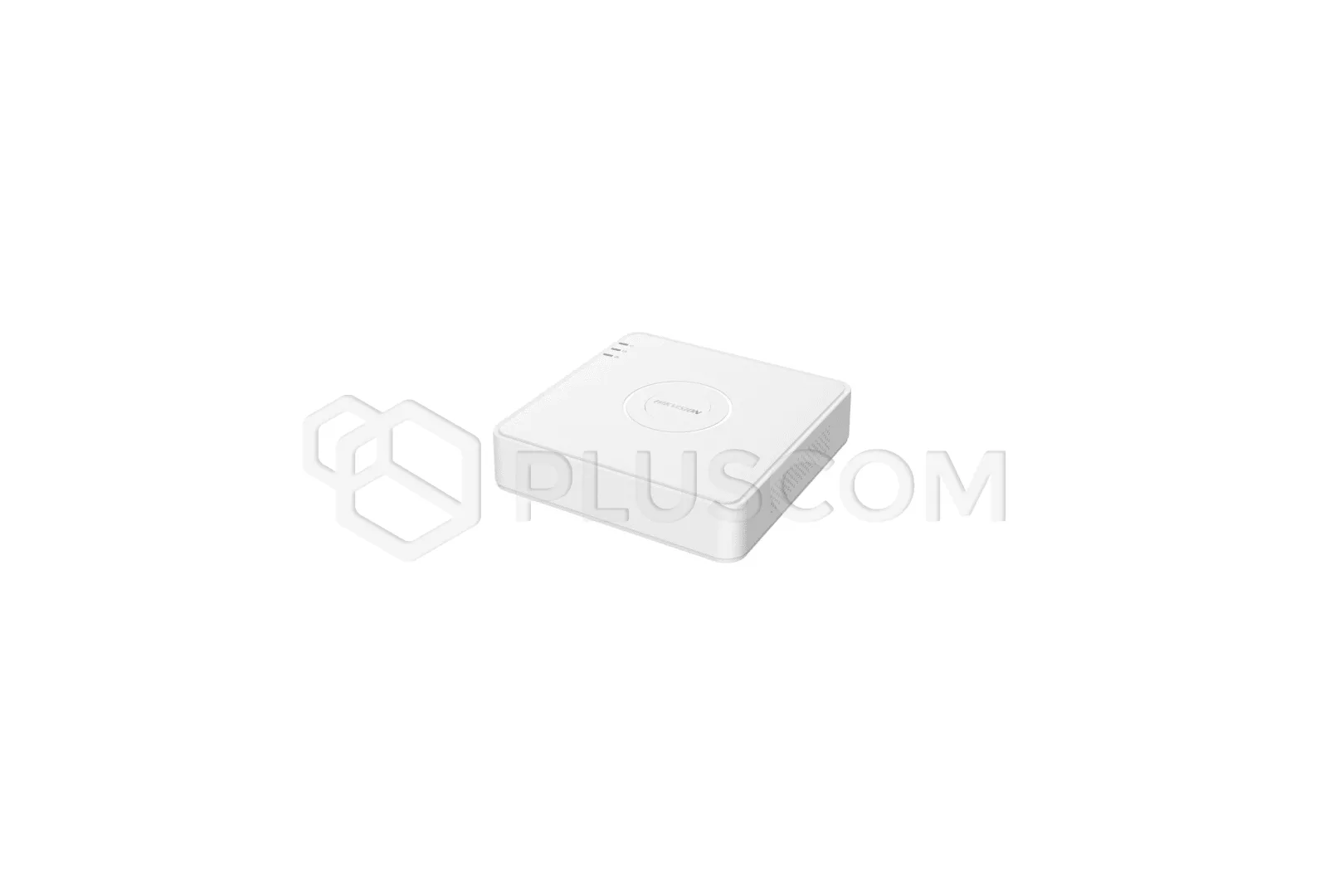

Hikvision iDS-7104HQHI-M1/S(C)

Hikvision iDS-7104HQHI-M1/S(C)

Technical parameters:

Motion Detection 2.0

• Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis: Up to 2-ch

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: When 1080p Lite mode is not enabled: 4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode is enabled: 4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
• Frame Rate: Main stream:When 1080p Lite mode is not enabled: For 4 MP stream access:4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fpsFor 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)When 1080p Lite mode is enabled: 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• Video Bitrate: 32 Kbps to 6 Mbps
• Dual-stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video and Audio

• IP Video Input: 1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 MbpsUp to 6 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input: 4-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60*: The 3 MP signal input is only available for channel 1.
• AHD Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: Support
• HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)4-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback: 4-ch

Network

• Total Bandwidth: 72 Mbps
• Remote Connection: 32
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 10 TB capacity for each disk
• Alarm In/Out: N/A
• USB Interface: Real panel: 2 × USB 2.0

General

• Power Supply: 12 VDC, 1.5 A
• Consumption: ≤ 8 W (without HDD)
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• Weight: ≤ 1 kg (without HDD, 2.2 lb.)
