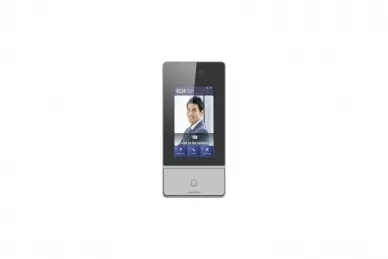

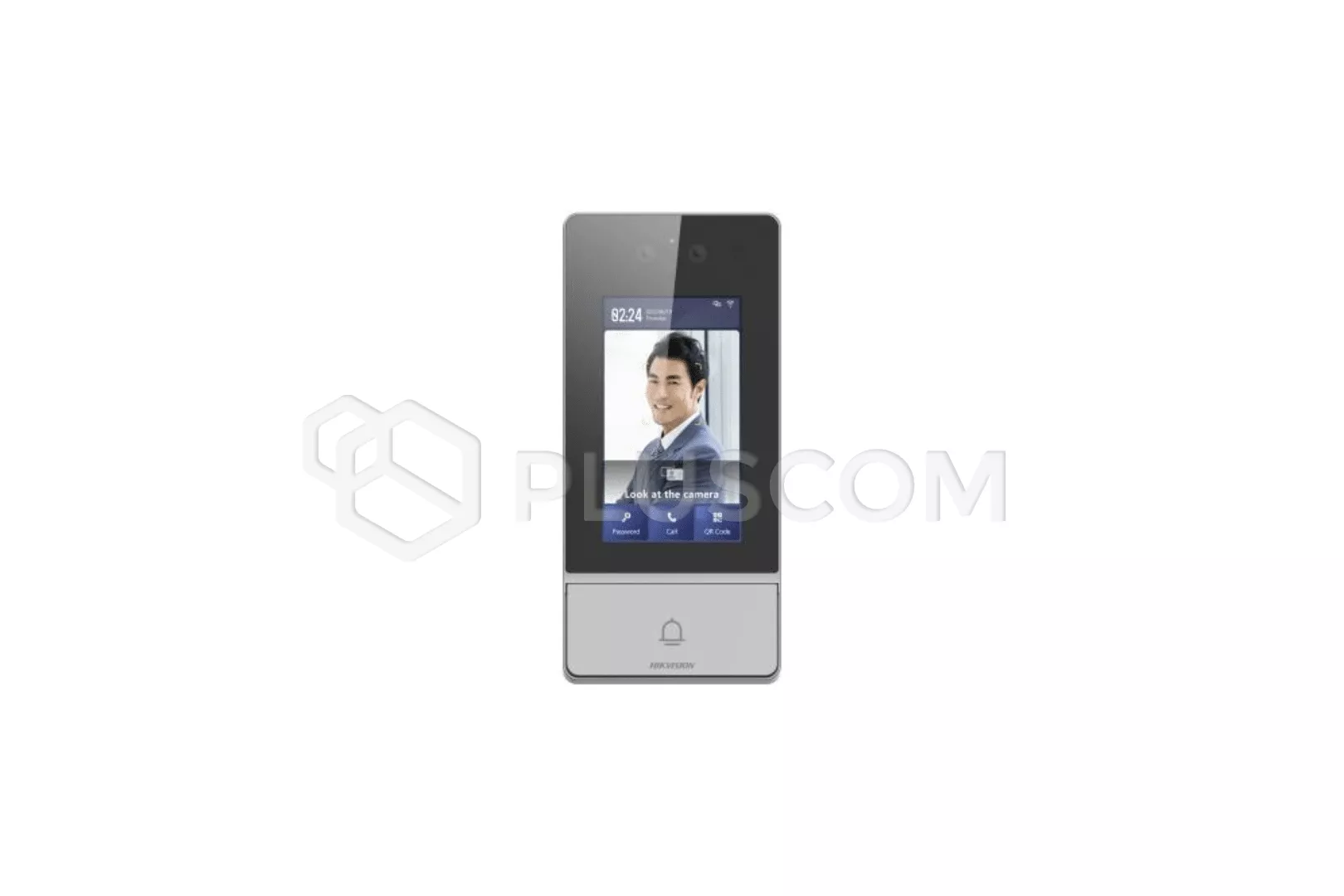

Hikvision DS-KV9503-WBE1

850,98 EUR including 23.00% VAT
Product code: #35587
Manufacturer: Hikvision
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-KV9503-WBE1


Technical parameters:

System parameters

  • Operating system: Linux
  • ROM: 4 GB
  • RAM: 1 GB
  • CPU: Embedded Processor

Display parameters

  • Screen size: 4.3-inch
  • Operation method: Touch screen
  • Type: Colorful IPS
  • Resolution: 800 × 480
  • Brightness: 425 cd/m²

Video parameters

  • Supplement light: Low illumination, IR supplement lights
  • Video standard: Main stream and sub stream: H.264Third stream: H.265
  • Lens: 2
  • FOV: Horizontal: 88°, Vertical: 44°
  • WDR: Support
  • Resolution: 2x2 MP

Audio parameters

  • Audio input: Built-in omnidirectional microphone
  • Audio compression standard: G.711 U, G.711 A
  • Audio output: Built-in loudspeaker
  • Audio compression bitrate: 64 Kbps
  • Audio quality: Noise suppression and echo cancellation
  • Volume adjustment: Adjustable

Capacity

  • Fingerprint capacity: /
  • User capacity: 20000(Up to 20000 contacts can be added to the device)
  • Face capacity: 10000
  • Card capacity: 100000
  • Linked indoor station capacity: 500
  • Event capacity: /
  • Sub door station capacity: 16

Network parameters

  • Communication protocol: TCP/IP, RTSP
  • Wired network: 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi: Wi-Fi 802.11 b/g/n
  • Bluetooth: Reserved
  • 3G/4G: /

Authentication

  • Card reading frequency: 13.56 MHz
  • Face recognition distance: 0.3 to 2 m
  • Face recognition accuracy rate: ≥ 99%
  • Face recognition duration: ＜ 0.2 s per person

Device interfaces

  • Alarm input: 4 (2 exit butttons and 2 door contacts by default)
  • Network interface: 1 RJ45
  • TAMPER: 1
  • Exit button: 2
  • RS-485: 1
  • USB: /
  • Wiegand: /
  • TF card: Reserved
  • Lock control: 2 relay
  • Door contact input: 2
  • Power interface: 1, 12 VDC input

General

  • Button: 1
  • Installation: Surface mounting
  • Indicator: 0
  • Weight: 0.490 kg
  • Protective level: IP65 & IK08
  • Working temperature: -40° C to 60° C (-40° F to 140° F)
  • Working humidity: 10% to 90%
  • Dimensions: 181.93 mm × 84.78 mm × 25.63 mm
  • Battery: /
  • Power supply: 12 VDC, 1.5 A
  • Application environment: Outdoor
  • Power consumption: ≤ 6 W
  • Language: English,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
