Hikvision DS-KIS703-P IP video intercom kit, 2-wire

358,08 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #27275
Manufacturer: Hikvision
  • Monitor: DS-KH6320Y-WTPE2
  • External panel: DS-KV8103Y-IMPE2
  • Power supply: 1x 24V DC
  • Surface-mount housing: DS-KAB8103-IMEX
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

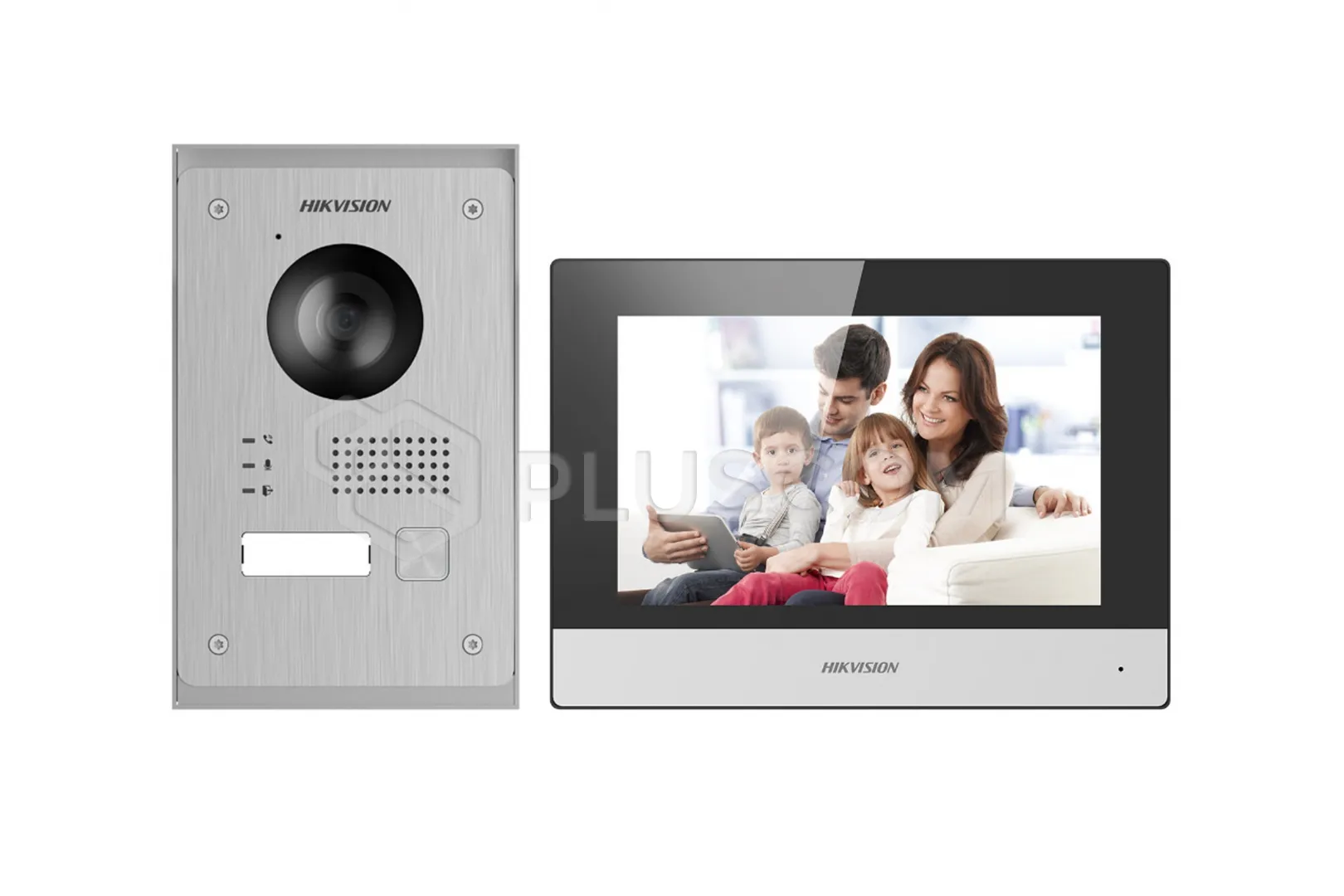

Hikvision DS-KIS703-P IP video intercom set, 2-wire


The set will find its application in single-family homes. The video intercom system allows you to talk to people who visit the property and the ability to grant them access to the premises. The device is also equipped with a function for leaving messages and the possibility of remote access using the application.

The set includes:
  • DS-KH6320Y-WTPE2 monitor with power supply
  • DS-KV8103Y-IMPE2 external panel
  • DS-KAB8103-IMEX surface-mount housing
Hikvision DS-KIS703-P IP video intercom kit, 2-wire

Hikvision DS-KIS703-P IP video intercom kit, 2-wire

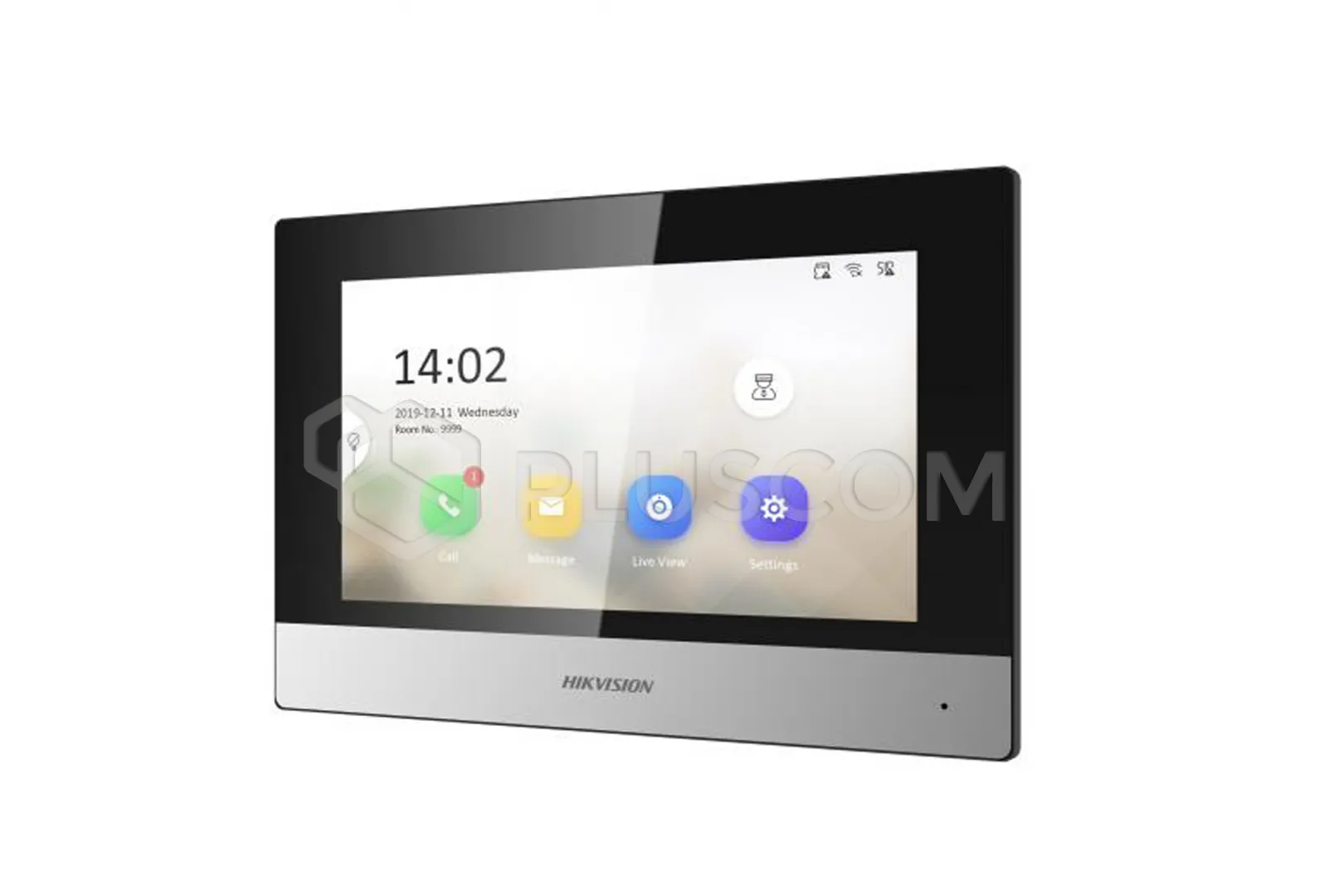

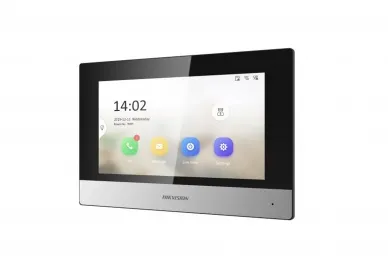

The DS-KH6320Y-WTPE2 hands-free monitor enables conducting a direct video conversation with people calling the subscriber from the level of the external door station. It is equipped with a 7-inch, color screen with a resolution of 1024 x 600 px, displaying a detailed and clear image in high quality. The intuitive graphical interface makes access to all monitor functions quick and easy, and using it is convenient and pleasant.
Monitor: DS-KH6320Y-WTPE2

Monitor: DS-KH6320Y-WTPE2


FEATURES:
  • hands-free monitor
  • display: 7" TFT LCD (1024×600px)
  • touch screen and function buttons
  • operation via graphical interface
  • network interface: two-wire
  • built-in tenant list and call list
  • saving photos, recordings and audio-video messages
  • possibility to display images from the door station and IP cameras
  • functions: SOS, do not disturb, intercom
  • alarm inputs: 8x
  • RS-485 interface
  • no microSD card slot
  • dimensions: 200×23.6×140mm
  • power supply: 24V DC (power supply included)

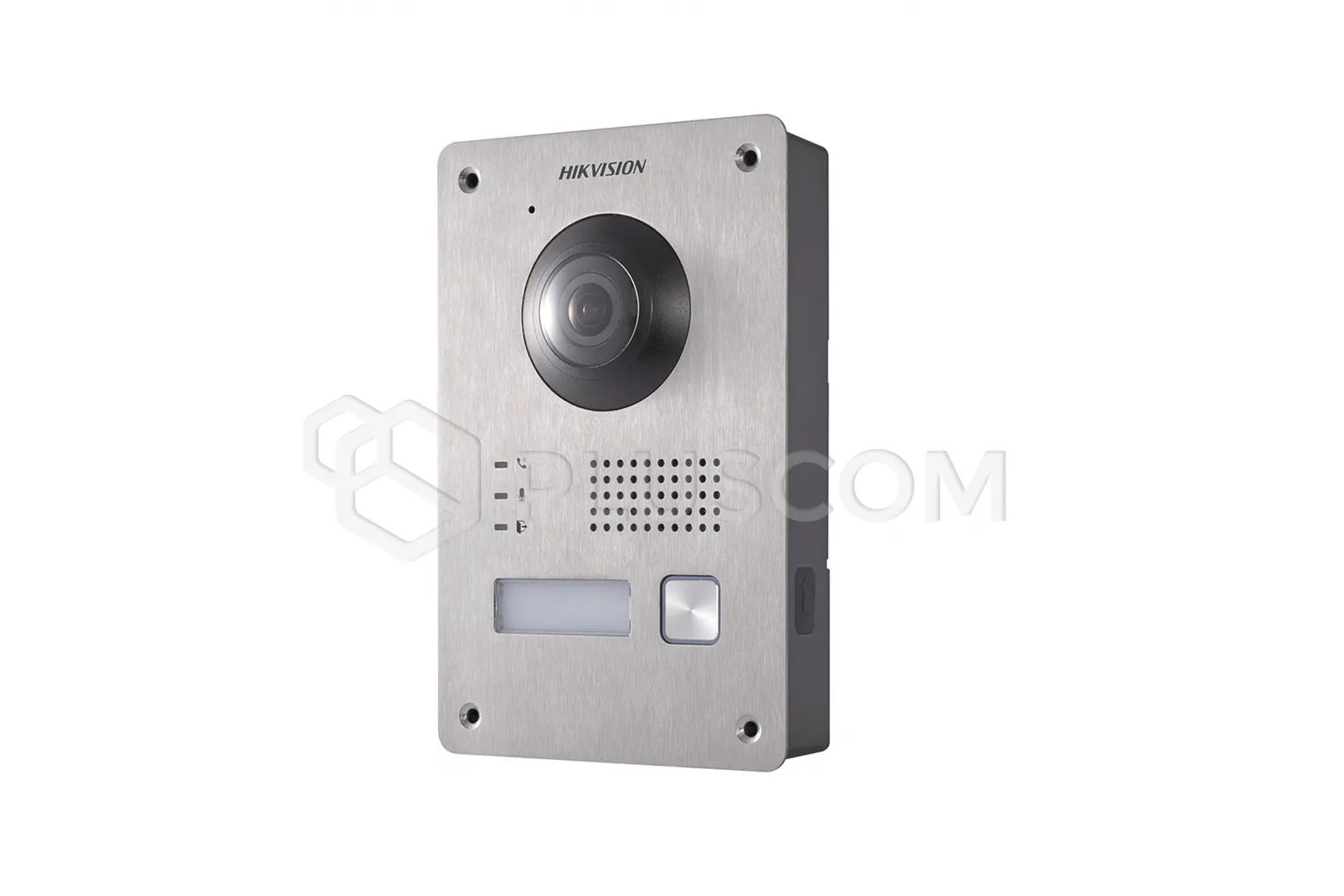

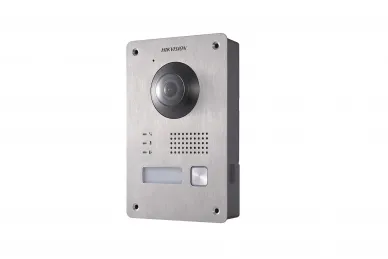

DS-KV8103Y-IMPE2 is a high-quality gate station for Hikvision IP video intercoms, which will allow you to take care of the security of each property in a great way. The 1-subscription gate station is a device dedicated to single-family homes. The device consists of a wide-angle camera with a resolution of 2Mpx @1920x1080, a two-way voice communication system and a call button.
External panel: DS-KV8103Y-IMPE2

External panel: DS-KV8103Y-IMPE2


FEATURES:
  • image sensor: 2Mpx CMOS
  • lens: fisheye
  • angle of view:
    • horizontal: 144°
    • vertical: 95°
  • supported resolution: 1920×1080 (1080p)
  • network interface: two-wire
  • backlight: IR LEDs
  • built-in name card holder with LED backlight
  • number of call buttons: 1x
  • alarm inputs: 2x
  • relay outputs: 2x NO/NC
  • programming: iVMS-4200
  • support from mobile devices: Hik-Connect
  • housing: aluminum alloy (IP65)
  • power output for electric locks: 12V DC / 0.5A
  • power supply: 24V DC (power supply from monitor possible)
  • dimensions: 110×31×169mm

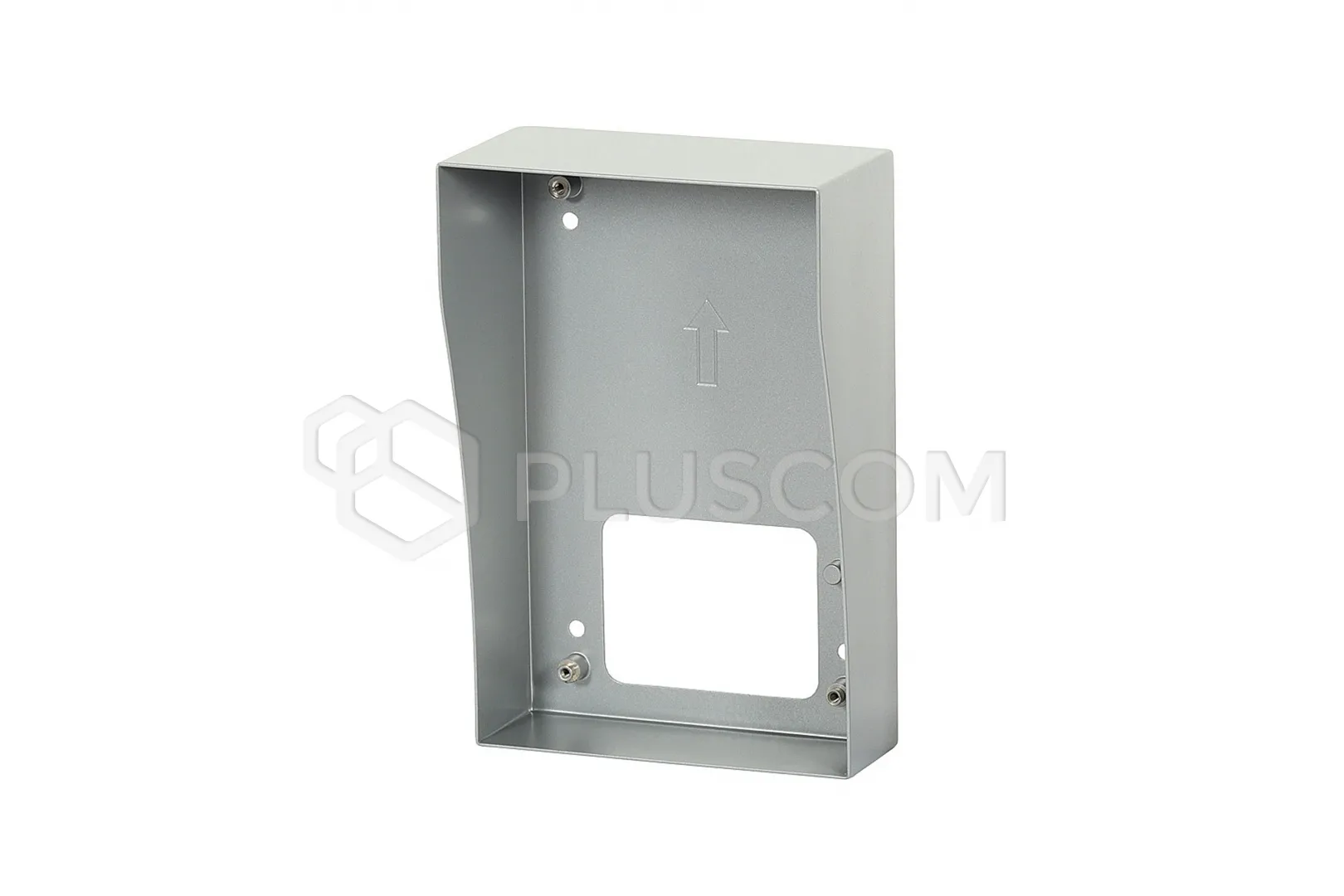

The DS-KAB8103-IMEX housing designed for two-wire door stations provides a high degree of protection. It is made of stainless steel and allows for surface mounting of the door station.
Surface-mount housing: DS-KAB8103-IMEX

Surface-mount housing: DS-KAB8103-IMEX
