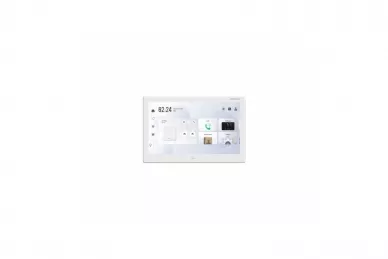

Hikvision DS-KH9510-WTE1(B)

Hikvision DS-KH9510-WTE1(B)

Technical parameters:

System parameters

• Operating system: Embedded Android operation system
• ROM: 8 GB Emmc
• RAM: 2 GB
• CPU: Embedded processor

Display parameters

• Screen size: 10.1-inch
• Operation method: Capacitive touch screen
• Type: Colorful IPS
• Resolution: 1024 × 600

Video parameters

• Lens: /
• Resolution: /
• FOV: /
• WDR: /
• Video compression standard: /
• Focal length: /

Audio parameters

• Audio compression standard: G.711 U, G.711 A
• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker
• Audio compression bitrate: 64 Kbps
• Audio quality: Noise suppression and echo cancellation
• Volume adjustment: Adjustable

Capacity

• Event capacity: 200
• Notice capacity: 16
• Linked indoor extensions capacity: 5

Network parameters

• Communication protocol: TCP/IP, SIP, RTSP
• Wired network: Support
• Wi-Fi standard: Wi-Fi 802.11 b/g/n
• Bluetooth version: /
• 3G/4G standard: /
• Zigbee: /

Device interfaces

• Alarm input: 8
• Network interface: 1 RJ-45 10/100 Mbps self-adaptive
• TAMPER: /
• RS-485: 1
• TF card: Reserverd
• Alarm output: 1 relay output, 1 alarm output
• Power interface: 1

General

• Button: /
• Installation: Surface mounting
• Indicator: /
• Weight: Without package: 875 gWith package: 1060 g
• Protective level: /
• Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working humidity: 10% to 90%
• Dimensions: 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
• Battery: /
• Power supply: IEEE802.3af, standard PoE12 VDC, 1 A
• Application environment: Indoor
• Power consumption: ≤ 8 W
• Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Norwegian, Danish
