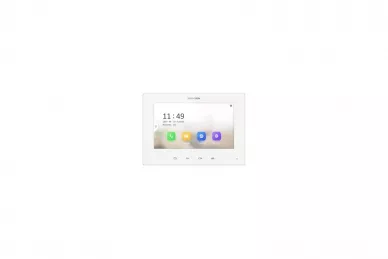

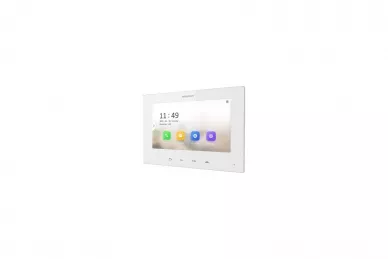

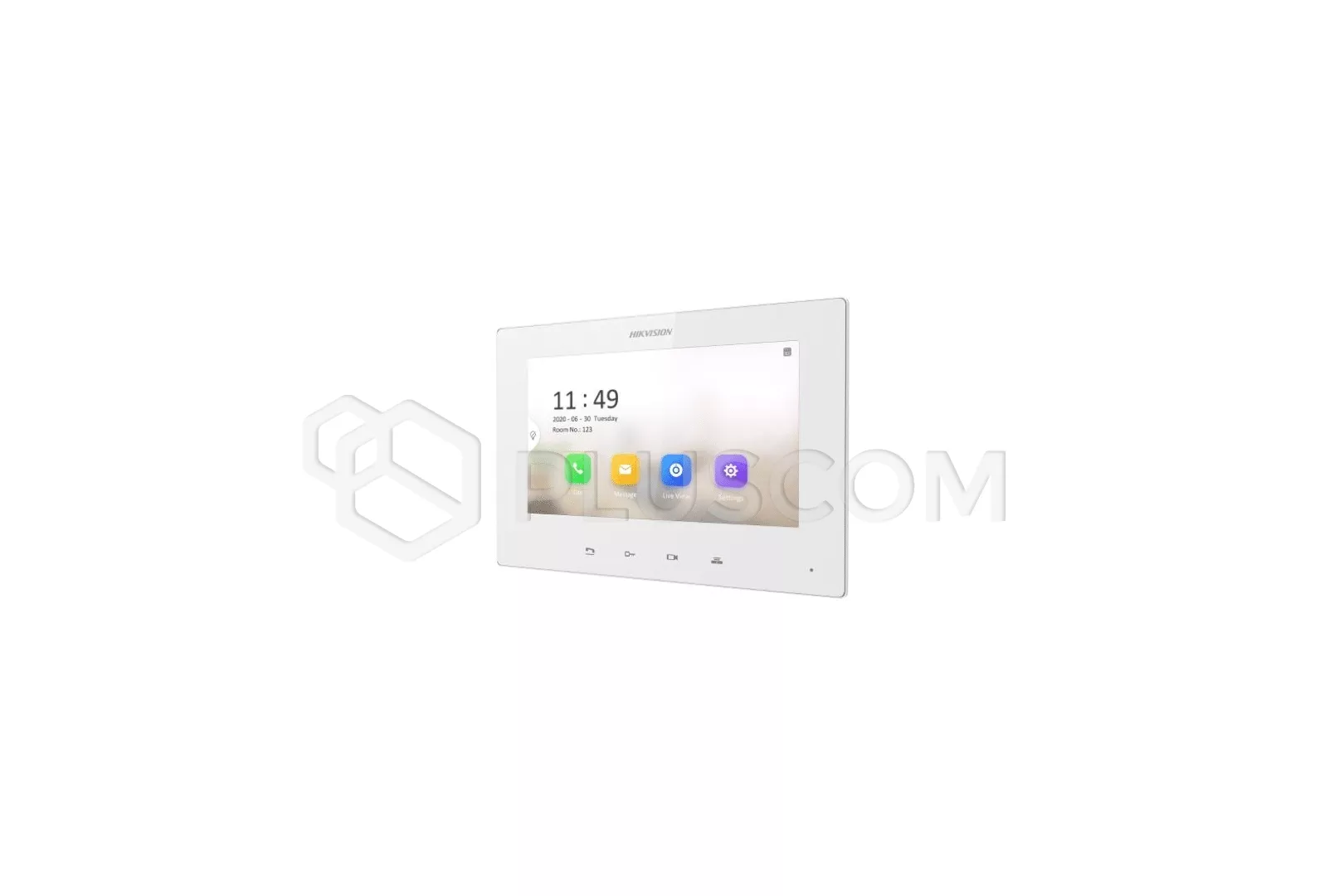

Hikvision DS-KH6220-LE1

Hikvision DS-KH6220-LE1

Technical parameters:

System parameters

• Operating system: Embedded RTOS operation system
• ROM: 16 MB
• RAM: 64 MB
• CPU: Embedded processor

Display parameters

• Screen size: 7-inch
• Operation method: Physical botton
• Type: TFT LCD
• Resolution: 1024 × 600

Video parameters

• Lens: /
• Resolution: /
• FOV: /
• WDR: Not supported.
• Video compression standard: /
• Focal length: /

Audio parameters

• Audio compression standard: G.711 U
• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker
• Audio compression bitrate: 64 Kbps
• Audio quality: Noise suppression and echo cancellation
• Volume adjustment: Adjustable

Capacity

• Event capacity: 200
• Notice capacity: 16
• Linked indoor station capacity: 5
• Linked indoor extensions capacity: 8

Network parameters

• Communication protocol: TCP/IP, RTSP
• Wired network: Support
• Wi-Fi standard: /
• Bluetooth version: /
• 3G/4G standard: /
• Zigbee: /

Device interfaces

• Alarm input: 8
• Network interface: 1 RJ-45 10/100 Mbps self-adaptive
• TAMPER: /
• RS-485: /
• USB: /
• TF card: /
• Alarm output: /
• Power interface: 1

General

• Button: 4
• Installation: Flush mounting, surface mounting
• Indicator: /
• Weight: With package: 683 gWithout package: 355 g
• Protective level: /
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 10% to 90%
• Dimensions: 200 mm × 140 mm × 23.1 mm (7.87" ×5.51" × 0.69")
• Battery: /
• Power supply: 12 VDC or standard POE
• Application environment: Indoor
• Power consumption: ≤ 6 W
• Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Czech, Ukrainian, Serbian
